Front Axle Pair with Wheel Bearings for Arctic Cat 400 450 500 550 650 700 1000

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
AC-145/AC-245/WB-1496/WB-1496

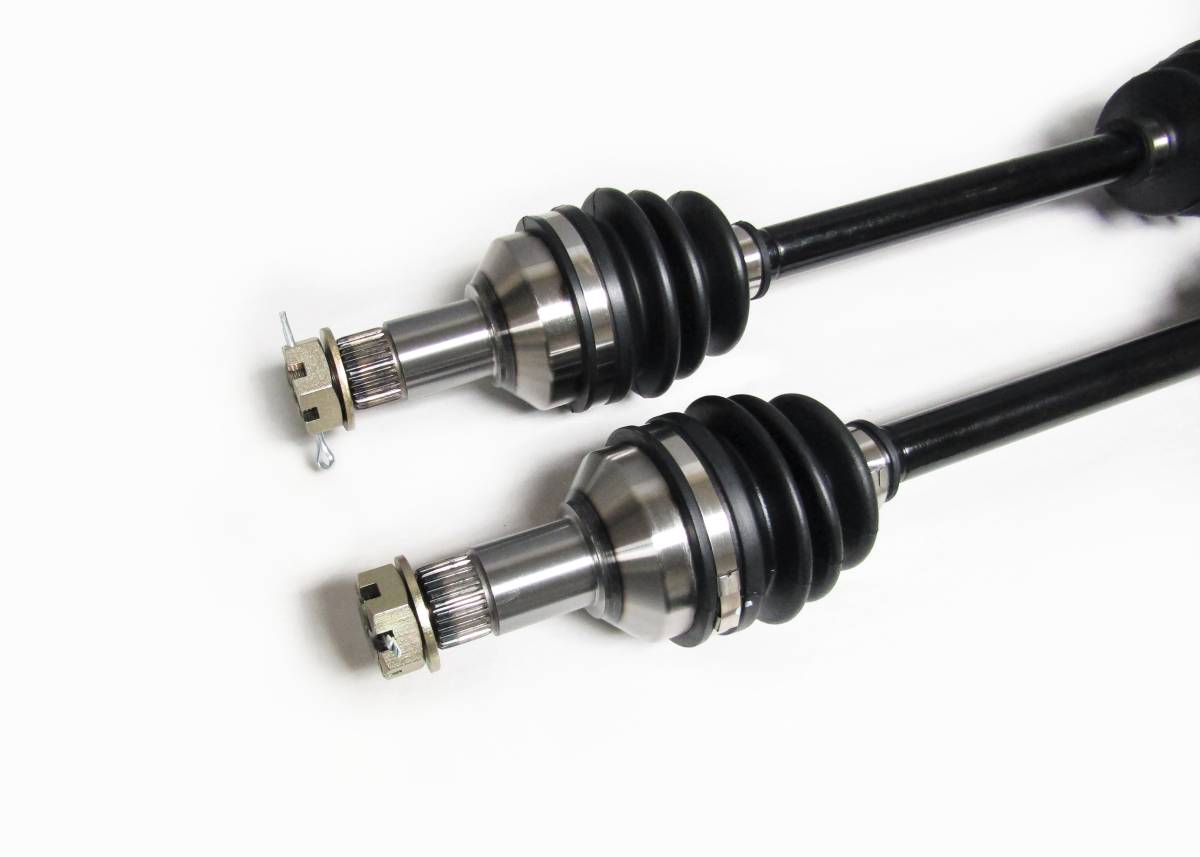

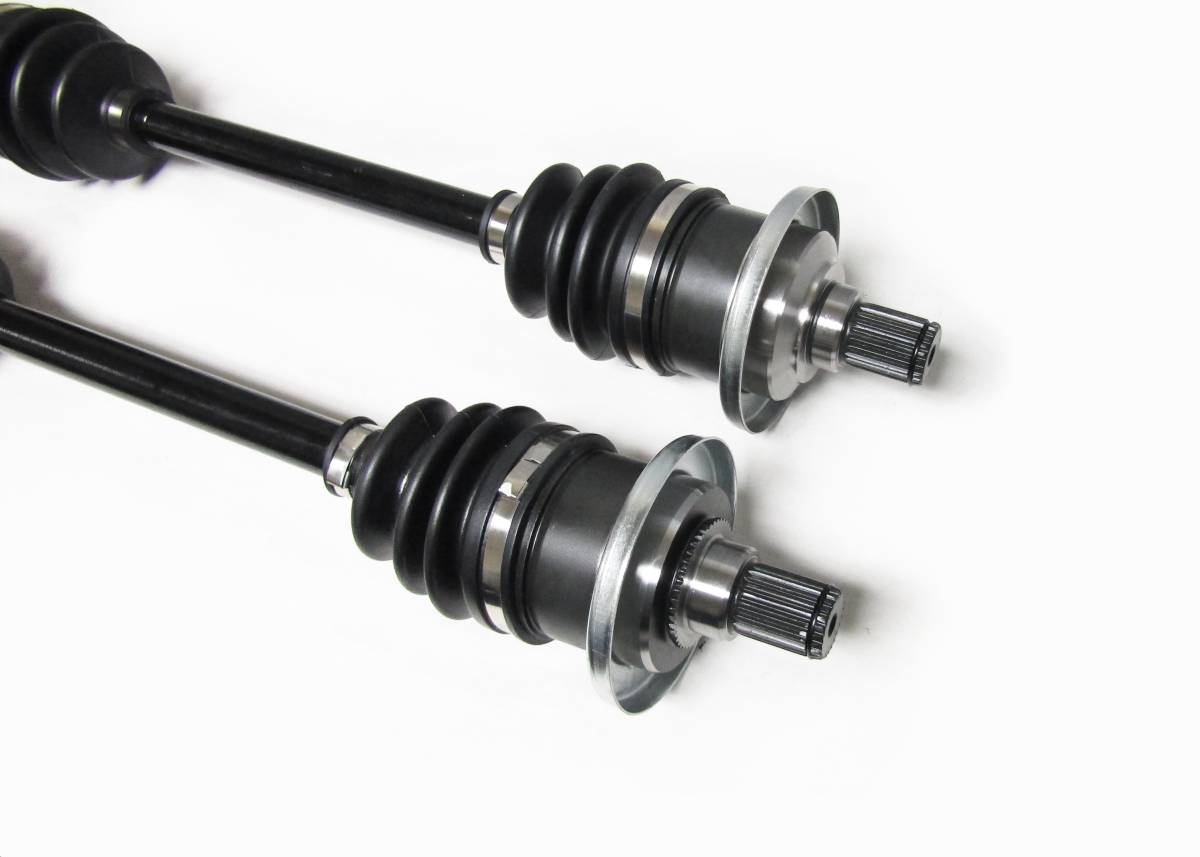

This is a set of new Front CV axles & wheel bearings for an Arctic Cat ATV.

They replace the following OEMs:

(axles) 1502-344, 1502-345, 0502-812, 1502-874, 1502-873, 0502-813

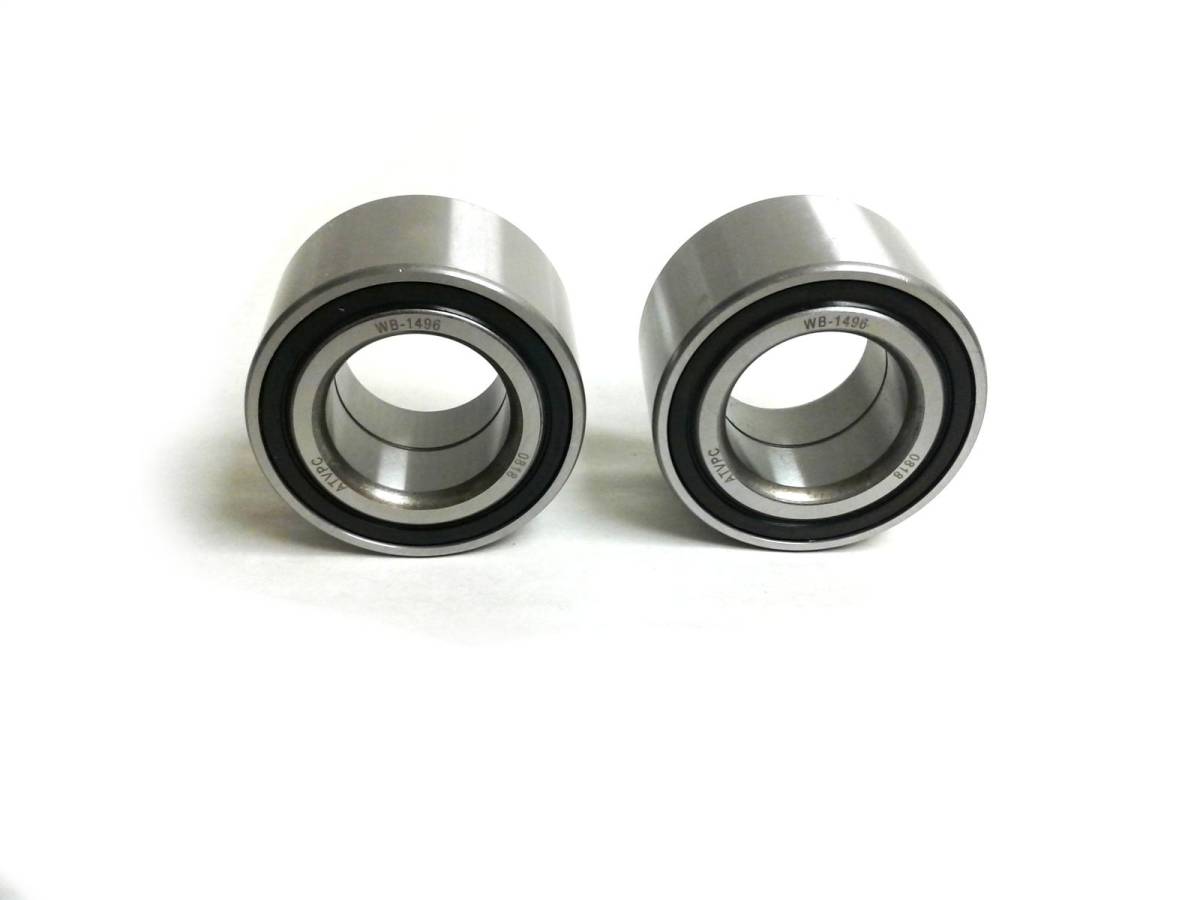

(bearings) 1402-027, 1402-809

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: Left 550 mm, Right 548 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $139.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2011Arctic Cat4004x4 TRV
2010Arctic Cat4004x4 TRV Automatic
2009Arctic Cat4004x4 TRV Automatic
2008Arctic Cat4004X4
2008Arctic Cat4004x4 Automatic
2007Arctic Cat4004X4
2007Arctic Cat4004x4 Automatic
2007Arctic Cat4004x4 LE Automatic
2006Arctic Cat4004X4
2006Arctic Cat4004x4 Automatic
2006Arctic Cat4004x4 LE Automatic
2006Arctic Cat4004x4 M4 Automatic
2014Arctic Cat5504X4
2014Arctic Cat5504x4 Limited
2014Arctic Cat5504x4 TRV Limited
2014Arctic Cat5504x4 TRV XT
2014Arctic Cat5504x4 XT
2013Arctic Cat5504x4 CR
2013Arctic Cat5504x4 Limited
2013Arctic Cat5504x4 TRV Limited
2013Arctic Cat5504x4 TRV XT
2013Arctic Cat5504x4 XT
2012Arctic Cat5504x4 EFI
2012Arctic Cat5504x4 GT EFI
2012Arctic Cat5504x4 LTD EFI
2012Arctic Cat5504x4 TRV Cruiser EFI
2012Arctic Cat5504x4 TRV GT EFI
2011Arctic Cat5504x4 H1 Automatic EFI
2011Arctic Cat5504x4 H1 LTD EFI
2011Arctic Cat5504x4 H1 TRV Automatic EFI
2011Arctic Cat5504x4 H1 TRV Cruiser EFI
2011Arctic Cat5504x4 H1 TRV GT EFI
2010Arctic Cat5504x4 H1 Automatic EFI
2010Arctic Cat5504x4 H1 LE Automatic EFI
2010Arctic Cat5504x4 H1 TRV EFI
2010Arctic Cat5504x4 TRV Automatic
2010Arctic Cat5504x4 TRV GT
2009Arctic Cat5504x4 Automatic
2009Arctic Cat5504x4 LE Automatic
2009Arctic Cat5504x4 M4 Automatic
2009Arctic Cat5504x4 TRV Automatic
2009Arctic Cat5504x4 TRV LE Automatic
2011Arctic Cat550S4x4 H1 EFI
2010Arctic Cat550S4x4 H1 EFI
2010Arctic Cat550S4x4 H1 LTD EFI
2010Arctic Cat550S4x4 H1 TRV GT EFI
2010Arctic Cat7004x4 Automatic EFI
2010Arctic Cat7004x4 H1 Automatic EFI
2010Arctic Cat7004x4 H1 LE Automatic EFI
2010Arctic Cat7004x4 H1 MudPro Automatic EFI
2010Arctic Cat7004x4 H1 TBX Automatic EFI
2010Arctic Cat7004x4 H1 TRV Automatic EFI
2010Arctic Cat7004x4 H1 TRV Cruiser Automatic EFI
2010Arctic Cat7004x4 Super Duty Diesel
2010Arctic Cat7004x4 TRV GT
2009Arctic Cat7004x4 Automatic EFI
2009Arctic Cat7004x4 H1 Automatic EFI
2009Arctic Cat7004x4 H1 LE Automatic EFI
2009Arctic Cat7004x4 H1 MudPro Automatic EFI
2009Arctic Cat7004x4 H1 SE Automatic EFI
2009Arctic Cat7004x4 H1 TRV Automatic EFI
2009Arctic Cat7004x4 TRV Cruiser EFI
2008Arctic Cat7004x4 Automatic Diesel
2008Arctic Cat7004x4 Automatic EFI
2008Arctic Cat7004x4 H1 SE Automatic EFI
2008Arctic Cat7004x4 M4 Automatic EFI
2008Arctic Cat7004x4 TRV Cruiser Automatic EFI
2008Arctic Cat7004x4 TRV LE Automatic EFI
2007Arctic Cat7004x4 Automatic Diesel
2007Arctic Cat7004x4 Automatic EFI
2007Arctic Cat7004x4 LE Automatic EFI
2006Arctic Cat7004x4 SE EFI
2010Arctic Cat10004x4 H2 MudPro Automatic EFI
2010Arctic Cat10004x4 TRV Automatic EFI
2010Arctic Cat10004x4 TRV Cruiser
2009Arctic Cat10004x4 H2 TRV Cruiser EFI
2009Arctic Cat10004x4 TRV
2010Arctic CatThunder Cat4x4 Automatic EFI
2010Arctic CatThunder Cat4x4 LE Automatic EFI
2009Arctic CatThunder Cat4x4 SE Automatic EFI
2008Arctic CatThunder Cat4x4 Automatic
2008Arctic CatThunder Cat4x4 H2 SE Automatic EFI

Product Notes

  • Fits 2006-2011 400, 2013-2014 TRV 400, 2009-2012 450, 2006-2014 500, 2009-2014 550, 2006-2011 650, 2006-2014 700, 2009-2011 1000 4x4.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Inboard CV joint spline count: 24 (both), Outboard CV joint spline count: 27 (both), Compressed overall axle length: Left 550 - mm, Right - 548 mm * Replaces Arctic Cat OEM # (axles) 1502-345, 0502-813, 0502-812, 1502-344, 1502-874, (bearings) 1402-027, 1402-809.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

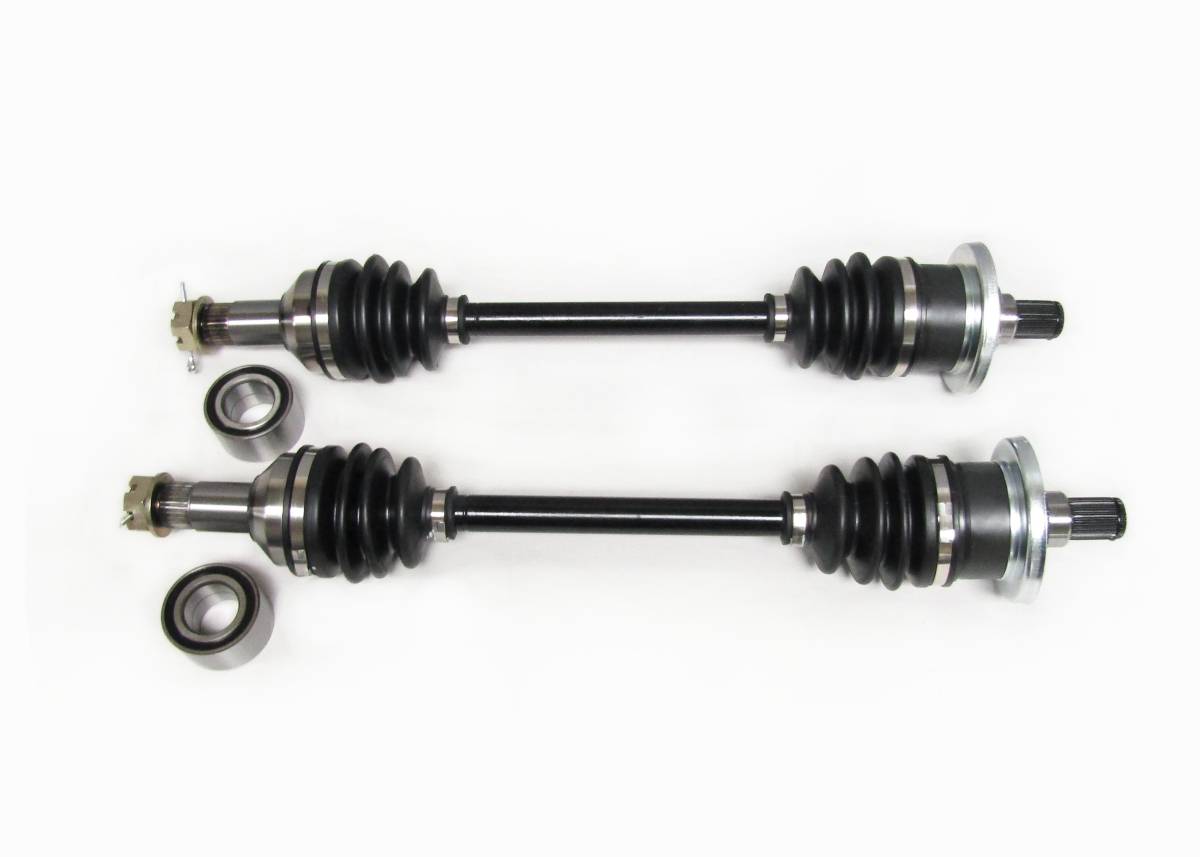

  • 2 CV axles & 2 wheel bearings

    • Warranty

    1 year factory defect limited warranty
