CV Axle Set for Arctic Cat Wildcat 1000 2012-2015, 1502-774 1502-914

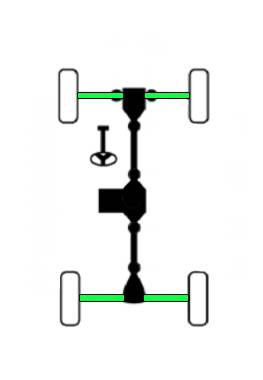

Location on vehicle: Rear,Front,Left,Right

AC-302/AC-302/AC-324/AC-324

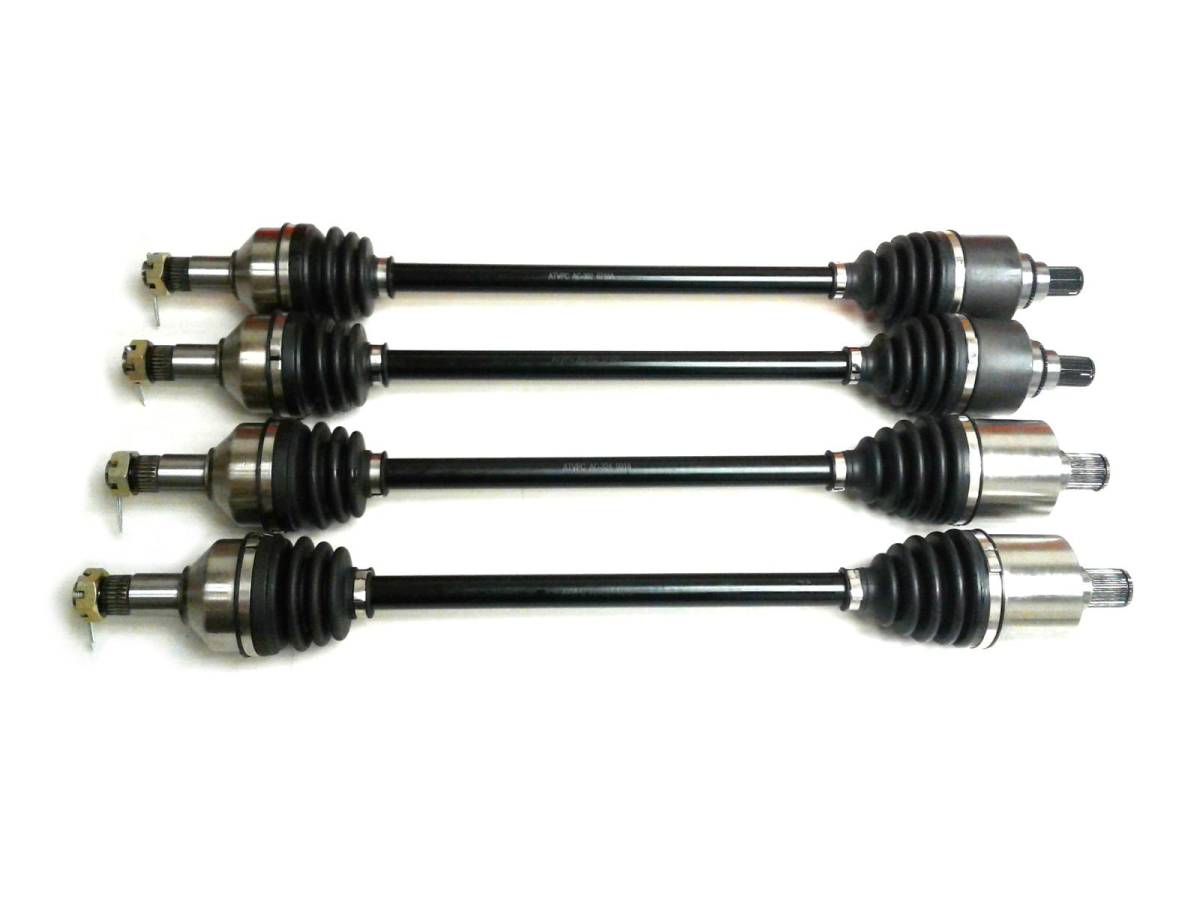

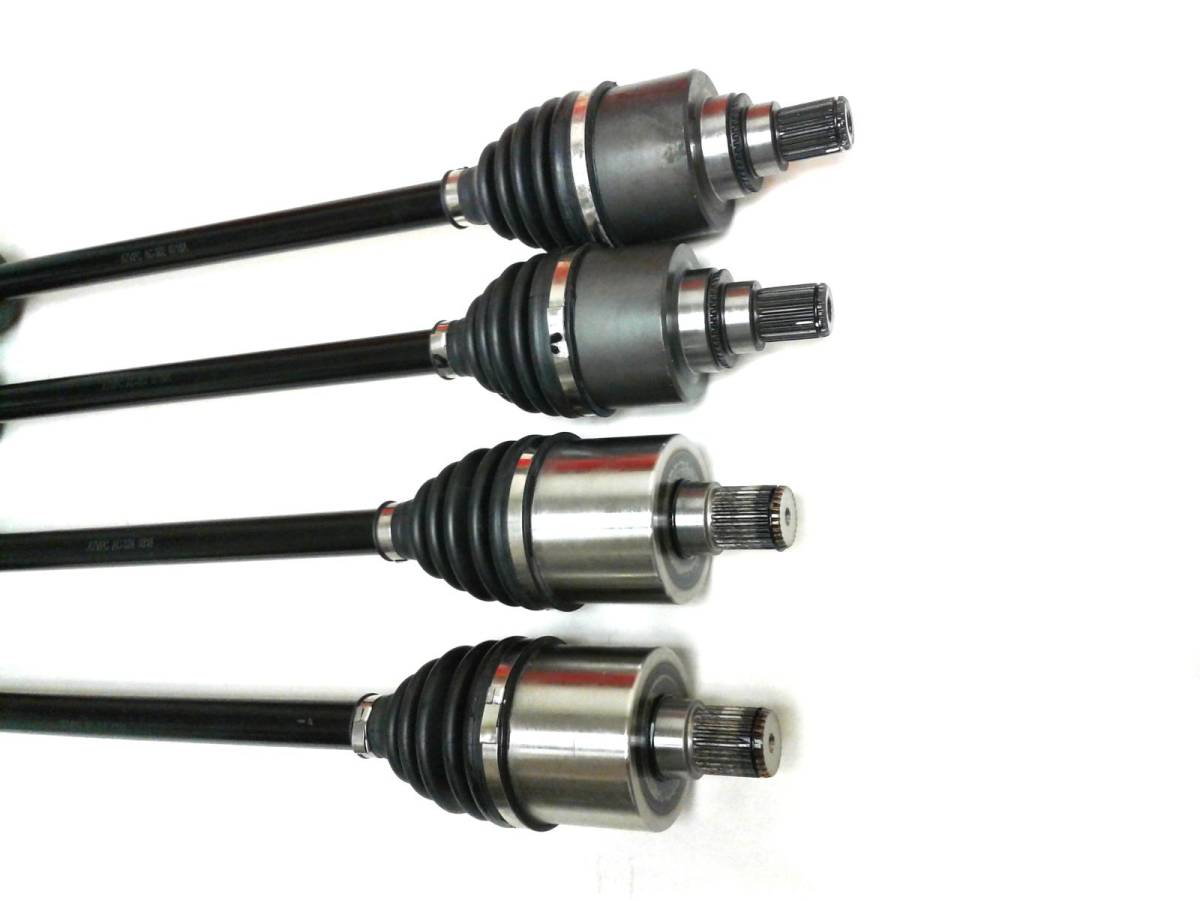

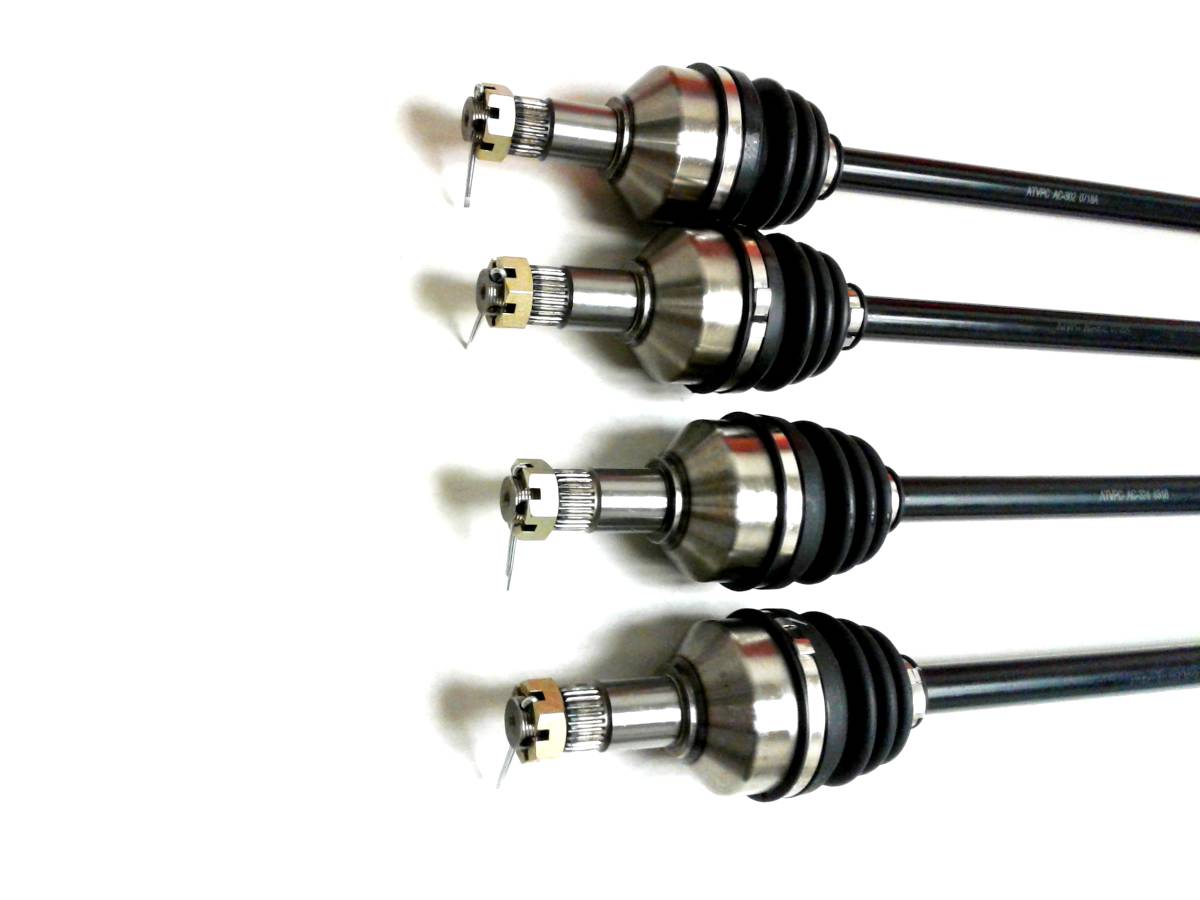

This is a set of new Front & Rear CV axle shafts for an Arctic Cat UTV.

They fit the following 4x4 applications:

2012-2015 ... Wildcat 1000

2013-2014 ... Wildcat 4 1000

2013-2015 ... Wildcat X 1000

2014-2015 ... Wildcat 4X 1000

*Not intended for use in lifted / modified suspensions

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts- 24/45, Rears- 27
  • Outboard CV joint spline count: Fronts- 27, Rears- 27
  • Compressed axle length: Fronts- 738 mm, Rears- 710.5 mm
  • Replaces Arctic Cat OEM # 1502-774 and 1502-914
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $289.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2012-2015 Arctic Cat Wildcat 1000 (all models including GT, STD, LTD, SE, X, 4, & 4X).
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed overall axle length: Fronts- 738 mm, Rears-710.5 mm, Inboard CV joint spline count: Fronts- 24/45 (both), Rears- 27, Outboard CV joint spline count: Fronts- 27, Rears- 27.
  • Replaces Arctic Cat OEM # 1502-774 & 1502-914.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2014Arctic CatWildcat 4 1000--
    2014Arctic CatWildcat 4 1000Limited
    2013Arctic CatWildcat 4 1000--
    2015Arctic CatWildcat 4X 10004x4 EPS
    2015Arctic CatWildcat 4X 10004x4 Limited EPS
    2014Arctic CatWildcat 4X 1000--
    2014Arctic CatWildcat 4X 1000Limited
    2015Arctic CatWildcat 10004x4 EPS
    2014Arctic CatWildcat 1000--
    2014Arctic CatWildcat 1000Limited
    2013Arctic CatWildcat 1000--
    2013Arctic CatWildcat 1000Limited
    2013Arctic CatWildcat 1000Walker Evans Limited
    2012Arctic CatWildcat 1000GT HO
    2015Arctic CatWildcat X 10004x4 EPS
    2015Arctic CatWildcat X 10004x4 Limited EPS
    2014Arctic CatWildcat X 1000--
    2014Arctic CatWildcat X 1000Limited
    2013Arctic CatWildcat X 1000--

    Details

    • AC-302/AC-302/AC-324/AC-324
    • AC-302/AC-302/AC-324/AC-324
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 56.0 lbs.
    • W10.0000” x H10.0000” x L28.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
