Front CV Axle Pair for Arctic Cat Wildcat 1000 2012-2015 1502-774

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
AC-302/AC-302

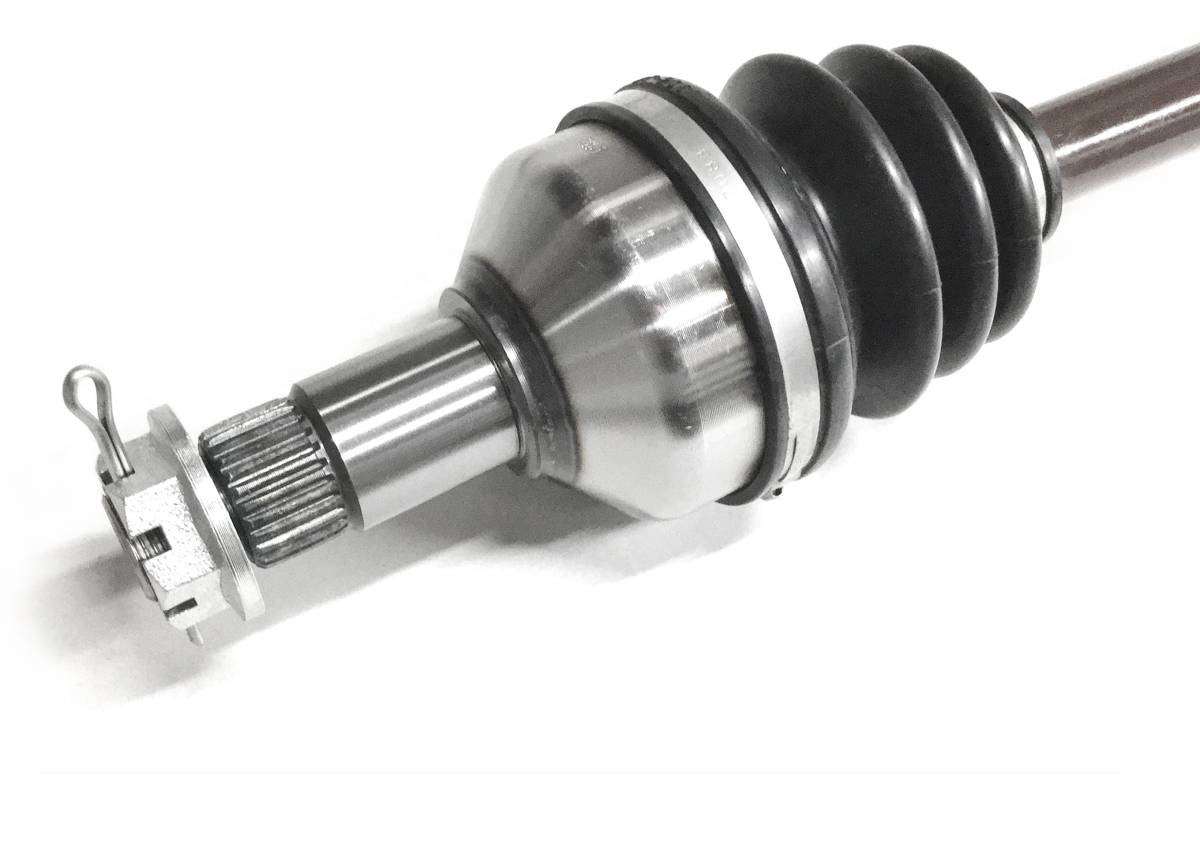

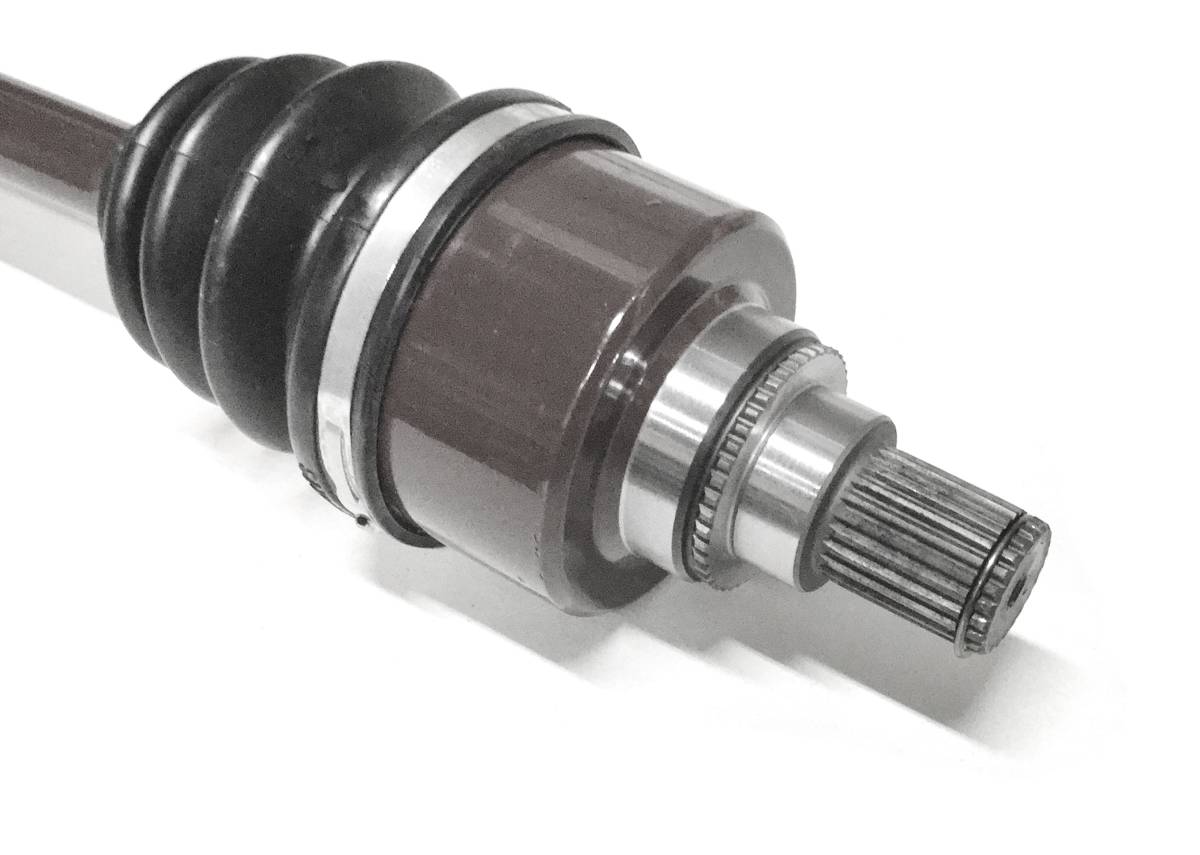

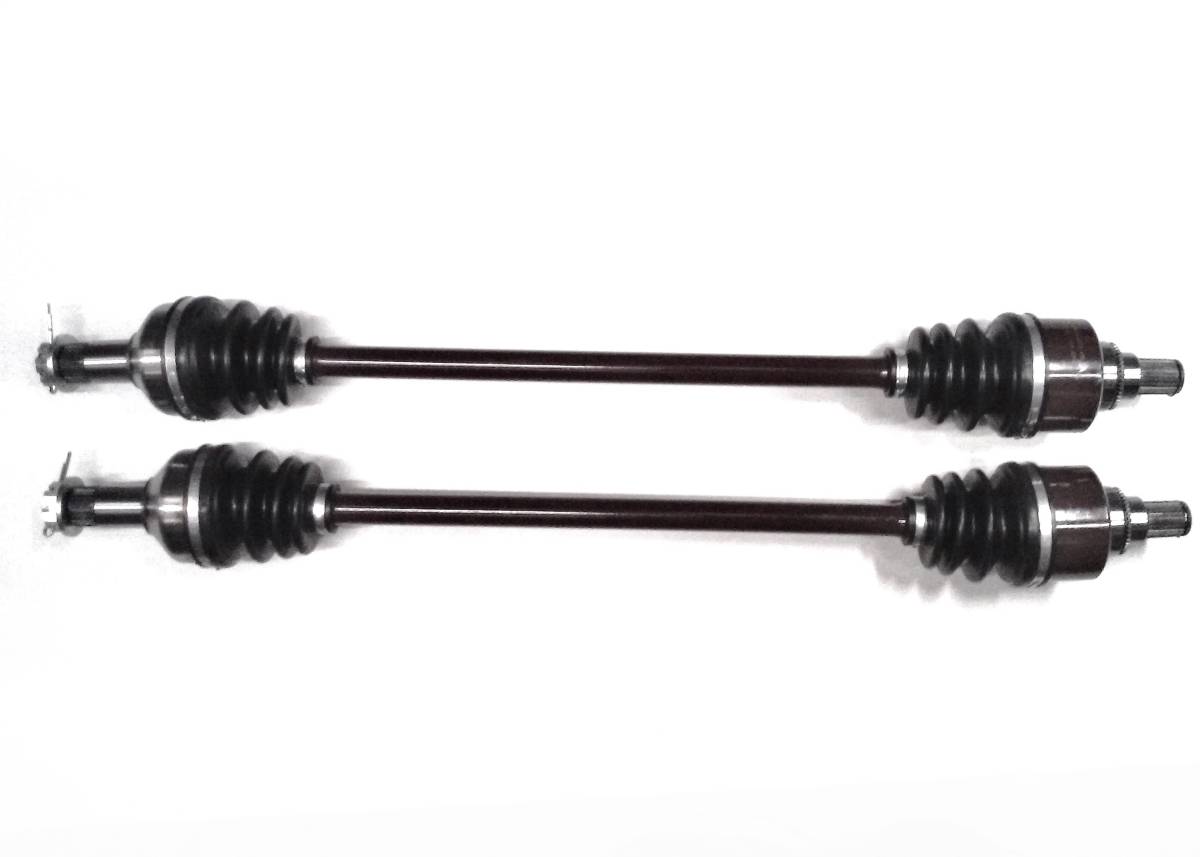

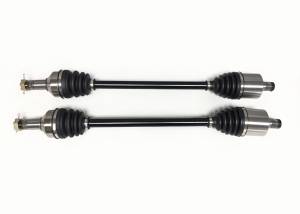

This is a pair of new Front CV axle shafts for an Arctic Cat UTV.

They fit the following 4x4 applications:

2012-2015 ... Wildcat 1000

2013-2014 ... Wildcat 4 1000

2013-2015 ... Wildcat X 1000

2014-2015 ... Wildcat 4X 1000

Front, Left & Right

*Not intended for use in lifted / modified suspensions

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 24/45 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed axle length: 738 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $129.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014Arctic CatWildcat 4 1000--
2014Arctic CatWildcat 4 1000Limited
2013Arctic CatWildcat 4 1000--
2015Arctic CatWildcat 4X 10004x4 EPS
2015Arctic CatWildcat 4X 10004x4 Limited EPS
2014Arctic CatWildcat 4X 1000--
2014Arctic CatWildcat 4X 1000Limited
2015Arctic CatWildcat 10004x4 EPS
2014Arctic CatWildcat 1000--
2014Arctic CatWildcat 1000Limited
2013Arctic CatWildcat 1000--
2013Arctic CatWildcat 1000Limited
2013Arctic CatWildcat 1000Walker Evans Limited
2012Arctic CatWildcat 1000GT HO
2015Arctic CatWildcat X 10004x4 EPS
2015Arctic CatWildcat X 10004x4 Limited EPS
2014Arctic CatWildcat X 1000--
2014Arctic CatWildcat X 1000Limited
2013Arctic CatWildcat X 1000--

Product Notes

  • Fits 2012-2015 Arctic Cat Wildcat 1000 (all models including GT, STD, LTD, SE, X, 4, & 4X).
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed overall axle length: 738 mm (both), Inboard CV joint spline count: 24/45 (both), Outboard CV joint spline count: 27 (both).
  • Replaces Arctic Cat OEM # 1502-774.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • AC-302/AC-302
    • AC-302/AC-302
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 25.6 lbs.
    • W5.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
