Front Left CV Axle & Wheel Bearing for Can-Am Commander 800 1000 Max 2011-2016

Location on vehicle: Front,Left

(0) Reviews: Write first review
CA-113/WB-1516

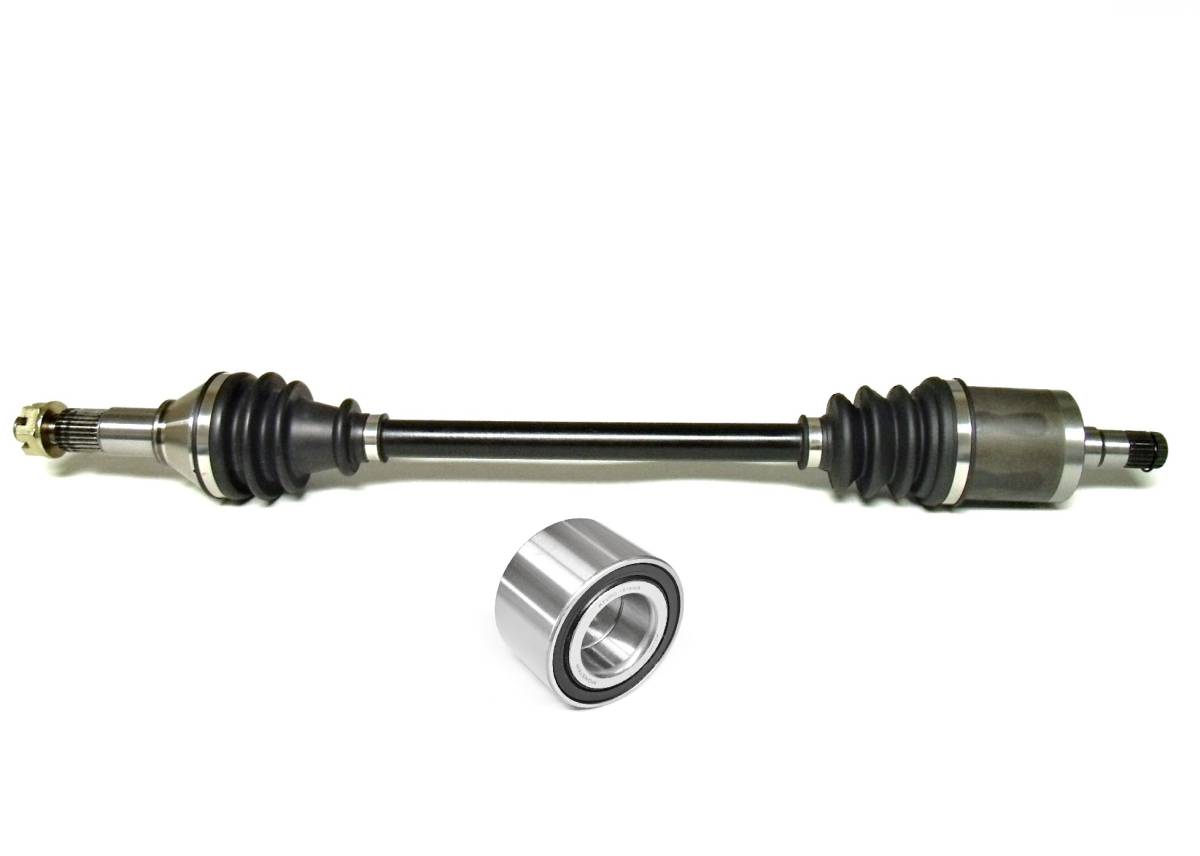

This is a new front, left CV axle & wheel bearing for a Can-Am UTV.

They will fit the following 4x4 applications:

2011-2016 ... Commander 800

2016 ... Commander Max 800

2011-2016 ... Commander 1000

2014-2016 ... Commander Max 1000

front, left / Driver's Side

*Not intended for use in lifted / modified suspensions

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • inobard CV joint spline count: 21
  • outboard CV joint spline count: 26
  • Compressed overall axle length: 642.5 mm
Limited Supply: only 1 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $85.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015Can-AmCommander 10004X4
2015Can-AmCommander 10004x4 DPS
2015Can-AmCommander 10004x4 LTD
2015Can-AmCommander 10004x4 XT
2015Can-AmCommander 10004x4 XTP
2014Can-AmCommander 10004X4
2014Can-AmCommander 10004x4 DPS
2014Can-AmCommander 10004x4 LTD
2014Can-AmCommander 10004x4 XT
2014Can-AmCommander 10004x4 XTP
2013Can-AmCommander 10004x4 DPS EFI
2013Can-AmCommander 10004x4 EFI
2013Can-AmCommander 10004x4 LTD
2013Can-AmCommander 10004x4 X EFI
2013Can-AmCommander 10004x4 XT EFI
2012Can-AmCommander 10004x4 EFI
2012Can-AmCommander 10004x4 LTD EFI
2012Can-AmCommander 10004x4 X EFI
2012Can-AmCommander 10004x4 XT EFI
2011Can-AmCommander 10004X4
2011Can-AmCommander 10004x4 X
2011Can-AmCommander 10004x4 XT
2015Can-AmCommander 8004X4
2015Can-AmCommander 8004x4 DPS
2015Can-AmCommander 8004x4 XT
2015Can-AmCommander 8004x4 XT Rear Open Differential
2014Can-AmCommander 8004X4
2014Can-AmCommander 8004x4 DPS
2014Can-AmCommander 8004x4 XT
2014Can-AmCommander 8004x4 XT Rear Open Differential
2011Can-AmCommander 8004x4 XT
2015Can-AmCommander 800R4X4
2015Can-AmCommander 800R4x4 DPS
2015Can-AmCommander 800R4x4 XT
2013Can-AmCommander 800R4x4 DPS EFI
2013Can-AmCommander 800R4x4 EFI
2013Can-AmCommander 800R4x4 XT EFI
2012Can-AmCommander 800R4x4 EFI
2012Can-AmCommander 800R4x4 XT EFI
2011Can-AmCommander 800R4X4
2011Can-AmCommander 800R4x4 XT

Product Notes

  • Fits front left (driver side) on the following Can-Am UTV models: 2011-2016 Commander 800/MAX 800, 2011-2016 Commander 1000/MAX 1000.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearing kit is usually shipped inside the axle box.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed length - 642.5 mm, Inboard spline count - 21, Outboard spline count - 26. Replaces OE # 705400953, 705401105, 293350040, 705400088, 293350118.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 CV Axle, 1 Wheel Bearing

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-113/WB-1516
    • CA-113/WB-1516
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 13.2 lbs.
    • W5.0000” x H5.0000” x L31.0000”
