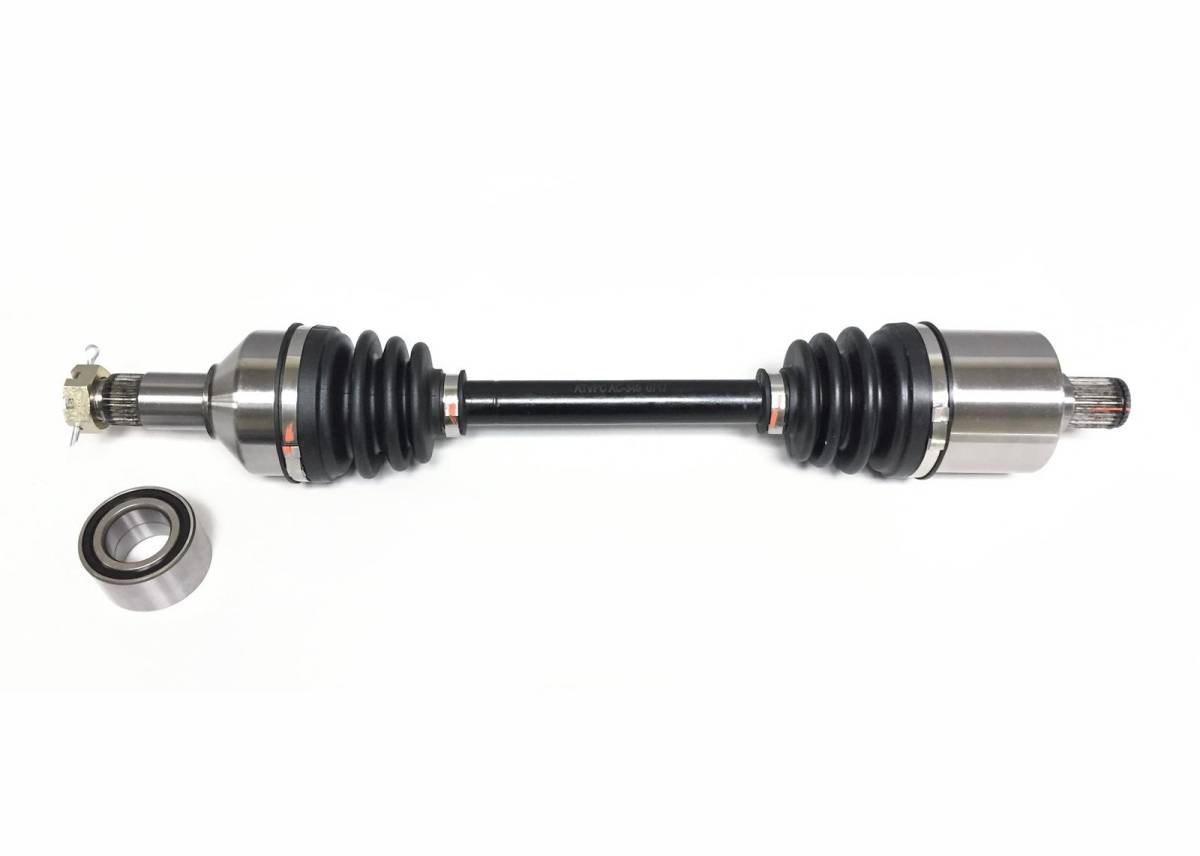

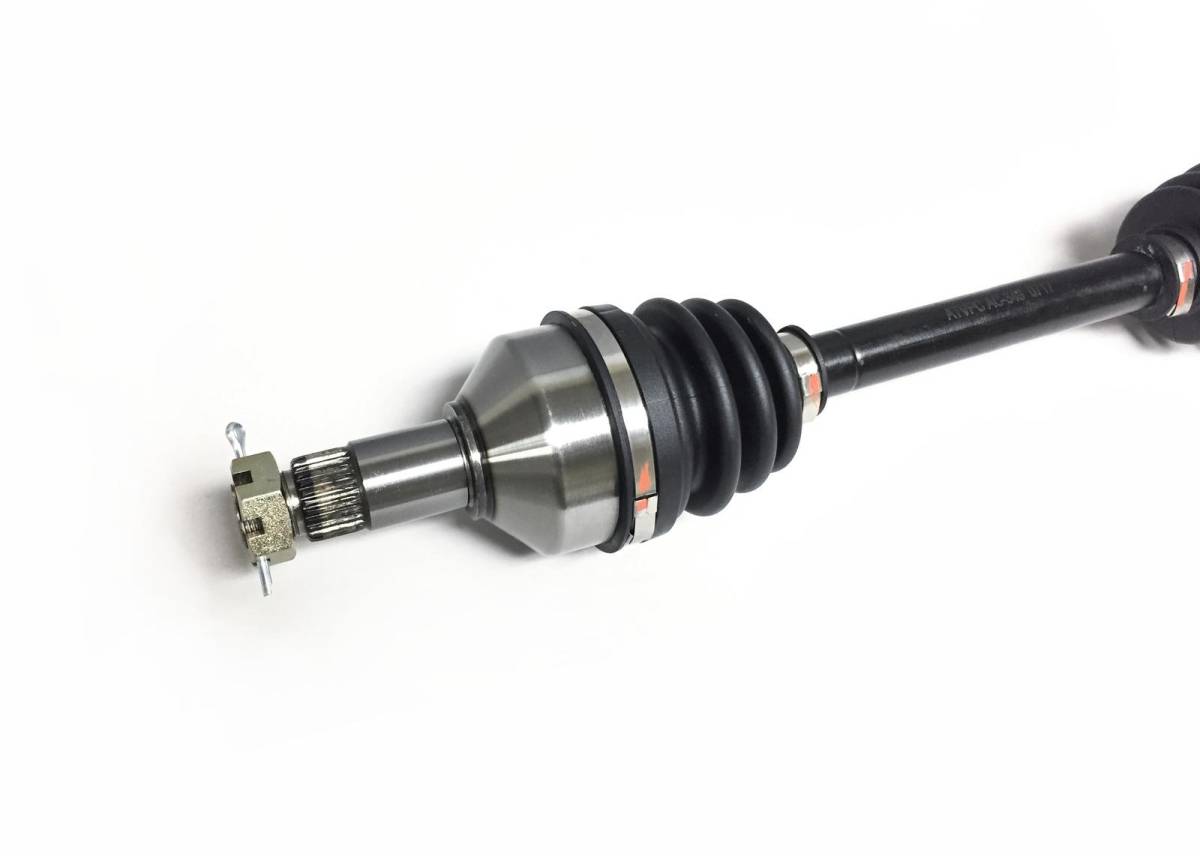

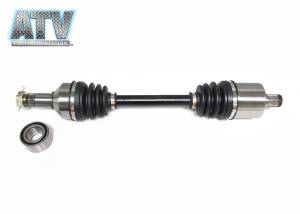

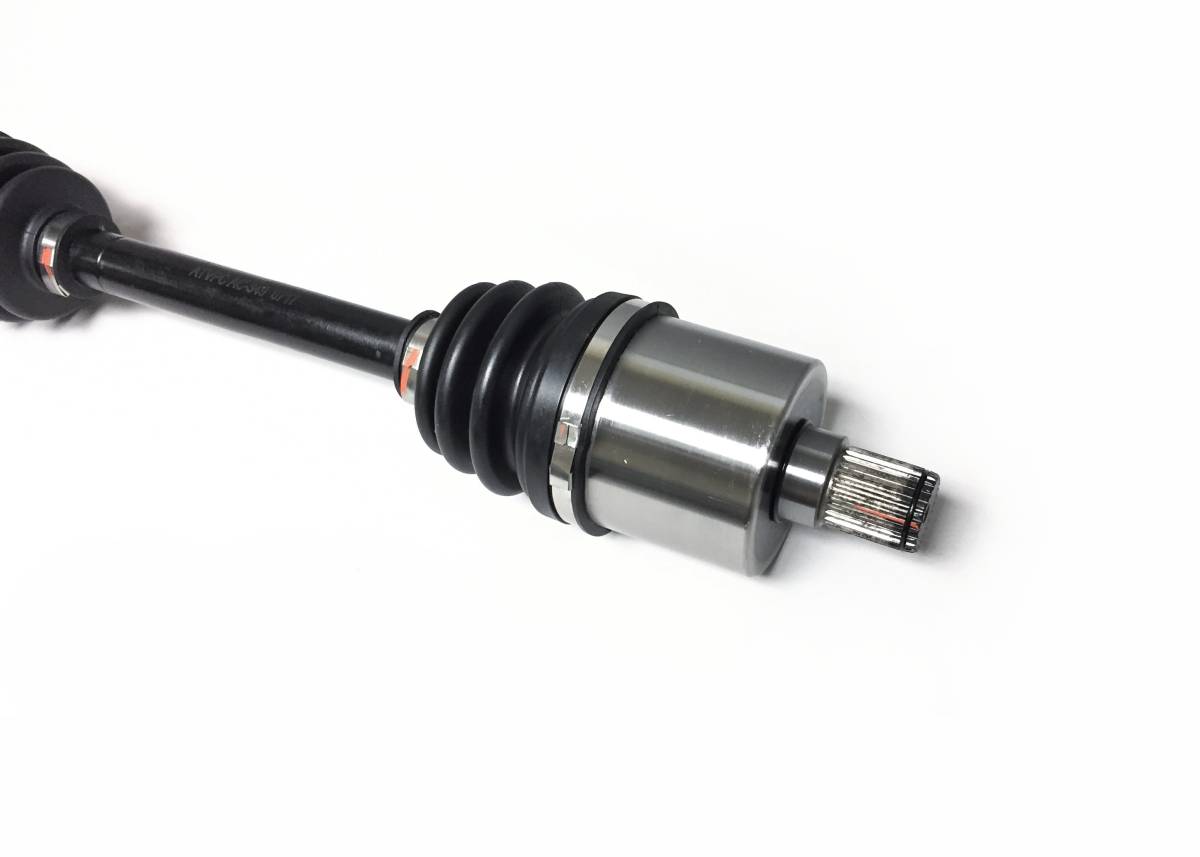

Rear CV Axle & Wheel Bearing for Arctic Cat Wildcat Trail 700 2014-2020

Location on vehicle: Rear,Left,Right

AC-349/WB-1496
This is a new Rear CV axle & wheel bearing for an Arctic Cat UTV.

They fit the following models:

2014-2020 ... Wildcat Trail 700

Rear, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 27
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 542 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $84.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2014-2020 Arctic Cat Wildcat Trail 700 4x4.
  • Axle features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces OE # 2502-349, 1502-955, 1402-027, 1402-809.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 CV axle & 1 wheel bearing
  • Application List

    YearMakeModelSubmodelNotes
    2017Arctic CatWildcat Trail 7004X4
    2017Arctic CatWildcat Trail 7004x4 Limited EPS
    2017Arctic CatWildcat Trail 7004x4 SE EPS
    2017Arctic CatWildcat Trail 7004x4 XT EPS
    2016Arctic CatWildcat Trail 7004X4
    2016Arctic CatWildcat Trail 7004x4 Limited EPS
    2016Arctic CatWildcat Trail 7004x4 SE Hunter Edition EPS
    2016Arctic CatWildcat Trail 7004x4 XT EPS
    2015Arctic CatWildcat Trail 7004X4
    2015Arctic CatWildcat Trail 7004x4 Limited EPS
    2015Arctic CatWildcat Trail 7004x4 XT
    2014Arctic CatWildcat Trail 7004X4
    2014Arctic CatWildcat Trail 7004x4 XT
    2019Textron Off RoadWildcat Trail4X4
    2019Textron Off RoadWildcat Trail4x4 LTD EPS
    2019Textron Off RoadWildcat Trail4x4 XT EPS
    2018Textron Off RoadWildcat Trail 7004X4
    2018Textron Off RoadWildcat Trail 7004x4 Limited EPS
    2018Textron Off RoadWildcat Trail 7004x4 XT EPS
    2020Arctic CatWildcat Trail 7004x4 XT EPS
    2020Arctic CatWildcat Trail 7004x4 LTD EPS

    Details

    • AC-349/WB-1496
    • AC-349/WB-1496
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 13.2 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
