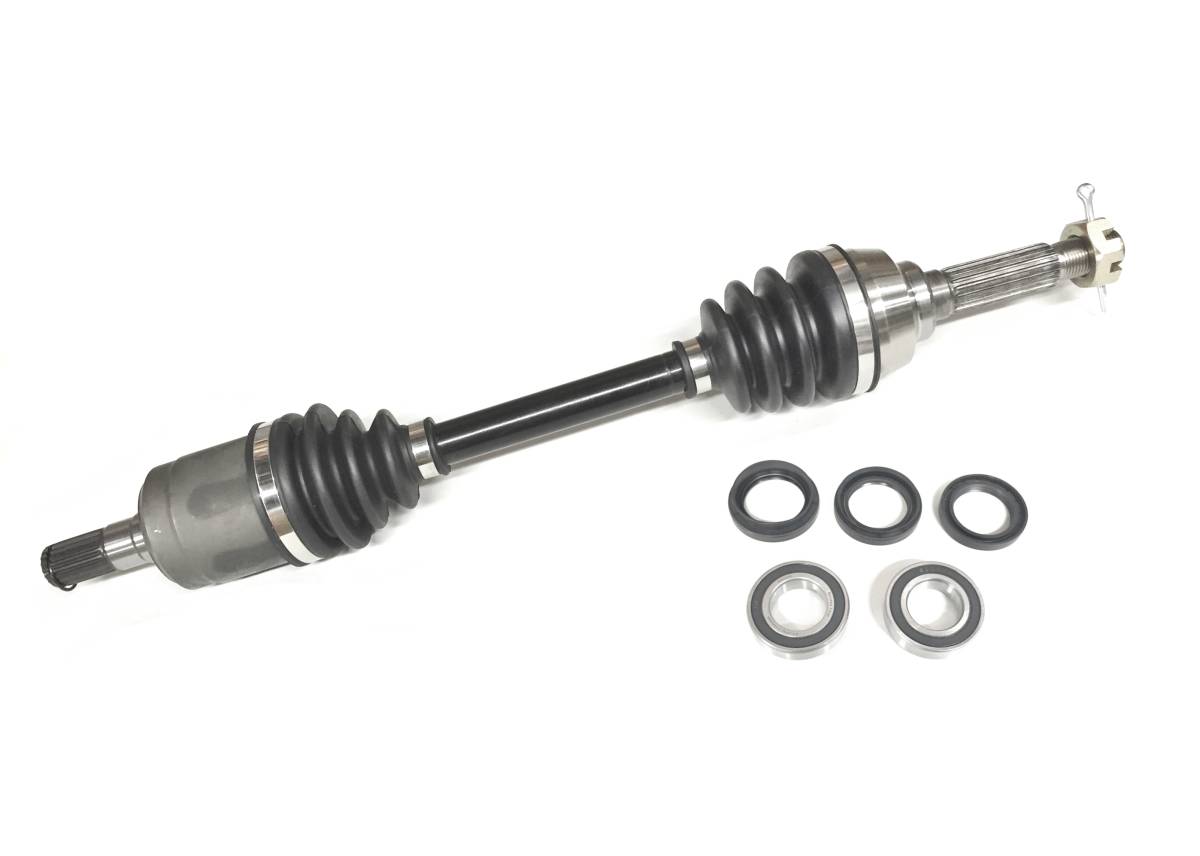

Front Left CV Axle & Wheel Bearing Kit for Suzuki Vinson 500 4x4 2003-2007

Location on vehicle: Front,Left

SK-102/WB-1108
This is a new Front, Left CV axle & wheel bearing kit for a Suzuki ATV.

They fit the following 4x4 models:

2003-2007 ..... Vinson 500

Front, Left / Driver's Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out

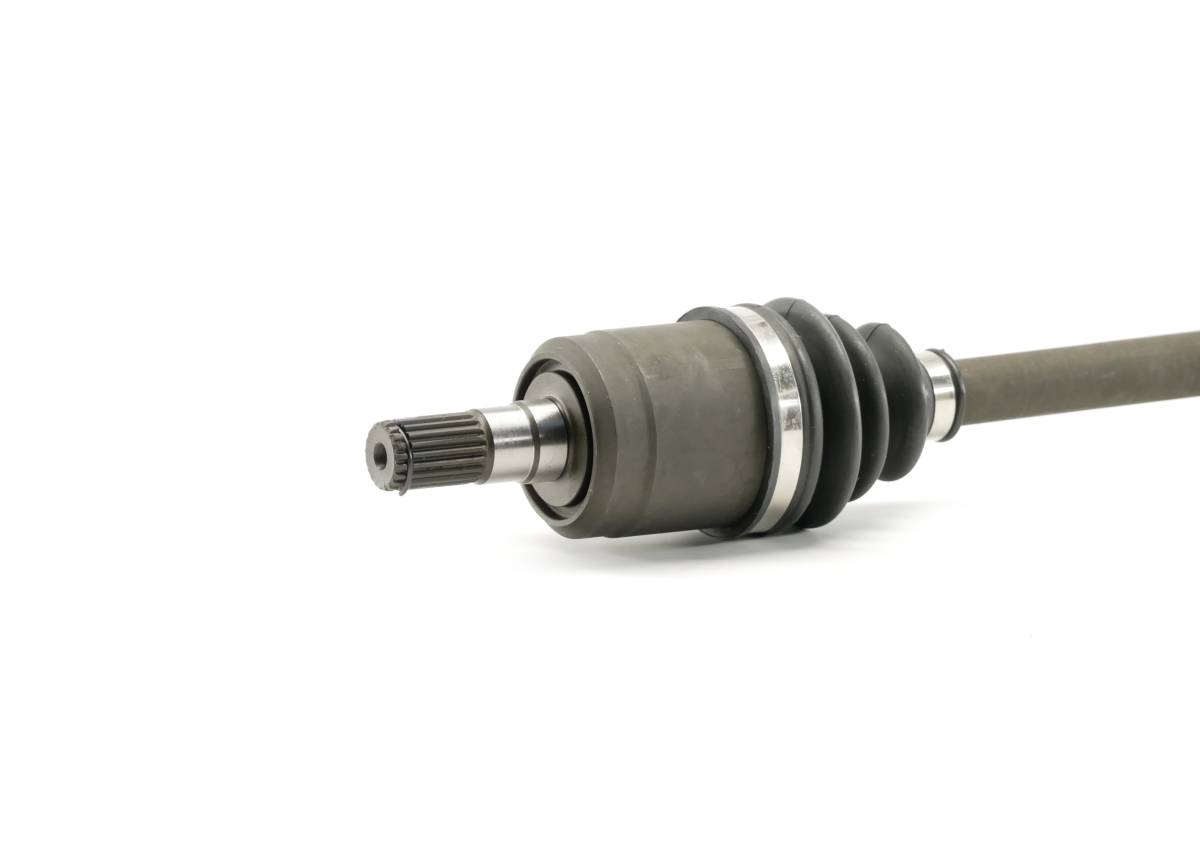

  • Inboard CV joint spline count: 20

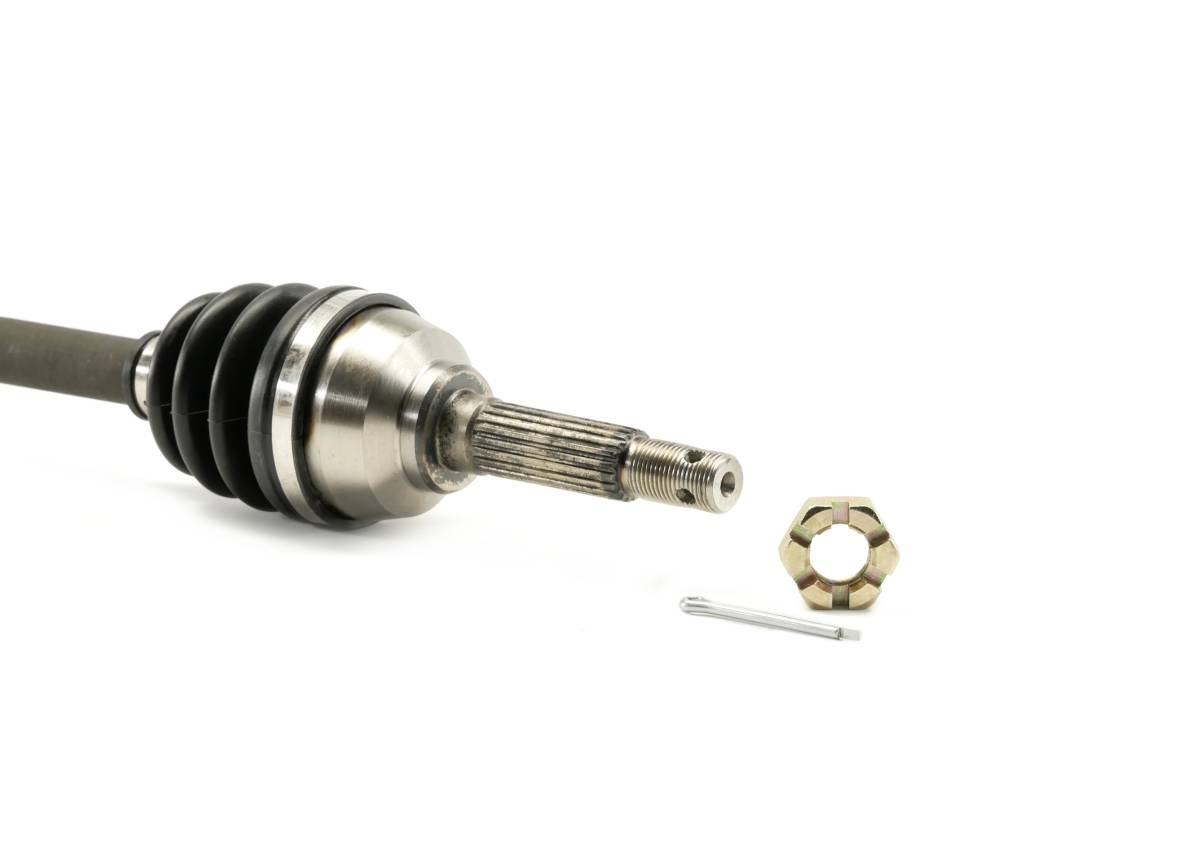

  • Outboard CV joint spline count: 20
  • Compressed overall axle length: 486 mm
  • Replaces OE 54902-38F00, 54902-38F01, 08123-60067, 09283-38012, 09283-38013
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $92.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front left (driver side) on the 2003-2007 Vinson 500 4x4 (both LT-A500F Automatic & LF-F500F Manual).
  • Features a stronger than OEM chromoly hardened steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed Length - 486 mm, Inner Spline Count - 20, Outer Spline Count - 20 * Replaces OE 54902-38F00, 54902-38F01, 08123-60067, 09283-38012, 09283-38013.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

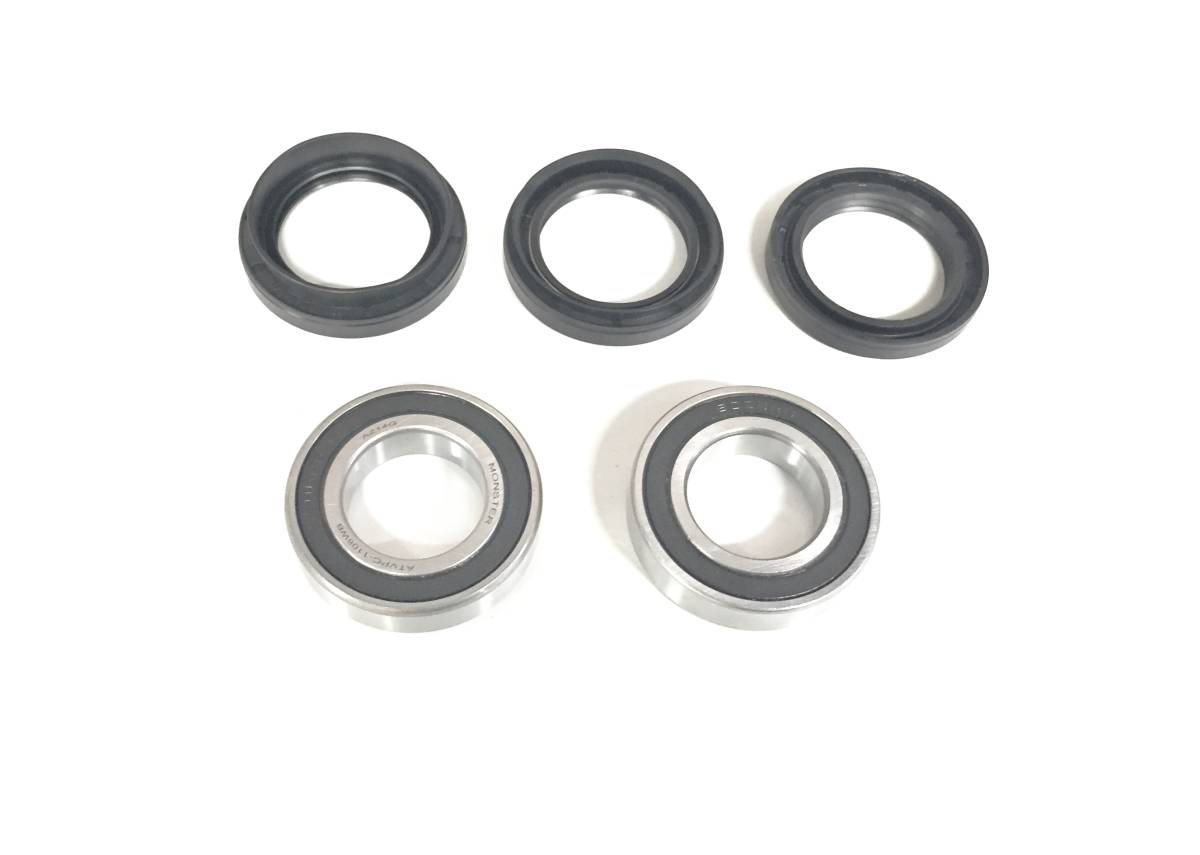

  • 1 CV axle & 1 wheel bearing kit
  • Application List

    YearMakeModelSubmodelNotes
    2007SuzukiVinson 500LTA500F 4x4 Auto
    2007SuzukiVinson 500LTA500FC 4x4 Auto Advantage
    2007SuzukiVinson 500LTF500F 4x4 Manual
    2007SuzukiVinson 500LTF500FC 4x4 Manual Advantage
    2006SuzukiVinson 500LTA500F 4x4 Auto
    2006SuzukiVinson 500LTA500FC 4x4 Auto Advantage
    2006SuzukiVinson 500LTF500F 4x4 Manual
    2006SuzukiVinson 500LTF500FC 4x4 Manual Advantage
    2005SuzukiVinson 500LTA500F 4x4 Auto
    2005SuzukiVinson 500LTA500FB 4x4 Limited Edition
    2005SuzukiVinson 500LTA500FC 4x4 Auto Advantage
    2005SuzukiVinson 500LTF500F 4x4 Manual
    2005SuzukiVinson 500LTF500FC 4x4 Manual Advantage
    2004SuzukiVinson 500LTA500F 4x4 Auto
    2004SuzukiVinson 500LTA500FB 4x4 Limited Edition
    2004SuzukiVinson 500LTF500F 4x4 Manual
    2003SuzukiVinson 500LTA500F 4x4 Auto
    2003SuzukiVinson 500LTF500F 4x4 Manual

    Details

    • SK-102/WB-1108
    • SK-102/WB-1108
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 7.5 lbs.
    • W5.0000” x H5.0000” x L23.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
