Front CV Axle Pair with Wheel Bearing Kits for Suzuki Vinson 500 4x4 2003-2007

Location on vehicle: Front,Left,Right

SK-102/SK-202/WB-1108/WB-1108
This is a set of new Front CV axles and wheel bearing kits for a Suzuki ATV.

They fit the following 4x4 models:

2003-2007 ..... Vinson 500

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 20 (both)
  • Outboard CV joint spline count: 20 (both)
  • Compressed overall axle length: Left - 486 mm, Right 535 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $154.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2007SuzukiVinson 500LTA500F 4x4 Auto
2007SuzukiVinson 500LTA500FC 4x4 Auto Advantage
2007SuzukiVinson 500LTF500F 4x4 Manual
2007SuzukiVinson 500LTF500FC 4x4 Manual Advantage
2006SuzukiVinson 500LTA500F 4x4 Auto
2006SuzukiVinson 500LTA500FC 4x4 Auto Advantage
2006SuzukiVinson 500LTF500F 4x4 Manual
2006SuzukiVinson 500LTF500FC 4x4 Manual Advantage
2005SuzukiVinson 500LTA500F 4x4 Auto
2005SuzukiVinson 500LTA500FB 4x4 Limited Edition
2005SuzukiVinson 500LTA500FC 4x4 Auto Advantage
2005SuzukiVinson 500LTF500F 4x4 Manual
2005SuzukiVinson 500LTF500FC 4x4 Manual Advantage
2004SuzukiVinson 500LTA500F 4x4 Auto
2004SuzukiVinson 500LTA500FB 4x4 Limited Edition
2004SuzukiVinson 500LTF500F 4x4 Manual
2003SuzukiVinson 500LTA500F 4x4 Auto
2003SuzukiVinson 500LTF500F 4x4 Manual

Product Notes

  • Fits front, left and right on the following Suzuki ATV models: 2003-2007 Vinson 500 4x4 (both LT-A500F Automatic & LF-F500F Manual).
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axles) 54902-03G23, 54902-03G22, 54902-03G21, 54902-03G20, 54902-03G10, 54901-03G22, (bearings) 08123-60067, 09283-38012, 09283-38013. Compressed length: left - 486 mm, right 535 mm, Inner splines: 20 (both), Outer splines: 20 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

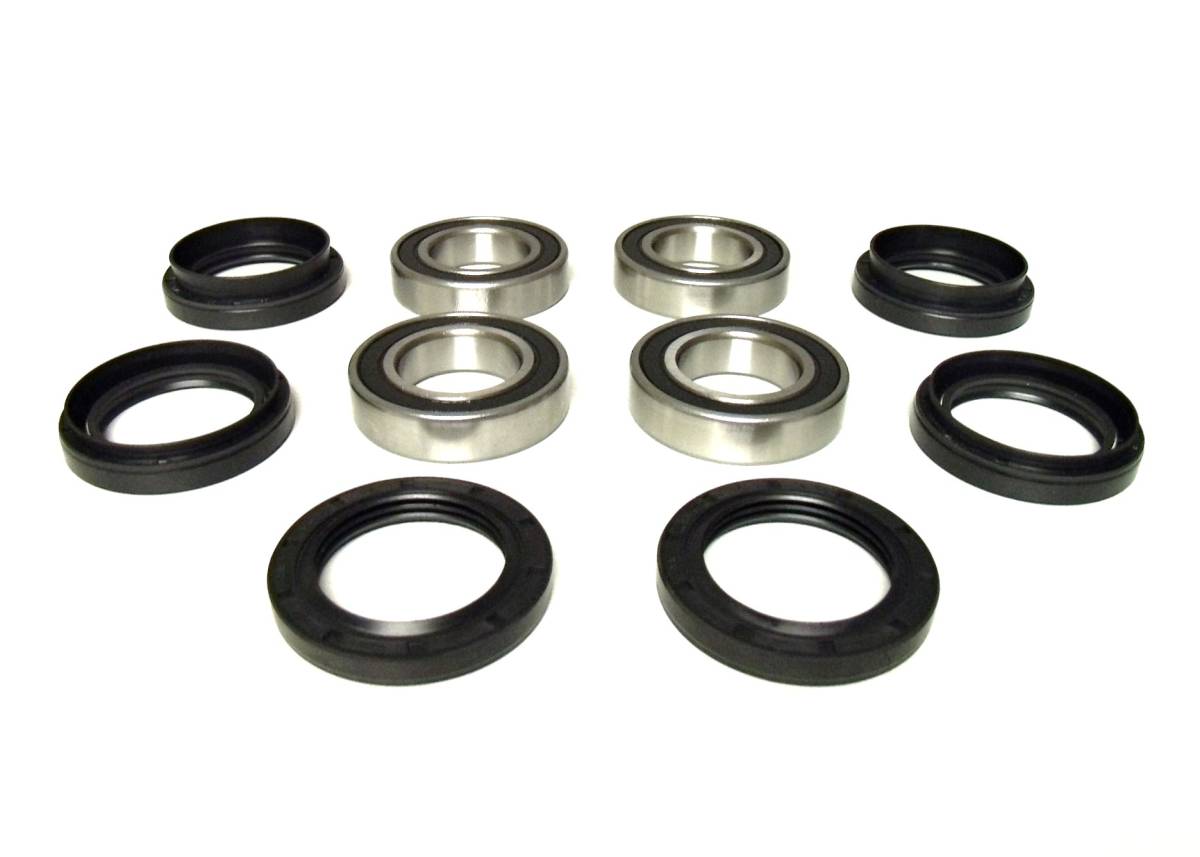

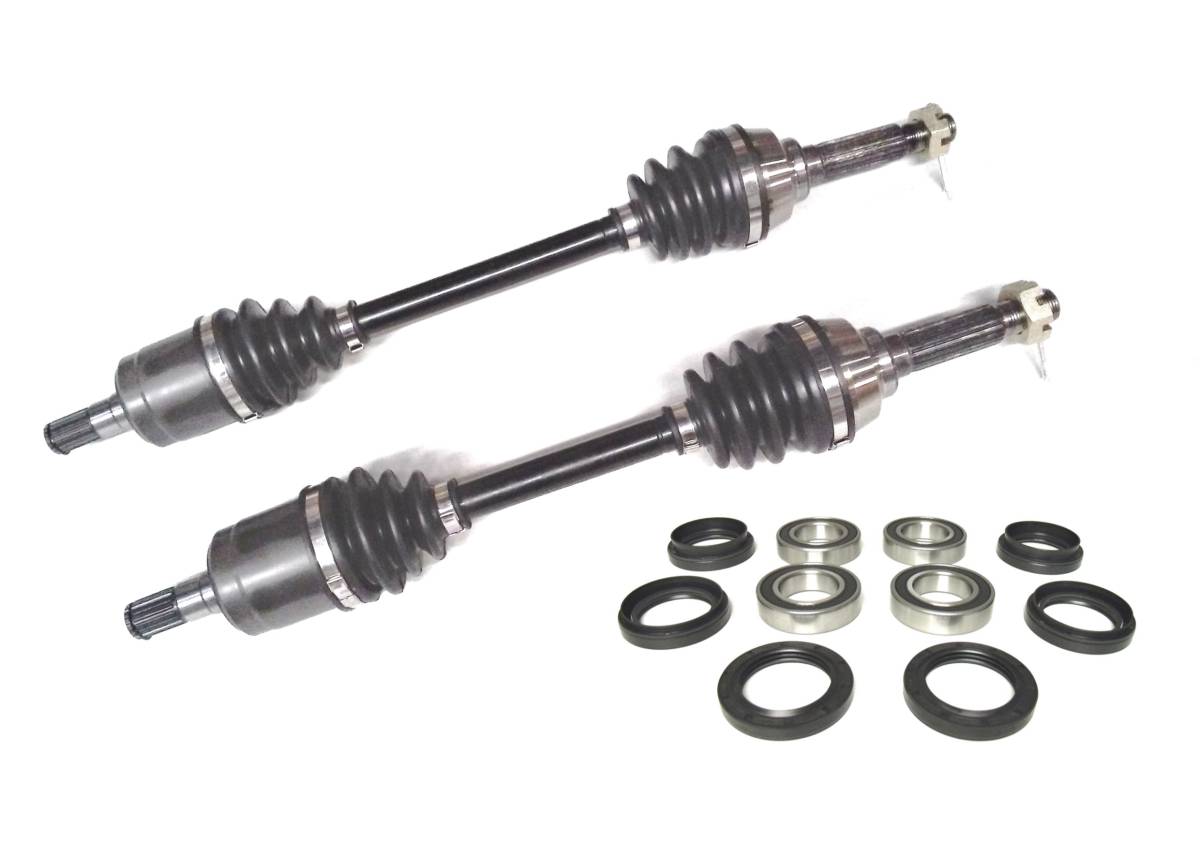

  • 2 CV axles & 2 wheel bearing kits
  • Warranty

    1 year factory defect limited warranty

    Details

    • SK-102/SK-202/WB-1108/WB-1108
    • SK-102/SK-202/WB-1108/WB-1108
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 15.1 lbs.
    • W5.0000” x H9.0000” x L24.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
