Rear Axle Pair with Wheel Bearings for Arctic Cat Wildcat Sport 700 2015-2019

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
AC-355/AC-355/WB-1496/WB-1496

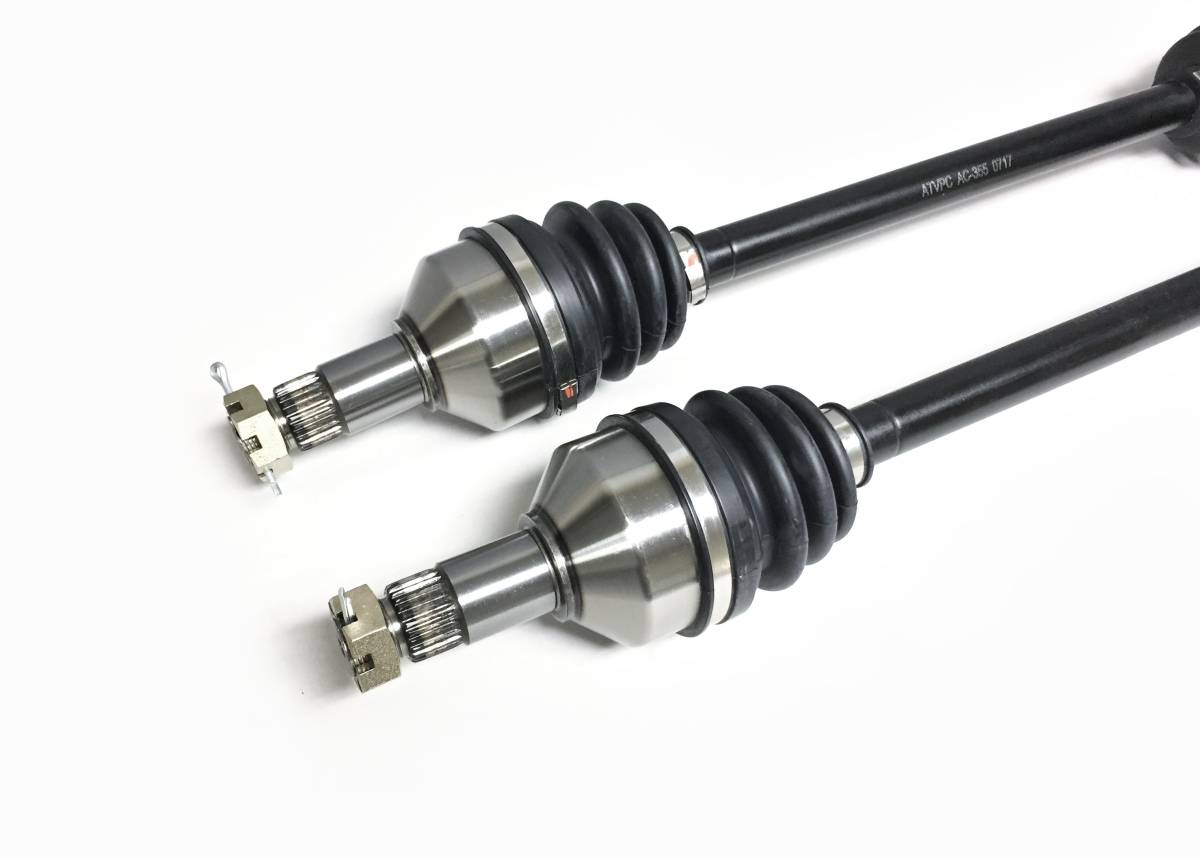

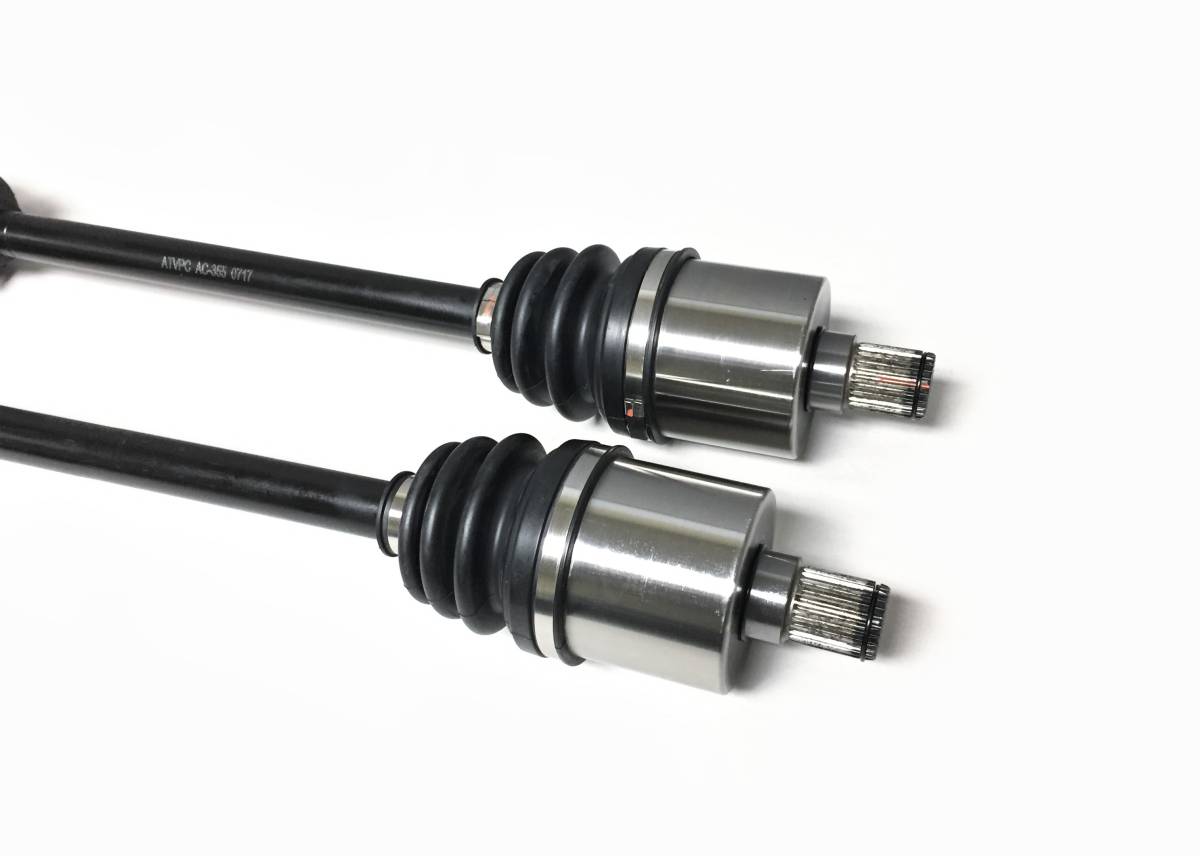

This is a set of new rear CV axles & wheel bearings for an Arctic Cat UTV.

They fit the following 4x4 models:

2015-2019 ... Wildcat Sport 700

(all models including EPS, LTD, & XT)

rear left & right side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt and water out
  • inobard CV joint spline count: 27 (both)
  • outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 677.5 mm (both)
  • Replaces OEM # (axles) 2502-355, 2502-152, (bearings) 1402-027, 1402-809
Limited Supply: only 3 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $169.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2017Arctic CatWildcat Sport 7004x4 Limited EPS
2017Arctic CatWildcat Sport 7004x4 SE EPS
2017Arctic CatWildcat Sport 7004x4 XT EPS
2016Arctic CatWildcat Sport 7004X4
2016Arctic CatWildcat Sport 7004x4 Limited EPS
2016Arctic CatWildcat Sport 7004x4 XT EPS
2015Arctic CatWildcat Sport 7004X4
2015Arctic CatWildcat Sport 7004x4 Limited EPS
2015Arctic CatWildcat Sport 7004x4 XT
2019Textron Off RoadWildcat Sport4x4 LTD EPS
2019Textron Off RoadWildcat Sport4x4 XT EPS
2018Textron Off RoadWildcat Sport 7004x4 Limited EPS
2018Textron Off RoadWildcat Sport 7004x4 XT EPS

Product Notes

  • Fits rear, left and right on the following Arctic Cat models: 2015-2019 Wildcat Sport 700.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed length: 677.5 mm (both), Inboard spline count: 27 (both), Outboard spline count: 27 (both) * Replaces OEM # (axles) 2502-355, 2502-152, (bearings) 1402-027, 1402-809.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

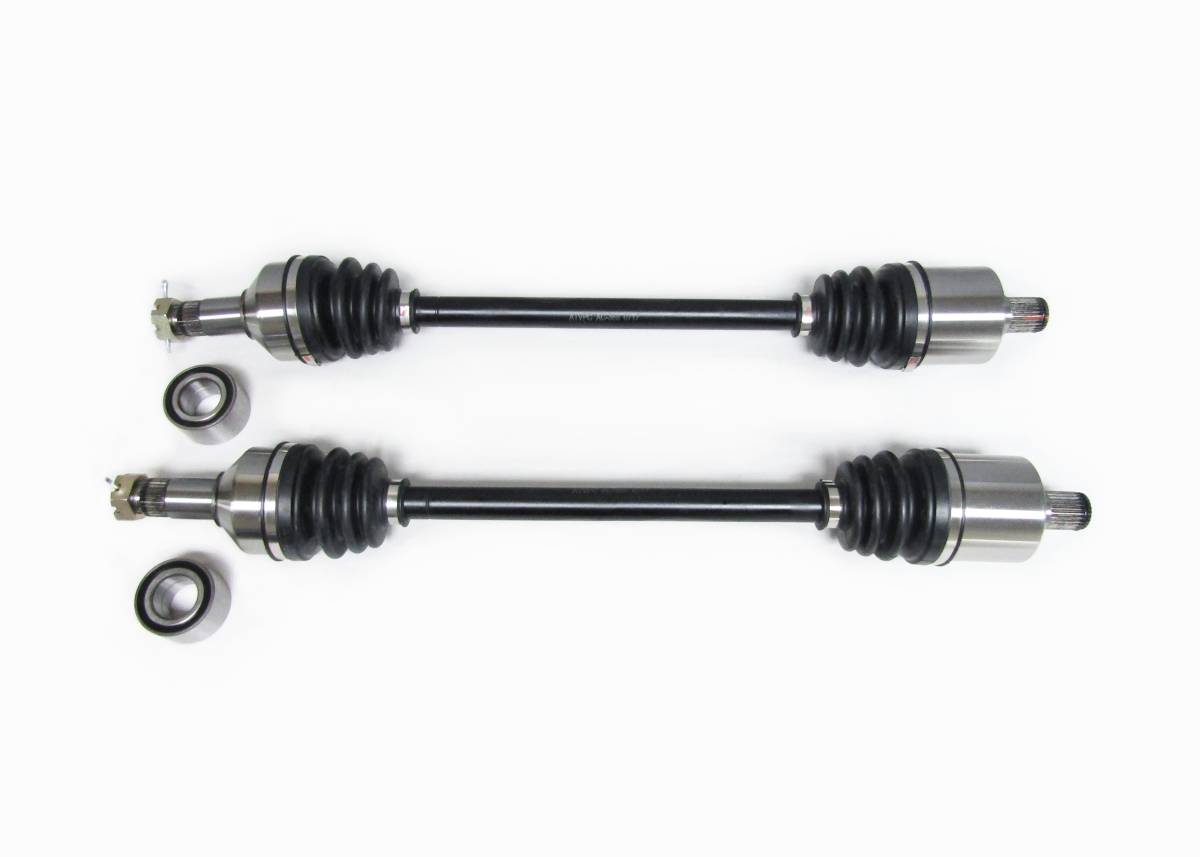

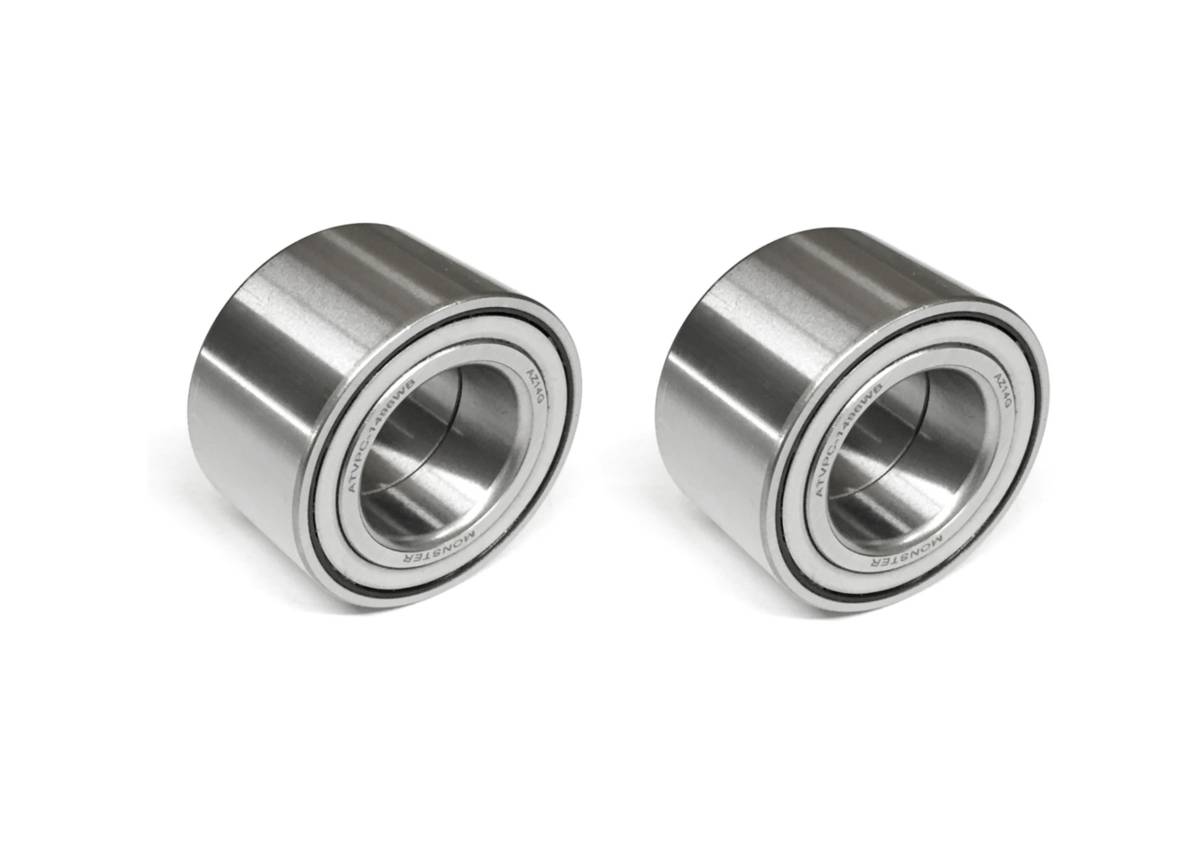

  • 2 CV axles, 2 wheel bearings

    • Warranty

    1 year factory defect limited warranty

    Details

    • AC-355/AC-355/WB-1496/WB-1496
    • AC-355/AC-355/WB-1496/WB-1496
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 29.2 lbs.
    • W5.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
