Rear CV Axle & Wheel Bearing for Arctic Cat Prowler 550 650 700 & 1000, 1436-411

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
AC-316/WB-1496

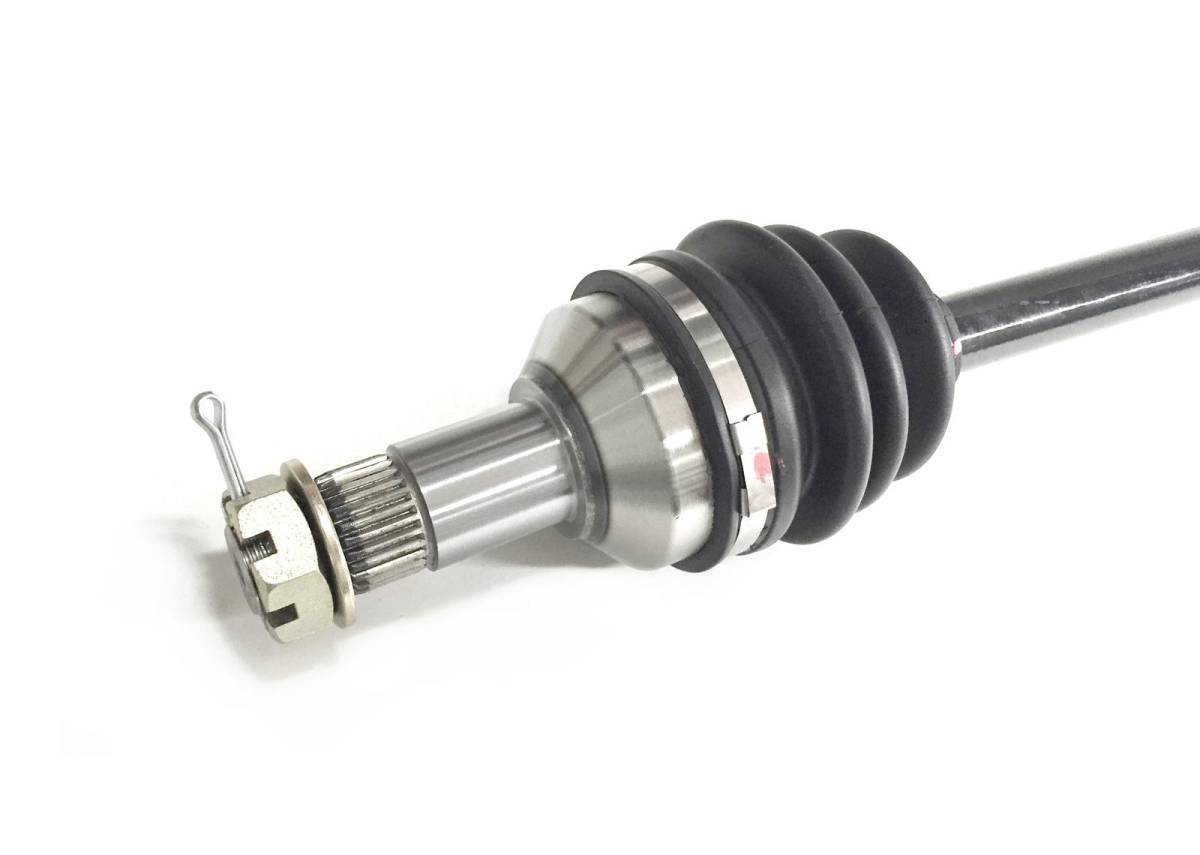

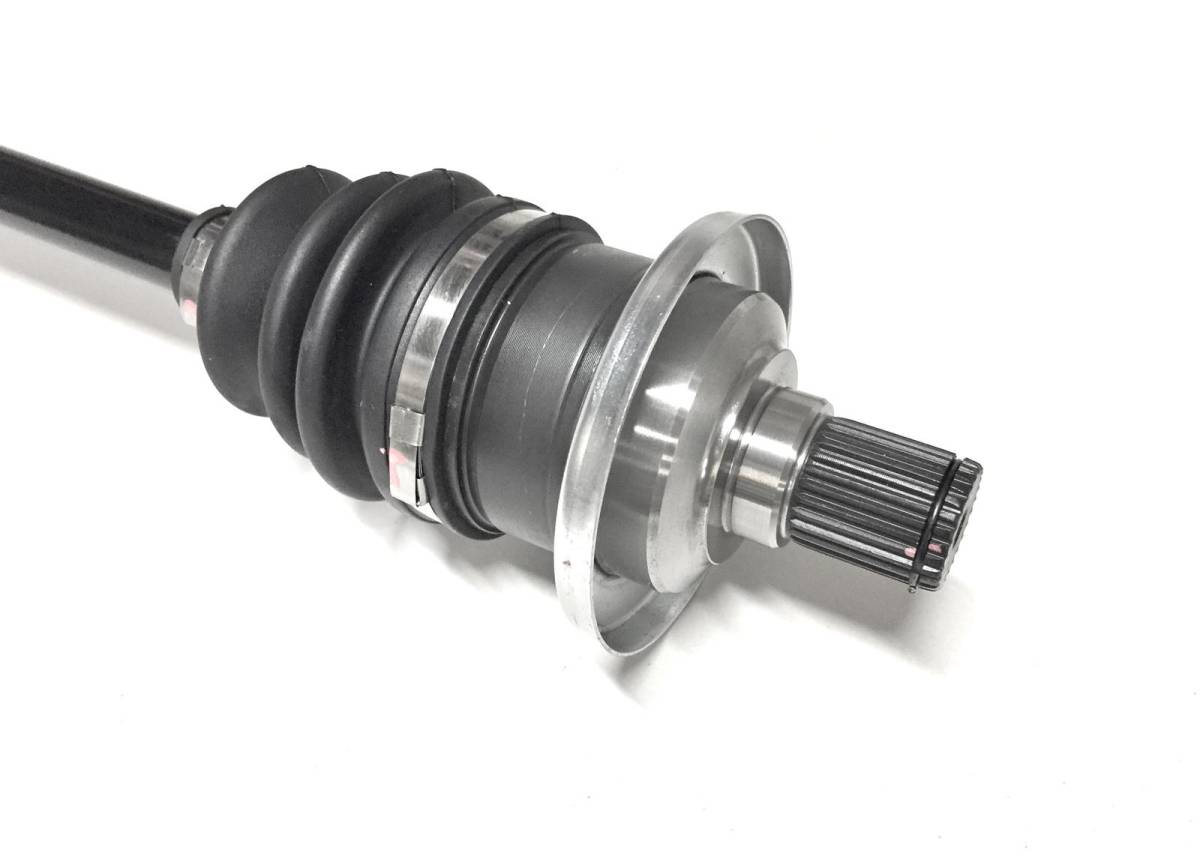

This is a new Rear CV axle & wheel bearing for an Arctic Cat UTV.

They fit the following 4x4 models:

2014-2015 ... Prowler HDX 500

2009-2014 ... Prowler 550/XT 550

2006-2009 ... Prowler 650/XT 650

2011-2015 ... Prowler XTX 700/HDX 700

2009-2014 ... Prowler XTZ 1000

Rear Left or Right side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, 4340 chromoly, forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • CV joints fitted with neoprene boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 27
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 662 mm
  • Replaces Arctic Cat OEM # (axle) 1436-411, 0502-740, 1502-346, 1502-562, 1502-668, 1502-801, (bearing) 1402-027, 1402-809
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2007Arctic CatProwler XT 6504x4 H1 Automatic
2006Arctic CatProwler XT 6504x4 H1 Automatic
2009Arctic CatProwler XT 7004X4
2010Arctic CatProwler XTZ 10004X4
2010Arctic CatProwler XTZ 10004x4 H2 EFI
2009Arctic CatProwler XTZ 10004x4 Baja
2009Arctic CatProwler XTZ 10004x4 H2 EFI
2009Arctic CatProwler 5504x4 Flatbed
2008Arctic CatProwler 6504x4 H1 Automatic
2007Arctic CatProwler 6504x4 H1 Automatic
2006Arctic CatProwler 6504x4 H1 Automatic
2010Arctic CatProwler XT 5504X4
2009Arctic CatProwler XT 6504x4 H1 Automatic
2008Arctic CatProwler XT 6504x4 H1 Automatic
2008Arctic CatProwler XT 6504x4 H1 M4 Automatic
2014Arctic CatProwler HDX 5004x4 XT
2014Arctic CatProwler HDX 5004x4 Limited
2014Arctic CatProwler HDX 5004X4
2015Arctic CatProwler HDX 5004X4
2011Arctic CatProwler HDX 7004x4 H1 EFI
2011Arctic CatProwler HDX 7004x4 EPS
2012Arctic CatProwler HDX 7004x4 EPS
2012Arctic CatProwler HDX 7004x4 EFI
2013Arctic CatProwler HDX 7004X4
2014Arctic CatProwler HDX 7004x4 Limited
2014Arctic CatProwler HDX 7004X4
2011Arctic CatProwler XTX 7004x4 H1 EFI
2011Arctic CatProwler XTX 7004x4 EPS
2012Arctic CatProwler XTX 7004x4 EFI
2013Arctic CatProwler XTX 7004X4
2014Arctic CatProwler XTX 7004X4
2011Arctic CatProwler XTZ 10004x4 H2 EFI
2012Arctic CatProwler XTZ 10004x4 EFI
2013Arctic CatProwler XTZ 10004X4
2014Arctic CatProwler XTZ 10004X4

Product Notes

  • Fits 2014-2015 Prowler HDX 500, 2009-2014 Prowler 550/XT 550, 2006-2009 Prowler 650/XT 650, 2011-2015 Prowler XTX 700 / HDX 700, & 2009-2014 Prowler XTZ 1000.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces Arctic Cat OEM # (axle) 1436-411, 0502-740, 1502-346, 1502-562, 1502-668, 1502-801, (bearing) 1402-027, 1402-809. Compressed Length - 662 mm, Inboard Spline Count - 27, Outboard Spline Count - 27.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

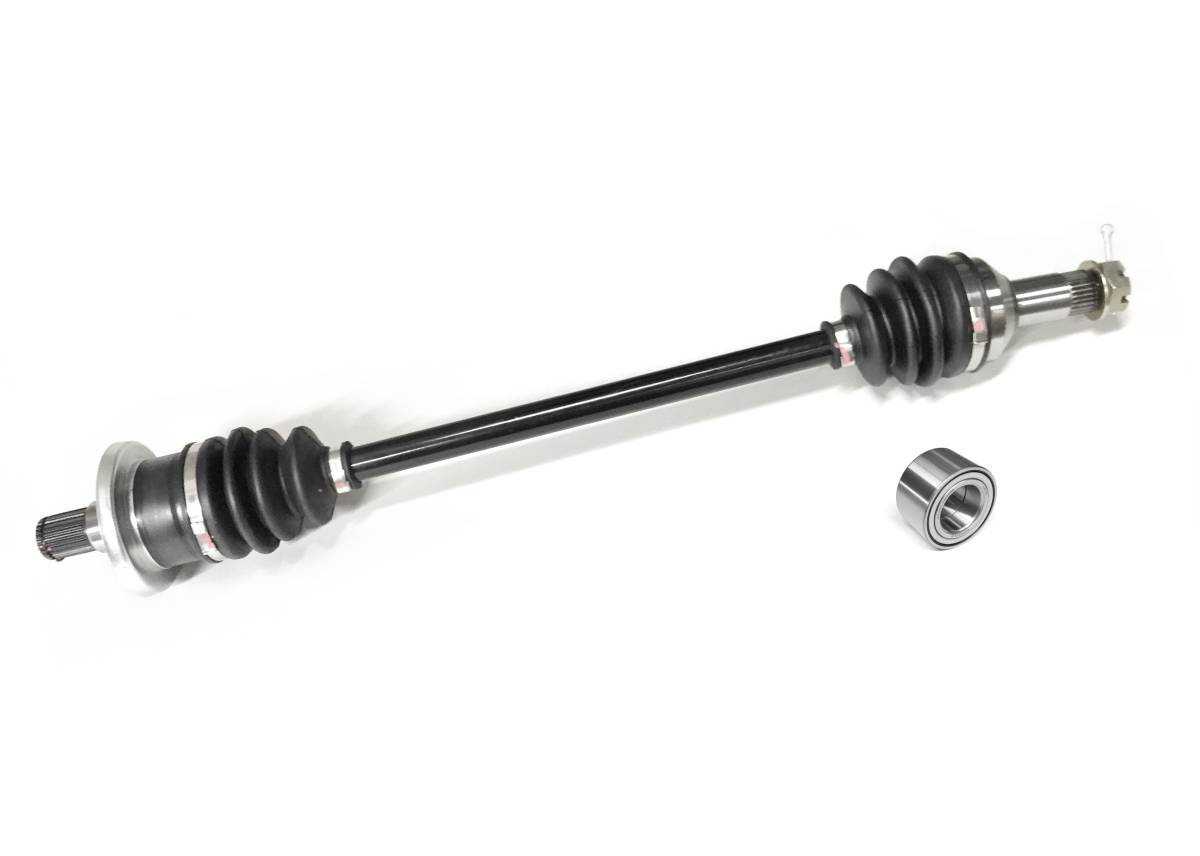

  • 1 CV axle & 1 wheel bearing

    • Warranty

    1 year factory defect limited warranty

    Details

    • AC-316/WB-1496
    • AC-316/WB-1496
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 11.9 lbs.
    • W6.0000” x H6.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
