Front CV Axles & Bearing Kits for Yamaha Grizzly, Bruin, Kodiak & Wolverine, Left & Right, 4140 Chromoly Steel, Heat-Treated, Quality Tested, ATVPC

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
WB-1108/WB-1108/YA-309/YA-309

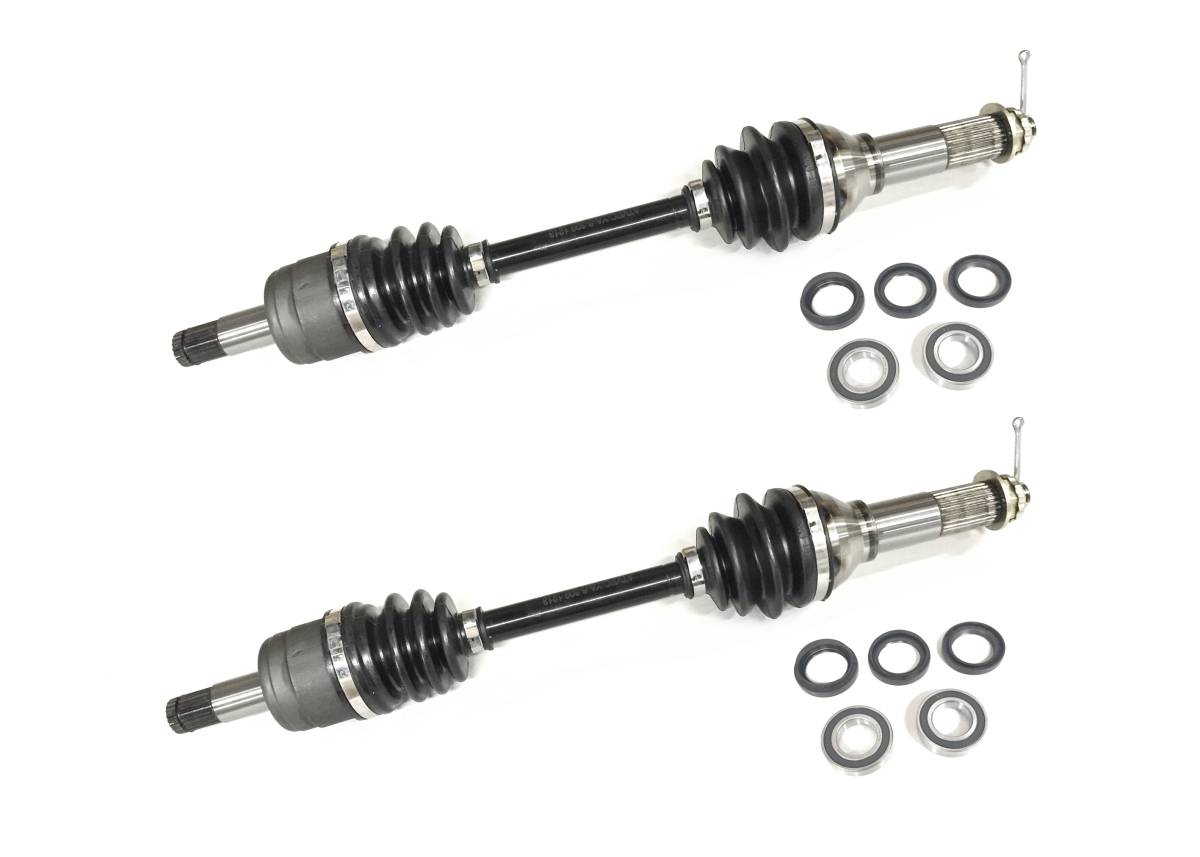

This is a set of new front CV axles & wheel bearing kits for a Yamaha ATV.

They fit the following 4x4 models:

2004-2006 ... Bruin 350

2007-2011 ... Grizzly 350 (without IRS)

2007-2008 ... Grizzly 400

2003-2006 ... Kodiak 400

2006-2010 ... Wolverine 450

front, left & right Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • inobard CV joint spline count: 21 (both)
  • outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 502 mm (both)
  • Replaces Yamaha OEM # (axles) 5UH-2510F-00-00, 5UH-2510J-00-00, (bearings & seals) 93306-00612-00, 93102-38383-00, 93102-38417-00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2006YamahaBruin 350YFM350BA
2006YamahaBruin 350YFM350FA 4x4
2006YamahaBruin 350YFM350FAH 4x4 Hunter Edition
2005YamahaBruin 350YFM350BA
2005YamahaBruin 350YFM350FA 4x4
2005YamahaBruin 350YFM350FAH 4x4 Hunter Edition
2004YamahaBruin 350YFM350BA
2004YamahaBruin 350YFM350FA 4x4
2004YamahaBruin 350YFM350FAH 4x4 Auto Hunter Edition
2011YamahaGrizzly 350YFM350FG 4x4
2011YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
2011YamahaGrizzly 350YFM350G
2010YamahaGrizzly 350YFM350FG 4x4
2010YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
2010YamahaGrizzly 350YFM350G
2009YamahaGrizzly 350YFM350FG 4x4
2009YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
2009YamahaGrizzly 350YFM350G
2008YamahaGrizzly 350YFM350FG 4x4
2008YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
2008YamahaGrizzly 350YFM350G
2007YamahaGrizzly 350YFM350FG 4x4
2007YamahaGrizzly 350YFM350G
2008YamahaGrizzly 400YFM400FG 4x4
2008YamahaGrizzly 400YFM400FGH 4x4 Hunter Edition
2007YamahaGrizzly 400YFM400FG 4x4
2007YamahaGrizzly 400YFM400FGH 4x4 Hunter Edition
2006YamahaKodiak 400YFM400FA 4x4
2006YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
2005YamahaKodiak 400YFM400FA 4x4
2005YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
2004YamahaKodiak 400YFM400A
2004YamahaKodiak 400YFM400FA 4x4
2004YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
2003YamahaKodiak 400YFM400A
2003YamahaKodiak 400YFM400FA 4x4
2003YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
2010YamahaWolverine 450YFM450FX 4x4
2009YamahaWolverine 450YFM450FX 4x4
2008YamahaWolverine 450YFM450FX 4x4
2008YamahaWolverine 450YFM450FXSP 4x4 Special Edition
2007YamahaWolverine 450YFM450FX 4x4
2007YamahaWolverine 450YFM450FXSE 4x4 Special Edition
2006YamahaWolverine 450YFM450FX 4x4

Product Notes

  • Fits front, left and right on the following Yamaha ATV models: 2004-2006 Bruin 350, 2007-2011 Grizzly 350 (without IRS), 2007-2008 Grizzly 400, 2003-2006 Kodiak 400, & 2006-2010 Wolverine 450.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axles) 5UH-2510F-00-00, 5UH-2510J-00-00, (bearings & seals) 93306-00612-00, 93102-38383-00, 93102-38417-00. Compressed length - 502 mm (both), Inboard spline count - 21 (both), Outboard spline count - 27 (both).
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

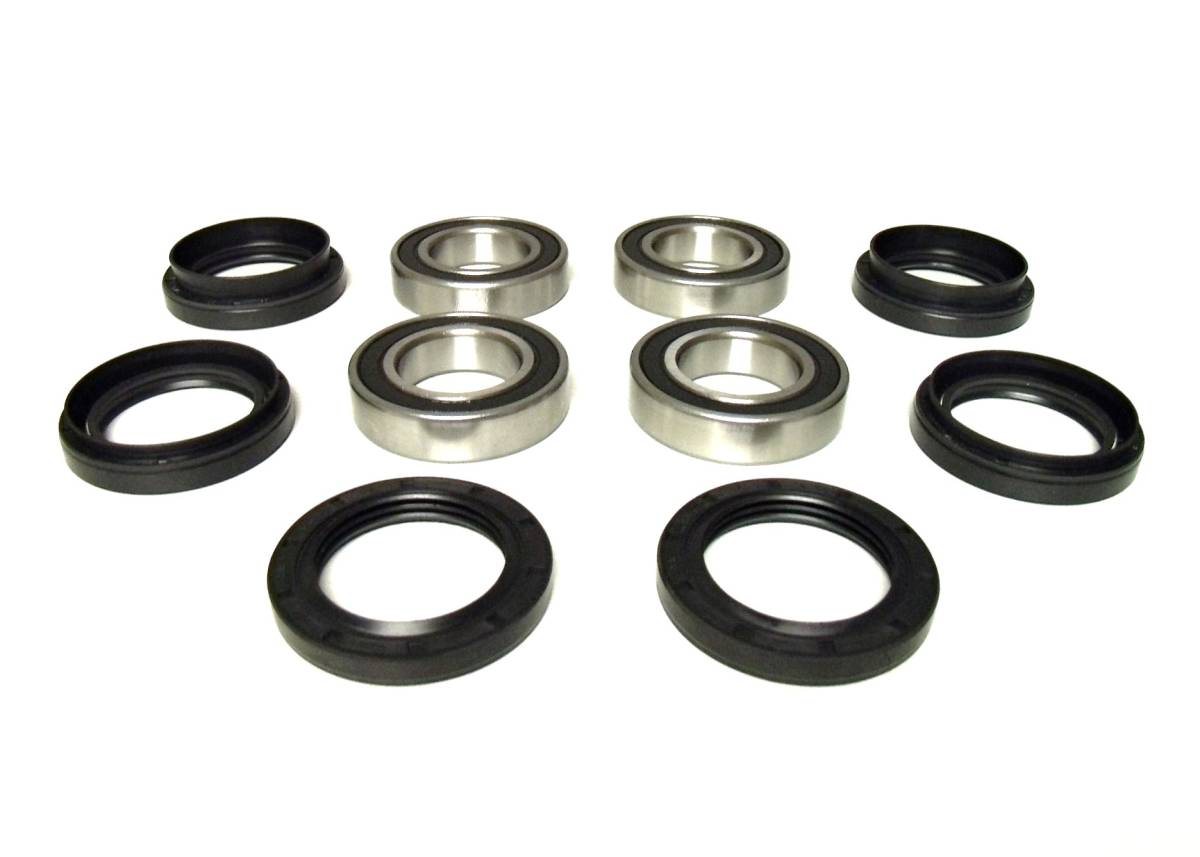

  • 2 CV axles, 2 wheel bearing kits

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • WB-1108/WB-1108/YA-309/YA-309
    • WB-1108/WB-1108/YA-309/YA-309
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 17.5 lbs.
    • W5.0000” x H9.0000” x L24.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
