Front Axle & Wheel Bearing Kit for Yamaha Grizzly, Bruin, Kodiak & Wolverine 4x4

Location on vehicle: Front,Left,Right

WB-1108/YA-309

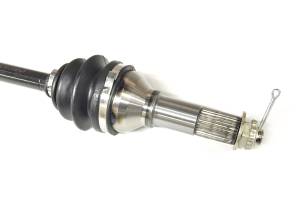

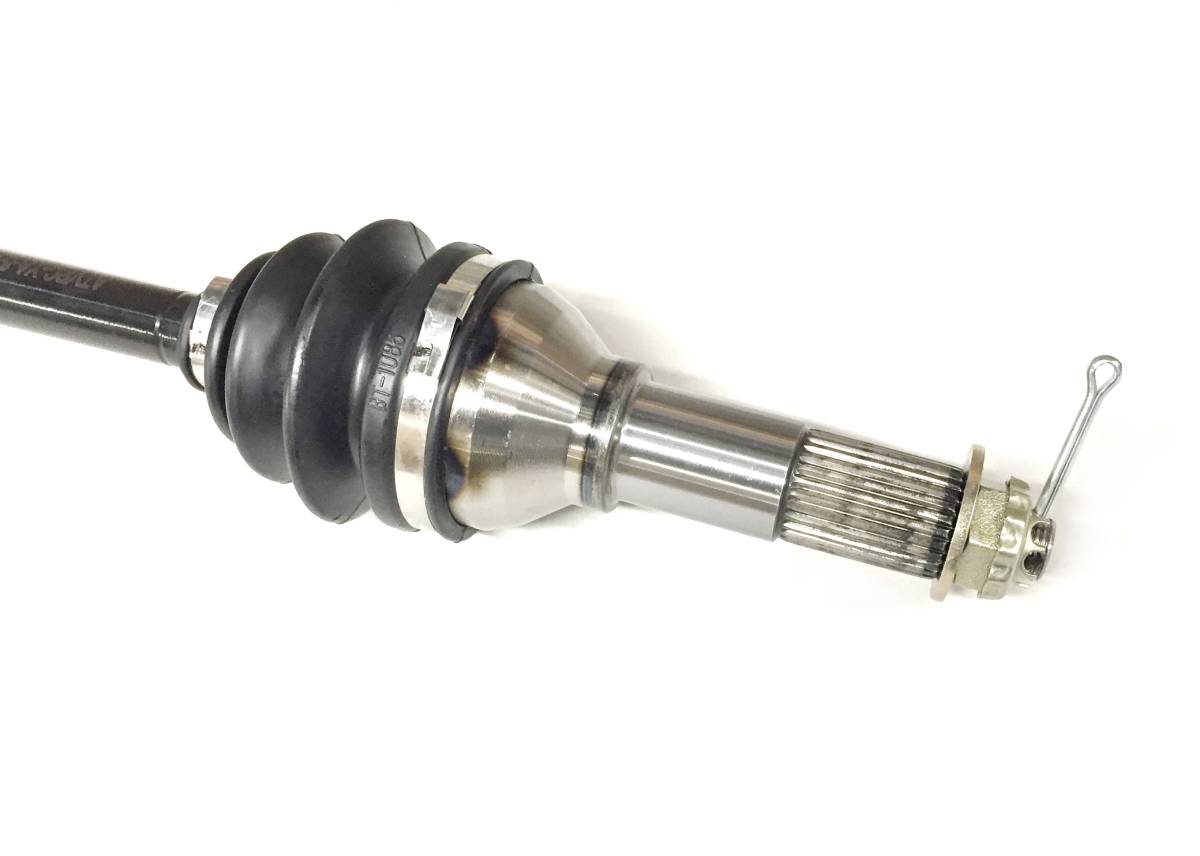

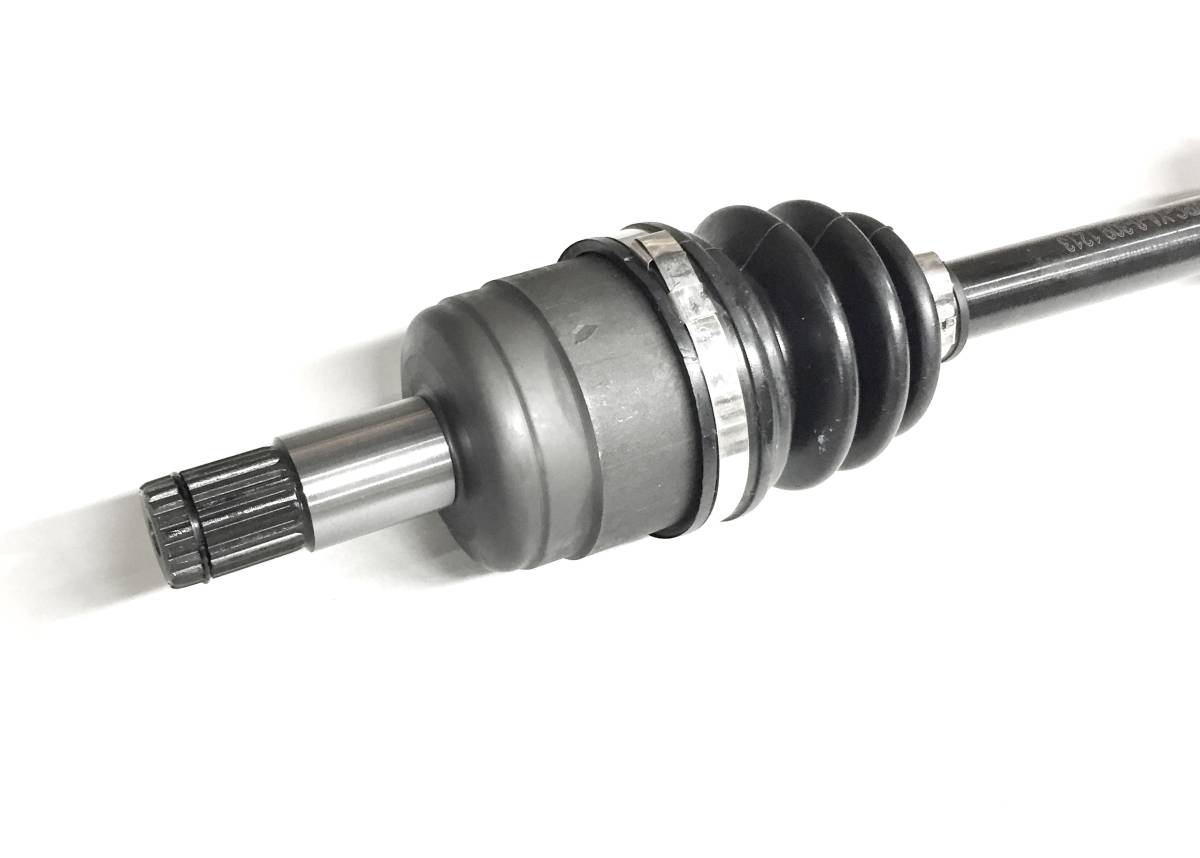

This is a new Front CV axle & wheel bearing kit for a Yamaha ATV.

They will fit the following 4x4 models:

2004-2006 ... Bruin 350

2007-2011 ... Grizzly 350 (without IRS)

2007-2008 ... Grizzly 400

2003-2006 ... Kodiak 400

2006-2010 ... Wolverine 450

Front, Left or Right Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 502 mm
  • Replaces Yamaha OEM # (axle) 5UH-2510F-00-00, 5UH-2510J-00-00, (bearings & seals) 93306-00612-00, 93102-38383-00, 93102-38417-00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $78.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2004-2006 Bruin 350, 2007-2011 Grizzly 350 (without IRS), 2007-2008 Grizzly 400, 2003-2006 Kodiak 400, & 2006-2010 Wolverine 450.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces Yamaha OEM # (axle) 5UH-2510F-00-00, 5UH-2510J-00-00, (bearings & seals) 93306-00612-00, 93102-38383-00, 93102-38417-00. Compressed Length - 502 mm, Inboard Spline Count - 21, Outboard Spline Count - 27.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

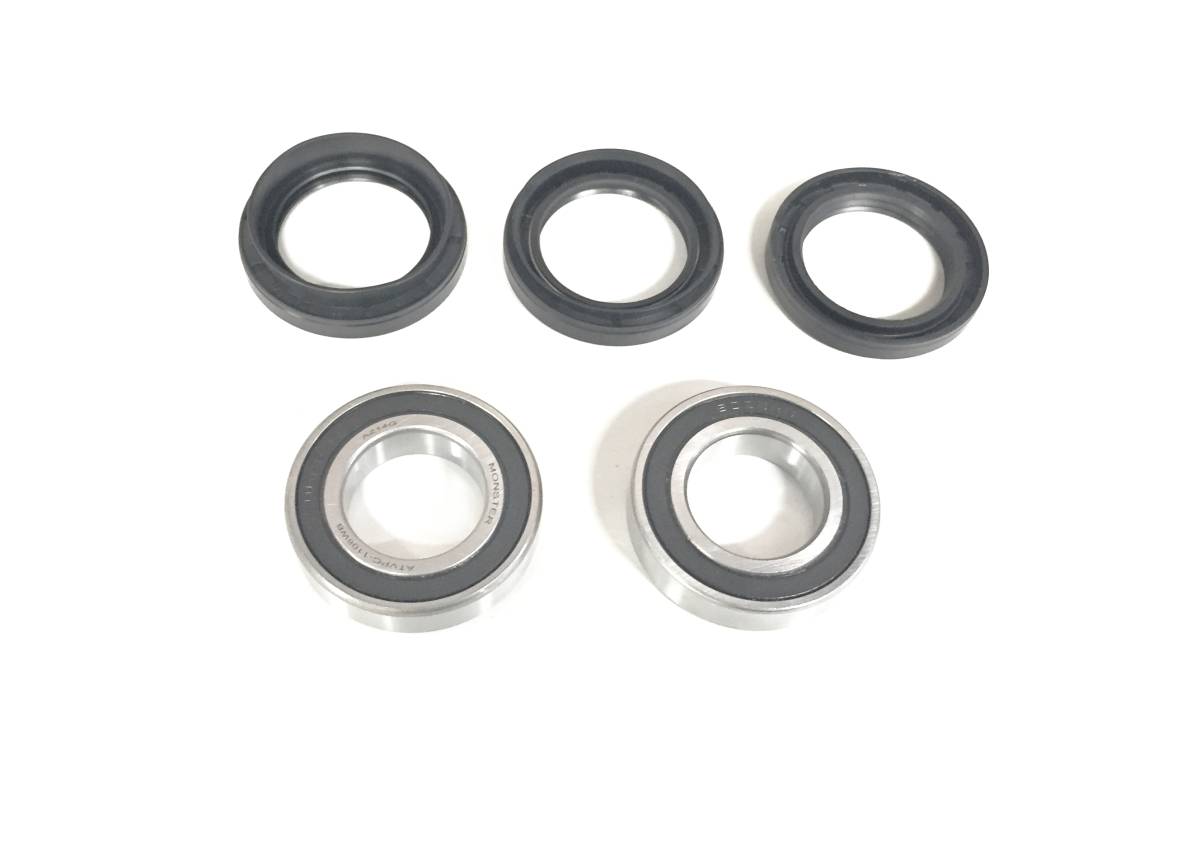

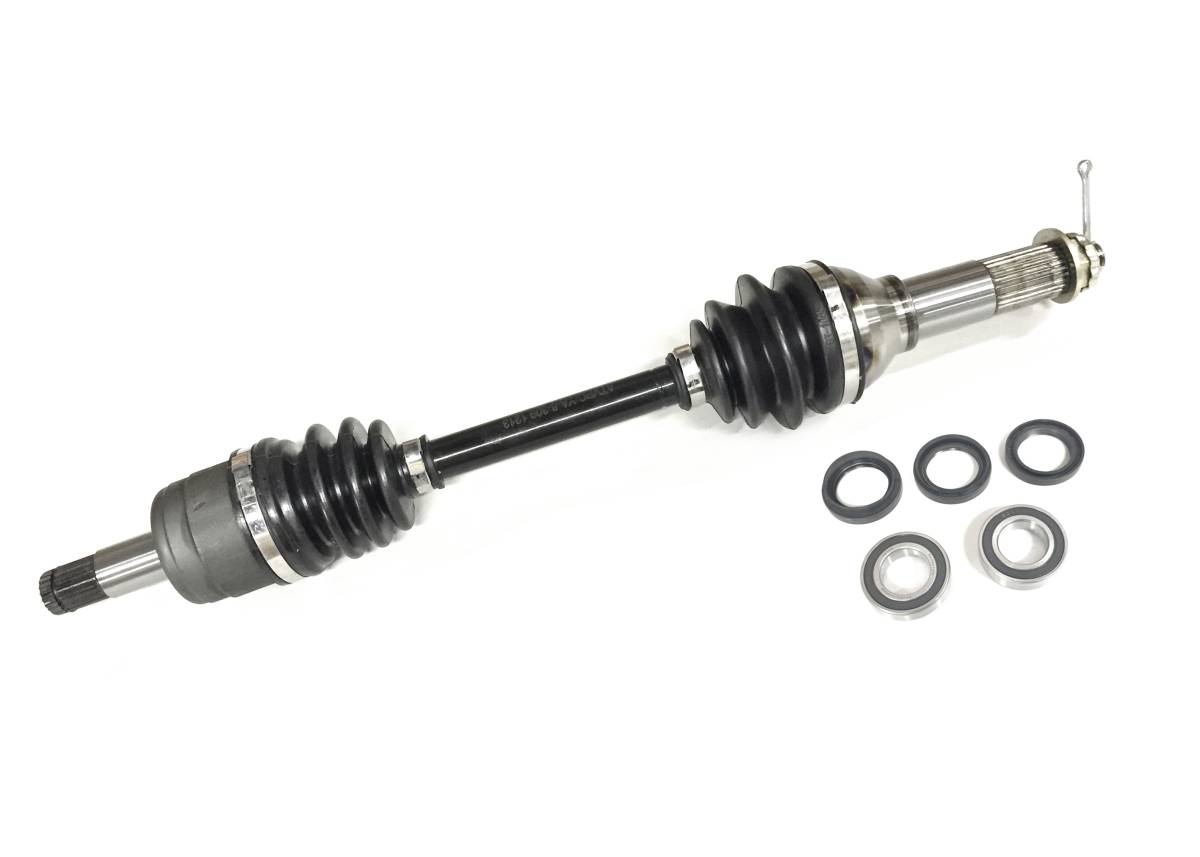

  • 1 CV axle 1 wheel bearing kit
  • Application List

    YearMakeModelSubmodelNotes
    2006YamahaBruin 350YFM350BA
    2006YamahaBruin 350YFM350FA 4x4
    2006YamahaBruin 350YFM350FAH 4x4 Hunter Edition
    2005YamahaBruin 350YFM350BA
    2005YamahaBruin 350YFM350FA 4x4
    2005YamahaBruin 350YFM350FAH 4x4 Hunter Edition
    2004YamahaBruin 350YFM350BA
    2004YamahaBruin 350YFM350FA 4x4
    2004YamahaBruin 350YFM350FAH 4x4 Auto Hunter Edition
    2011YamahaGrizzly 350YFM350FG 4x4
    2011YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2011YamahaGrizzly 350YFM350G
    2010YamahaGrizzly 350YFM350FG 4x4
    2010YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2010YamahaGrizzly 350YFM350G
    2009YamahaGrizzly 350YFM350FG 4x4
    2009YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2009YamahaGrizzly 350YFM350G
    2008YamahaGrizzly 350YFM350FG 4x4
    2008YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2008YamahaGrizzly 350YFM350G
    2007YamahaGrizzly 350YFM350FG 4x4
    2007YamahaGrizzly 350YFM350G
    2008YamahaGrizzly 400YFM400FG 4x4
    2008YamahaGrizzly 400YFM400FGH 4x4 Hunter Edition
    2007YamahaGrizzly 400YFM400FG 4x4
    2007YamahaGrizzly 400YFM400FGH 4x4 Hunter Edition
    2006YamahaKodiak 400YFM400FA 4x4
    2006YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
    2005YamahaKodiak 400YFM400FA 4x4
    2005YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
    2004YamahaKodiak 400YFM400A
    2004YamahaKodiak 400YFM400FA 4x4
    2004YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
    2003YamahaKodiak 400YFM400A
    2003YamahaKodiak 400YFM400FA 4x4
    2003YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
    2010YamahaWolverine 450YFM450FX 4x4
    2009YamahaWolverine 450YFM450FX 4x4
    2008YamahaWolverine 450YFM450FX 4x4
    2008YamahaWolverine 450YFM450FXSP 4x4 Special Edition
    2007YamahaWolverine 450YFM450FX 4x4
    2007YamahaWolverine 450YFM450FXSE 4x4 Special Edition
    2006YamahaWolverine 450YFM450FX 4x4

    Details

    • WB-1108/YA-309
    • WB-1108/YA-309
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 8.8 lbs.
    • W4.0000” x H4.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
