CV Axle Set for Yamaha Grizzly 700 2014-2015 4x4

Location on vehicle: Rear,Front,Left,Right

YA-316/YA-316/YA-346/YA-346

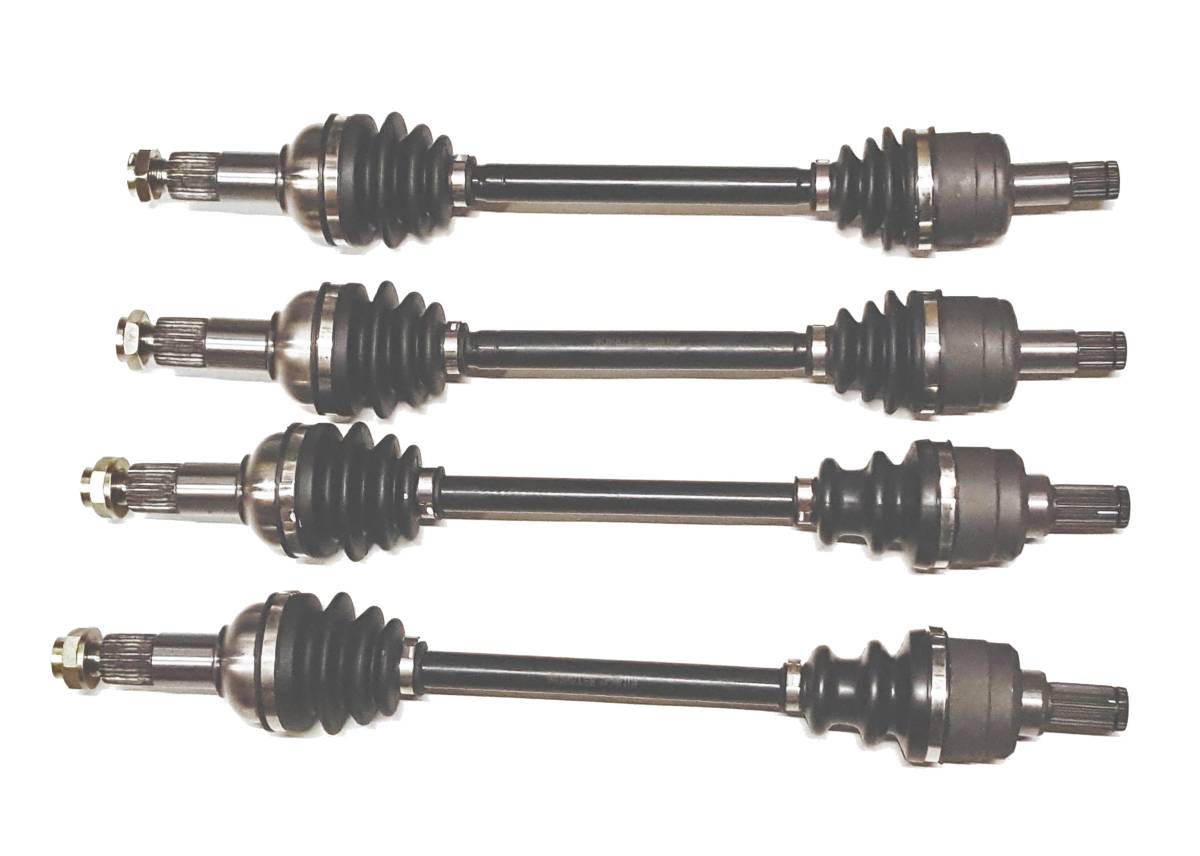

This is a set of new Front & Rear CV axles for a Yamaha ATV.

They fit the following 4x4 applications:

2014-2015 ..... Grizzly 700

Front & Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts: 21 / Rears: 23
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: Fronts: 536 / Rears: 552.5
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $209.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits all Grizzly 700 / 700 EPS models from 2014-2015.
  • Fitted with neoprene CV boots for added wear and puncture resistance. Greased with a moly based grease to provide superior joint lubrication.
  • Replaces OE # 28P-2510J-00-00, 28P-2510J-01-00, 28P-2510F-00-00, 28P-2510F-01-00, 28P-2510F-04-00, 2BG-2518E-00-00.
  • Compressed Length: Fronts - 536 mm, Rears: 552.5 mm. Inner Spline Count - Fronts: 21, Rears: 23. Outer Spline Count - Fronts & Rears: 27.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2015YamahaGrizzly 700YFM700D 4x4 FI
    2015YamahaGrizzly 700YFM700DHH 4x4 Hunter Edition FI
    2015YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2015YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2015YamahaGrizzly 700YFM700PHFH 4x4 Hunter Edition FI EPS
    2014YamahaGrizzly 700YFM700D 4x4 FI
    2014YamahaGrizzly 700YFM700DHH 4x4 Hunter Edition FI
    2014YamahaGrizzly 700YFM700P 4x4 FI EPS
    2014YamahaGrizzly 700YFM700PHH 4x4 Hunter Edition FI EPS
    2014YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS

    Details

    • YA-316/YA-316/YA-346/YA-346
    • YA-316/YA-316/YA-346/YA-346
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 31.8 lbs.
    • W5.0000” x H18.0000” x L24.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
