Rear Outer CV Joint Kits for Suzuki King Quad 450 500 & 750 ATV, 64933-31G10

Placement on halfshaft: Outer - Rear,Left,Right

OJ415/OJ415

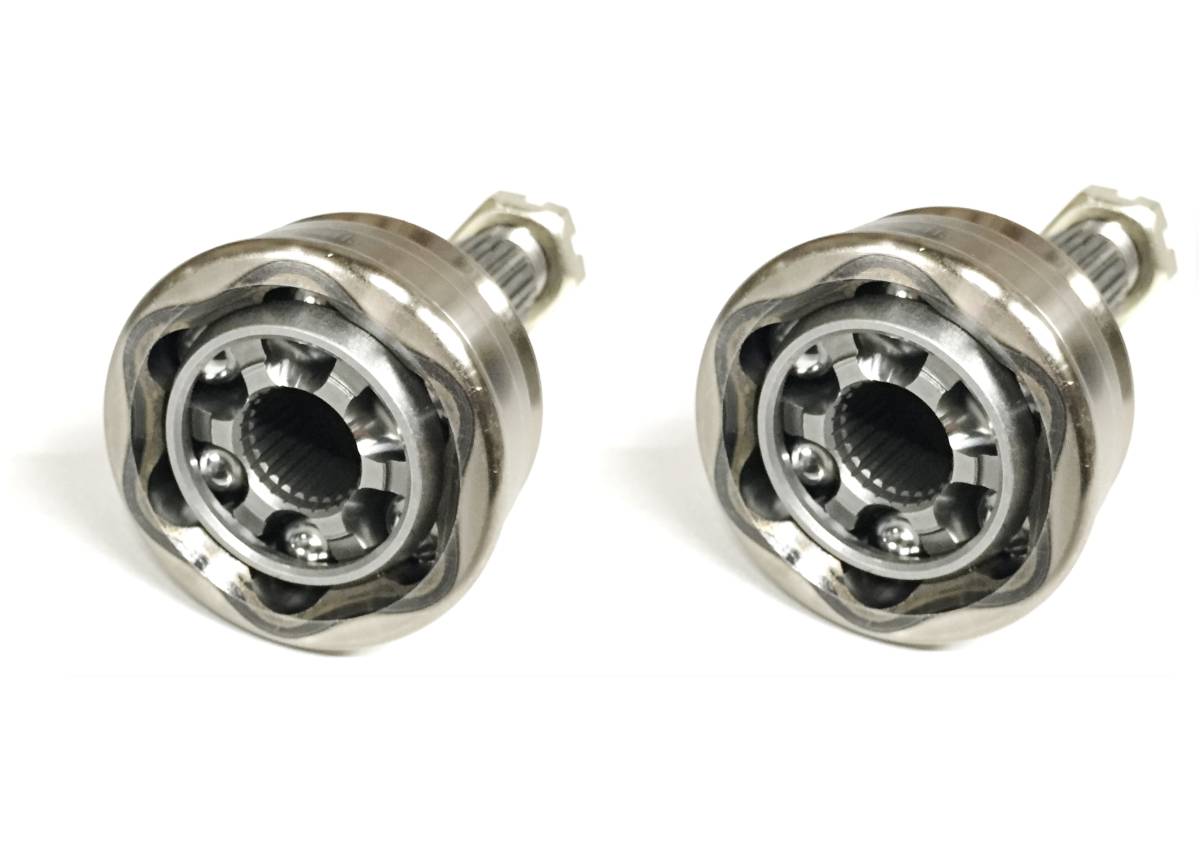

This is a pair of new CV joint and boot kits for a Suzuki ATV.

They fit rear, outer (wheel side) on the following models:

2007-2010 King Quad 450, 2009-2018 King Quad 500, 2008-2018 King Quad 750

*Joints not intended for use in lifted vehicles

Product features:

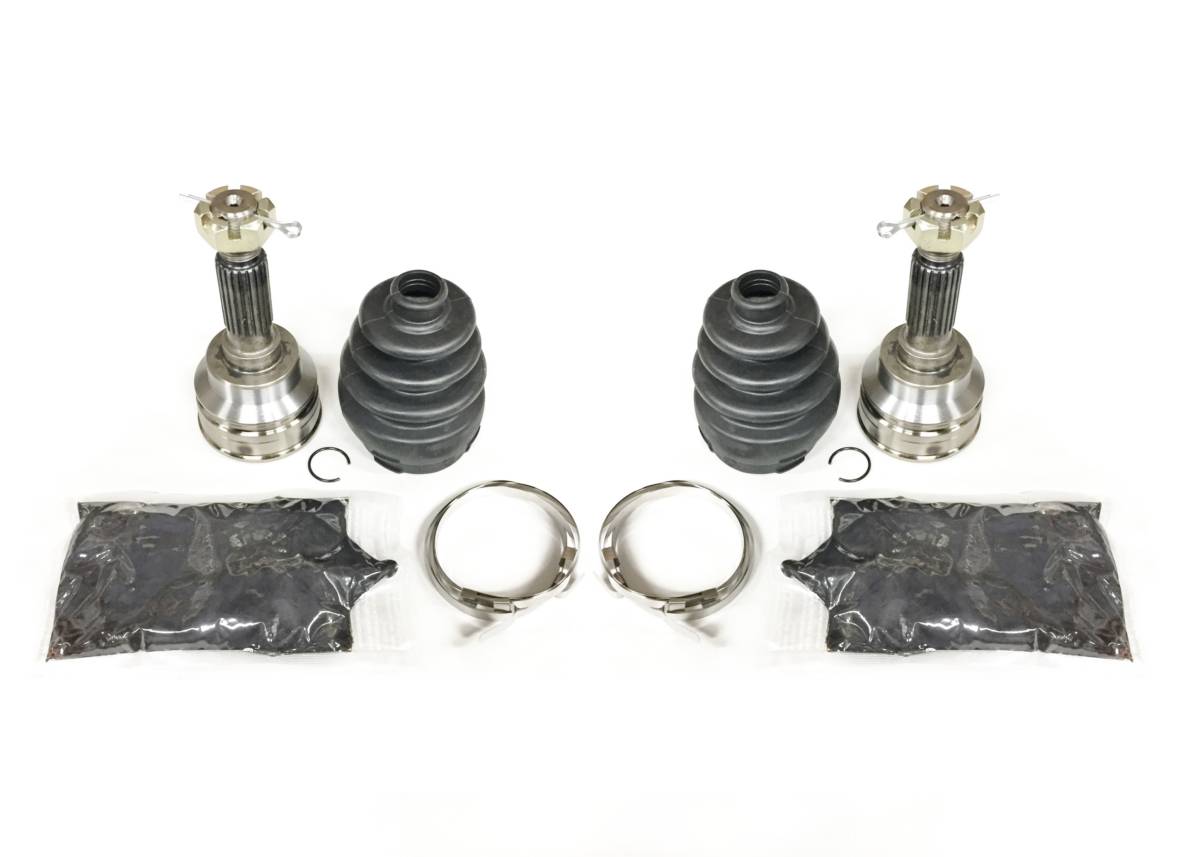

  • Set includes 2 fully assembled CV joints, 2 boots, 2 grease packs, 4 clamps
  • Stub Height: 4.06 in, Housing Diameter: 2.57 in, Spline Diamter: 0.935 in, Seal Diameter: 1.89 in, CV Housing Spline Count: 22, Inner Race Spline Count: 26
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $59.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect warranty

Product Notes

  • Fits the following Suzuki ATVs: 2007-2010 King Quad 450, 2009-2018 King Quad 500, 2008-2018 King Quad 750.
  • Replaces the REAR OUTER (wheel side) positions. Set includes 2 fully assembled CV joints, 2 boots, 2 grease packs, 4 clamps.
  • Stub height: 4.06 in, housing diameter: 2.57 in, spline diamter: 0.935 in, seal diameter: 1.89 in, CV housing splines: 22, inner race splines: 26.
  • Replaces OEM # 64933-31G10, 64933-31GV0, 64933-31G11, 64933-31G12.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 CV joints, 2 boots, 2 grease packs, 4 clamps
  • Application List

    YearMakeModelSubmodelNotes
    2010SuzukiKing Quad 450LTA450X 4x4 AXi
    2009SuzukiKing Quad 450LTA450X 4x4 AXi
    2009SuzukiKing Quad 450LTA450XZ 4x4 Limited AXi
    2008SuzukiKing Quad 450LTA450X 4x4 AXi
    2008SuzukiKing Quad 450LTA450XZ 4x4 Special Edition AXi
    2007SuzukiKing Quad 450LTA450FC 4x4 Special Edition
    2007SuzukiKing Quad 450LTA450X 4x4 AXi
    2018SuzukiKing Quad 500LTA500 4x4 AXi
    2018SuzukiKing Quad 500LTA500 4x4 AXi EPS
    2018SuzukiKing Quad 500LTA500 4x4 AXi SE EPS
    2018SuzukiKing Quad 500LTA500X 4x4 AXi
    2018SuzukiKing Quad 500LTA500XC 4x4 Camo AXi
    2018SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2018SuzukiKing Quad 500LTA500XP 4x4 AXi SE EPS
    2018SuzukiKing Quad 500LTA500XPC 4x4 Camo AXi EPS
    2017SuzukiKing Quad 500LTA500 4x4 AXi SE EPS Rugged
    2017SuzukiKing Quad 500LTA500X 4x4 AXi
    2017SuzukiKing Quad 500LTA500XC 4x4 Camo AXi
    2017SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2017SuzukiKing Quad 500LTA500XP 4x4 AXi SE EPS
    2017SuzukiKing Quad 500LTA500XPC 4x4 Camo AXi EPS
    2016SuzukiKing Quad 500LTA500X 4x4 AXi
    2016SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2016SuzukiKing Quad 500LTA500XP 4x4 AXi SE EPS
    2015SuzukiKing Quad 500LTA500X 4x4 AXi
    2015SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2014SuzukiKing Quad 500LTA500X 4x4 AXi
    2014SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2014SuzukiKing Quad 500LTA500XPZ 4x4 Limited AXi EPS
    2013SuzukiKing Quad 500LTA500X 4x4 AXi
    2013SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2013SuzukiKing Quad 500LTA500XPZ 4x4 30th Anniversary Edition AXi EPS
    2012SuzukiKing Quad 500LTA500X 4x4 AXi
    2012SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2011SuzukiKing Quad 500LTA500X 4x4 AXi
    2011SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2010SuzukiKing Quad 500LTA500X 4x4 AXi
    2009SuzukiKing Quad 500LTA500XP 4x4 AXi EPS
    2009SuzukiKing Quad 500LTA500XPZ 4x4 Limited AXi EPS
    2018SuzukiKing Quad 750LTA750X 4x4 AXi
    2018SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2018SuzukiKing Quad 750LTA750XPC 4x4 Camo AXi EPS
    2018SuzukiKing Quad 750LTA750XPZ 4x4 SE AXi EPS
    2017SuzukiKing Quad 750LTA750X 4x4 AXi
    2017SuzukiKing Quad 750LTA750XC 4x4 Camo AXi
    2017SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2017SuzukiKing Quad 750LTA750XPC 4x4 Camo AXi EPS
    2017SuzukiKing Quad 750LTA750XPZ 4x4 SE AXi EPS
    2017SuzukiKing Quad 750LTA750XPZ 4x4 SE AXi EPS Rugged
    2016SuzukiKing Quad 750LTA750X 4x4 AXi
    2016SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2016SuzukiKing Quad 750LTA750XPZ 4x4 SE AXi EPS
    2015SuzukiKing Quad 750LTA750X 4x4 AXi
    2015SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2015SuzukiKing Quad 750LTA750XPZ 4x4 Limited AXi EPS
    2014SuzukiKing Quad 750LTA750X 4x4 AXi
    2014SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2014SuzukiKing Quad 750LTA750XPZ 4x4 Limited AXi EPS
    2014SuzukiKing Quad 750LTA750XZ 4x4 Limited AXi
    2014SuzukiKing Quad 750LTS750XP 4x4 Axi EPS
    2013SuzukiKing Quad 750LTA750X 4x4 AXi
    2013SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2013SuzukiKing Quad 750LTA750XPZ 4x4 30th Anniversary Edition AXi EPS
    2012SuzukiKing Quad 750LTA750X 4x4 AXi
    2012SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2011SuzukiKing Quad 750LTA750X 4x4 AXi
    2011SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2009SuzukiKing Quad 750LTA750X 4x4 AXi
    2009SuzukiKing Quad 750LTA750XP 4x4 AXi EPS
    2009SuzukiKing Quad 750LTA750XPZ 4x4 Limited AXi EPS
    2009SuzukiKing Quad 750LTA750XR 4x4 Rockstar Edition AXi
    2009SuzukiKing Quad 750LTA750XZ 4x4 Limited AXi
    2008SuzukiKing Quad 750LTA750X 4x4 AXi
    2008SuzukiKing Quad 750LTA750XZ 4x4 Special Edition AXi
