Rear CV Axles & Wheel Bearings for Polaris Sportsman 400 450 500 600 700 800

Location on vehicle: Rear,Left,Right

PO-301/PO-301/WB-1150

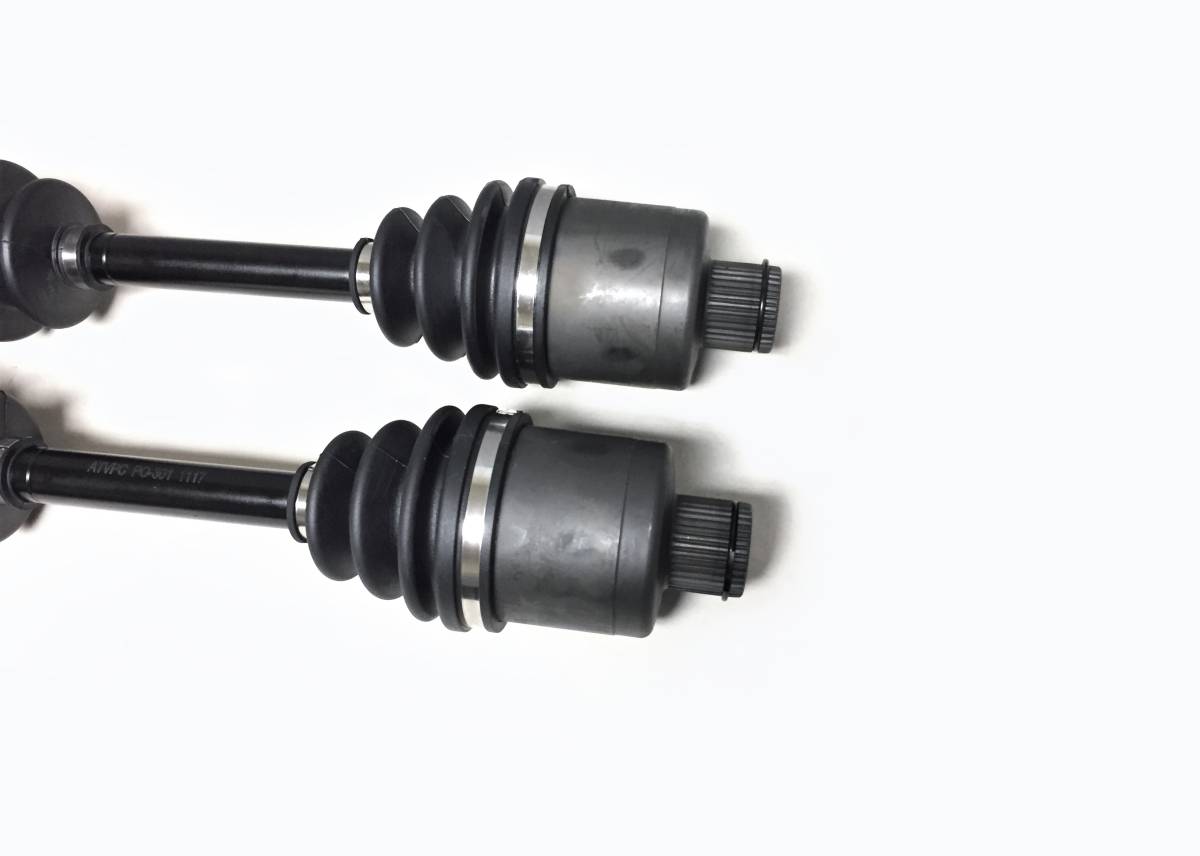

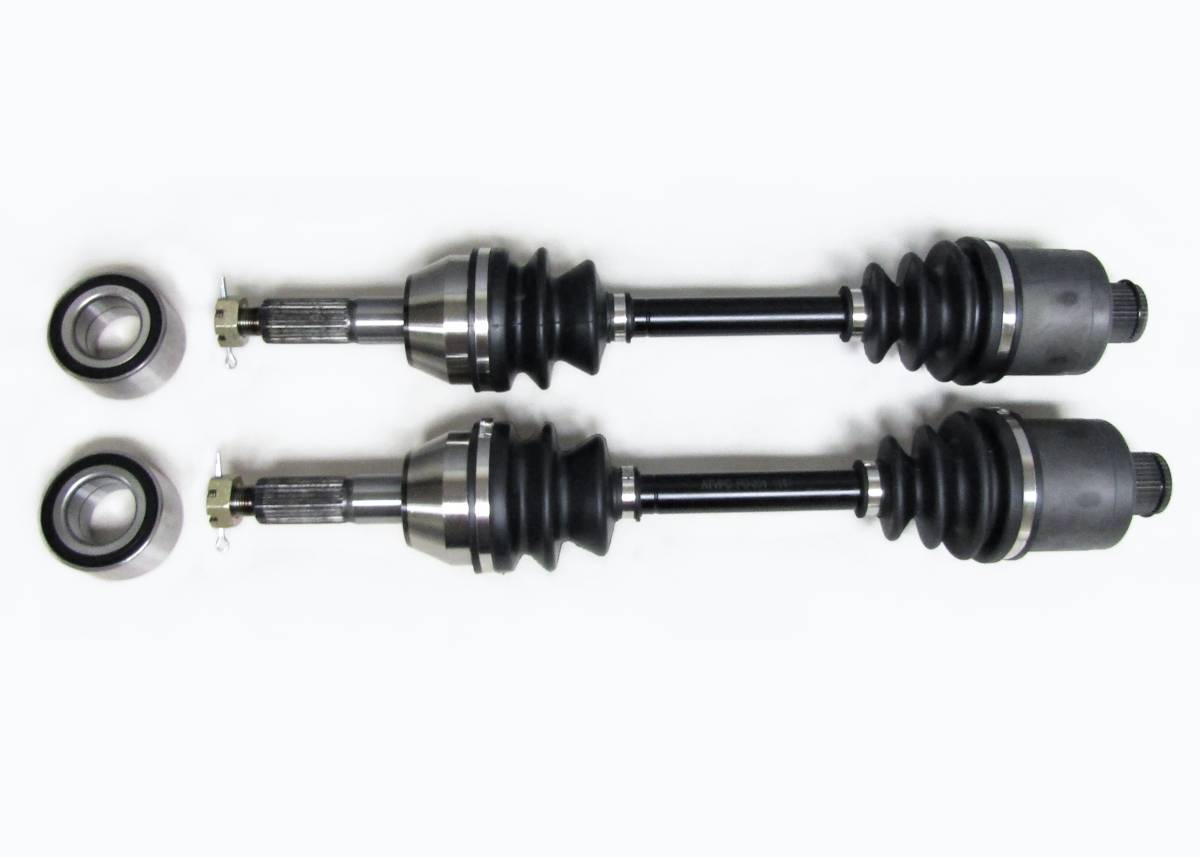

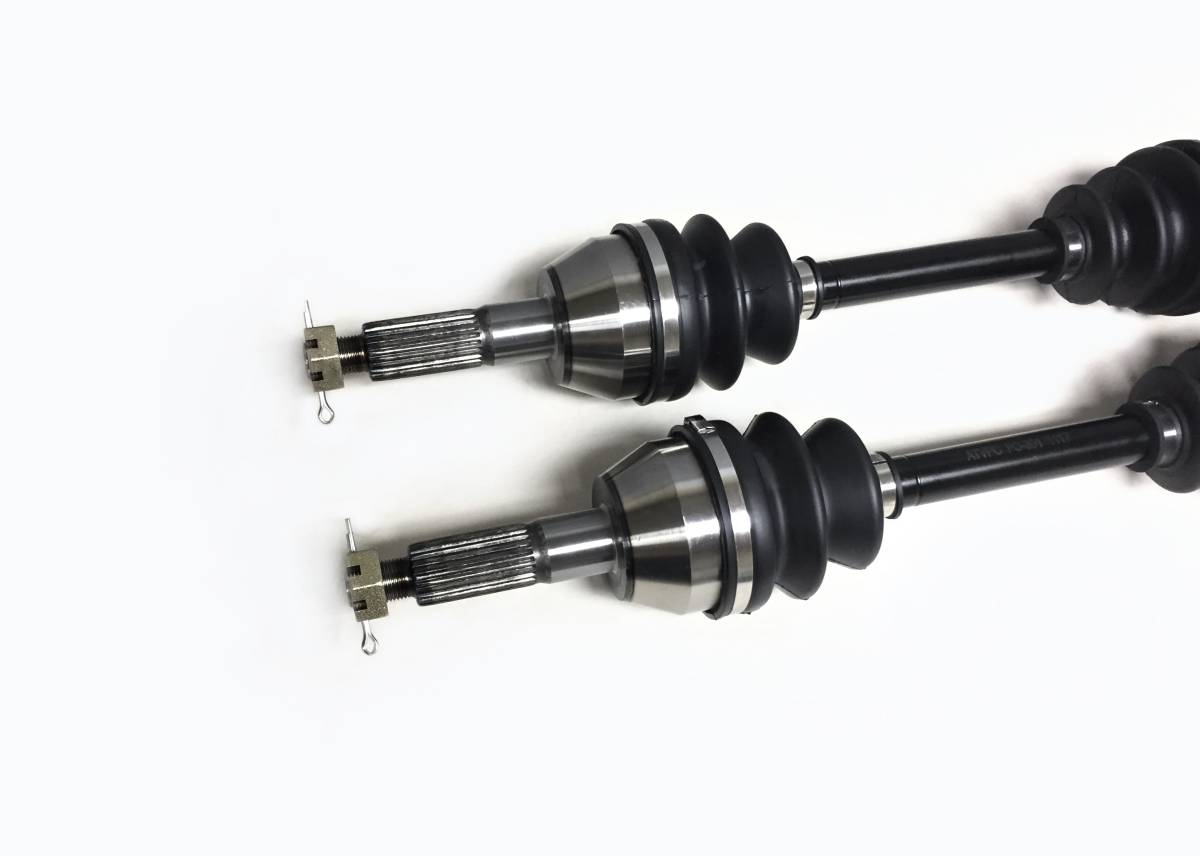

This is a set of new Rear CV axles & wheel bearings for a Polaris ATV.

They fit the following 4x4 models:

2003-2005 ... Sportsman 400

2006-2007 ... Sportsman 450

2003-2010 ... Sportsman 500

(excluding Touring models)

2003-2005 ... Sportsman 600

2003-2007 ... Sportsman 700

2005-2009 ... Sportsman 800 4x4 & 6x6

(excluding Touring & X2 models)

2005-2007 ... Sportsman MV7

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene boots for added wear & puncture resistance

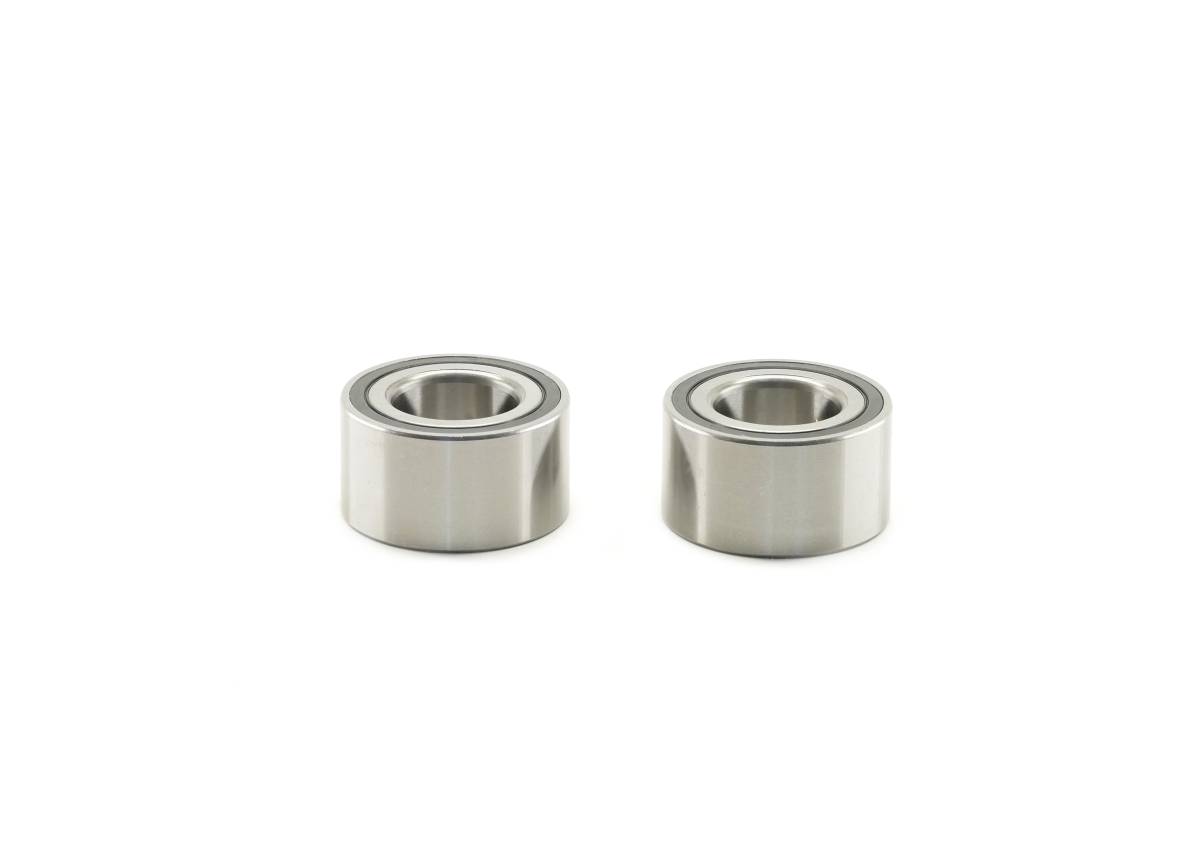

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 36 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 559 mm (both)
  • Replaces Polaris OE # 1380197, 1380240, 3514635, 3585502
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $165.00
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2003-2005 Sportsman 400, 2006-2007 Sportsman 450, 2003-2010 Sportsman 500 (excluding Touring models), 2003-2005 Sportsman 600, 2003-2007 Sportsman 700, 2005-2009 Sportsman 800 4x4/6x6 (excluding Touring & X2 models), 2005-2007 Sportsman MV7 4x4.
  • Axles feature a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed overall axle length: 549 mm (both), Inboard CV joint spline count: 36 (both), Outboard CV joint spline count: 26 (both). Replaces OE # 1380197, 1380240.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 CV axles & 2 wheel bearings
  • Application List

    YearMakeModelSubmodelNotes
    2005PolarisSportsman 4004X4
    2004PolarisSportsman 4004X4
    2003PolarisSportsman 4004X4
    2007PolarisSportsman 4504X4
    2006PolarisSportsman 4504X4
    2006PolarisSportsman 4504x4 Browning
    2010PolarisSportsman 5004x4 HO
    2009PolarisSportsman 5004x4 HO
    2009PolarisSportsman 5004x4 HO EFI
    2008PolarisSportsman 5004x4 HO
    2008PolarisSportsman 5004x4 HO EFI
    2007PolarisSportsman 5004x4 Deluxe HO EFI
    2007PolarisSportsman 5004x4 HO EFI
    2007PolarisSportsman 5004x4 NBU HO EFI
    2007PolarisSportsman 5006x6
    2006PolarisSportsman 5004x4 Browning HO EFI
    2006PolarisSportsman 5004x4 HO
    2006PolarisSportsman 5004x4 HO EFI
    2006PolarisSportsman 5006x6
    2005PolarisSportsman 5004x4 HO
    2004PolarisSportsman 5004x4 HO
    2003PolarisSportsman 5004x4 HO
    2005PolarisSportsman 600Twin
    2004PolarisSportsman 600Twin
    2003PolarisSportsman 600Twin
    2007PolarisSportsman 700EFI
    2007PolarisSportsman 700MV
    2006PolarisSportsman 700Twin
    2006PolarisSportsman 700Twin Browning EFI
    2006PolarisSportsman 700Twin EFI
    2005PolarisSportsman 700Twin
    2005PolarisSportsman 700Twin EFI
    2004PolarisSportsman 700Twin
    2004PolarisSportsman 700Twin EFI
    2003PolarisSportsman 700Twin
    2009PolarisSportsman 800EFI
    2009PolarisSportsman 800HO EFI
    2008PolarisSportsman 800EFI
    2008PolarisSportsman 800EFI Military HO
    2008PolarisSportsman 800Touring EFI
    2007PolarisSportsman 800--
    2007PolarisSportsman 800Deluxe EFI
    2007PolarisSportsman 800EFI
    2006PolarisSportsman 800Twin Browning EFI
    2006PolarisSportsman 800Twin EFI
    2005PolarisSportsman 800Twin EFI
    2006PolarisSportsman MV7--
    2005PolarisSportsman MV7--

    Product Videos

    Details

    • PO-301/PO-301/WB-1150
    • PO-301/PO-301/WB-1150
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 31.0 lbs.
    • W10.0000” x H5.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
