ATV Parts Connection - Front CV Axles & Bearings for Can-Am Outlander 'XMR' 705401703, 705401704, Left & Right, Quality Tested, Heat-Treated, 4140 Chromoly Steel, Exact Fit, ATVPC

Additional Images

Front CV Axles & Bearings for Can-Am Outlander 'XMR' 705401703, 705401704, Left & Right, Quality Tested, Heat-Treated, 4140 Chromoly Steel, Exact Fit, ATVPC

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review

SKU: CA-116/CA-216/WB-1516/WB-1516

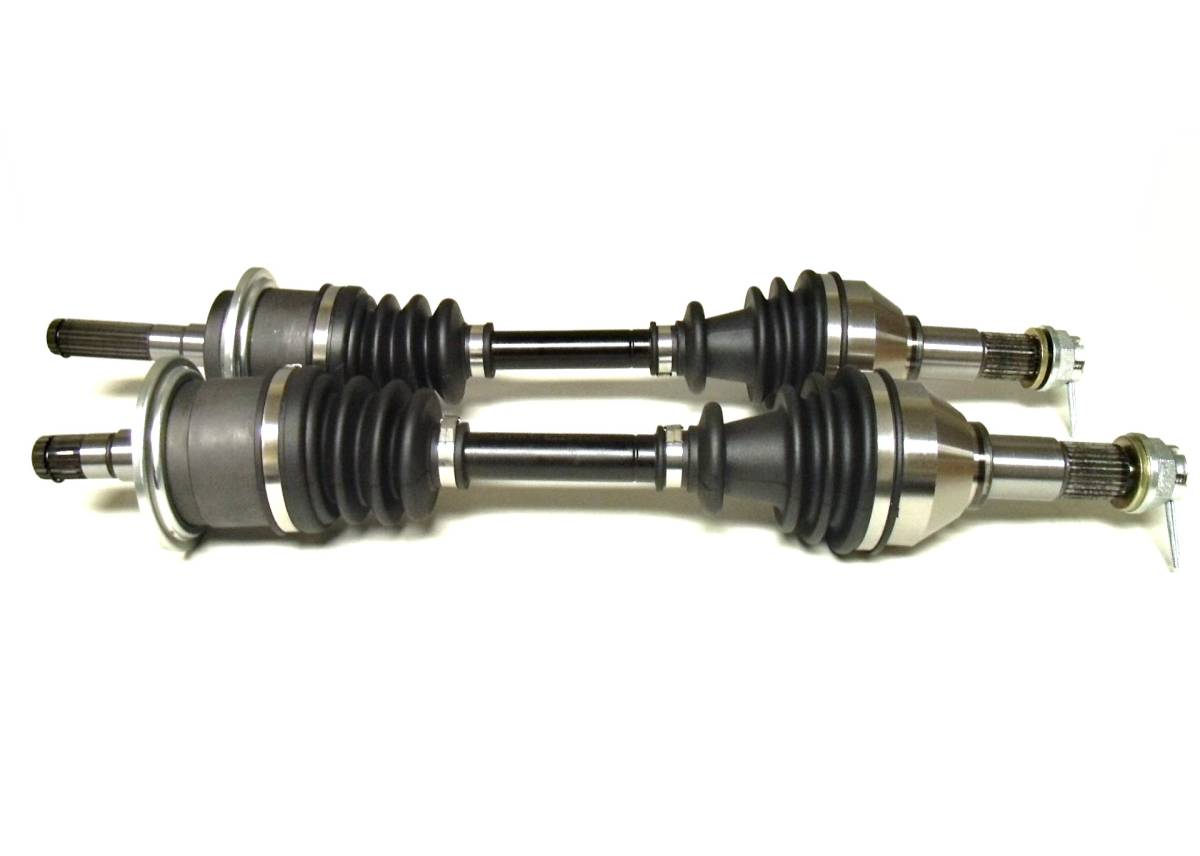

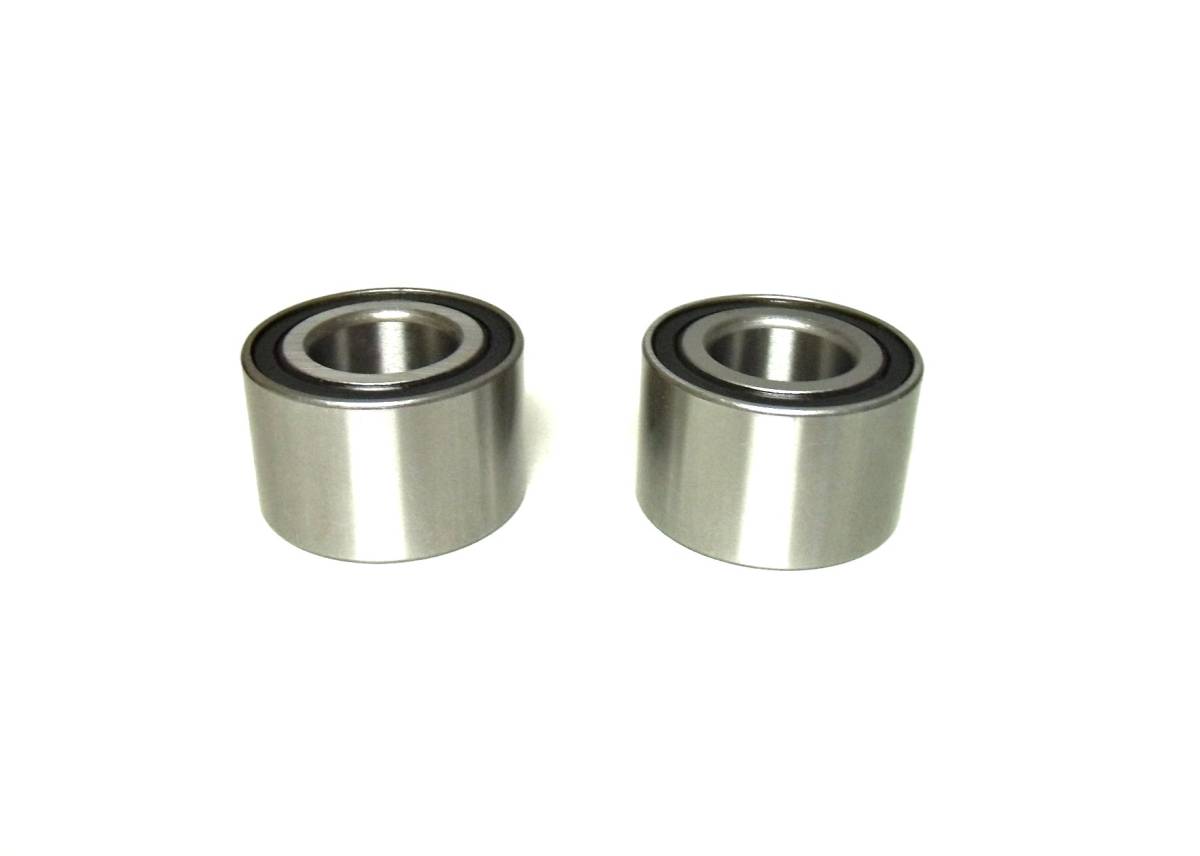

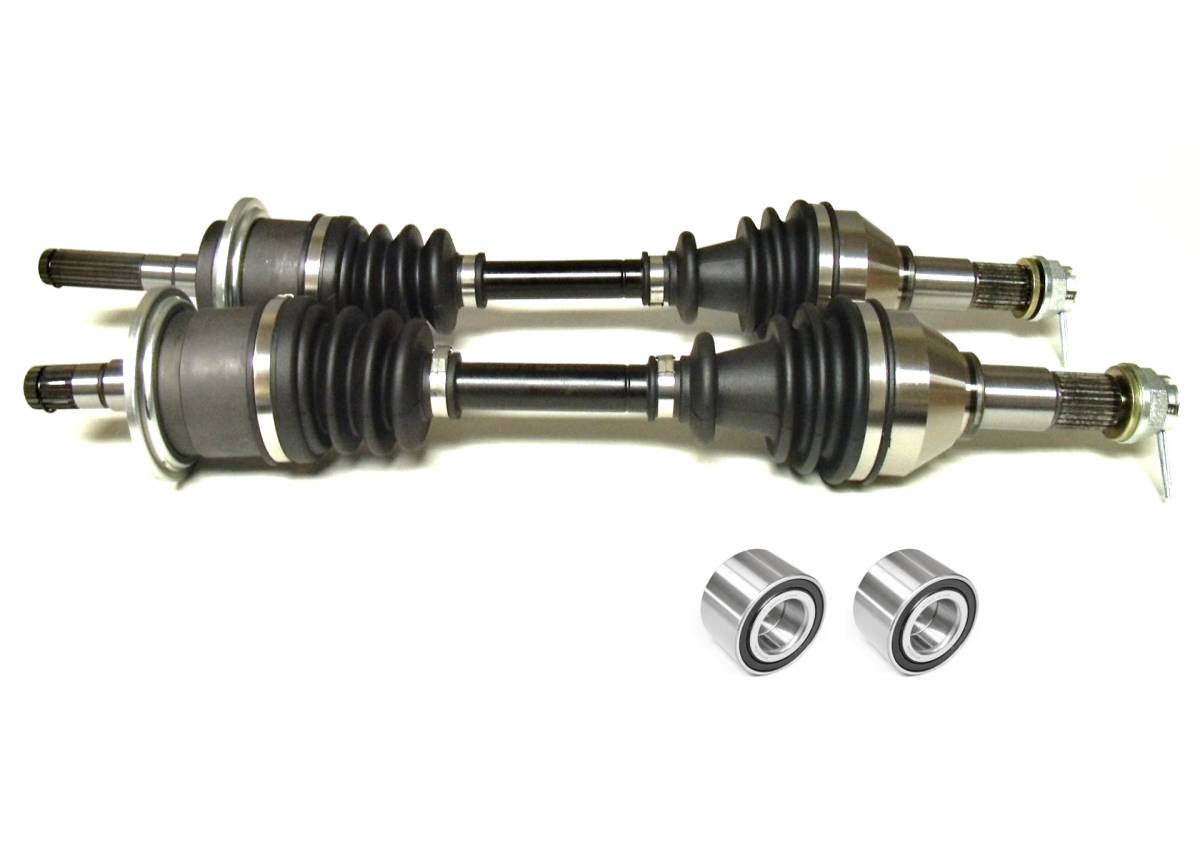

This is a pair of new front CV axles & wheel bearings for a Can-Am ATV.

They fit the following 4x4 applications:

2016 ... Outlander XMR 570

2013-2018 ... Outlander XMR 650

2015 ... Outlander XMR 800R

2016-2018 ... Outlander XMR 850

2013-2015 ... Outlander XMR 1000

front, left & right

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
High speed bearing manufactured for long life
Double lip seal made to keep grease in and dirt out
inobard CV joint spline count: 21 (both)
outboard CV joint spline count: 26 (both)
Compressed overall axle length: left 515.5 mm, right 558 mm

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $159.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2018	Can-Am	Outlander 650	4x4 XMR DPS
2017	Can-Am	Outlander 650	4x4 XMR DPS
2016	Can-Am	Outlander 650	4x4 XMR DPS
2015	Can-Am	Outlander 650	4x4 XMR
2014	Can-Am	Outlander 650	4x4 XMR
2013	Can-Am	Outlander 650	4x4 XMR EFI
2015	Can-Am	Outlander 800R	4x4 XMR
2018	Can-Am	Outlander 850	4x4 XMR DPS
2017	Can-Am	Outlander 850	4x4 XMR DPS
2016	Can-Am	Outlander 850	4x4 XMR DPS
2015	Can-Am	Outlander 1000	4x4 XMR
2014	Can-Am	Outlander 1000	4x4 XMR EFI
2013	Can-Am	Outlander 1000	4x4 XMR EFI
2016	Can-Am	Outlander L 570	4x4 XMR DPS

Product Notes

Fits front, left & right on the following Can-Am ATVs: 2016 Outlander XMR 570, 2013-2018 Outlander XMR 650, 2015 Outlander XMR 800R, 2016-2018 Outlander XMR 850, 2013-2015 Outlander XMR 1000.

Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.

Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.

Inboard CV joint spline count: 21 (both), Outboard CV joint spline count: 26 (both), Compressed overall axle length: left 515.5 mm, right 558 mm.

Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.
