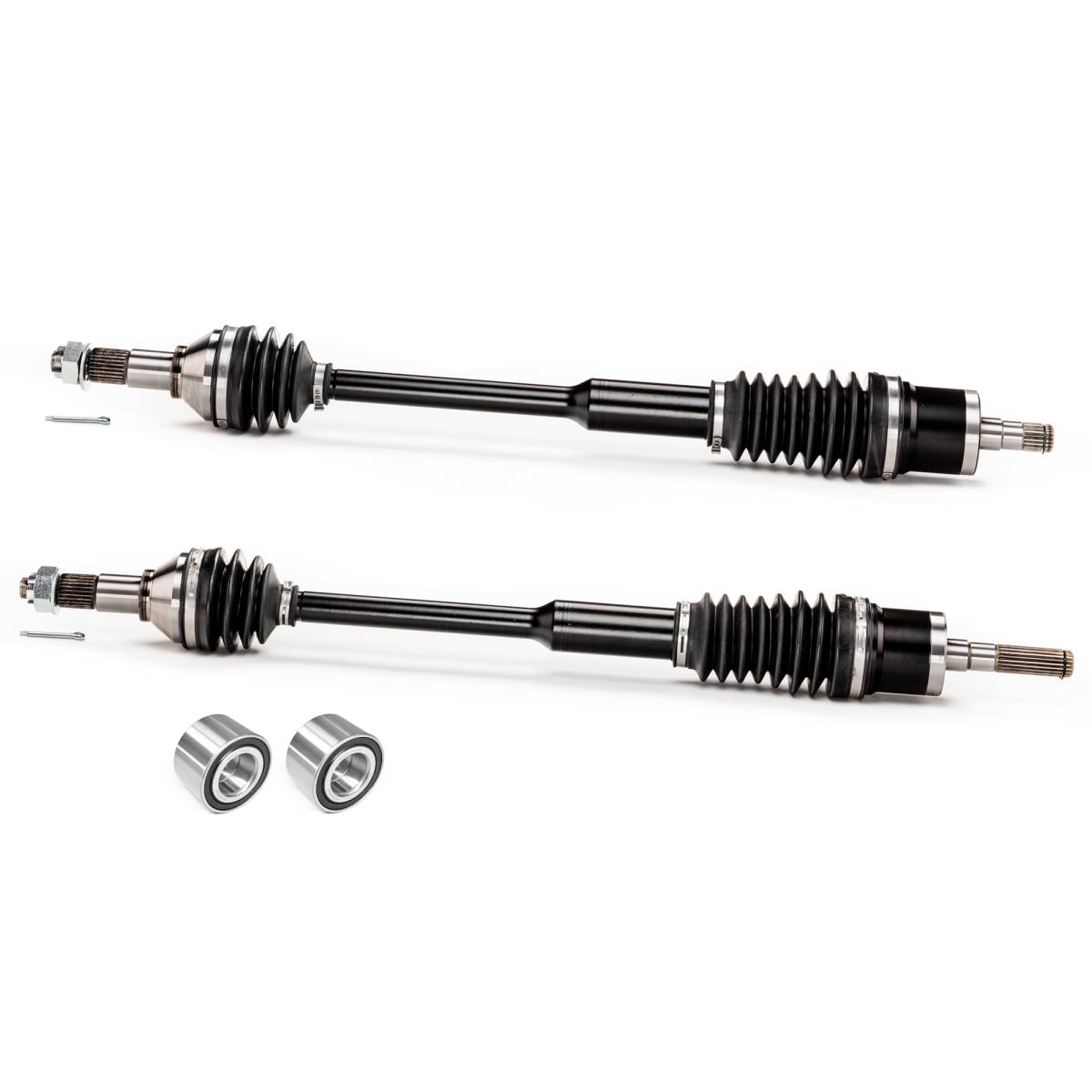

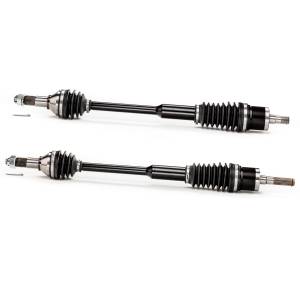

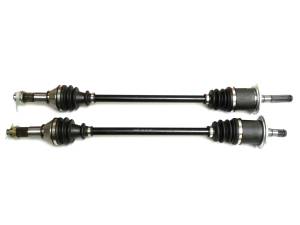

Monster Axles Front Pair with Bearings for Can-Am Maverick 1000 13-18, XP Series

Location on vehicle: Front,Left,Right

CA-117XP/CA-217XP/WB-1516/WB-1516
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $359.95
Qty:
Free Ground Shipping

Warranty

1 year, one-time repair/ replace. Buyer pays shipping

Product Notes

  • Fits FRONT, LEFT & RIGHT on the 2013-2018 Can-Am Maverick 1000 & MAX 1000 (please note these fit STD, DPS, XRS, XRS-DPS & Turbo - and will not fit XC, XXC, XMR models). Set includes 2 axles & 2 wheel bearings.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # (axles) 705401235, 705401873, 705401236, 705401874, (bearings) 293350040, 293250246, 705400088. Compressed Length - Left- 725.5 mm, Right- 768 mmm Inner splines: 21 (both), Outer splines: 26 (both). Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

  • 2 axles & 2 wheel bearings
  • Product Videos

    Application List

    YearMakeModelSubmodelNotes
    2013Can-AmMaverick 10004x4 XRS
    2018Can-AmMaverick 1000R4x4 DPS
    2017Can-AmMaverick 1000R4x4 DPS
    2017Can-AmMaverick 1000R4x4 Turbo DPS
    2016Can-AmMaverick 1000R4X4
    2016Can-AmMaverick 1000R4x4 DPS
    2016Can-AmMaverick 1000R4x4 Turbo DPS
    2016Can-AmMaverick 1000R4x4 XDS DPS
    2016Can-AmMaverick 1000R4x4 XDS Turbo DPS
    2016Can-AmMaverick 1000R4x4 XRS Turbo DPS
    2015Can-AmMaverick 1000R4X4
    2015Can-AmMaverick 1000R4x4 XDS
    2015Can-AmMaverick 1000R4x4 XDS Turbo
    2015Can-AmMaverick 1000R4x4 XRS DPS
    2014Can-AmMaverick 1000R4X4
    2014Can-AmMaverick 1000R4x4 XRS
    2014Can-AmMaverick 1000R4x4 XRS DPS
    2013Can-AmMaverick 1000R4X4
    2018Can-AmMaverick Max 1000R4x4 DPS
    2017Can-AmMaverick Max 1000R4x4 DPS
    2017Can-AmMaverick Max 1000R4x4 Turbo DPS
    2017Can-AmMaverick Max 1000R4x4 XDS Turbo DPS
    2017Can-AmMaverick Max 1000R4x4 XRS Turbo DPS
    2016Can-AmMaverick Max 1000R4x4 DPS
    2016Can-AmMaverick Max 1000R4x4 Turbo DPS
    2016Can-AmMaverick Max 1000R4x4 XDS DPS
    2016Can-AmMaverick Max 1000R4x4 XDS Turbo DPS
    2016Can-AmMaverick Max 1000R4x4 XRS Turbo DPS
    2015Can-AmMaverick Max 1000R4X4
    2015Can-AmMaverick Max 1000R4x4 XDS
    2015Can-AmMaverick Max 1000R4x4 XDS Turbo
    2015Can-AmMaverick Max 1000R4x4 XRS DPS
    2014Can-AmMaverick Max 1000R4X4
    2014Can-AmMaverick Max 1000R4x4 XRS DPS

    Details

    • CA-117XP/CA-217XP/WB-1516/WB-1516
    • CA-117XP/CA-217XP/WB-1516/WB-1516
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 30.2 lbs.
    • W6.0000” x H11.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
