Front Axle & Wheel Bearing for Polaris Ranger 500 700 XP 700 4x4 6x6 2005-2007

Location on vehicle: Front,Left,Right

PO-309/WB-1424

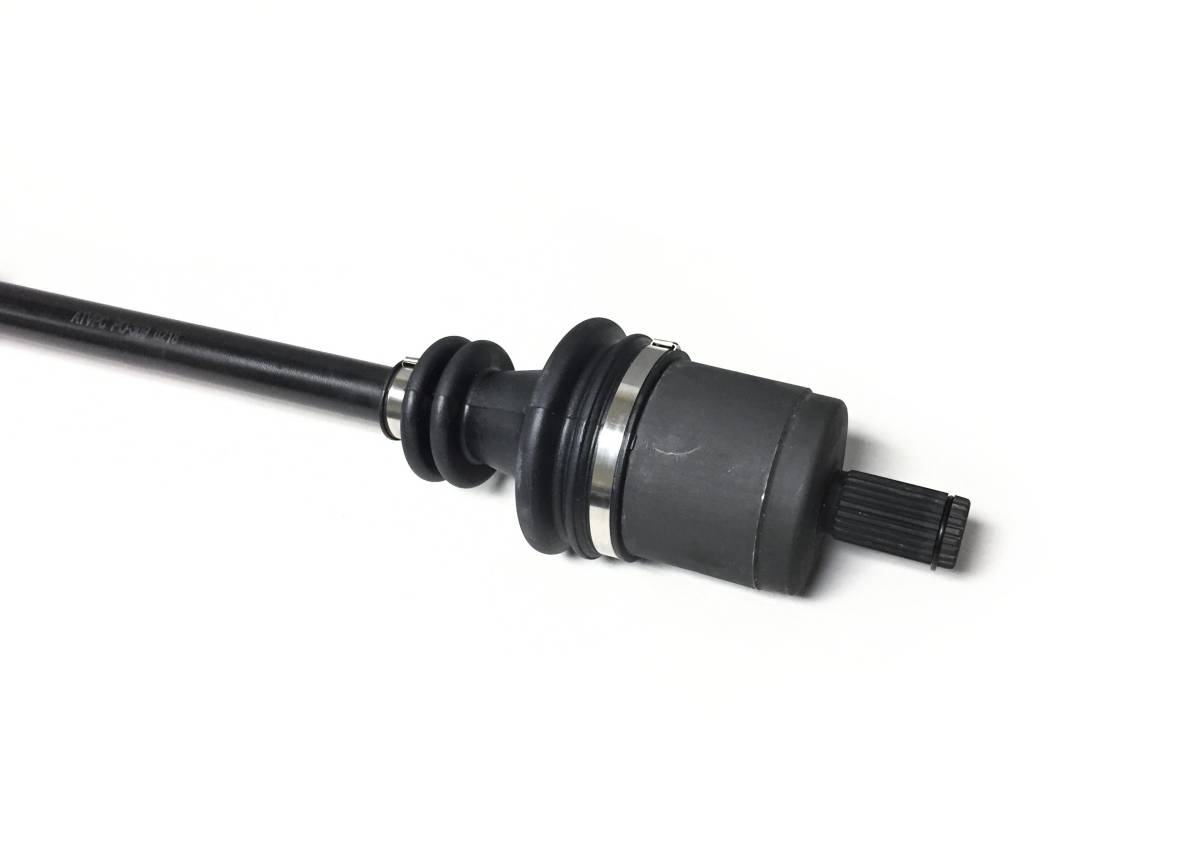

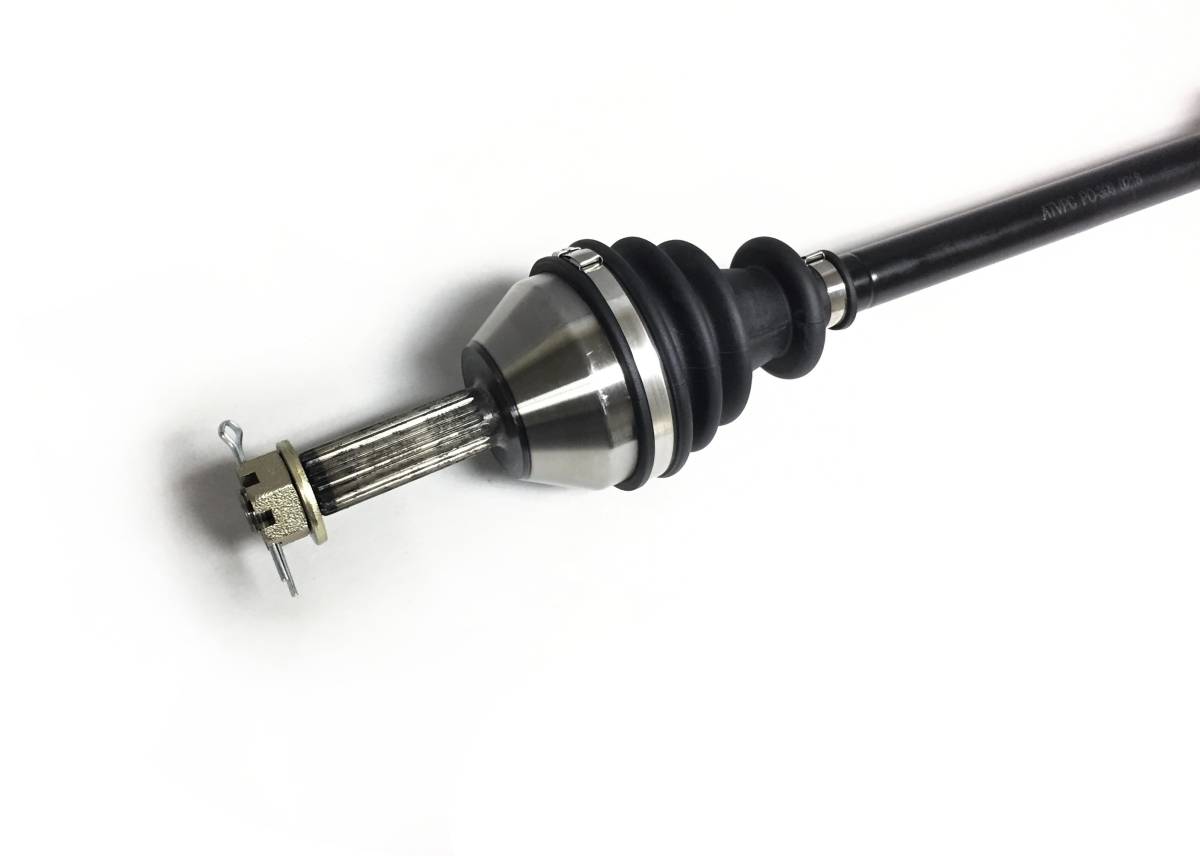

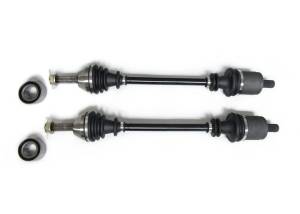

This is a new Front CV axle & wheel bearing for a Polaris UTV.

They fit the following applications:

2004-2007 ... Ranger 500 4x4

(only models that require a CV joint on the inner axle shaft)

2005-2007 ... Ranger 700 / XP 700 4x4

2006-2007 ... Ranger 700 6x6

Fits Front, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 20
  • Compressed overall axle length: 630 mm
  • Replaces Polaris OEM # (axle) 1332423, (bearing) 3514342, 3514634
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT: 2004-2007 Ranger 500 4x4 (models that use an inner CV joint), 2005-2007 Ranger 700 / XP 700 4x4, 2006-2007 Ranger 700 6x6.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces Polaris OEM # (axle) 1332423, (bearing) 3514342, 3514634. Compressed Length - 630 mm * Inboard Spline Count - 22 * Outboard Spline Count - 20.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

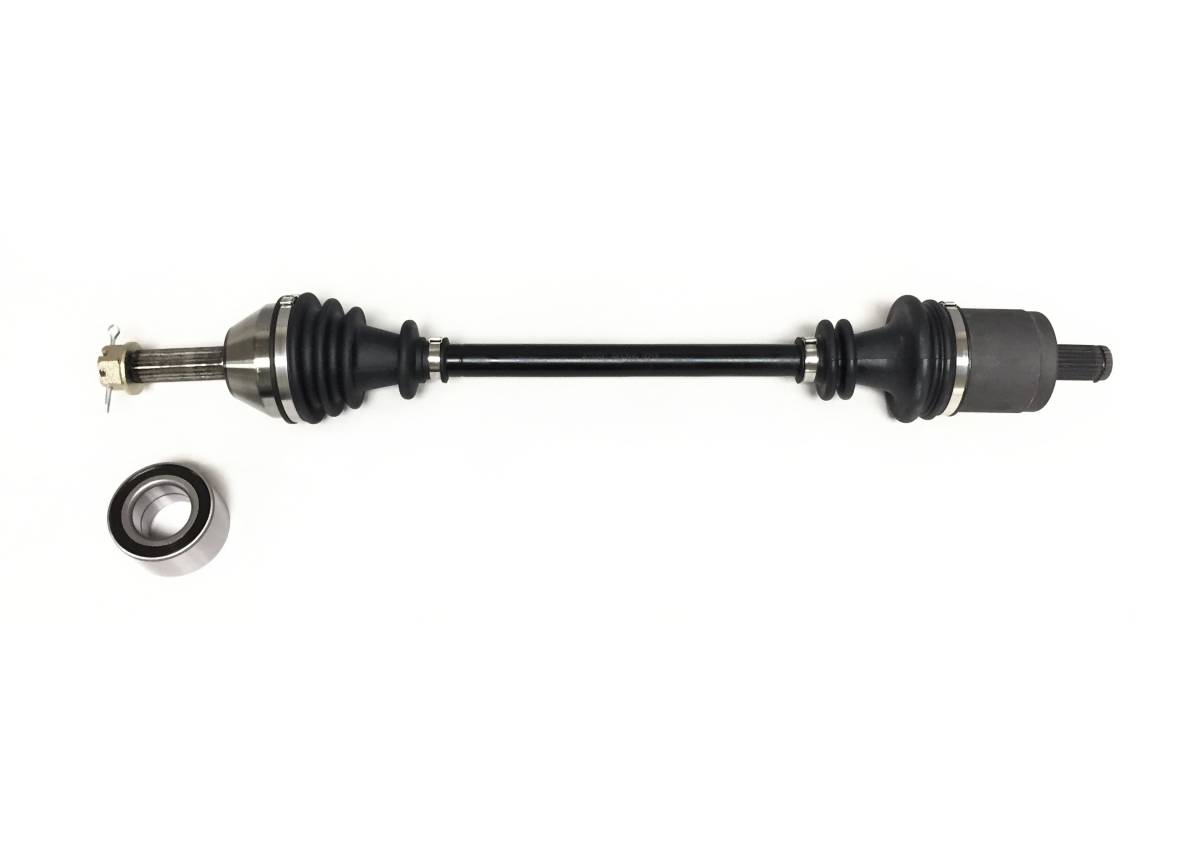

  • 1 CV axle & 1 wheel bearing
  • Application List

    YearMakeModelSubmodelNotes
    2007PolarisRanger 5004X4
    2007PolarisRanger 5004x4 EFI
    2006PolarisRanger 5004X4
    2006PolarisRanger 5004x4 EFI
    2005PolarisRanger 5004X4must use CV joint on innner shaft
    2005PolarisRanger 5004x4 Limited Editionmust use CV joint on innner shaft
    2004PolarisRanger 5004X4must use CV joint on innner shaft
    2007PolarisRanger 7004x4 EFI
    2007PolarisRanger 7004x4 MVRS
    2007PolarisRanger 7006x6 EFI
    2006PolarisRanger 7006x6 EFI
    2007PolarisRanger XP 7004x4 Browning EFI
    2007PolarisRanger XP 7004x4 EFI
    2006PolarisRanger XP 7004x4 EFI
    2005PolarisRanger XP 7004x4 EFI

    Details

    • PO-309/WB-1424
    • PO-309/WB-1424
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 13.0 lbs.
    • W5.0000” x H5.0000” x L31.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
