Precision Full CV Axle Set for Yamaha Rhino 450 & Rhino 660 2004-2009 Front & Rear Quality Tested Heat-Treated 4140 Chromoly Steel Exact Fit ATVPC

Location on vehicle: Outside

(0) Reviews: Write first review
YA-121/YA-221/YA-322/YA-323

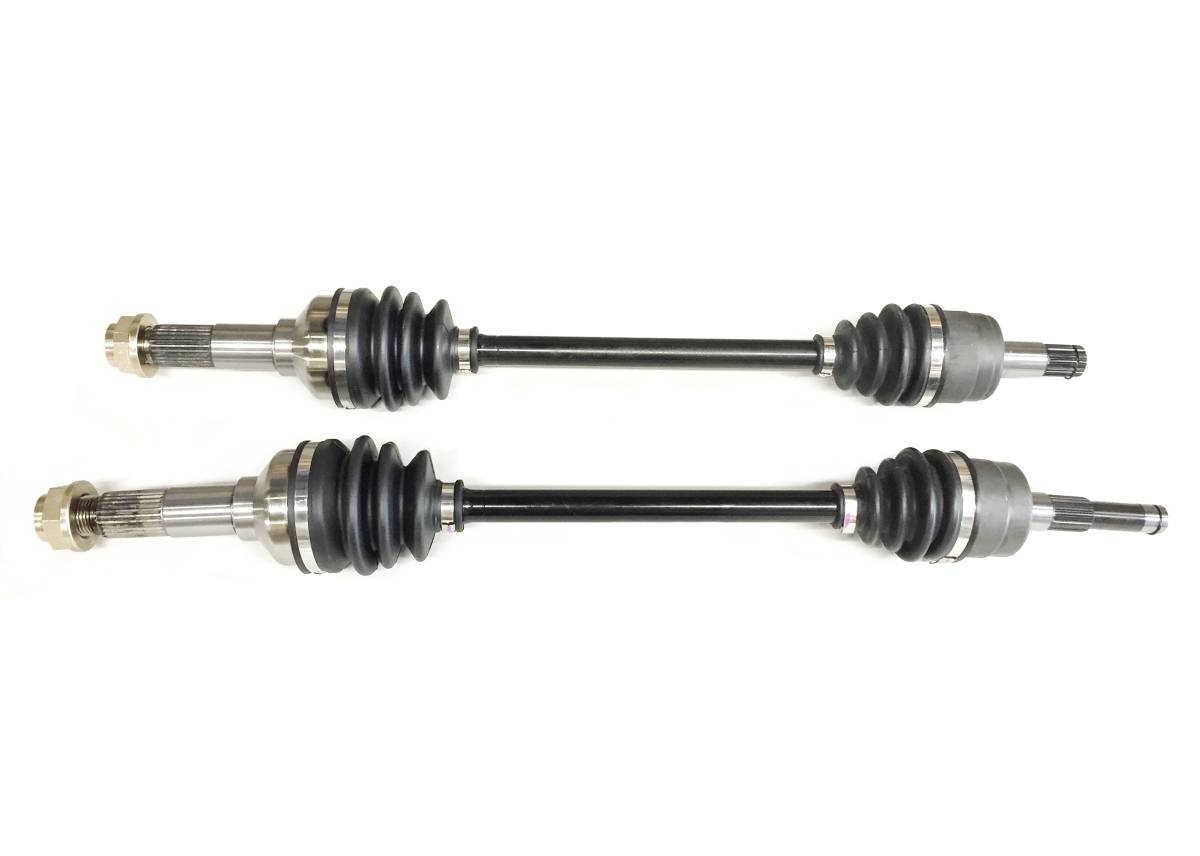

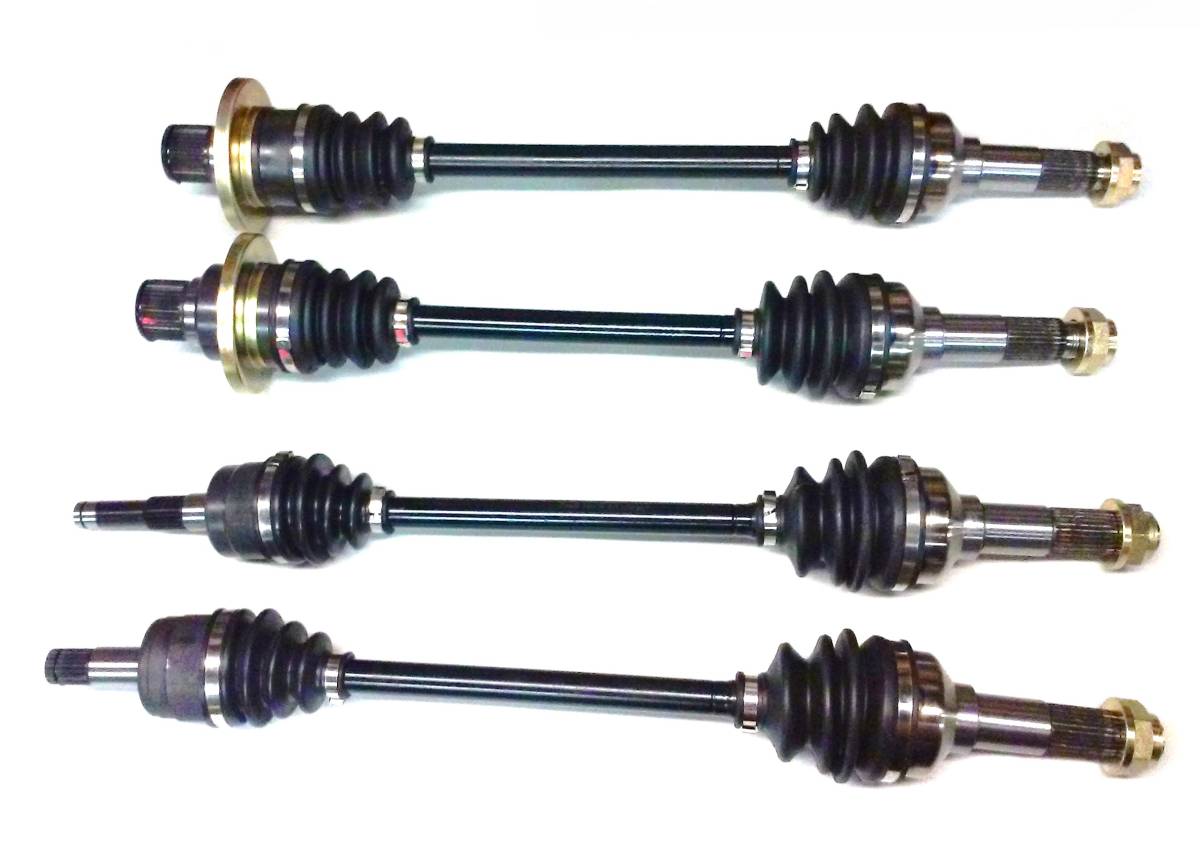

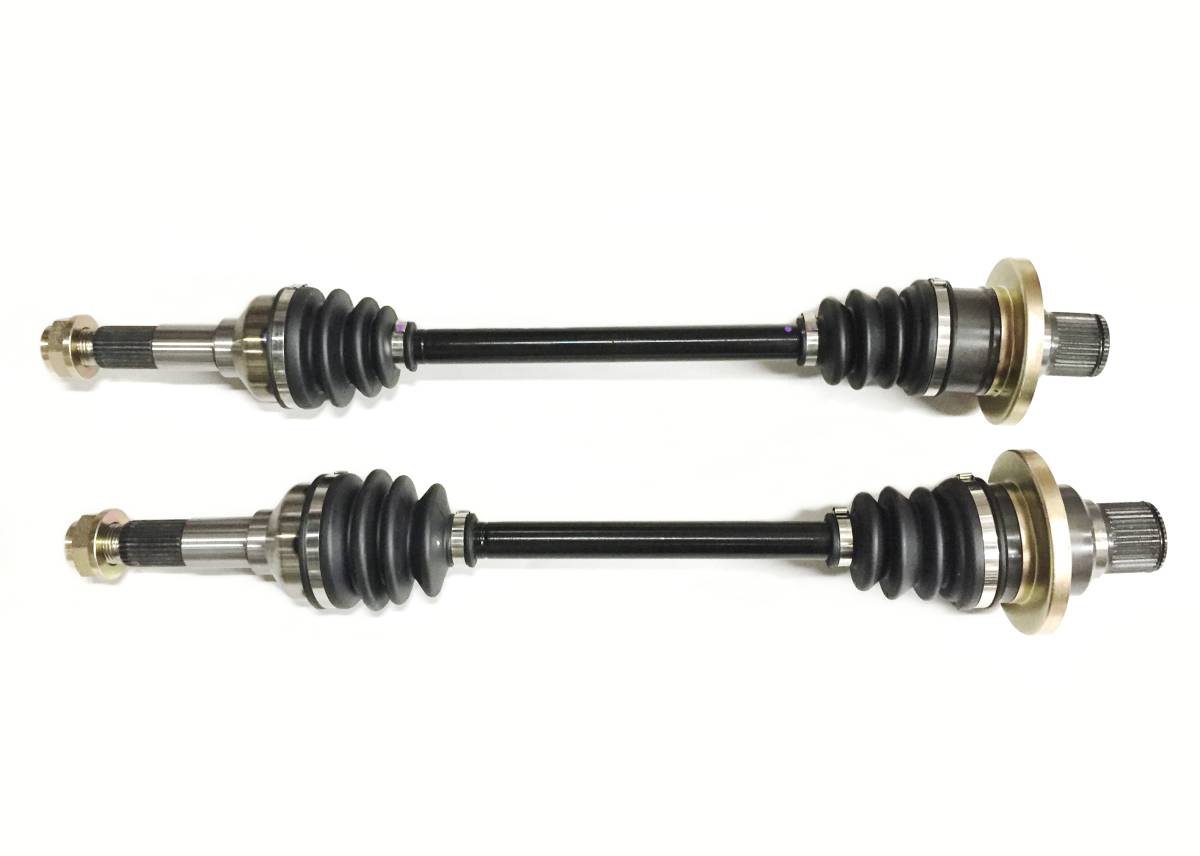

This is a full set of new OE type CV axles.

Precision machined and made as a direct replacement, no modifications necessary.

Quality tested for smooth articulation and reliable performance.

Ships fully-assembled and ready to install.

*made as an OE replacement, and not guaranteed to work with lifted vehicles or modifications of any kind

Product details:

  • Fits the following Yamaha UTV models: 2006-2009 Rhino 450, 2004-2007 Rhino 660.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM #: 5UG-F510F-20-00, 5KM-2510J-20-00, 5UG-F518G-00-00, 5UG-F518G-10-00, 5UG-F518G-20-00. Compressed length (mm): FL- 613, FR- 651, RL- 597, RR- 630. Inboard spline count: fronts- 21, rears- 39. Outboard spline count: fronts- 27, rears- 27.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $274.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2009YamahaRhino 450YXR450FA 4x4
2009YamahaRhino 450YXR450FH 4x4 Hunter Edition
2008YamahaRhino 450YXR450FA 4x4
2008YamahaRhino 450YXR450FH 4x4 Hunter Edition
2008YamahaRhino 450YXR450FSE 4x4 Special Edition
2007YamahaRhino 450YXR450FA 4x4
2007YamahaRhino 450YXR450FASE 4x4 Special Edition
2007YamahaRhino 450YXR450FSE 4x4 Special Edition
2006YamahaRhino 450YXR450FA 4x4
2006YamahaRhino 450YXR450FAH 4x4 Hunter Edition
2007YamahaRhino 660YXR660FA 4x4
2007YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
2007YamahaRhino 660YXR660FDU 4x4 Ducks Unlimited Edition
2007YamahaRhino 660YXR660FH 4x4 Hunter Edition
2007YamahaRhino 660YXR660FSE 4x4 Special Edition
2007YamahaRhino 660YXR660FSP 4x4 Sport Edition
2006YamahaRhino 660YXR660FA 4x4
2006YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
2006YamahaRhino 660YXR660FAH 4x4 Hunter Edition
2006YamahaRhino 660YXR660FASE 4x4 Special Edition
2005YamahaRhino 660YXR660FA 4x4
2005YamahaRhino 660YXR660FAH 4x4 Hunter Edition
2004YamahaRhino 660YXR660FA 4x4
2004YamahaRhino 660YXR660FAH 4x4 Hunter Edition

Product Notes

  • Fits the following Yamaha UTV models: 2006-2009 Rhino 450, 2004-2007 Rhino 660.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM #: 5UG-F510F-20-00, 5KM-2510J-20-00, 5UG-F518G-00-00, 5UG-F518G-10-00, 5UG-F518G-20-00. Compressed length (mm): FL- 613, FR- 651, RL- 597, RR- 630. Inboard spline count: fronts- 21, rears- 39. Outboard spline count: fronts- 27, rears- 27.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    Limited 2 year, one-time warranty

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 43.0 lbs.
    • W10.0000” x H10.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
