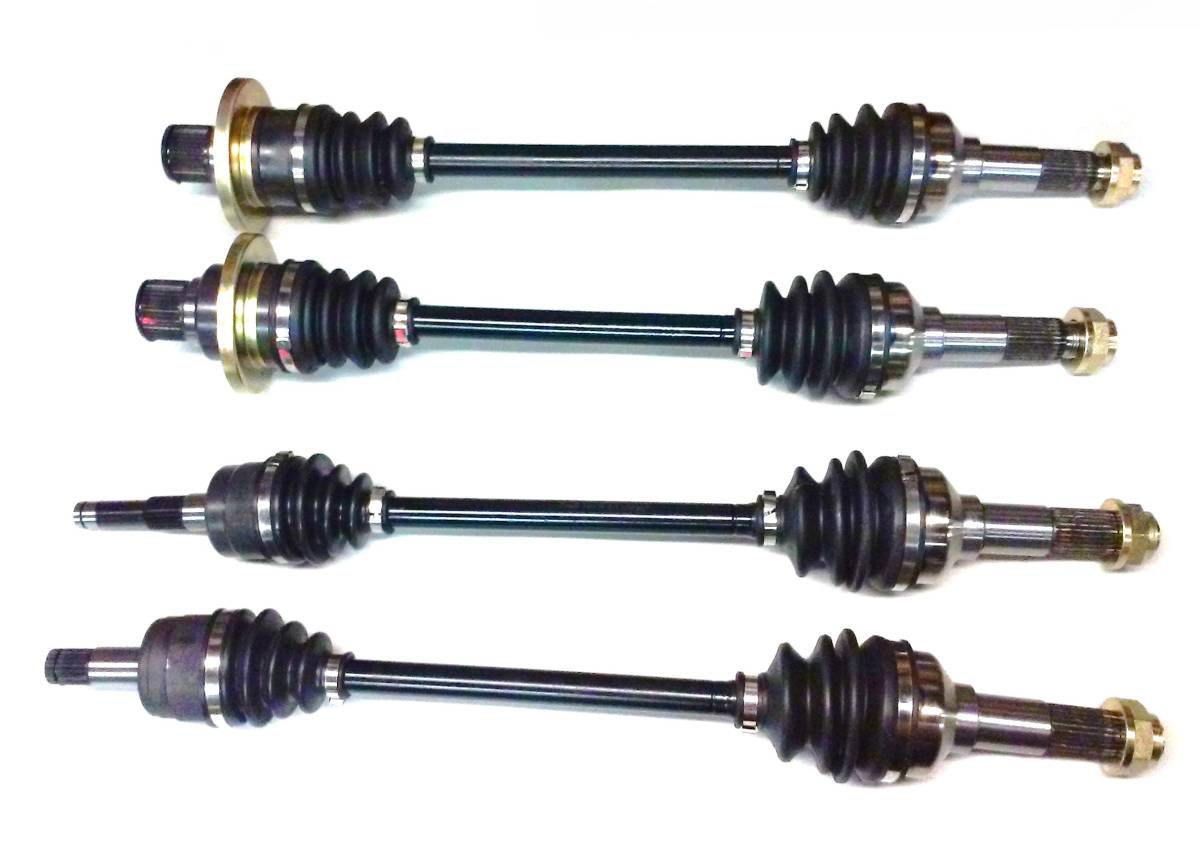

CV Axle Set for Yamaha Rhino 450 & Rhino 660 2004-2009

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review

SKU: YA-121/YA-221/YA-322/YA-323

This is a set of new CV axles for a Yamaha UTV.

They fit the following 4x4 models:

2006-2009 ... Rhino 450

2004-2007 ... Rhino 660

*Not intended for use on lifted vehicles

Product features:

Stronger than OEM chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance
Inboard CV joint spline count: Fronts- 21, Rears- 39
Outboard CV joint spline count: Fronts- 27, Rears- 27
Compressed axle length (mm): FL- 613, FR- 651, RL- 597, RR- 630

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $269.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2009	Yamaha	Rhino 450	YXR450FA 4x4
2009	Yamaha	Rhino 450	YXR450FH 4x4 Hunter Edition
2008	Yamaha	Rhino 450	YXR450FA 4x4
2008	Yamaha	Rhino 450	YXR450FH 4x4 Hunter Edition
2008	Yamaha	Rhino 450	YXR450FSE 4x4 Special Edition
2007	Yamaha	Rhino 450	YXR450FA 4x4
2007	Yamaha	Rhino 450	YXR450FASE 4x4 Special Edition
2007	Yamaha	Rhino 450	YXR450FSE 4x4 Special Edition
2006	Yamaha	Rhino 450	YXR450FA 4x4
2006	Yamaha	Rhino 450	YXR450FAH 4x4 Hunter Edition
2007	Yamaha	Rhino 660	YXR660FA 4x4
2007	Yamaha	Rhino 660	YXR660FAEX 4x4 Exploring Edition
2007	Yamaha	Rhino 660	YXR660FDU 4x4 Ducks Unlimited Edition
2007	Yamaha	Rhino 660	YXR660FH 4x4 Hunter Edition
2007	Yamaha	Rhino 660	YXR660FSE 4x4 Special Edition
2007	Yamaha	Rhino 660	YXR660FSP 4x4 Sport Edition
2006	Yamaha	Rhino 660	YXR660FA 4x4
2006	Yamaha	Rhino 660	YXR660FAEX 4x4 Exploring Edition
2006	Yamaha	Rhino 660	YXR660FAH 4x4 Hunter Edition
2006	Yamaha	Rhino 660	YXR660FASE 4x4 Special Edition
2005	Yamaha	Rhino 660	YXR660FA 4x4
2005	Yamaha	Rhino 660	YXR660FAH 4x4 Hunter Edition
2004	Yamaha	Rhino 660	YXR660FA 4x4
2004	Yamaha	Rhino 660	YXR660FAH 4x4 Hunter Edition

Product Notes

Fits the following Yamaha UTV models: 2006-2009 Rhino 450, 2004-2007 Rhino 660.

Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.

Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.

Replaces OEM #: 5UG-F510F-20-00, 5KM-2510J-20-00, 5UG-F518G-00-00, 5UG-F518G-10-00, 5UG-F518G-20-00. Compressed length (mm): FL- 613, FR- 651, RL- 597, RR- 630. Inboard spline count: fronts- 21, rears- 39. Outboard spline count: fronts- 27, rears- 27.

Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.
