Front or Rear Outer CV Joint Kit for Yamaha Rhino 660 4x4 2005

Placement on halfshaft: Outer - Front,Rear,Left,Right

This listing is for a new, outboard (wheel end) CV joint & boot kit for a Yamaha UTV.

Will fit the following 4x4 applications:

2005 .... Yamaha Rhino 660

Front, Rear, Left or Right side

*Made as OEM replacement and is not intended for modified/ lifted vehicles

Product features:

  • CV joint housing fully assembled with race, cage, and ball bearings

  • OE type neoprene CV boot

  • Both boot clamps

  • CV grease packet

  • Stub height: 4.38 in.

  • Housing splines: 27

  • Housing diameter: 2.71 in.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $32.99
Free Ground Shipping


1 year factory defect warranty

Product Notes

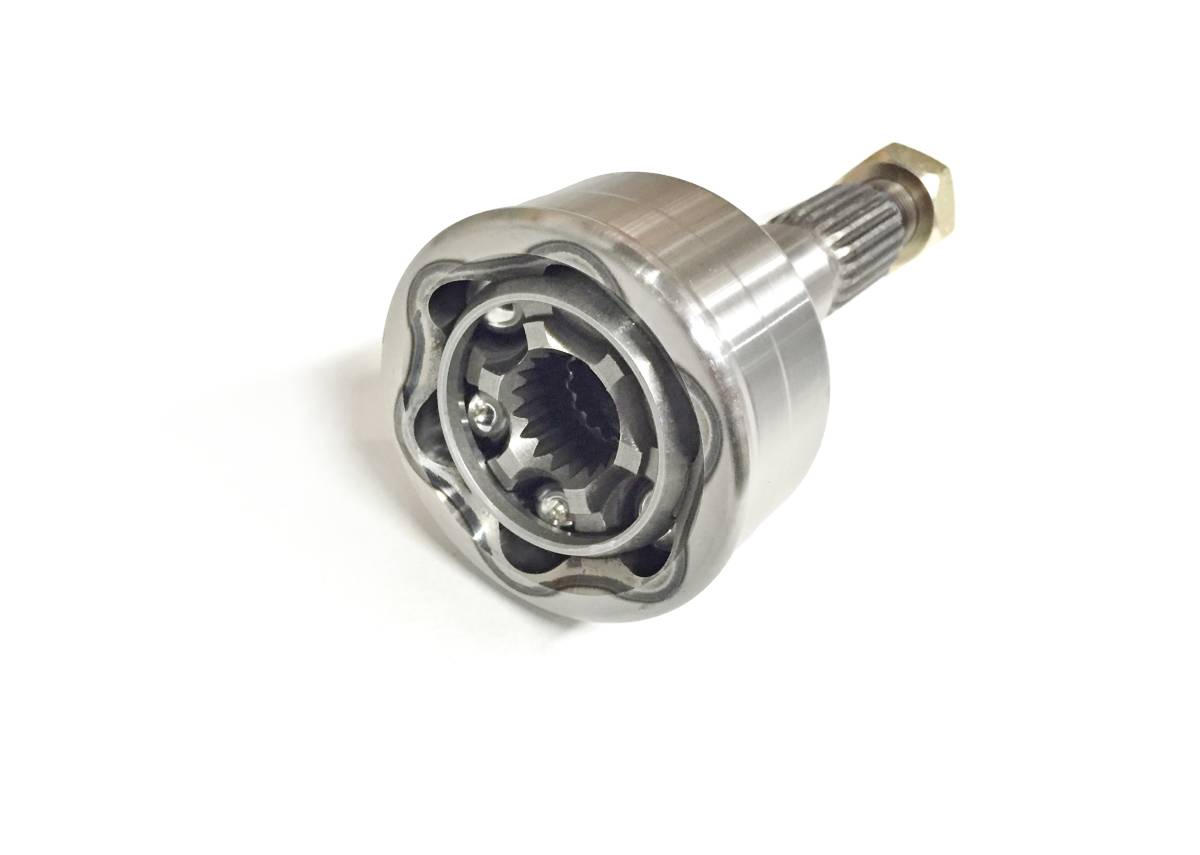

  • Joint is pre-assembled with race, cage, and ball bearings inside CV housing
  • Comes with OE Grade neoprene boot, clamps, grease
  • Housing Spline Count - 27, Inner Race Spline Count - 19, Housing Diameter - 2.713", Stub Height - 4 3/8", Thread Size - 20x1.5 mm
  • OEM replacement # 5UG-F510F-10-00
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

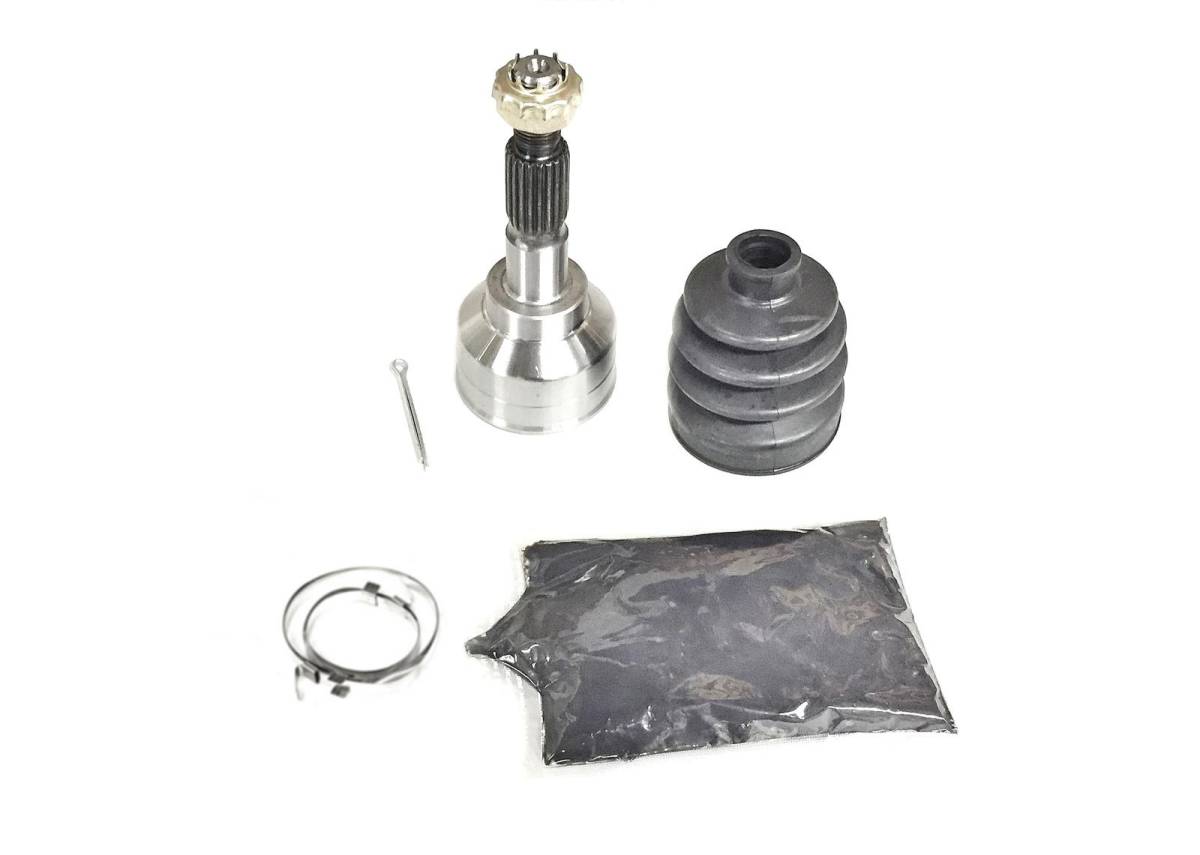

  • What's In The Box

  • 1 CV Joint, 1 CV Boot, 1 Grease Pack, 2 Clamps
  • Application List

    2005YamahaRhino 660YXR660FA 4x4
    2005YamahaRhino 660YXR660FAH 4x4 Hunter Edition



    Shipping Information

    • Item Requires Shipping
    • 3.5 lbs.
    • W4.0000” x H5.0000” x L9.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
