Rear CV Axle Pair for Kawasaki Brute Force 650i & 750 4x4 2005-2023

Location on vehicle: Rear,Left,Right

KW-312/KW-312

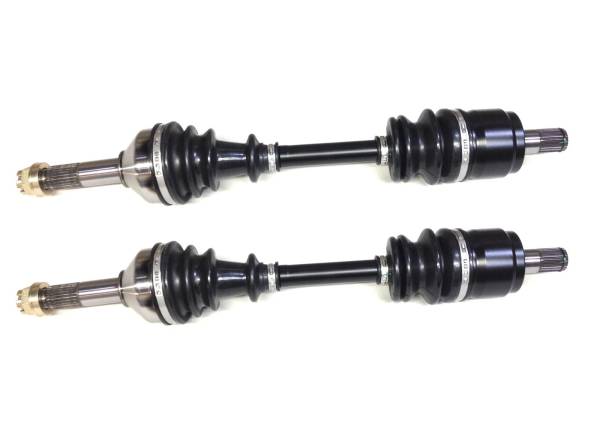

This is a pair of new Rear CV axles for a Kawasaki ATV.

They fit the following 4x4 applications:

2005-2023 ... Brute Force 750i

2006-2013 ... Brute Force 650i

(please note these will only fit '650i' models)

Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 24 (both)
  • Compressed overall axle length: 549 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $149.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Kawasaki ATVs: 2006-2013 Brute Force 650i & 2005-2023 Brute Force 750i 4x4.
  • Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear & puncture resistance.
  • Replaces OEM # 59266-0023, 59266-0002.
  • Inner splines: 24 (both), Outer splines: 24 (both), Compressed length: 549 mm (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2013KawasakiBrute Force 650KVF650F 4x4i
    2012KawasakiBrute Force 650KVF650F 4x4i
    2011KawasakiBrute Force 650KVF650F 4x4i
    2009KawasakiBrute Force 650KVF650F 4x4i
    2009KawasakiBrute Force 650KVF650G 4x4i
    2008KawasakiBrute Force 650KVF650F 4x4i
    2008KawasakiBrute Force 650KVF650G 4x4i
    2008KawasakiBrute Force 650KVF650H 4x4i
    2007KawasakiBrute Force 650KVF650F 4x4i
    2007KawasakiBrute Force 650KVF650G 4x4i
    2007KawasakiBrute Force 650KVF650H 4x4i
    2006KawasakiBrute Force 650KVF650F 4x4i
    2006KawasakiBrute Force 650KVF650G 4x4i
    2023KawasakiBrute Force 750KVF750 4x4i EPS
    2023KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2022KawasakiBrute Force 750KVF750 4x4i EPS
    2022KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2021KawasakiBrute Force 750KVF750 4x4i
    2021KawasakiBrute Force 750KVF750 4x4i EPS
    2021KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2020KawasakiBrute Force 750KVF750 4x4i
    2020KawasakiBrute Force 750KVF750 4x4i EPS
    2020KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2019KawasakiBrute Force 750KVF750 4x4i
    2019KawasakiBrute Force 750KVF750 4x4i EPS
    2019KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2018KawasakiBrute Force 750KVF750 4x4i
    2018KawasakiBrute Force 750KVF750 4x4i EPS
    2018KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2017KawasakiBrute Force 750KVF750GHF 4x4i EPS
    2017KawasakiBrute Force 750KVF750HHF 4x4i EPS Camo
    2017KawasakiBrute Force 750KVF750JHF 4x4i EPS Graystone
    2017KawasakiBrute Force 750KVF750LHF 4x4i
    2016KawasakiBrute Force 750KVF750 4x4i
    2016KawasakiBrute Force 750KVF750 4x4i EPS
    2016KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2015KawasakiBrute Force 750KVF750 4x4i
    2015KawasakiBrute Force 750KVF750 4x4i EPS
    2015KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2014KawasakiBrute Force 750KVF750G 4x4i EPS
    2014KawasakiBrute Force 750KVF750H 4x4i EPS
    2014KawasakiBrute Force 750KVF750L 4x4i
    2013KawasakiBrute Force 750KVF750G 4x4i EPS
    2013KawasakiBrute Force 750KVF750H 4x4i EPS
    2013KawasakiBrute Force 750KVF750J 4x4i
    2013KawasakiBrute Force 750KVF750L 4x4i
    2012KawasakiBrute Force 750KVF750G 4x4i EPS
    2012KawasakiBrute Force 750KVF750H 4x4i EPS
    2012KawasakiBrute Force 750KVF750L 4x4i
    2011KawasakiBrute Force 750KVF750D 4x4i
    2010KawasakiBrute Force 750KVF750D 4x4i
    2010KawasakiBrute Force 750KVF750E 4x4i
    2009KawasakiBrute Force 750KVF750A 4x4i
    2009KawasakiBrute Force 750KVF750D 4x4i
    2009KawasakiBrute Force 750KVF750E 4x4i
    2009KawasakiBrute Force 750KVF750EA 4x4i NRA
    2008KawasakiBrute Force 750KVF750A 4x4i
    2008KawasakiBrute Force 750KVF750D 4x4i
    2008KawasakiBrute Force 750KVF750E 4x4i
    2008KawasakiBrute Force 750KVF750EA 4x4i NRA
    2007KawasakiBrute Force 750KVF750A 4x4i
    2007KawasakiBrute Force 750KVF750B 4x4i
    2007KawasakiBrute Force 750KVF750C 4x4i
    2007KawasakiBrute Force 750KVF750D 4x4i NRA
    2006KawasakiBrute Force 750KVF750A 4x4i
    2006KawasakiBrute Force 750KVF750B 4x4i
    2006KawasakiBrute Force 750KVF750C 4x4i
    2005KawasakiBrute Force 750KVF750A 4x4i
    2005KawasakiBrute Force 750KVF750B 4x4i

    Details

    • KW-312/KW-312
    • KW-312/KW-312
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 19.2 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
