Rear Axle Pair for Kawasaki Mule 3000 3010 4000 & 4010 2000-2023, KAF620 KAF950

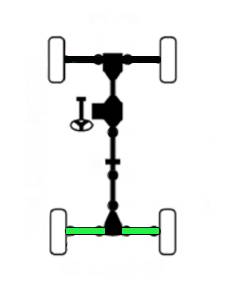

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
KW-391/KW-391

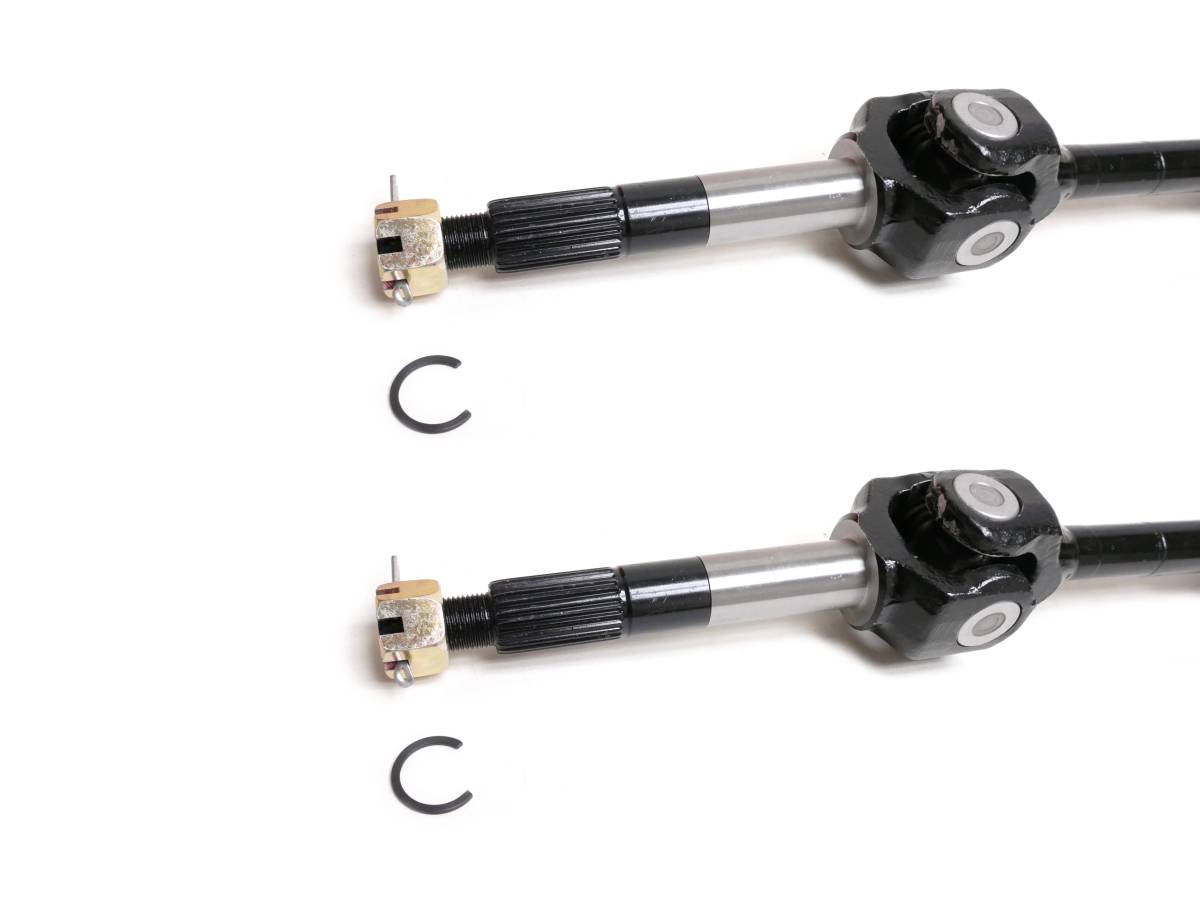

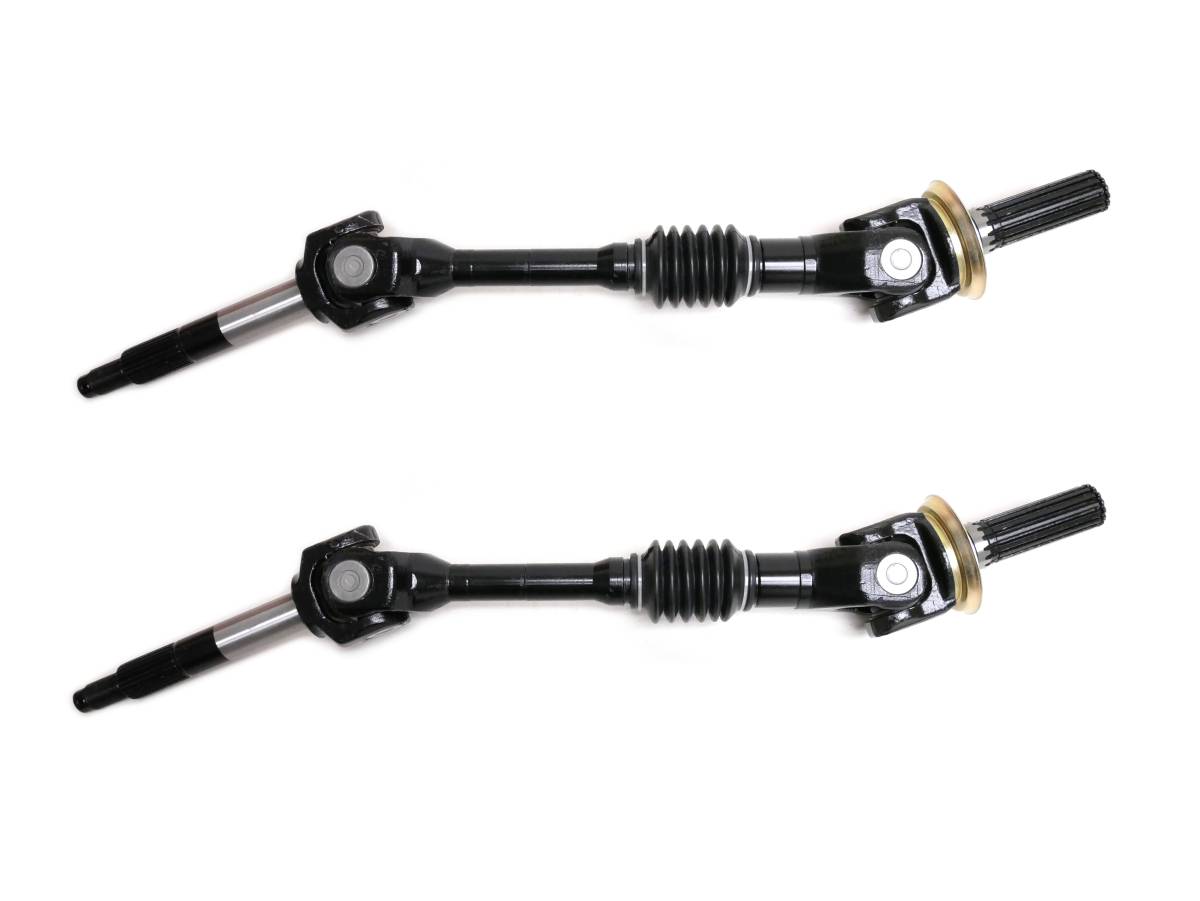

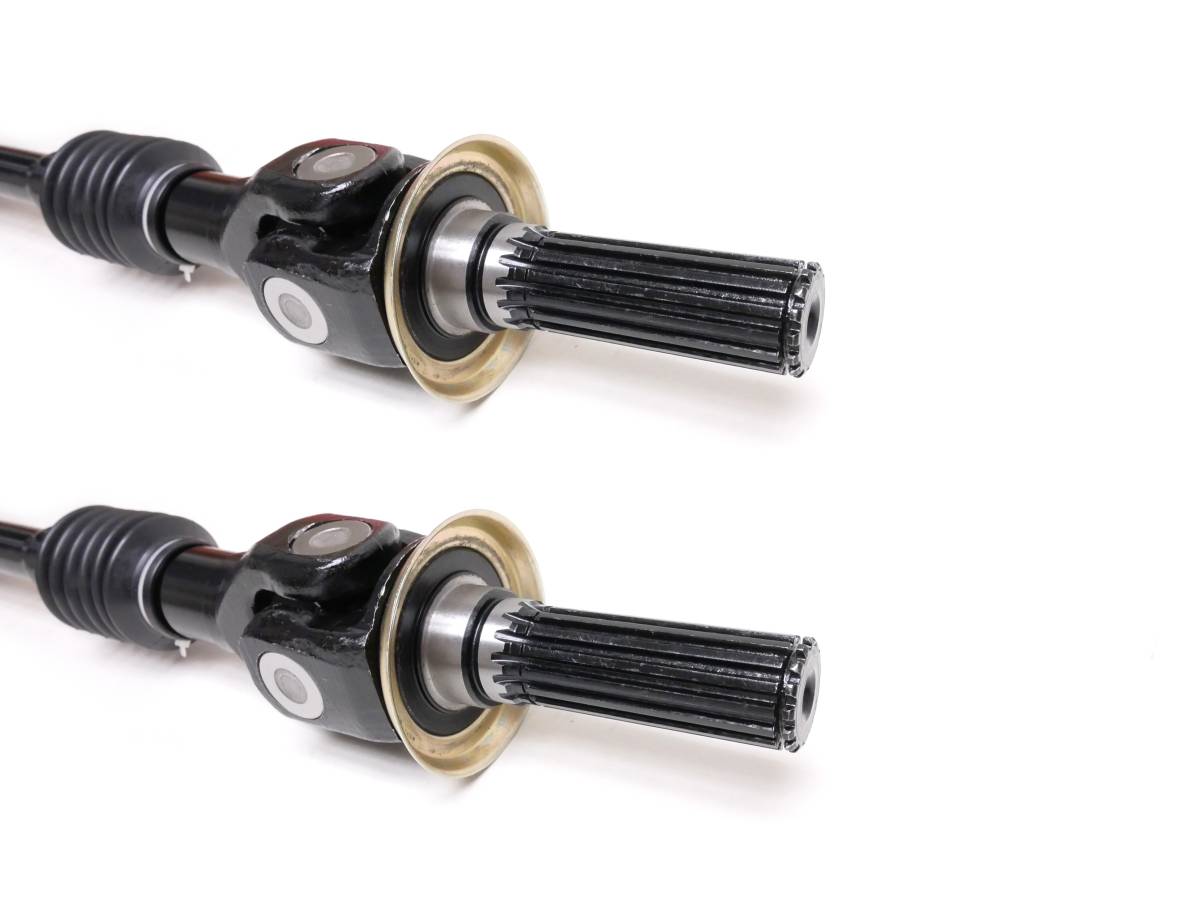

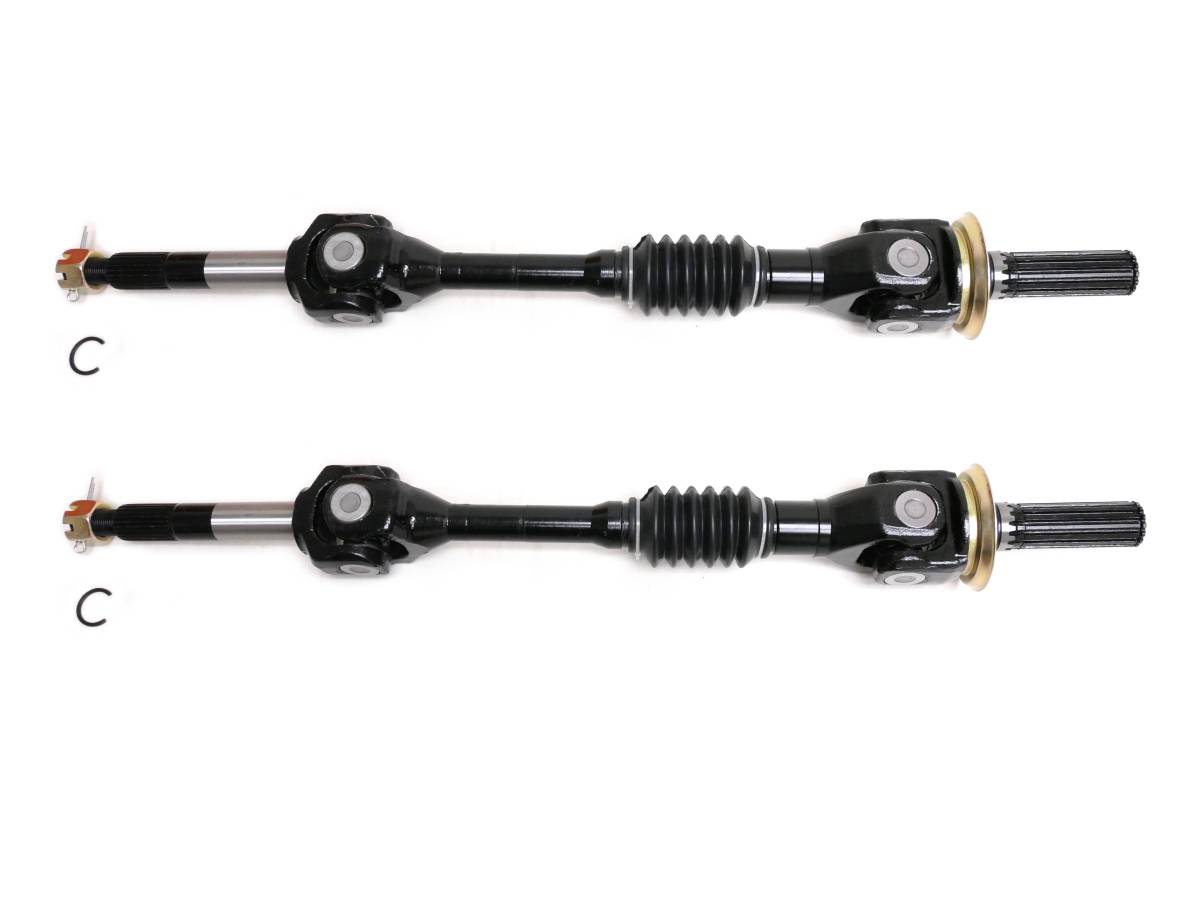

This is a pair of new and fully assembled Rear axles for a Kawasaki Mule UTV.

They fit the following models:

2000-2002 ... Mule 2510

2004-2008 ... Mule 3000

2001-2008 ... Mule 3010

2009-2023 ... Mule 4000

2009-2023 ... Mule 4010/4010 Trans

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 15 (both)
  • Replaces Kawasaki OEM # 39158-1105, 39158-1109, 39158-1104, 39158-1119, 39158-1120
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $269.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2002KawasakiMule 2510KAF950A 4x4 Diesel
2001KawasakiMule 2510KAF950A 4x4 Diesel
2000KawasakiMule 2510KAF620A 4x4
2000KawasakiMule 2510KAF950A 4x4 Diesel
2008KawasakiMule 3000KAF620G
2007KawasakiMule 3000KAF620G
2006KawasakiMule 3000KAF620G
2005KawasakiMule 3000KAF620G
2004KawasakiMule 3000KAF620G
2004KawasakiMule 3000KAF620H 4x4
2008KawasakiMule 3010KAF620E 4x4
2008KawasakiMule 3010KAF620H 4x4
2008KawasakiMule 3010KAF620J 4x4 Trans
2008KawasakiMule 3010KAF620K 4x4 Trans
2008KawasakiMule 3010KAF950D 4x4 Diesel
2008KawasakiMule 3010KAF950E 4x4 Trans Diesel
2007KawasakiMule 3010KAF620E 4x4
2007KawasakiMule 3010KAF620H 4x4
2007KawasakiMule 3010KAF620J 4x4 Trans
2007KawasakiMule 3010KAF620K 4x4 Trans
2007KawasakiMule 3010KAF950B 4x4 Diesel
2007KawasakiMule 3010KAF950C 4x4 Trans Diesel
2006KawasakiMule 3010KAF620E 4x4
2006KawasakiMule 3010KAF620H 4x4
2006KawasakiMule 3010KAF620J 4x4 Trans
2006KawasakiMule 3010KAF620K 4x4 Trans
2006KawasakiMule 3010KAF950B 4x4 Diesel
2005KawasakiMule 3010KAF620E 4x4
2005KawasakiMule 3010KAF620H 4x4
2005KawasakiMule 3010KAF620J 4x4 Trans
2005KawasakiMule 3010KAF620K 4x4 Trans
2005KawasakiMule 3010KAF950B 4x4 Diesel
2004KawasakiMule 3010KAF620E 4x4
2004KawasakiMule 3010KAF950B 4x4 Diesel
2003KawasakiMule 3010KAF620E 4x4
2003KawasakiMule 3010KAF620H 4x4
2003KawasakiMule 3010KAF950B 4x4 Diesel
2002KawasakiMule 3010KAF620E 4x4
2001KawasakiMule 3010KAF620E 4x4
2021KawasakiMule 4000KAF620 4x4
2020KawasakiMule 4000KAF620 4x4
2019KawasakiMule 4000KAF620 4x4
2018KawasakiMule 4000KAF620
2017KawasakiMule 4000KAF620PHF
2016KawasakiMule 4000KAF620
2015KawasakiMule 4000KAF620
2014KawasakiMule 4000KAF620P
2013KawasakiMule 4000KAF620P
2012KawasakiMule 4000KAF620P
2011KawasakiMule 4000KAF620P
2010KawasakiMule 4000KAF620P
2009KawasakiMule 4000KAF620P
2021KawasakiMule 4000 TransKAF620
2020KawasakiMule 4000 TransKAF620
2019KawasakiMule 4000 TransKAF620
2018KawasakiMule 4000 TransKAF620
2022KawasakiMule 4010KAF620 4x4
2022KawasakiMule 4010KAF620 4x4 FE
2021KawasakiMule 4010KAF620 4x4
2021KawasakiMule 4010KAF620 4x4 FE
2020KawasakiMule 4010KAF620 4x4
2019KawasakiMule 4010KAF620 4x4
2018KawasakiMule 4010KAF620 4x4
2018KawasakiMule 4010KAF620 4x4 Camo
2018KawasakiMule 4010KAF620 4x4 SE
2017KawasakiMule 4010KAF620MHF 4X4
2017KawasakiMule 4010KAF620THF 4x4 SE
2016KawasakiMule 4010KAF620 4x4
2016KawasakiMule 4010KAF620 4x4 SE
2015KawasakiMule 4010KAF620A 4x4
2014KawasakiMule 4010KAF620M 4x4
2014KawasakiMule 4010KAF620R 4x4 Trans
2014KawasakiMule 4010KAF620S 4x4 Trans
2014KawasakiMule 4010KAF620SEF 4x4 Trans Camo
2013KawasakiMule 4010KAF620M 4x4
2013KawasakiMule 4010KAF620R 4x4 Trans
2013KawasakiMule 4010KAF620S 4x4 Trans
2013KawasakiMule 4010KAF950F 4x4 Diesel
2013KawasakiMule 4010KAF950G 4x4 Trans Diesel
2012KawasakiMule 4010KAF620M 4x4
2012KawasakiMule 4010KAF620R 4x4 Trans
2012KawasakiMule 4010KAF620S 4x4 Trans
2012KawasakiMule 4010KAF950F 4x4 Diesel
2012KawasakiMule 4010KAF950G 4x4 Trans Diesel
2011KawasakiMule 4010KAF620M 4x4
2011KawasakiMule 4010KAF620R 4x4 Trans
2011KawasakiMule 4010KAF620S 4x4 Trans
2011KawasakiMule 4010KAF950F 4x4 Diesel
2011KawasakiMule 4010KAF950G 4x4 Trans Diesel
2010KawasakiMule 4010KAF620M 4x4
2010KawasakiMule 4010KAF620R 4x4 Trans
2010KawasakiMule 4010KAF620S 4x4 Trans
2010KawasakiMule 4010KAF950F 4x4 Diesel
2010KawasakiMule 4010KAF950G 4x4 Trans Diesel
2010KawasakiMule 4010KAF950H 4x4 Trans Diesel
2009KawasakiMule 4010KAF620M 4x4
2009KawasakiMule 4010KAF620N 4x4
2009KawasakiMule 4010KAF620R 4x4 Trans
2009KawasakiMule 4010KAF620S 4x4 Trans
2009KawasakiMule 4010KAF950F 4x4 Diesel
2009KawasakiMule 4010KAF950G 4x4 Trans Diesel
2023KawasakiMule 4010 TransKAF620 4x4
2023KawasakiMule 4010 TransKAF620 4x4 FE
2022KawasakiMule 4010 TransKAF620 4x4
2022KawasakiMule 4010 TransKAF620 4x4 Camo
2022KawasakiMule 4010 TransKAF620 4x4 FE
2021KawasakiMule 4010 TransKAF620 4x4
2021KawasakiMule 4010 TransKAF620 4x4 Camo
2021KawasakiMule 4010 TransKAF620 4x4 FE
2020KawasakiMule 4010 TransKAF620 4x4
2020KawasakiMule 4010 TransKAF620 4x4 Camo
2019KawasakiMule 4010 TransKAF620 4x4
2019KawasakiMule 4010 TransKAF620 4x4 Camo
2019KawasakiMule 4010 TransKAF620 4x4 SE
2018KawasakiMule 4010 TransKAF620 4x4
2018KawasakiMule 4010 TransKAF620 4x4 Camo
2018KawasakiMule 4010 TransKAF620 4x4 SE
2017KawasakiMule 4010 TransKAF620RHF 4x4
2017KawasakiMule 4010 TransKAF620SHF 4X4 Camo
2017KawasakiMule 4010 TransKAF620VHF 4x4 SE
2016KawasakiMule 4010 TransKAF620 4x4
2016KawasakiMule 4010 TransKAF620 4x4 Camo
2016KawasakiMule 4010 TransKAF620 4x4 SE
2015KawasakiMule 4010 TransKAF620RFF 4x4
2015KawasakiMule 4010 TransKAF620RFFA 4x4
2015KawasakiMule 4010 TransKAF620SFF 4x4 Camo

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Kawasaki models: 2000-2002 Mule 2510, 2004-2008 Mule 3000 2x4, 2001-2008 Mule 3010 4x4, 2009-2023 Mule 4000 2x4, 2009-2023 Mule 4010/4010 Trans 4x4.
  • Features stronger than OEM chromoly-forged steel axle shafts. Comes fully assembled and ready to install out of the box.
  • Inner spline count: 15 (both), outer spline count: 24 (both). Double U-joint type complete axles.
  • Replaces OEM # 39158-1119, 39158-1120, 39158-1104, 39158-1105, 39158-1109.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • KW-391/KW-391
    • KW-391/KW-391
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 22.0 lbs.
    • W4.0000” x H8.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
