Front CV Axle Pair with Wheel Bearings for Kawasaki Teryx 750 2008-2013

Location on vehicle: Front,Left,Right

KW-301/KW-301/WB-1496/WB-1496

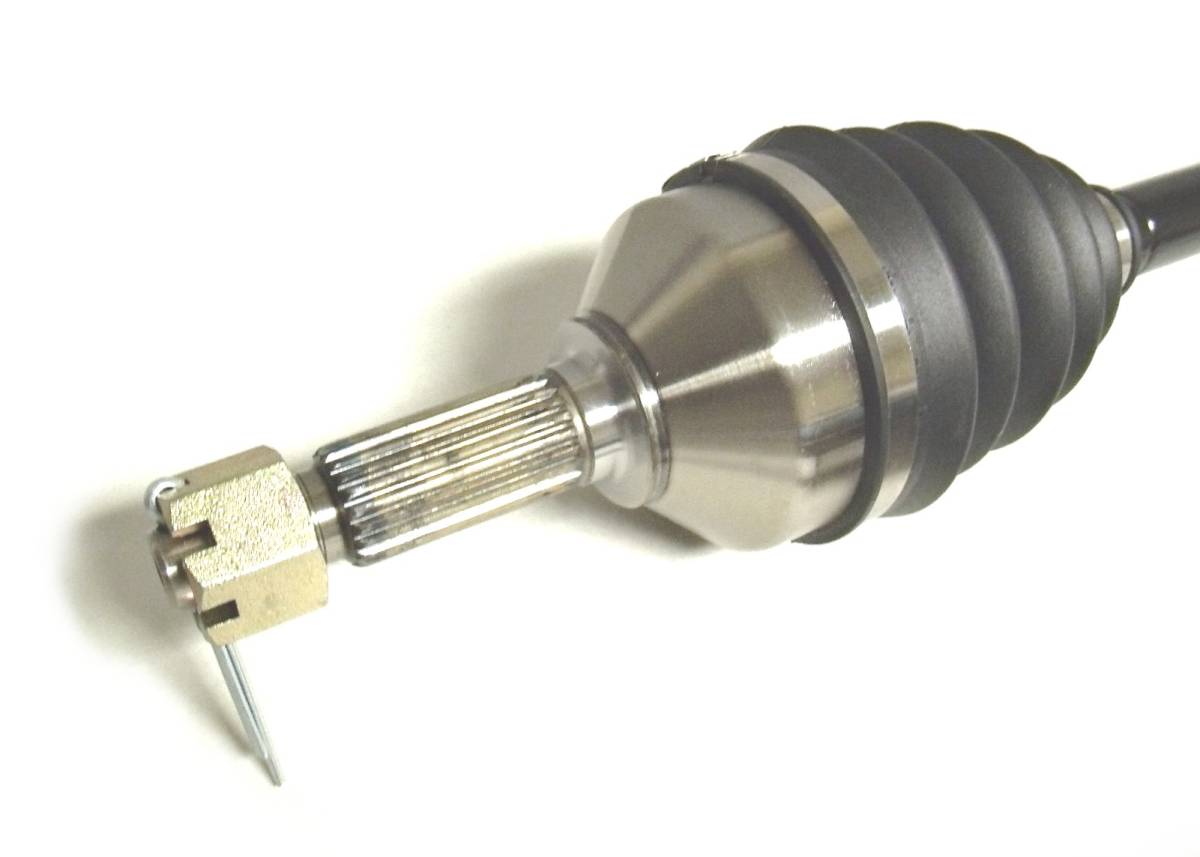

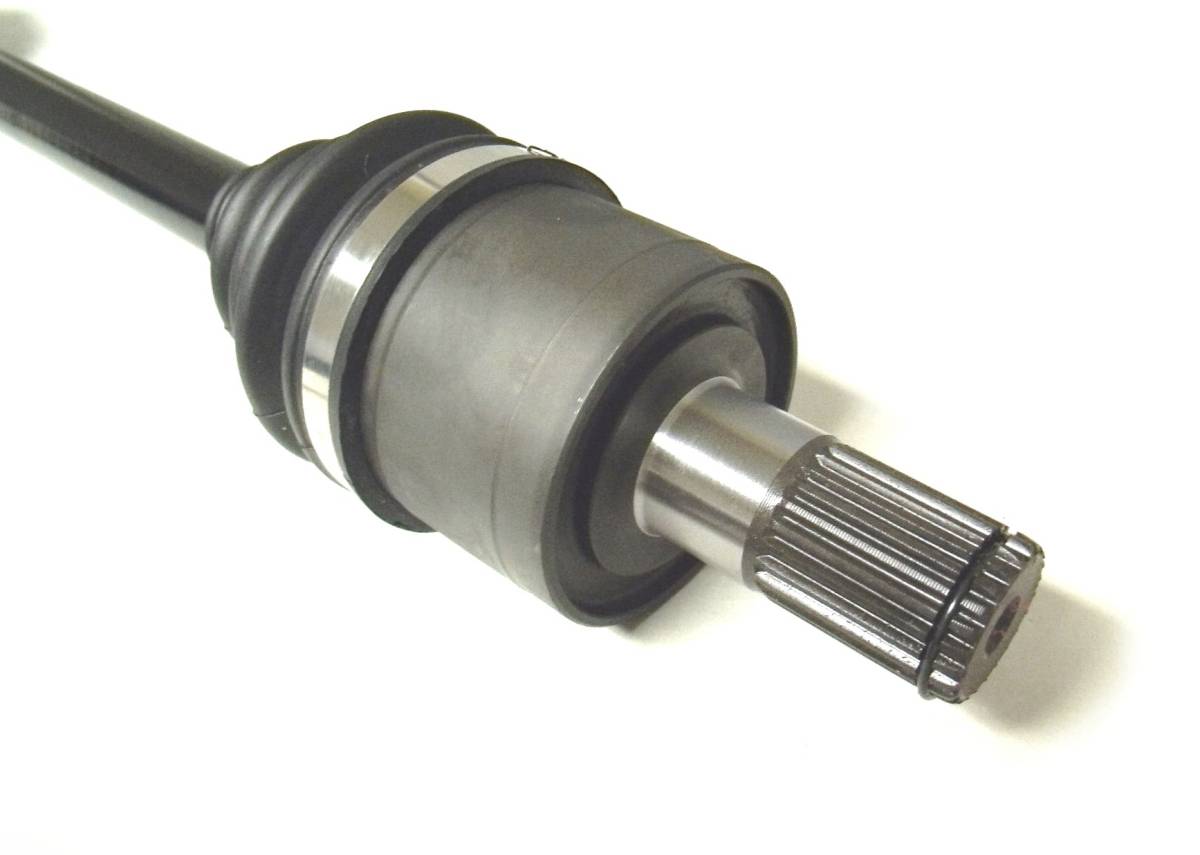

This is a set of new Front CV axles & wheel bearings for a Kawasaki UTV.

They fit the following 4x4 applications:

2008-2013 ... Teryx 750

(please note these will not fit 4-seater models)

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

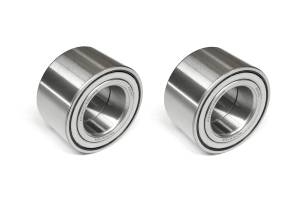

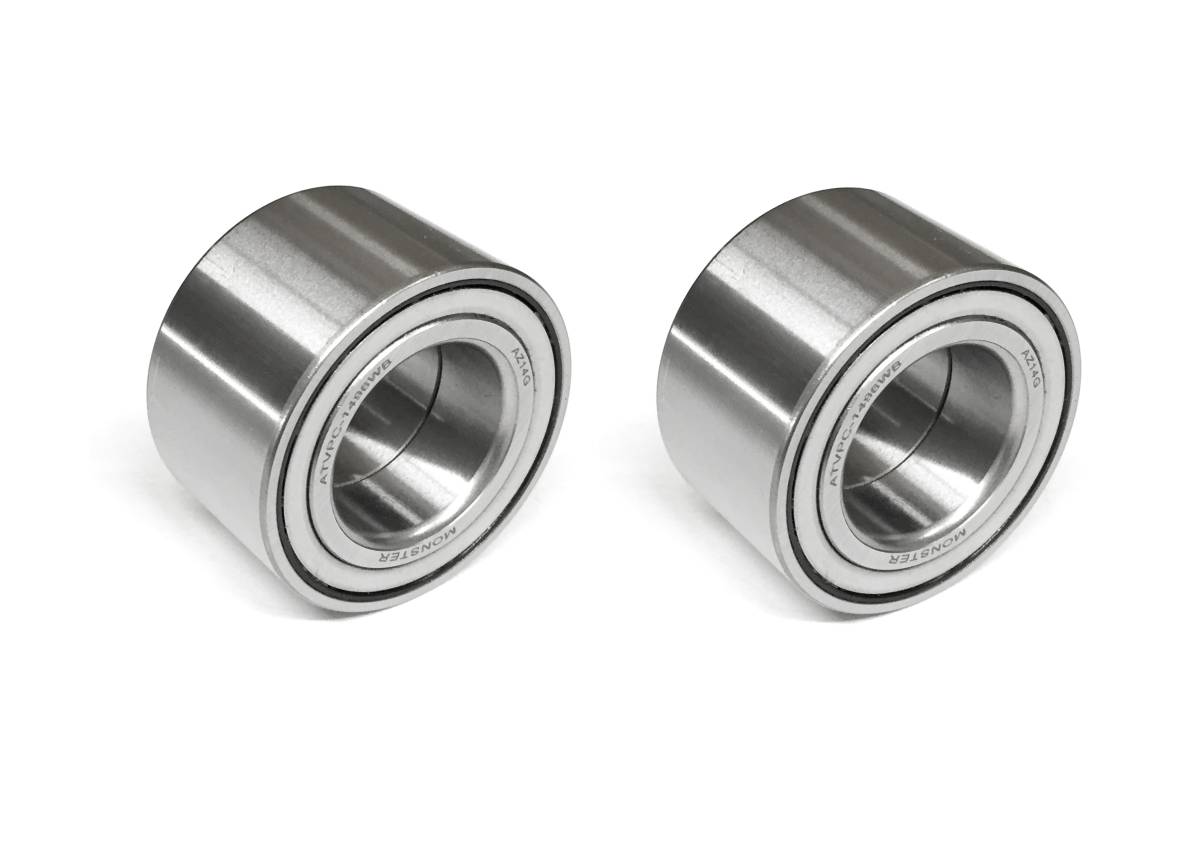

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt & water out
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 22 (both)
  • Compressed overall axle length: 643 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $139.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2008-2013 Teryx 750 - KRF750 (including FI, LE & Sport). Please note these will not fit 4-seater models.
  • Axles feature a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt & water out.
  • Replaces Kawasaki OE # 59266-0028, 59266-0037,92045-0123. Inner Splines: 24 (both), Outer Splines: 22 (both), Compressed length: 643 mm (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

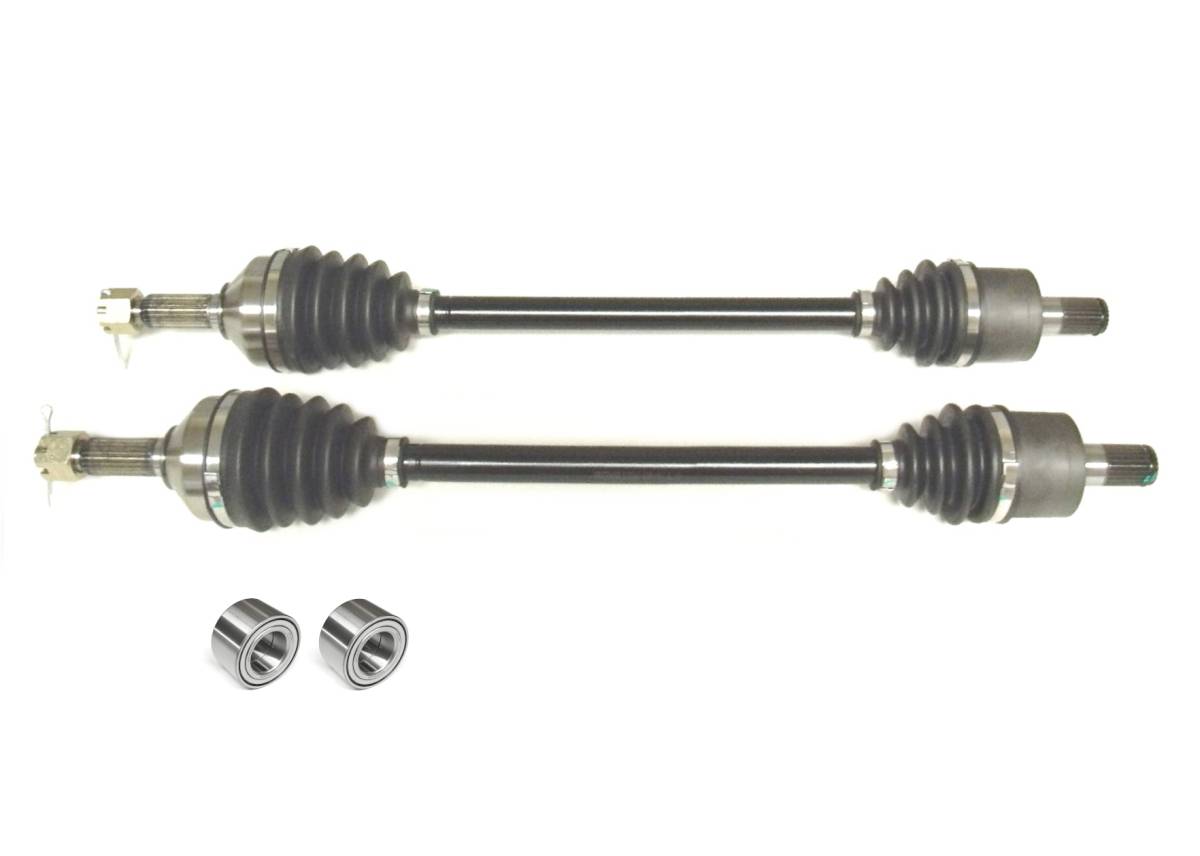

  • 2 CV Axles + 2 Wheel Bearings
  • Application List

    YearMakeModelSubmodelNotes
    2013KawasakiTeryx 750KRF750N 4x4 FI
    2013KawasakiTeryx 750KRF750P 4x4 LE FI
    2013KawasakiTeryx 750KRF750R 4x4 LE FI
    2013KawasakiTeryx 750KRF750S 4x4 Sport FI
    2012KawasakiTeryx 750KRF750N 4x4 FI
    2012KawasakiTeryx 750KRF750P 4x4 LE FI
    2012KawasakiTeryx 750KRF750R 4x4 LE FI
    2012KawasakiTeryx 750KRF750S 4x4 Sport FI
    2012KawasakiTeryx 750KRF750V 4x4 Special Graphics Edition FI
    2011KawasakiTeryx 750KRF750N 4x4 FI
    2011KawasakiTeryx 750KRF750P 4x4 LE FI
    2011KawasakiTeryx 750KRF750R 4x4 LE FI
    2011KawasakiTeryx 750KRF750S 4x4 Sport FI
    2011KawasakiTeryx 750KRF750T 4x4 Special Graphics Edition FI
    2010KawasakiTeryx 750KRF750 4x4
    2010KawasakiTeryx 750KRF750 4x4 LE
    2010KawasakiTeryx 750KRF750 4x4 Sport
    2010KawasakiTeryx 750KRF750N 4x4 FI
    2010KawasakiTeryx 750KRF750P 4x4 LE FI
    2010KawasakiTeryx 750KRF750R 4x4 LE FI
    2010KawasakiTeryx 750KRF750S 4x4 Sport FI
    2009KawasakiTeryx 750KRF750 4x4
    2009KawasakiTeryx 750KRF750 4x4 LE
    2009KawasakiTeryx 750KRF750 4x4 LE Sport FI
    2009KawasakiTeryx 750KRF750 4x4 Sport
    2009KawasakiTeryx 750KRF750G 4x4 FI
    2009KawasakiTeryx 750KRF750J 4x4 LE FI
    2009KawasakiTeryx 750KRF750K 4x4 LE FI
    2009KawasakiTeryx 750KRF750L 4x4 Sport FI
    2009KawasakiTeryx 750KRF750LA 4x4 Sport Monster Energy FI
    2009KawasakiTeryx 750KRF750M 4x4 NRA FI
    2008KawasakiTeryx 750KRF750 4x4 LE FI
    2008KawasakiTeryx 750KRF750A 4x4
    2008KawasakiTeryx 750KRF750B 4x4
    2008KawasakiTeryx 750KRF750C 4x4 LE
    2008KawasakiTeryx 750KRF750D 4x4 LE
    2008KawasakiTeryx 750KRF750F 4x4 NRA

    Details

    • KW-301/KW-301/WB-1496/WB-1496
    • KW-301/KW-301/WB-1496/WB-1496
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 21.0 lbs.
    • W10.0000” x H5.0000” x L31.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
