CV Axle Set for Arctic Cat 400 & 500 FIS 4x4 2003-2004

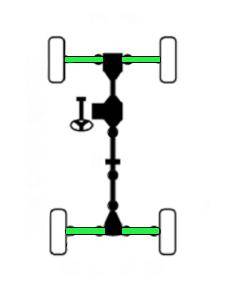

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review

SKU: AC-244/AC-244/AC-244/AC-244

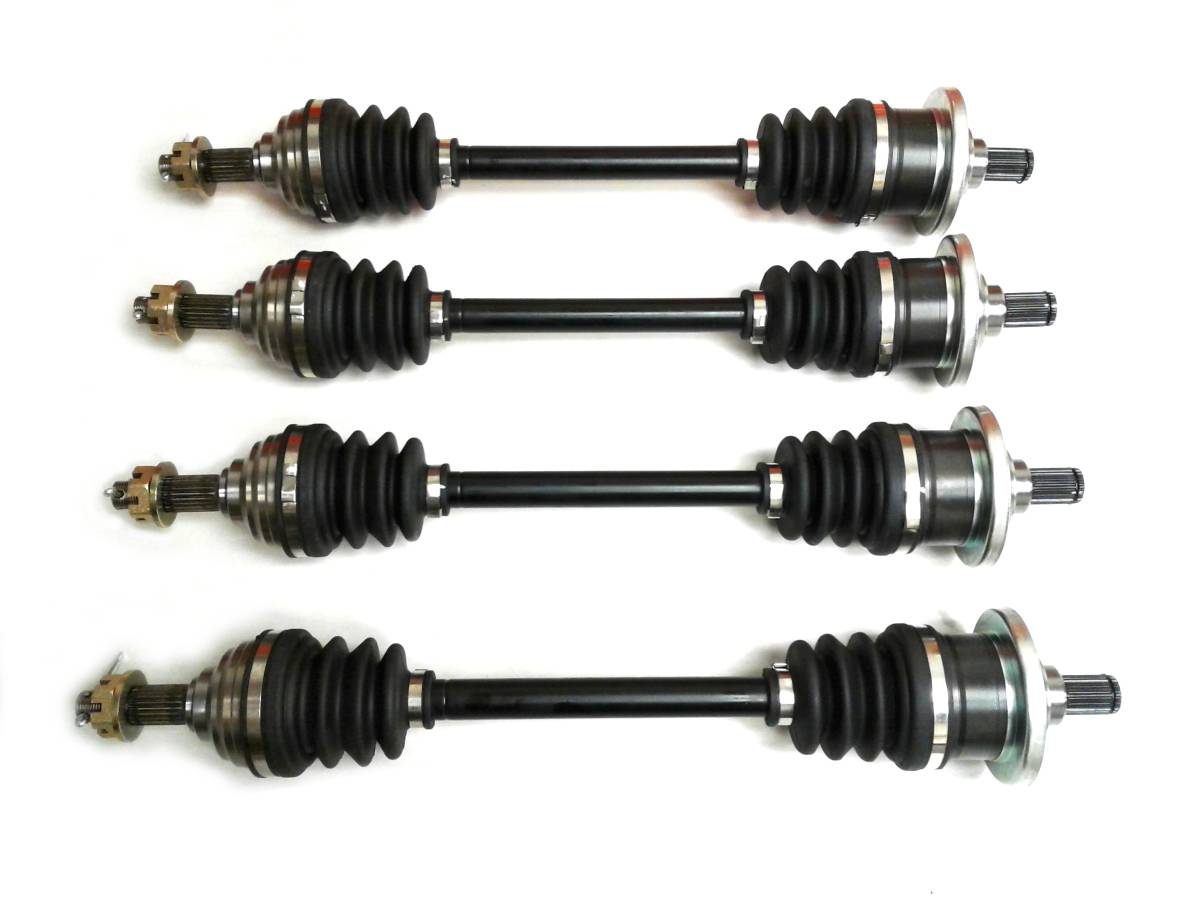

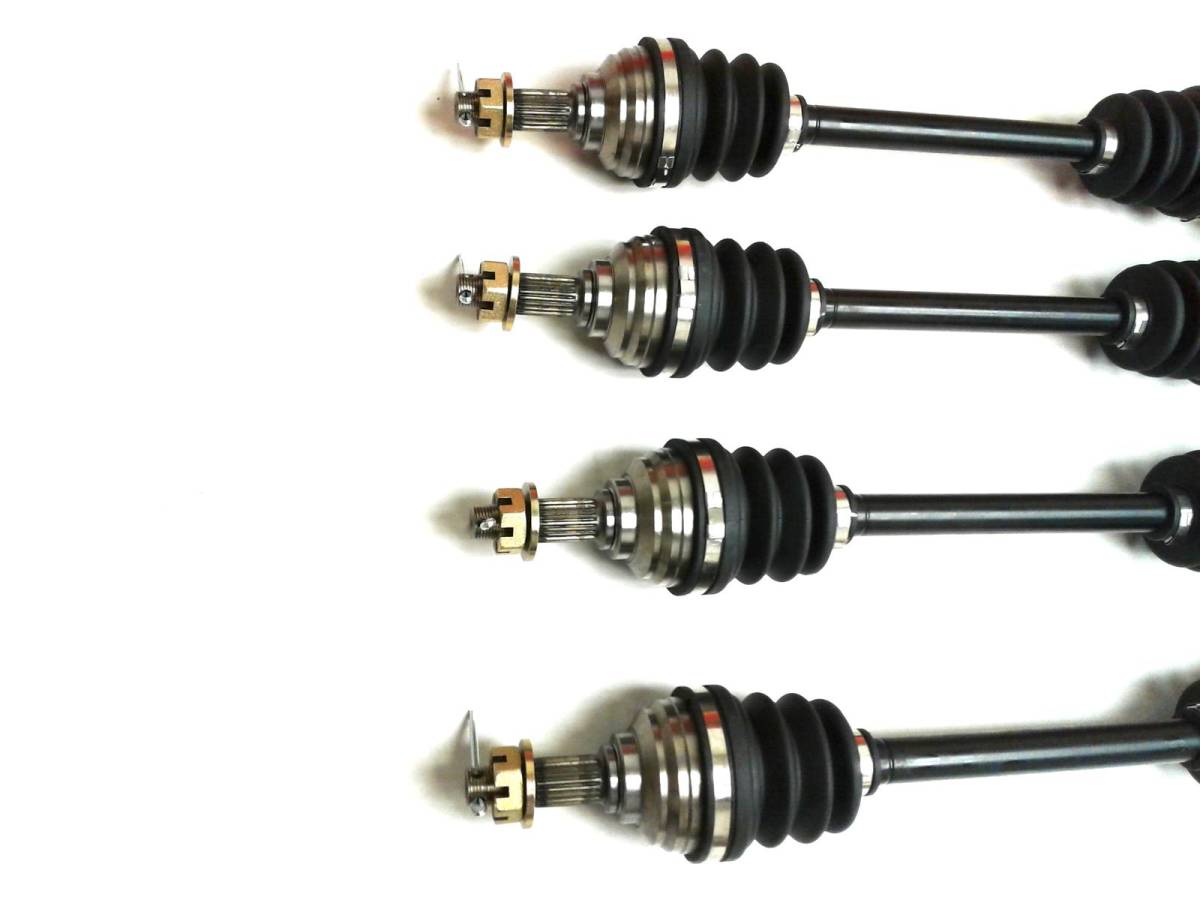

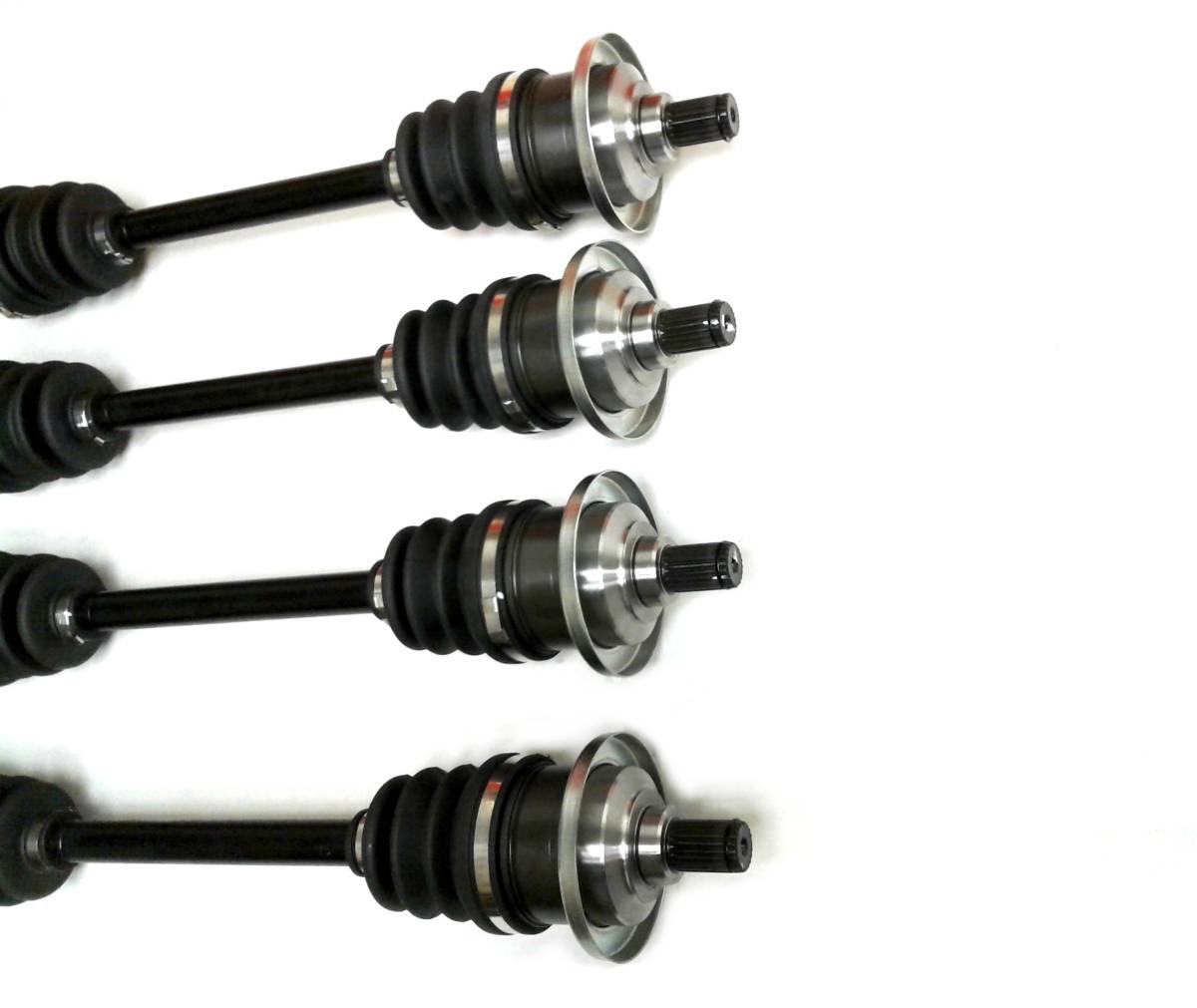

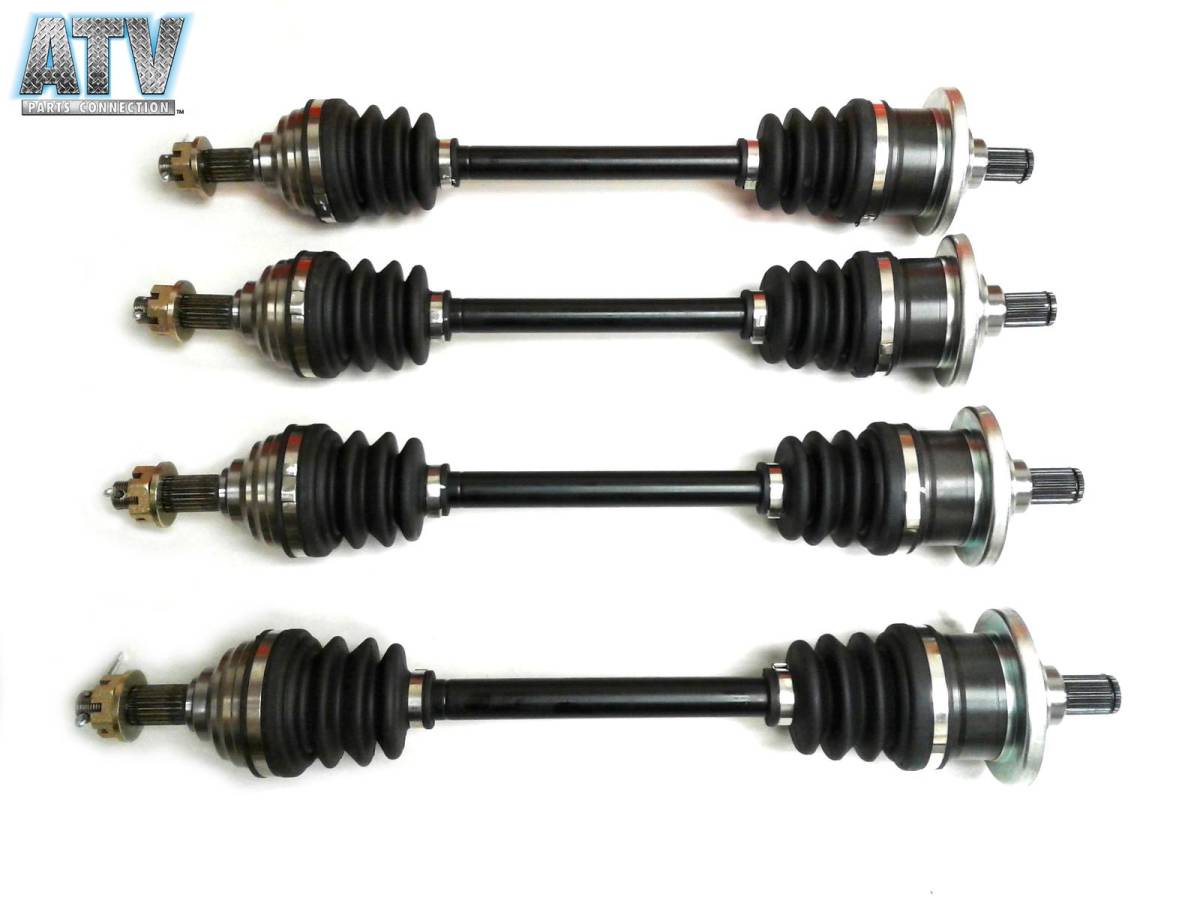

This is a set of new Front or Rear CV axles for an Arctic Cat ATV.

They fit the following 4x4 models:

2003-2004 ... 400 FIS MT/AT, TBX 400

2003-2004 ... 500 FIS MT/AT, TBX 500, & TRV 500

Front & Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM chromoly hardened steel axle bars
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance
Inboard CV joint spline count: 21 (all)
Outboard CV joint spline count: 21 (all)
Compressed overall axle length: 548 mm (all)
Replaces Arctic Cat OE # 0402-907, 0502-544, 1502-442

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $284.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2004	Arctic Cat	400	4x4 Automatic
2004	Arctic Cat	400	4x4 MRP
2004	Arctic Cat	400	4x4 MRP Automatic
2004	Arctic Cat	400	4x4 TBX Automatic
2003	Arctic Cat	400	4x4 Automatic
2003	Arctic Cat	400	4x4 Automatic EFI
2003	Arctic Cat	400	4x4 EFI
2003	Arctic Cat	400	4x4 MRP
2003	Arctic Cat	400	4x4 MRP Automatic
2004	Arctic Cat	500	4X4
2004	Arctic Cat	500	4x4 Automatic
2004	Arctic Cat	500	4x4 MRP
2004	Arctic Cat	500	4x4 MRP Automatic
2004	Arctic Cat	500	4x4 TBX Automatic
2004	Arctic Cat	500	4x4 TRV Automatic
2003	Arctic Cat	500	4X4
2003	Arctic Cat	500	4x4 Automatic
2003	Arctic Cat	500	4x4 Automatic EFI
2003	Arctic Cat	500	4x4 EFI
2003	Arctic Cat	500	4x4 MRP
2003	Arctic Cat	500	4x4 MRP Automatic
2003	Arctic Cat	500	4x4 TBX Automatic
2003	Arctic Cat	500	4x4 TRV Automatic

Product Notes

Fits all 4 positions (front, rear, left, right) on the 2003-2004 Arctic Cat 400 FIS (MT/AT), TBX 400 & 2003-2004 500 FIS (MT/AT), TBX 500, TRV 500 4x4.

Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

Compressed Length: 548 mm (all), Inboard Spline Count: 21 (all), Outboard Spline Count: 21 (all).

Replaces Arctic Cat OE # 0402-907, 0502-544, 1502-442.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
