Front Axle Pair with Wheel Bearing Kits for Kawasaki Brute Force 750 2008-2011

Location on vehicle: Front,Left,Right

KW-121/KW-221/WB-1497/WB-1497

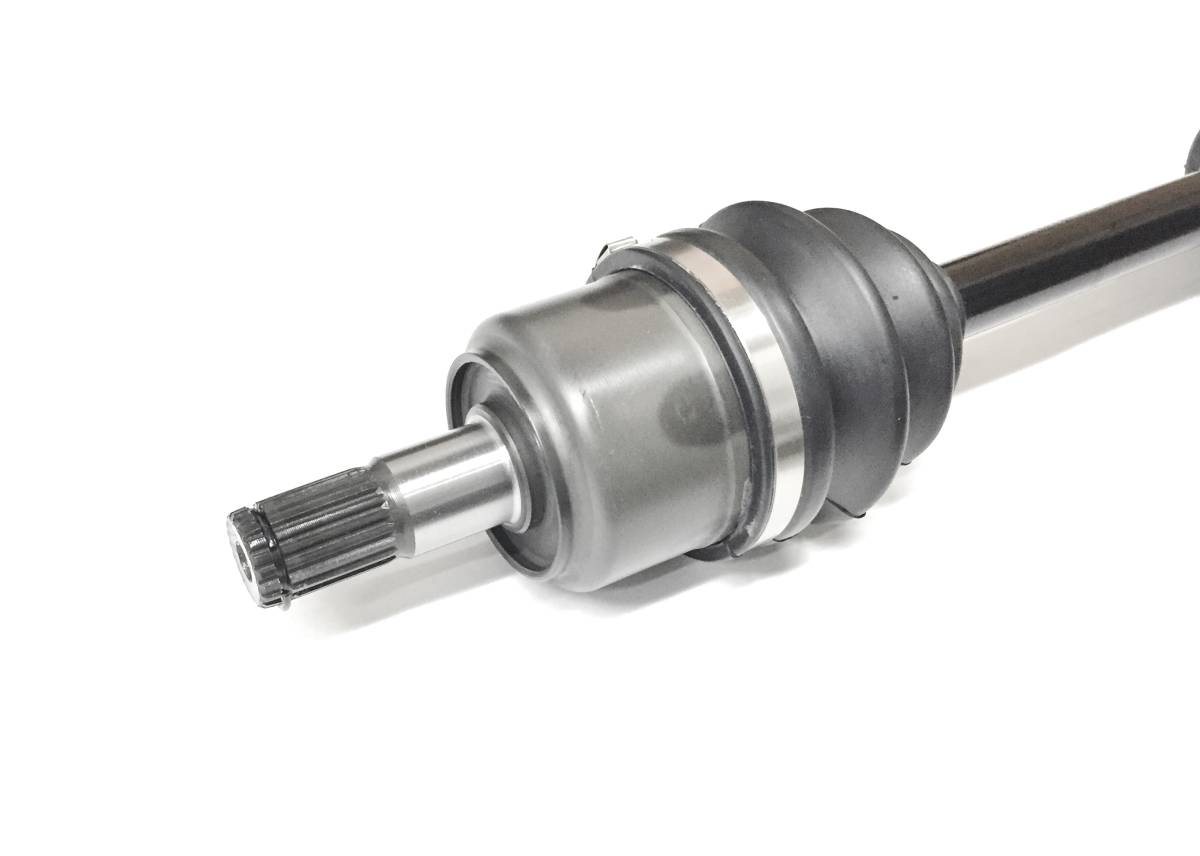

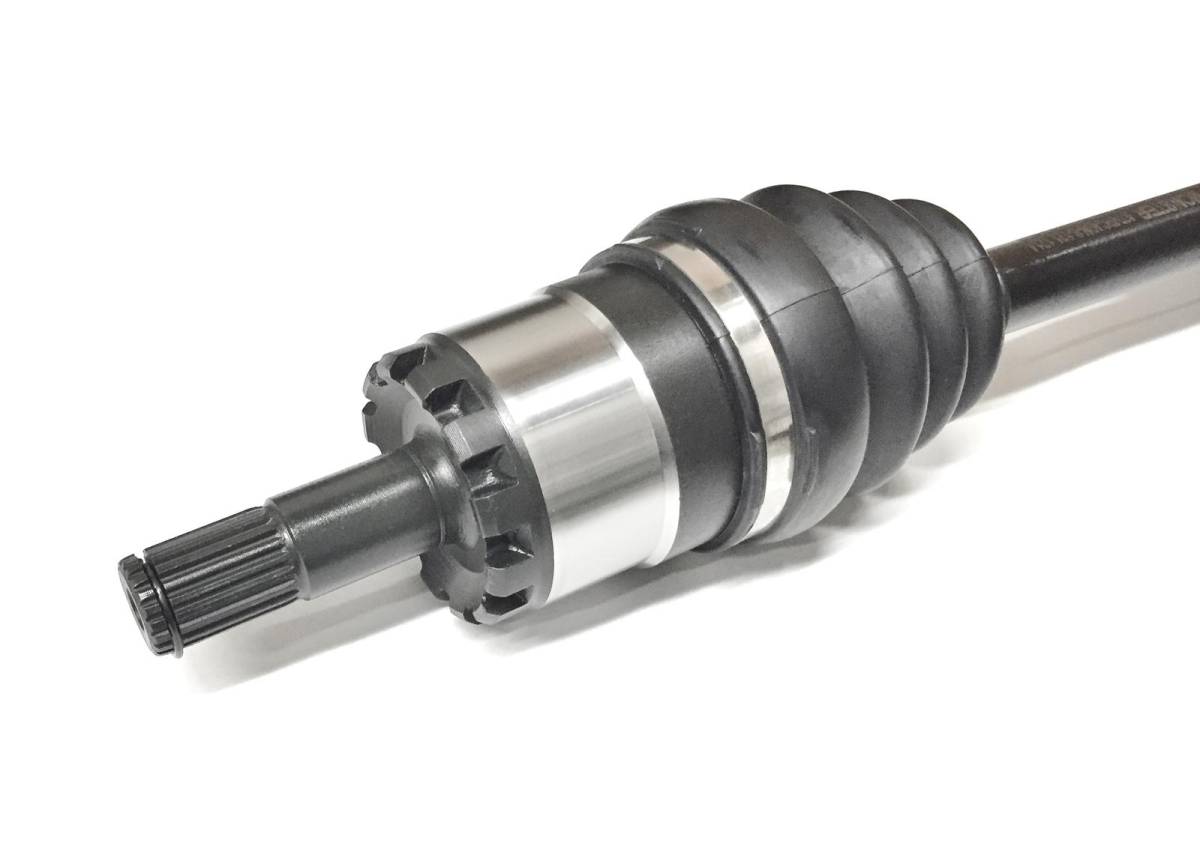

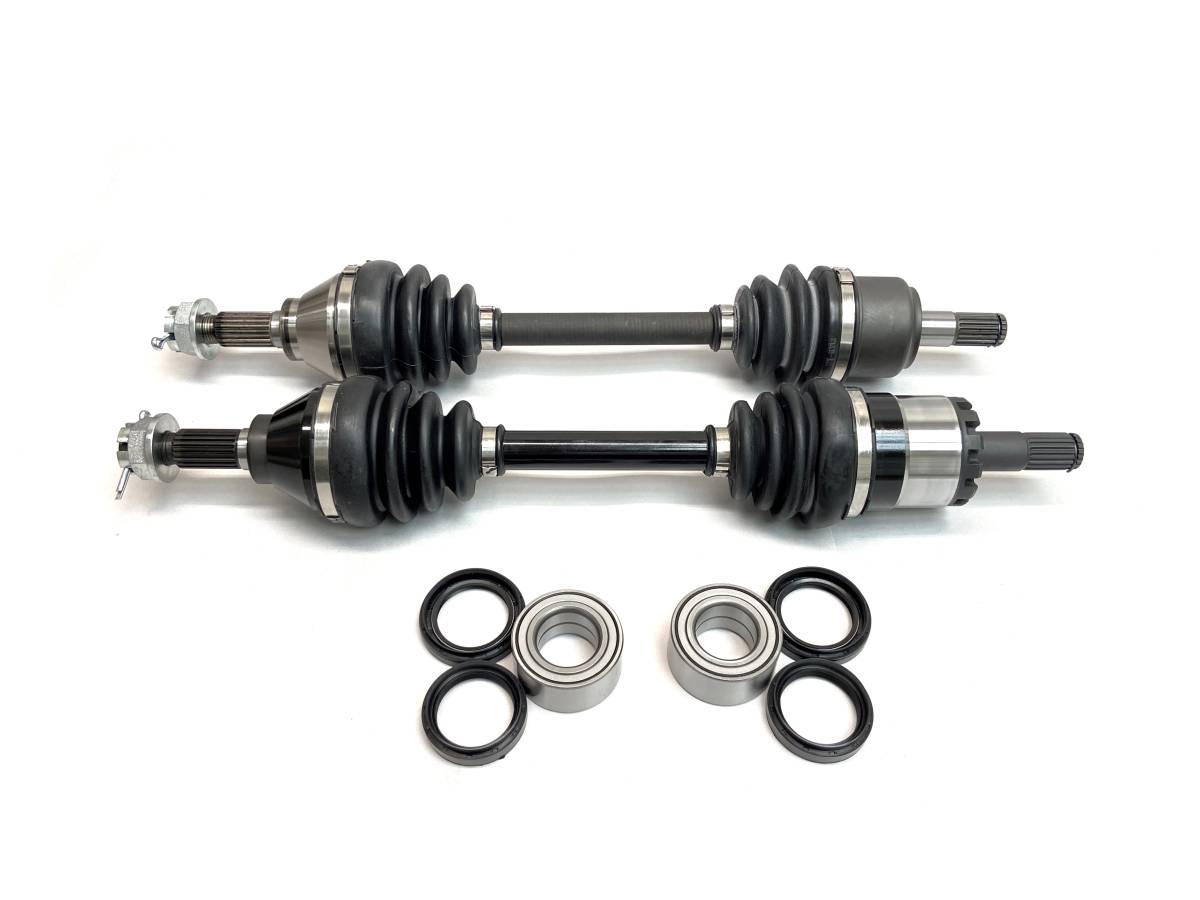

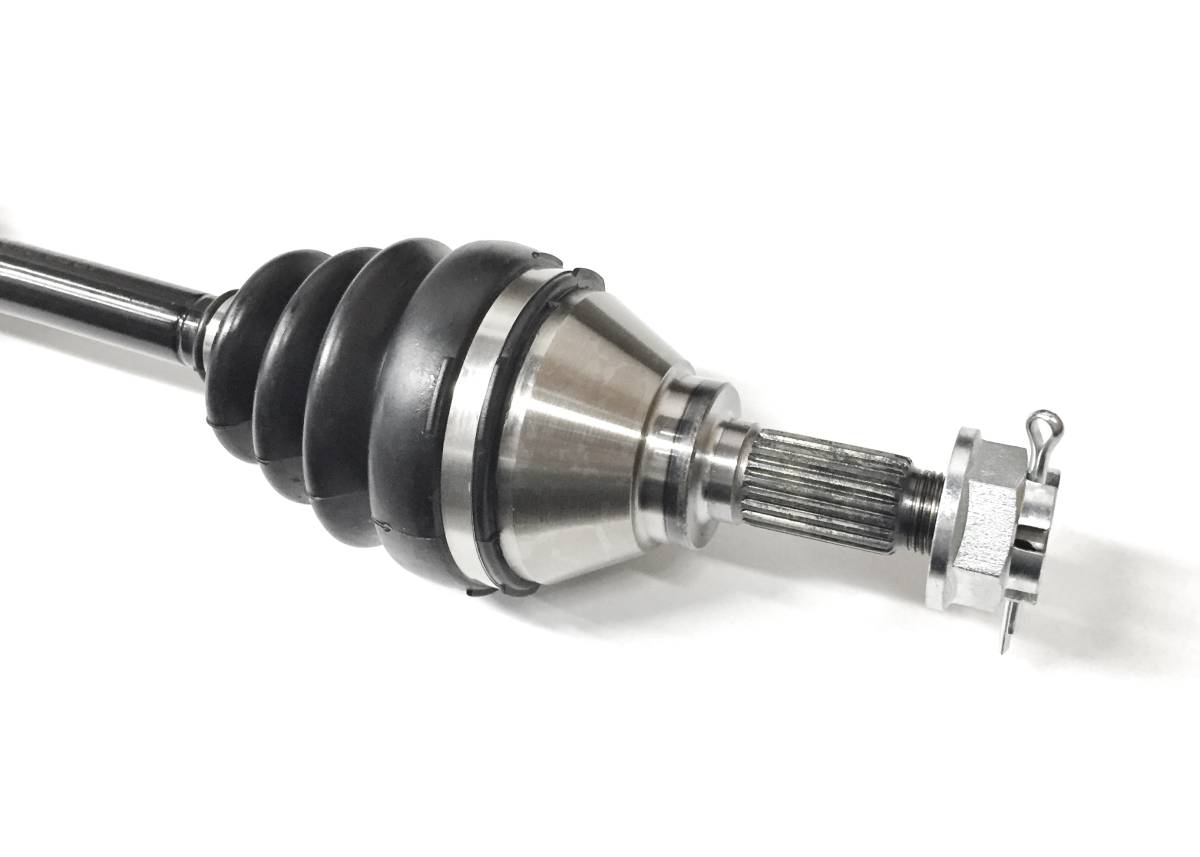

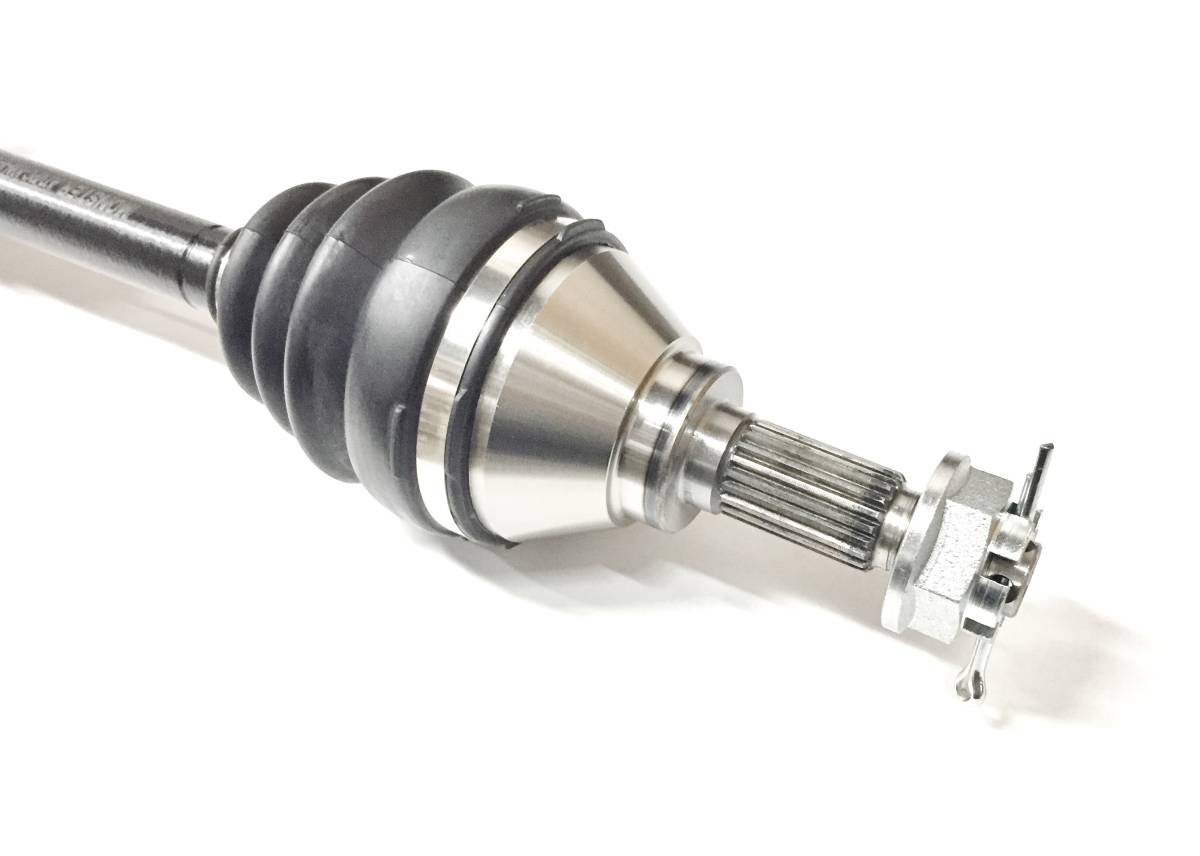

This is a set of new front CV axles & wheel bearing/seal kits for a Kawasaki ATV.

They fit the following 4x4 models:

2008-2011 ... Brute Force 750

front left & right Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • inobard CV joint spline count: 20 (both)
  • outboard CV joint spline count: 21 (both)
  • Compressed overall axle length: left - 497 mm, right - 492 mm
  • Replaces Kawasaki OEM # (axles) 59266-0021, 59266-0022, (bearing & seals) 92045-1395, 92045-1448, 92045-0095, K9204-51448
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $106.39
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2011KawasakiBrute Force 750KVF750D 4x4i
2010KawasakiBrute Force 750KVF750D 4x4i
2010KawasakiBrute Force 750KVF750E 4x4i
2009KawasakiBrute Force 750KVF750A 4x4i
2009KawasakiBrute Force 750KVF750D 4x4i
2009KawasakiBrute Force 750KVF750E 4x4i
2009KawasakiBrute Force 750KVF750EA 4x4i NRA
2008KawasakiBrute Force 750KVF750A 4x4i
2008KawasakiBrute Force 750KVF750D 4x4i
2008KawasakiBrute Force 750KVF750E 4x4i
2008KawasakiBrute Force 750KVF750EA 4x4i NRA

Product Notes

  • Fits front, left and right on the following Kawasaki ATV models: 2008-2011 Brute Force 750i.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axles) 59266-0021, 59266-0022, (bearing & seals) 92045-1395, 92045-1448, 92045-0095, K9204-51448. Compressed axle length: left - 497 mm, right - 492 mm, Inner joint splines- 20 (both), Outer joint splines - 21 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

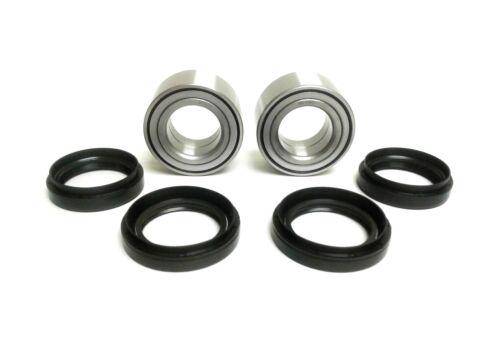

  • 2 CV axles, 2 bearings, 2 seals
  • Warranty

    1 year factory defect limited warranty

    Details

    • KW-121/KW-221/WB-1497/WB-1497
    • KW-121/KW-221/WB-1497/WB-1497
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 16.0 lbs.
    • W5.0000” x H10.0000” x L24.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
