Rear CV Axle Pair for Arctic Cat 250 300 2x4 4x4 1998-2004 ATV

Location on vehicle: Rear,Left,Right

AC-304/AC-304

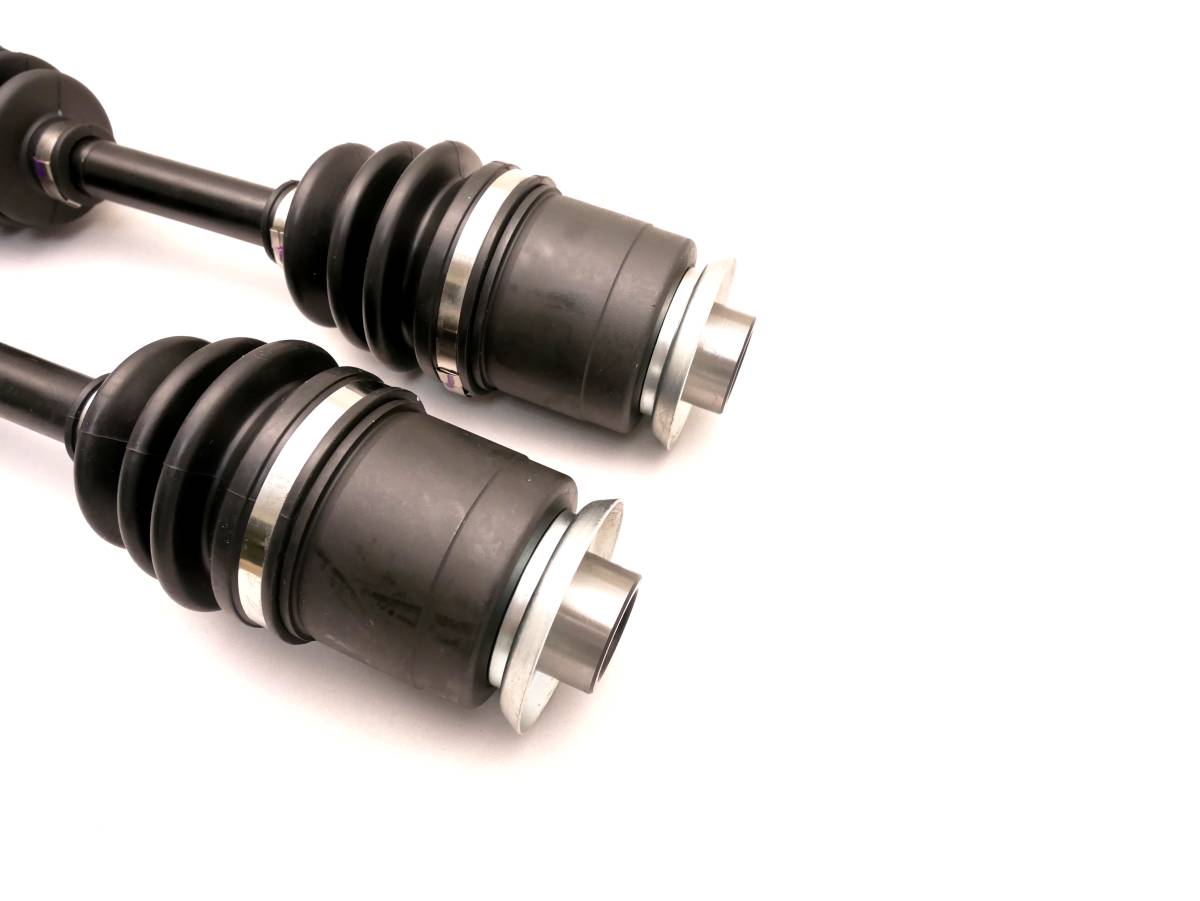

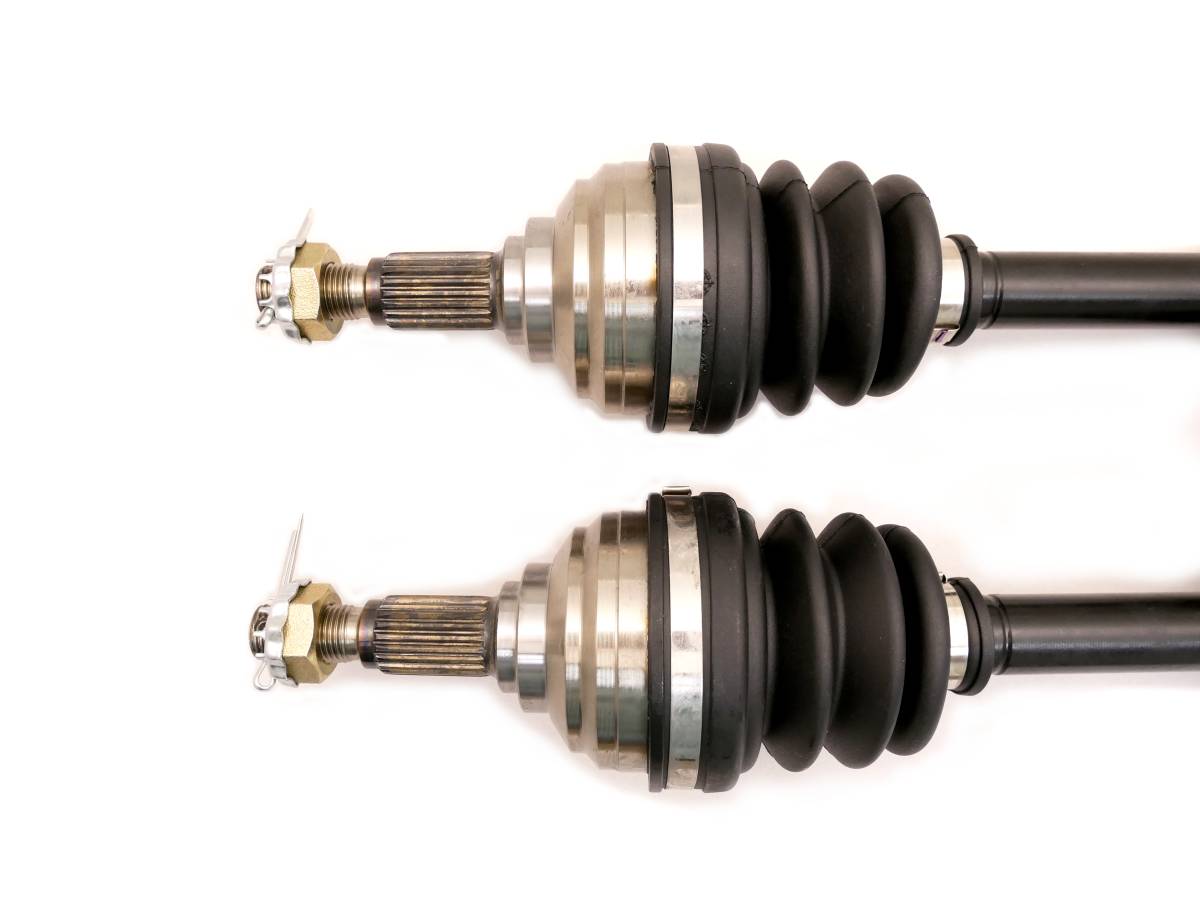

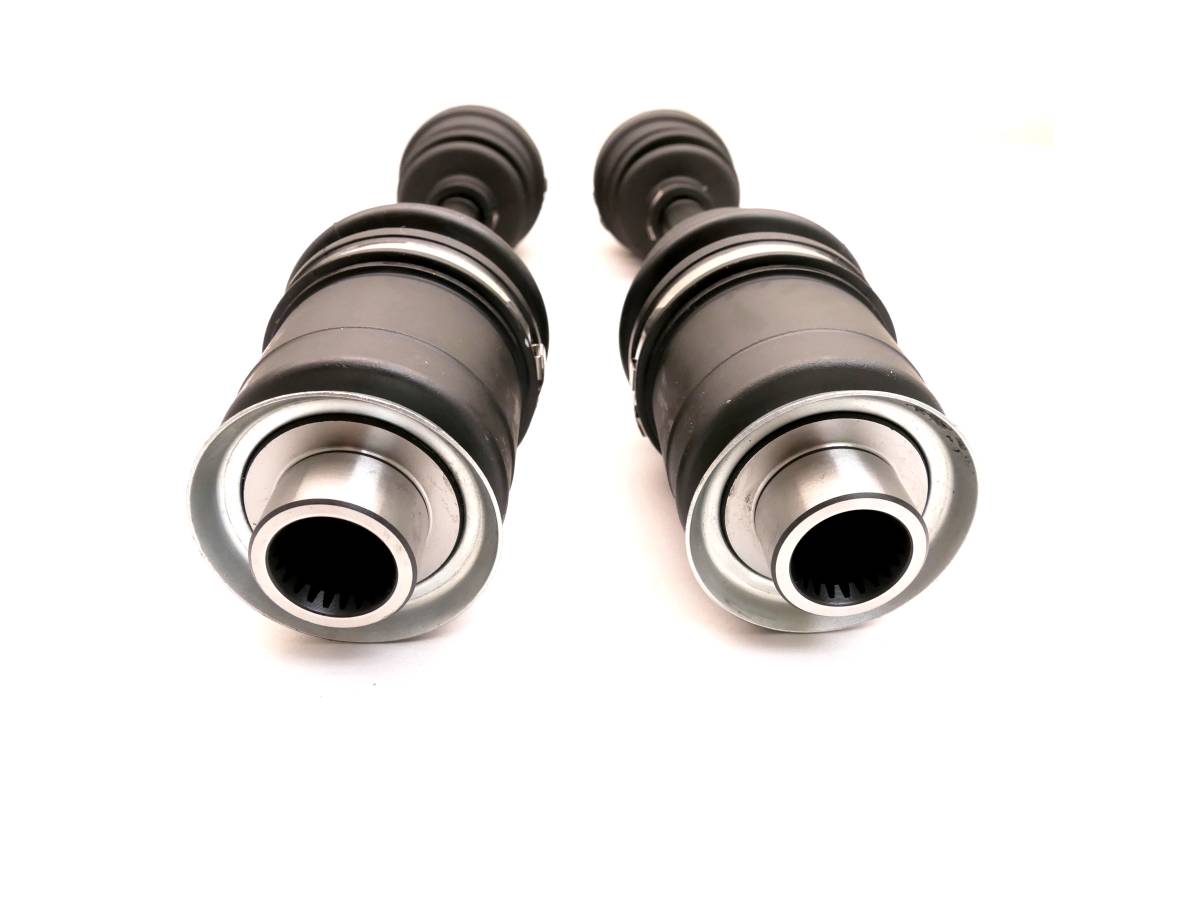

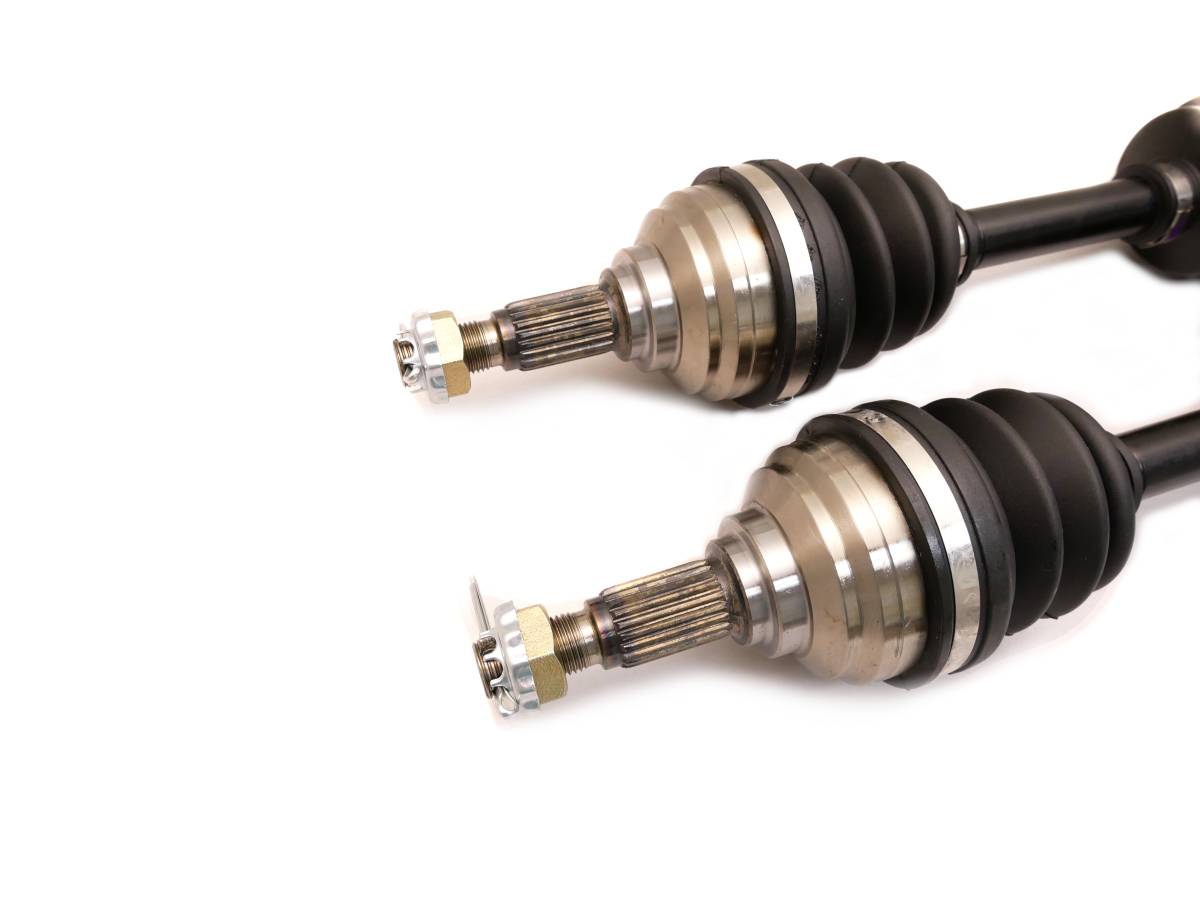

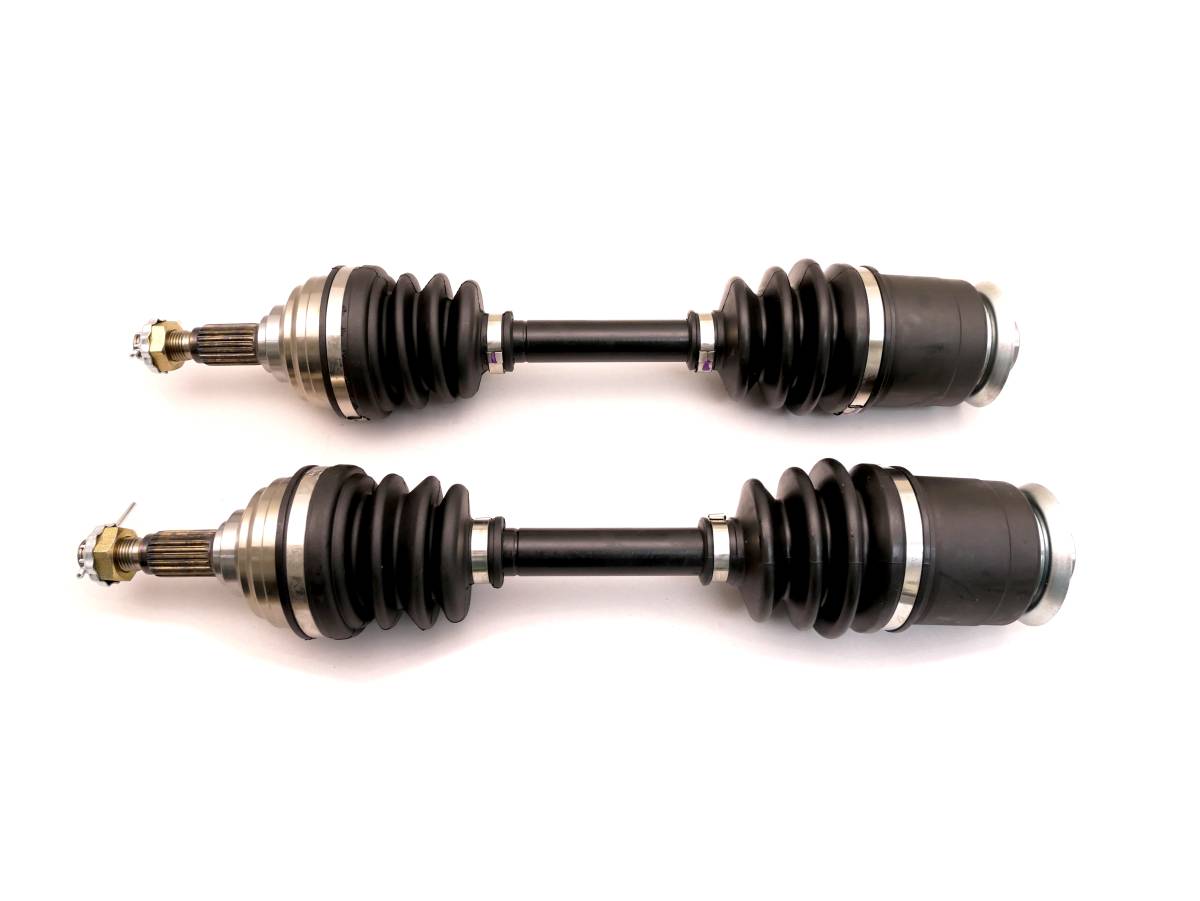

This is a pair of new Rear CV axles for an Arctic Cat ATV.

They fit the following models:

1999-2004 ... 250 2x4/4x4

1998-2004 ... 300 2x4/4x4

Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 22 (both)
  • Outboard CV joint spline count: 21 (both)
  • Compressed overall axle length: 436 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $114.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits rear on the 1999-2004 250 2x4/4x4 & 1998-2004 300 2x4/4x4.
  • Features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Compressed Length - 436 mm (both). Inboard Spline Count - 22 (both), Outboard Spline Count- 21 (both).
  • Replaces OE # 0402-171, 0402-777, 1402-002, 1502-529, 1502-531.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2004Arctic Cat2502x4
    2004Arctic Cat2504X4
    2003Arctic Cat2502x4
    2003Arctic Cat2504X4
    2002Arctic Cat2502x4
    2002Arctic Cat2504X4
    2001Arctic Cat2502x4
    2001Arctic Cat2504X4
    2000Arctic Cat2502x4
    1999Arctic Cat2502x4
    2004Arctic Cat3004X4
    2004Arctic Cat3004x4 MRP
    2003Arctic Cat3002x4
    2003Arctic Cat3004X4
    2002Arctic Cat3002x4
    2002Arctic Cat3004X4
    2001Arctic Cat3002x4
    2001Arctic Cat3004X4
    2000Arctic Cat3002x4
    2000Arctic Cat3004X4
    1999Arctic Cat3002x4
    1999Arctic Cat3004X4

    Details

    • AC-304/AC-304
    • AC-304/AC-304
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 17.2 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
