Front Left CV Axle for Arctic Cat 300 1998-2001 & 500 2000-2001 4x4

Location on vehicle: Front,Left

AC-118

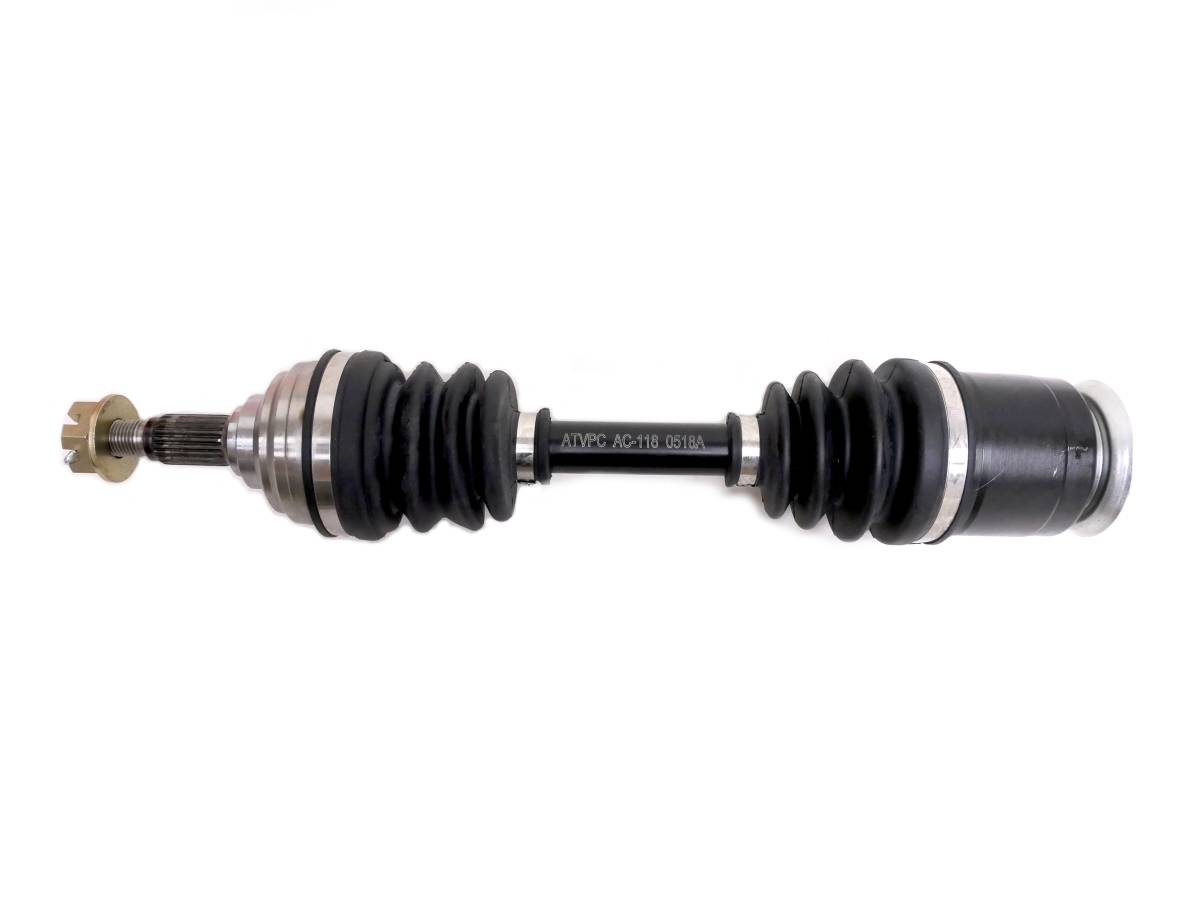

This is a new Front, Left CV axle for a Arctic Cat ATV.

It will fit the following 4x4 models:

1998-2001 ... 300

2000-2001 ... 500 Automatic

2001 ... 500 Manual

Front, Left / Driver's Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 20
  • Outboard CV joint spline count: 21
  • Compressed overall axle length: 417 mm
Limited Supply: only 9 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $64.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits: 1998-2001 300 4x4, 2000-2001 500 4x4 Automatic, 2001 500 4x4 Manual.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed overall axle length: 417 mm, Inboard CV joint spline count: 20, Outboard CV joint spline count: 21.
  • Replaces OE # 0402-249 1502-441.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2001Arctic Cat3004X4
    2000Arctic Cat3004X4
    1999Arctic Cat3004X4
    1998Arctic Cat3004X4
    2001Arctic Cat5004X4
    2001Arctic Cat5004x4 Automatic
    2001Arctic Cat5004x4 LE Automatic
    2000Arctic Cat5004x4 Automatic

    Details

    Shipping Information

    • Item Requires Shipping
    • 8.7 lbs.
    • W5.0000” x H5.0000” x L24.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
