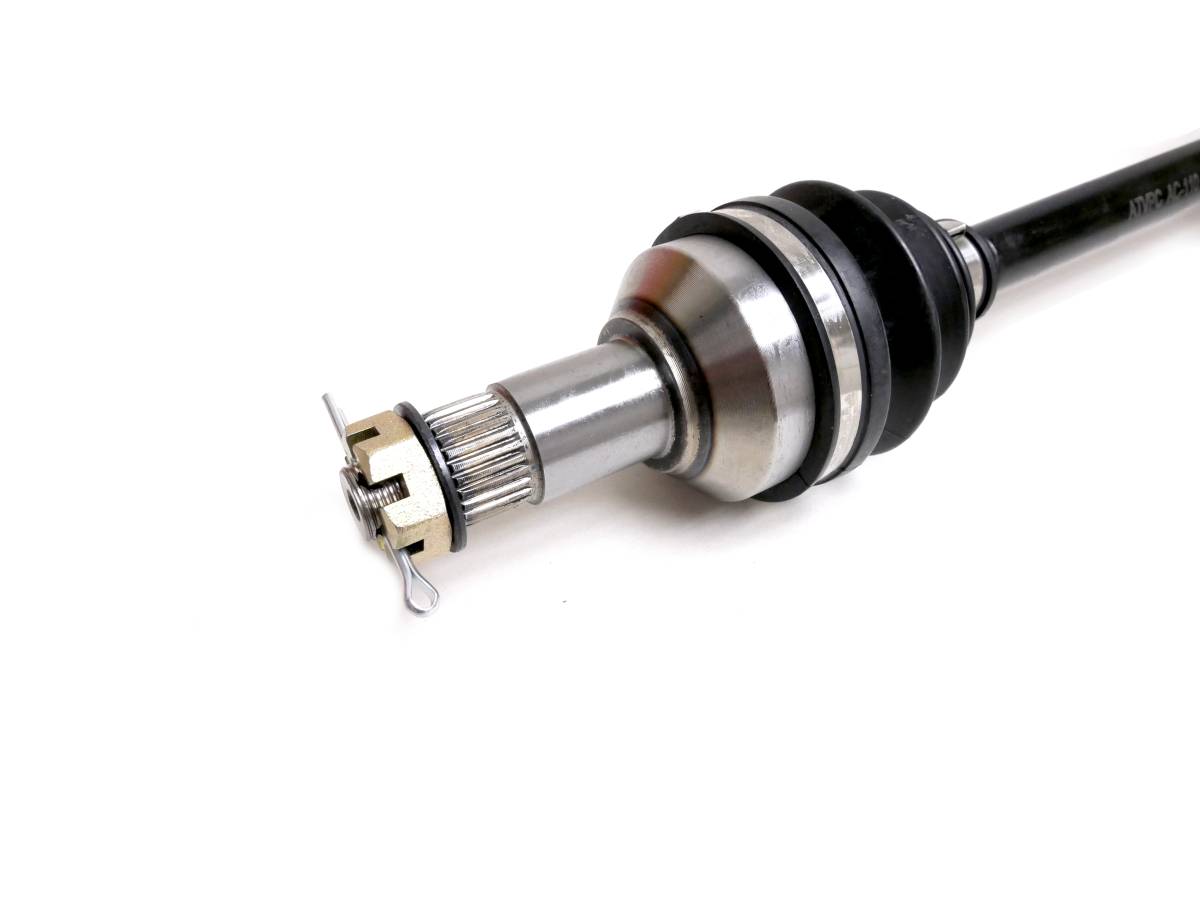

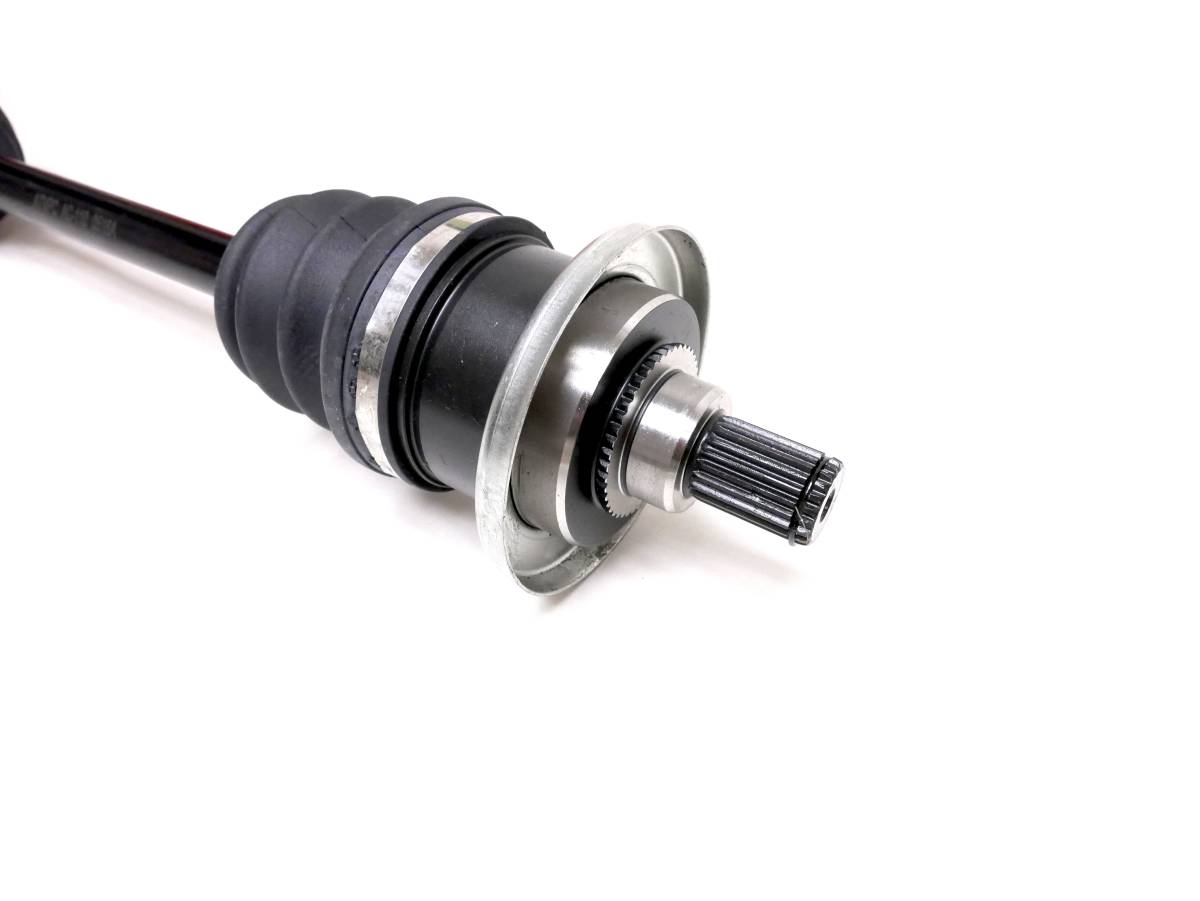

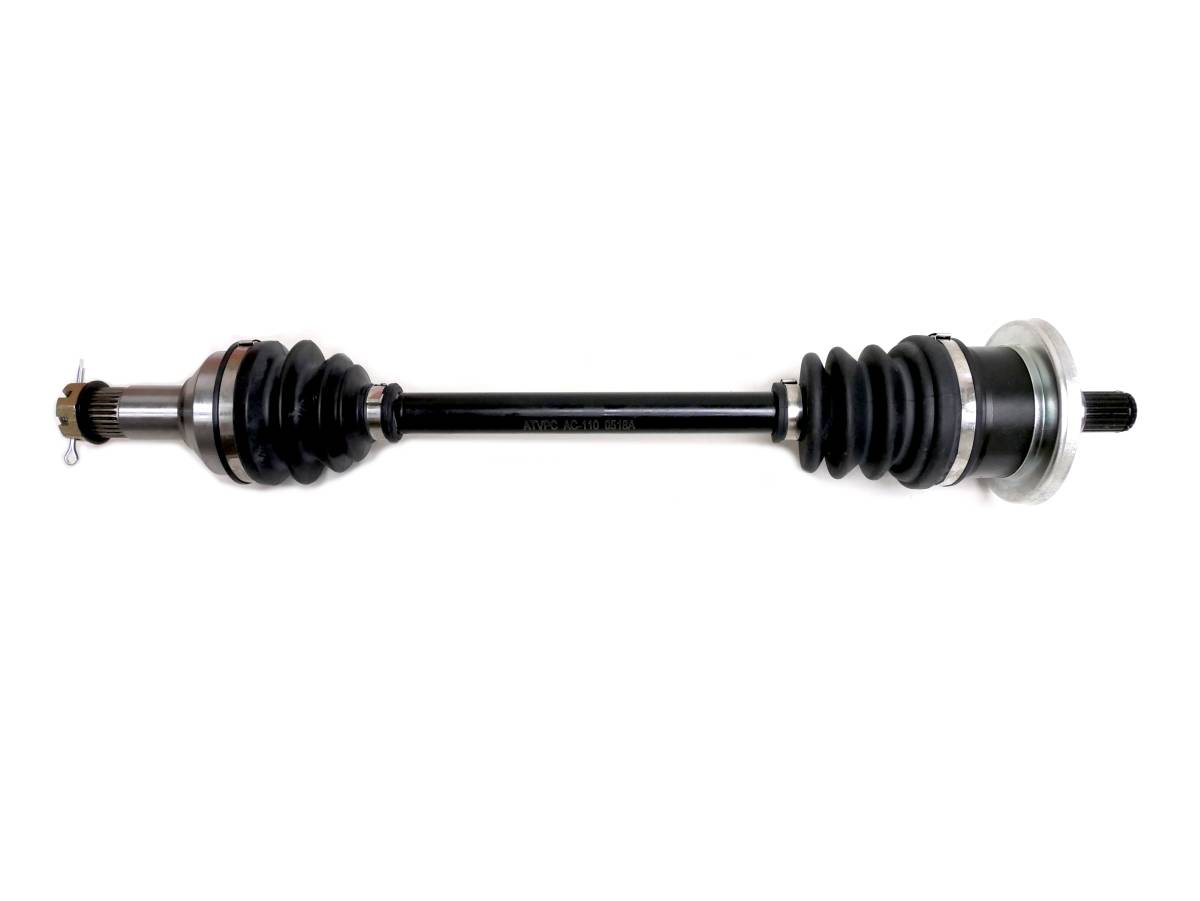

Front Left CV Axle for Arctic Cat 400 500 650 4x4 2005 ATV

Location on vehicle: Front,Left

AC-110
This is a new Front, Left CV axle for an Arctic Cat ATV.

It will fit:

2005 ... 400 FIS MT/AT

2005 ... 500 FIS MT/AT and TBX 500

2005 ... 650 H1/V2

Front Left (driver's side)

*Axle made as OE replacement, and is not intended for use on lifted or modified vehicles.

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 551.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $82.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front left: 2005 400 FIS AT/MT 4x4 * 2005 500 FIS AT/MT & TBX 500 4x4, & 2005 650 H1/V2 4x4.
  • Features a stronger than OEM chromoly forged steel axle bar * Greased with a moly based grease to provide superior joint lubrication * Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length: 551.5 mm, Inboard Spline Count: 21, Outboard Spline Count: 27.
  • Replaces Arctic Cat OEM # 0502-547, 0502-542, 1502-539.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2005Arctic Cat4004X4
    2005Arctic Cat4004x4 Automatic
    2005Arctic Cat4004x4 LE Automatic
    2005Arctic Cat4004x4 TBX Automatic
    2005Arctic Cat5004X4
    2005Arctic Cat5004x4 Automatic
    2005Arctic Cat5004x4 LE Automatic
    2005Arctic Cat5004x4 TBX Automatic
    2005Arctic Cat5004x4 TRV Automatic
    2005Arctic Cat6504x4 H1 Automatic
    2005Arctic Cat6504x4 V2 Automatic
    2005Arctic Cat6504x4 V2 LE Automatic

    Details

    Shipping Information

    • Item Requires Shipping
    • 10.5 lbs.
    • W5.0000” x H5.0000” x L24.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
