CV Axle Set for Kawasaki Brute Force 650i 750i, 59266-0007 59266-0008 59266-0023

Location on vehicle: Rear,Front,Left,Right

KW-124/KW-224/KW-312/KW-312

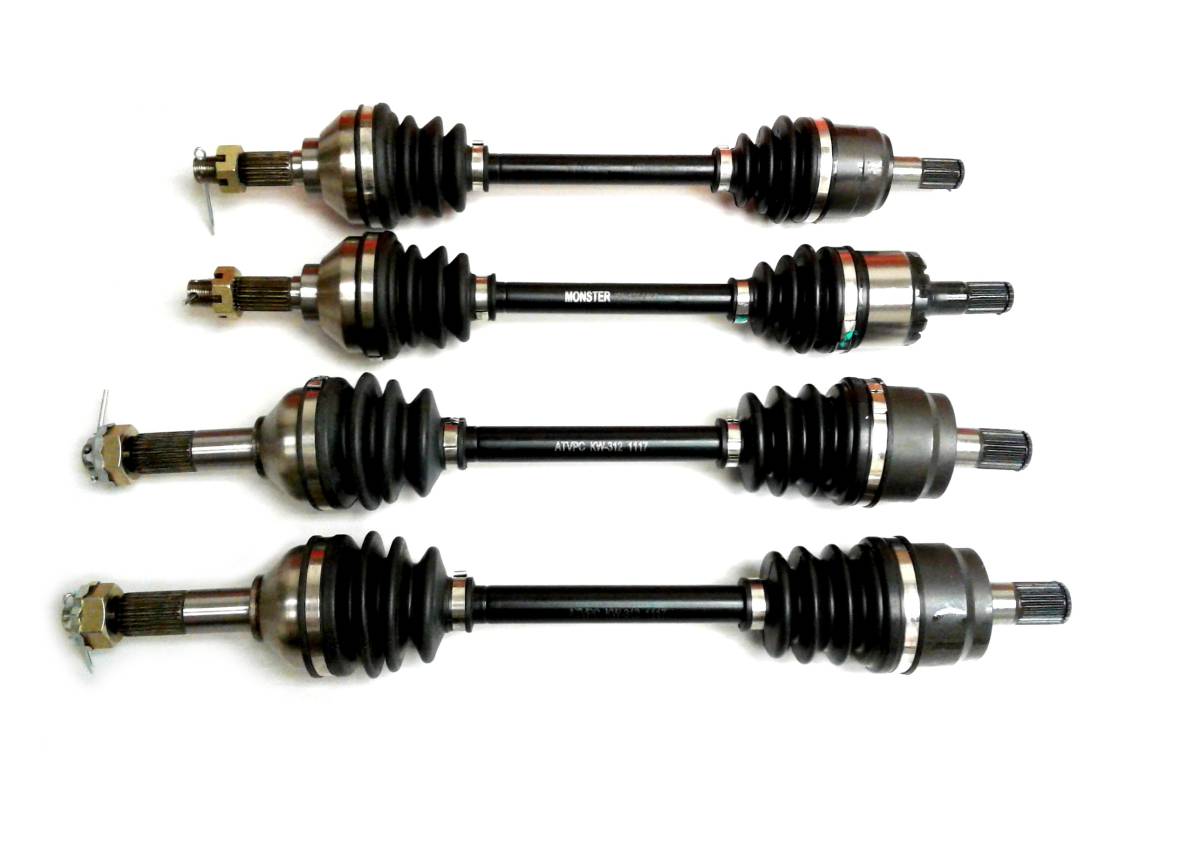

This is a set of new Front & Rear CV axles for a Kawasaki ATV.

They fit the following 4x4 models:

2006-2012 ... Brute Force 650i

2005-2007 ... Brute Force 750i

2012-2021 ... Brute Force 750i

Front & Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication

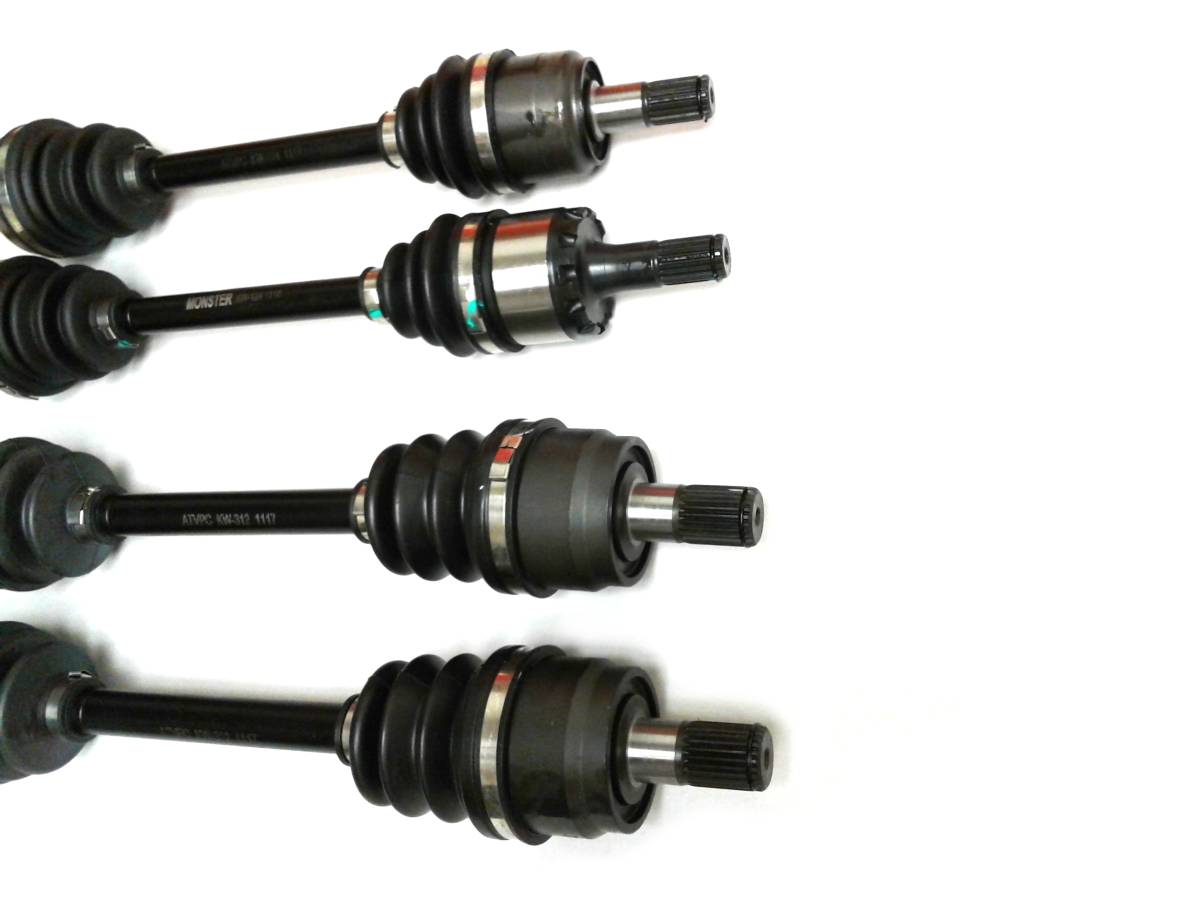

  • Inboard CV joint spline count: Fronts- 20, Rears- 24

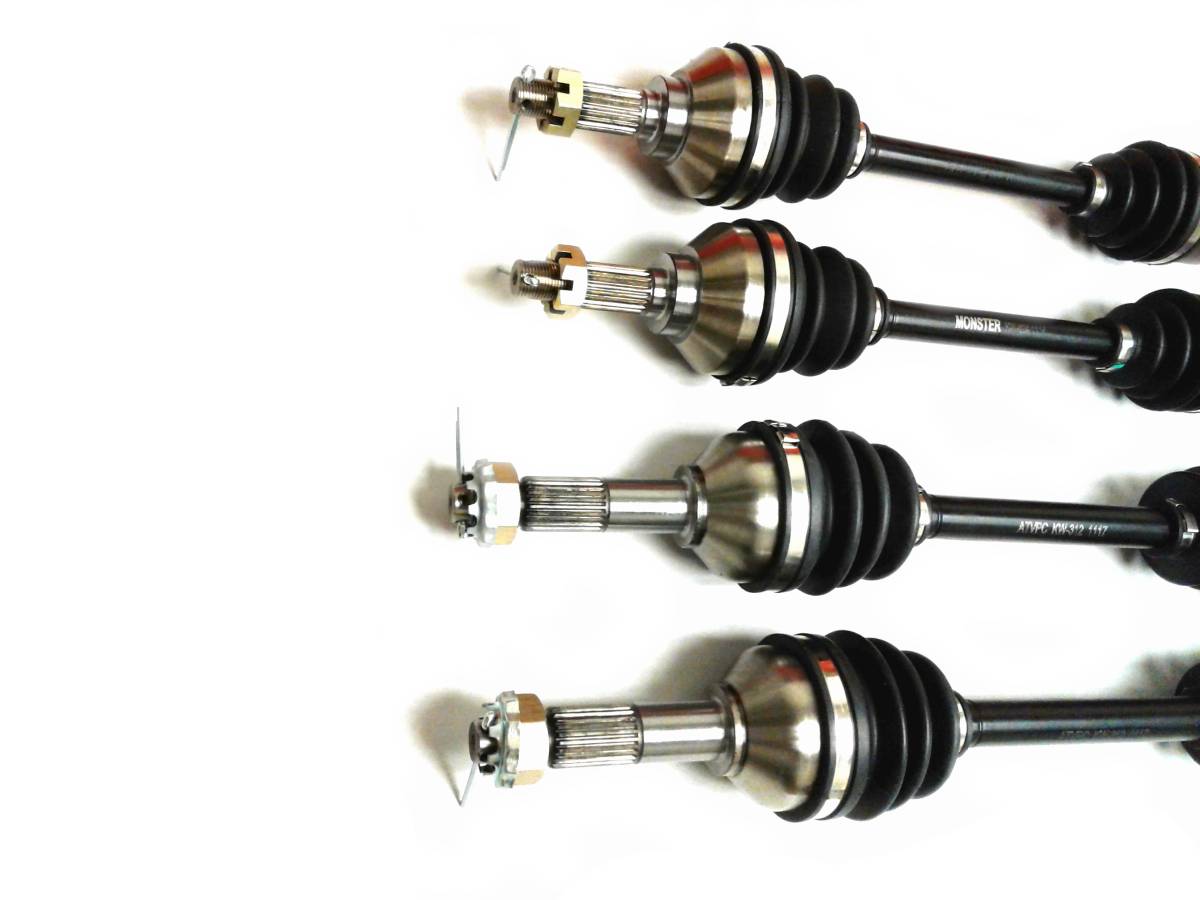

  • Outboard CV joint spline count: Fronts- 21, Rears- 24
  • Compressed overall axle length: FL- 500 mm, FR- 492 mm, RL - 549 mm, RR - 549 mm
  • Replaces Kawasaki OEM # 59266-0007, 59266-0024, 59266-0008, 59266-0025, 59266-0002 , 59266-0023
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $259.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits Brute Force 650i from 2006-2013 & Brute Force 750i from 2005-2007 & 2012-2021.
  • Features stronger than OEM chromoly forged steel axle bars * Greased with a moly based grease to provide superior joint lubrication * Fitted with neoprene CV boots for added wear and puncture resistance
  • Inner Splines: Fronts - 20, Rears - 24, Outer Splines: Fronts - 21, Rears - 24, Compressed length (mm): FL 500, FR 492, RL 549, RR 549.
  • Replaces Kawasaki OEM # 59266-0007, 59266-0024, 59266-0008, 59266-0025, 59266-0002 , 59266-0023.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2013KawasakiBrute Force 650KVF650F 4x4i
    2012KawasakiBrute Force 650KVF650F 4x4i
    2011KawasakiBrute Force 650KVF650F 4x4i
    2009KawasakiBrute Force 650KVF650F 4x4i
    2009KawasakiBrute Force 650KVF650G 4x4i
    2008KawasakiBrute Force 650KVF650F 4x4i
    2008KawasakiBrute Force 650KVF650G 4x4i
    2008KawasakiBrute Force 650KVF650H 4x4i
    2007KawasakiBrute Force 650KVF650F 4x4i
    2007KawasakiBrute Force 650KVF650G 4x4i
    2007KawasakiBrute Force 650KVF650H 4x4i
    2006KawasakiBrute Force 650KVF650F 4x4i
    2006KawasakiBrute Force 650KVF650G 4x4i
    2021KawasakiBrute Force 750KVF750 4x4i
    2021KawasakiBrute Force 750KVF750 4x4i EPS
    2021KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2020KawasakiBrute Force 750KVF750 4x4i
    2020KawasakiBrute Force 750KVF750 4x4i EPS
    2020KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2019KawasakiBrute Force 750KVF750 4x4i
    2019KawasakiBrute Force 750KVF750 4x4i EPS
    2019KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2018KawasakiBrute Force 750KVF750 4x4i
    2018KawasakiBrute Force 750KVF750 4x4i EPS
    2018KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2017KawasakiBrute Force 750KVF750GHF 4x4i EPS
    2017KawasakiBrute Force 750KVF750HHF 4x4i EPS Camo
    2017KawasakiBrute Force 750KVF750JHF 4x4i EPS Graystone
    2017KawasakiBrute Force 750KVF750LHF 4x4i
    2016KawasakiBrute Force 750KVF750 4x4i
    2016KawasakiBrute Force 750KVF750 4x4i EPS
    2016KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2015KawasakiBrute Force 750KVF750 4x4i
    2015KawasakiBrute Force 750KVF750 4x4i EPS
    2015KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2014KawasakiBrute Force 750KVF750G 4x4i EPS
    2014KawasakiBrute Force 750KVF750H 4x4i EPS
    2014KawasakiBrute Force 750KVF750L 4x4i
    2013KawasakiBrute Force 750KVF750G 4x4i EPS
    2013KawasakiBrute Force 750KVF750H 4x4i EPS
    2013KawasakiBrute Force 750KVF750J 4x4i
    2013KawasakiBrute Force 750KVF750L 4x4i
    2012KawasakiBrute Force 750KVF750G 4x4i EPS
    2012KawasakiBrute Force 750KVF750H 4x4i EPS
    2012KawasakiBrute Force 750KVF750L 4x4i
    2007KawasakiBrute Force 750KVF750A 4x4i
    2007KawasakiBrute Force 750KVF750B 4x4i
    2007KawasakiBrute Force 750KVF750C 4x4i
    2007KawasakiBrute Force 750KVF750D 4x4i NRA
    2006KawasakiBrute Force 750KVF750A 4x4i
    2006KawasakiBrute Force 750KVF750B 4x4i
    2006KawasakiBrute Force 750KVF750C 4x4i
    2005KawasakiBrute Force 750KVF750A 4x4i
    2005KawasakiBrute Force 750KVF750B 4x4i

    Details

    • KW-124/KW-224/KW-312/KW-312
    • KW-124/KW-224/KW-312/KW-312
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 34.0 lbs.
    • W10.0000” x H10.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
