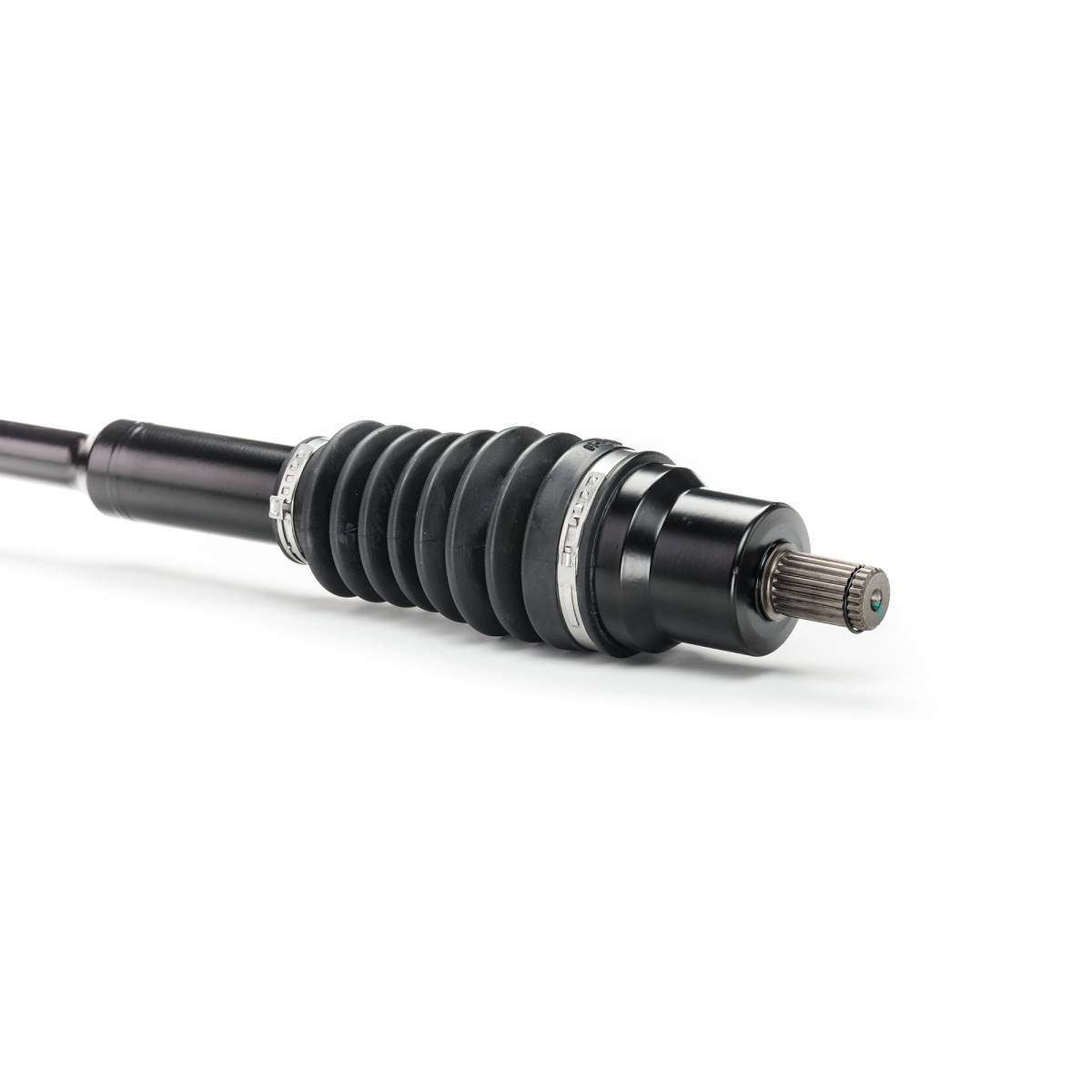

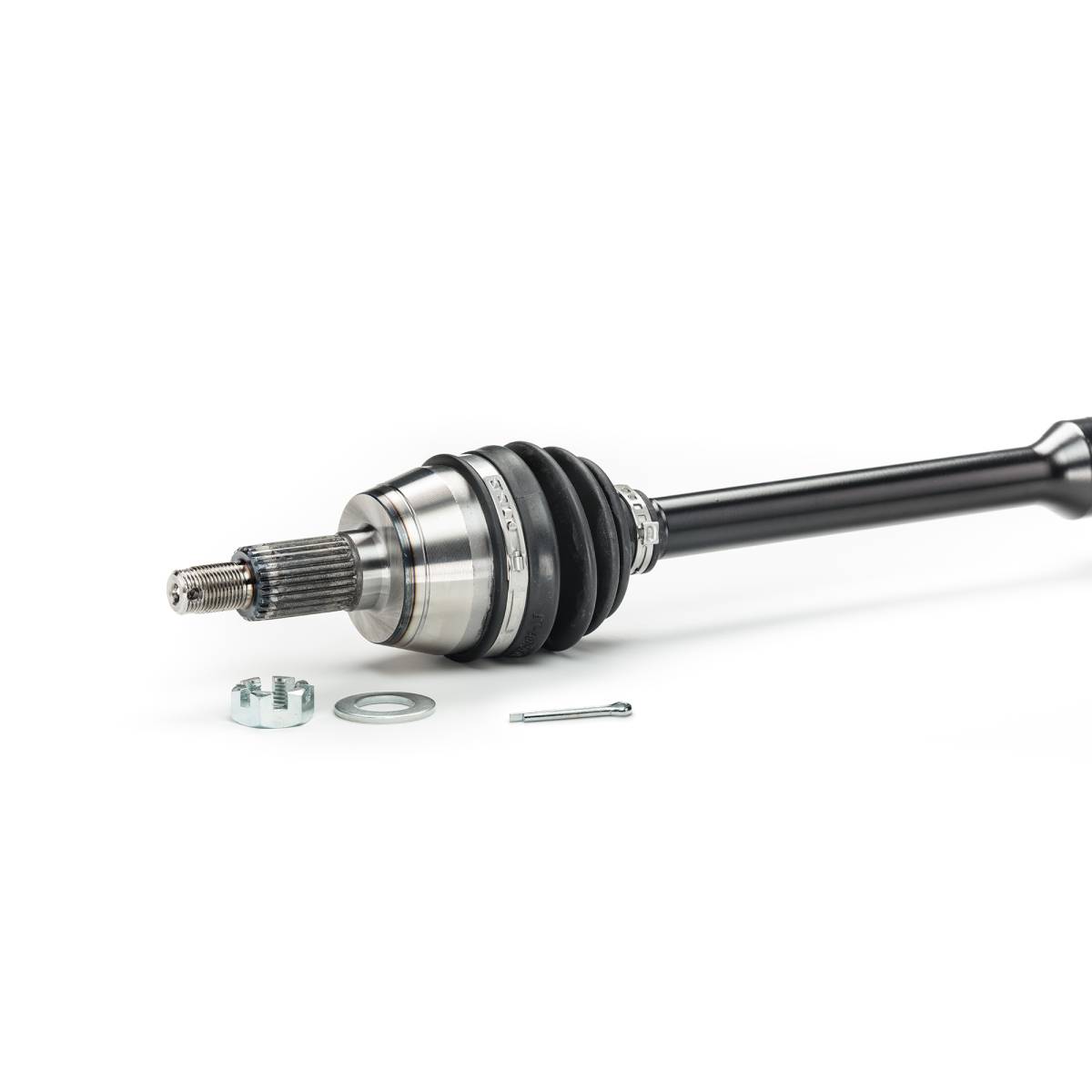

Monster Front Axle Pair with Bearings for Polaris Ranger & RZR 1332637 XP Series

Location on vehicle: Front,Left,Right

PO-307XP/PO-307XP/WB-1628/WB-1628
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

Fits FRONT, LEFT & RIGHT: 2013-2018 Brutus HD, 2015 Ranger Full Size 570, 2016 Ranger XP 570/Crew 570-6, 2013-2019 Ranger XP 900 / Crew 900 (excluding Diesel), 2014-2020 Ranger 1000 (all excluding MUD), 2009-2014 RZR S 800, 2010-2014 RZR 4 800.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Limited Supply: only 8 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $359.95
Qty:
Free Ground Shipping

Warranty

1 year, one-time repair/ replace. Buyer pays shipping

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Polaris models: 2013-2018 Brutus HD, 2015 Ranger Full Size 570, 2016 Ranger XP 570/Crew 570-6, 2013-2019 Ranger XP 900/Crew 900 (excluding Diesel), 2014-2020 Ranger 1000 (all excluding MUD), 2009-2014 RZR S 800/4 800.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # (axles) 1332637, (bearings) 3514627, 3514699. Compressed length - 685.5 mm (both), Inner splines: 22 (both), Outer splines: 26 (both). Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

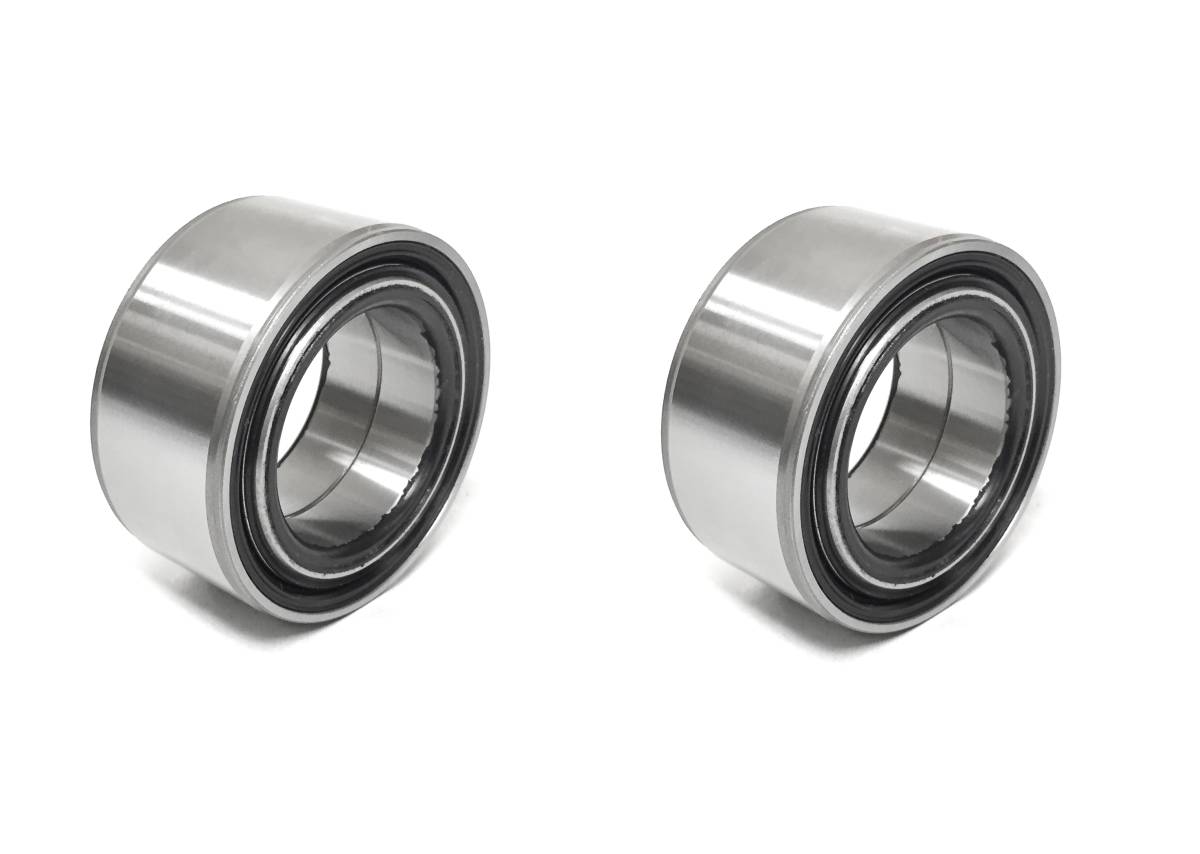

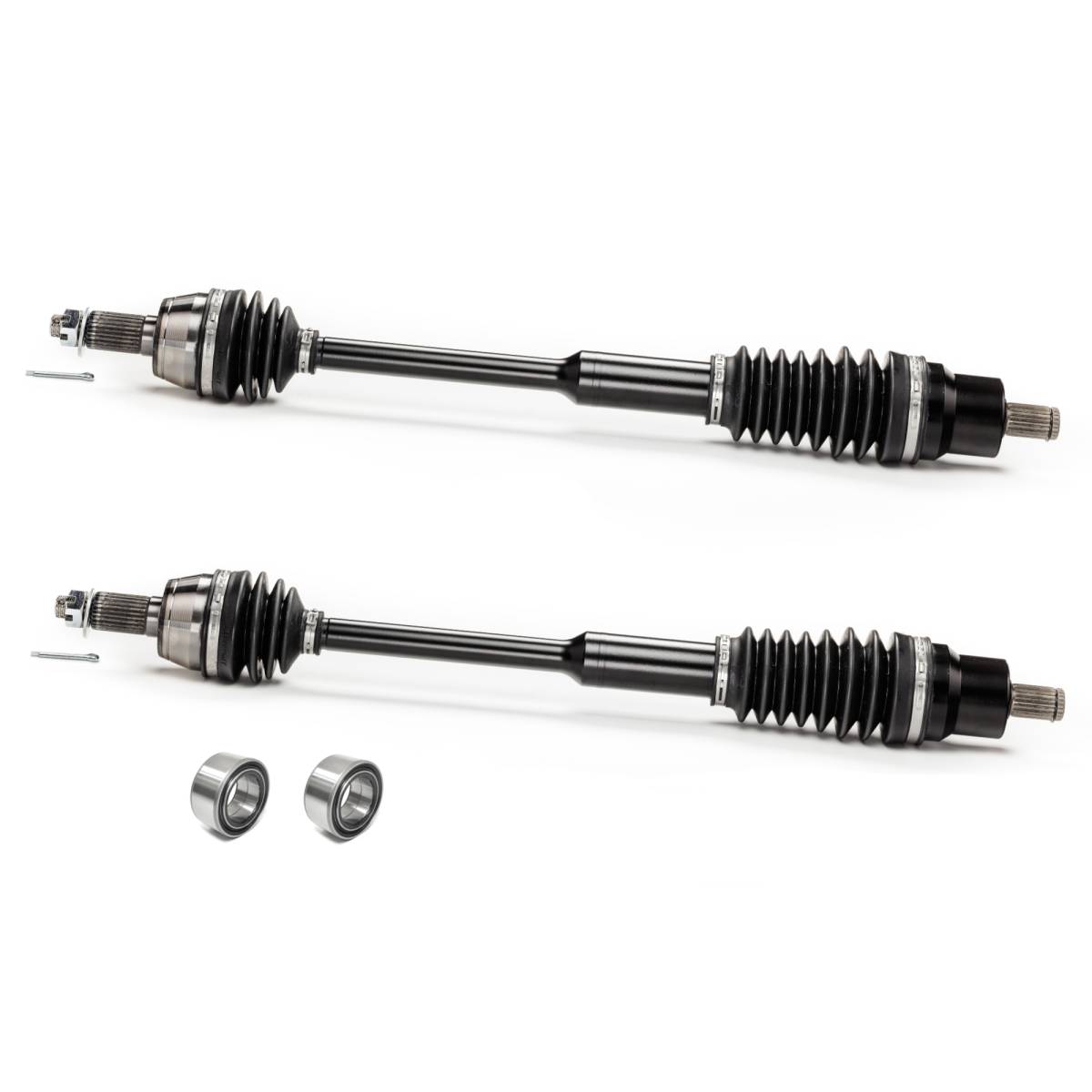

  • 2 axles & 2 wheel bearings
  • Product Videos

    Application List

    YearMakeModelSubmodelNotes
    2018PolarisBrutus HDPTO Deluxe
    2017PolarisBrutus HDPTO
    2017PolarisBrutus HDPTO Deluxe
    2016PolarisBrutus HDPTO
    2016PolarisBrutus HDPTO Deluxe
    2015PolarisBrutus HDPTO
    2015PolarisBrutus HDPTO Deluxe
    2014PolarisBrutus HD--
    2014PolarisBrutus HDPTO
    2013PolarisBrutus HD--
    2013PolarisBrutus HDPTO
    2014PolarisRZR 4 800LE EPS
    2013PolarisRZR 4 800--
    2013PolarisRZR 4 800LE EPS
    2012PolarisRZR 4 800--
    2012PolarisRZR 4 800Robby Gordon Edition
    2012PolarisRZR 4 800Robby Gordon Edition EPS
    2011PolarisRZR 4 800Robby Gordon Edition
    2011PolarisRZR 4 800Robby Gordon Edition EPS
    2010PolarisRZR 4 800Robby Gordon Edition
    2014PolarisRZR S 800--
    2014PolarisRZR S 800LE EPS
    2013PolarisRZR S 800EFI
    2013PolarisRZR S 800LE EFI
    2013PolarisRZR S 800LE EFI EPS
    2012PolarisRZR S 800EFI
    2012PolarisRZR S 800LE EFI
    2011PolarisRZR S 800EFI
    2010PolarisRZR S 800EFI
    2010PolarisRZR S 800LE EFI
    2009PolarisRZR S 800EFI
    2015PolarisRanger 5704x4 Full Size
    2015PolarisRanger 5704x4 Full Size EPS
    2015PolarisRanger Crew 5704x4 Full Size
    2015PolarisRanger Crew 5704x4 Full Size EPS
    2015PolarisRanger Crew 900--
    2015PolarisRanger Crew 900EPS
    2014PolarisRanger Crew 900--
    2014PolarisRanger Crew 900EPS
    2014PolarisRanger Crew 900LE EPS
    2016PolarisRanger Crew 900-5--
    2016PolarisRanger Crew 900-5EPS
    2016PolarisRanger Crew 900-6--
    2016PolarisRanger Crew 900-6EPS
    2018PolarisRanger Crew Diesel--
    2017PolarisRanger Crew Diesel--
    2016PolarisRanger Crew Diesel--
    2015PolarisRanger Crew Diesel--
    2016PolarisRanger Crew XP 570-6EPS
    2016PolarisRanger Crew XP 570-6Pursuit Camo EPS
    2019PolarisRanger Crew XP 900--
    2019PolarisRanger Crew XP 900EPS
    2018PolarisRanger Crew XP 900--
    2018PolarisRanger Crew XP 900EPS
    2017PolarisRanger Crew XP 900--
    2017PolarisRanger Crew XP 900EPS
    2020PolarisRanger Crew XP 1000EPS
    2020PolarisRanger Crew XP 1000EPS High Lifter Edition
    2020PolarisRanger Crew XP 1000EPS Northstar HVAC Edition
    2020PolarisRanger Crew XP 1000EPS Premium
    2020PolarisRanger Crew XP 1000EPS Texas Edition
    2020PolarisRanger Crew XP 1000NorthStar Premium
    2020PolarisRanger Crew XP 1000NorthStar Ultimate
    2019PolarisRanger Crew XP 1000EPS
    2019PolarisRanger Crew XP 1000EPS 20th Anniversary Limited Edition
    2019PolarisRanger Crew XP 1000EPS Back Country Edition
    2019PolarisRanger Crew XP 1000EPS High Lifter Edition
    2019PolarisRanger Crew XP 1000EPS Northstar HVAC Edition
    2019PolarisRanger Crew XP 1000EPS Polaris Pursuit Camo
    2019PolarisRanger Crew XP 1000EPS Premium
    2018PolarisRanger Crew XP 1000EPS
    2018PolarisRanger Crew XP 1000EPS High Lifter Edition
    2018PolarisRanger Crew XP 1000EPS Northstar HVAC Edition
    2017PolarisRanger Crew XP 1000--
    2017PolarisRanger Crew XP 1000EPS
    2017PolarisRanger Crew XP 1000EPS High Lifter Edition
    2017PolarisRanger Crew XP 1000EPS Northstar HVAC Edition
    2017PolarisRanger Crew XP 1000EPS pursuit camo
    2018PolarisRanger Diesel--
    2017PolarisRanger Diesel--
    2016PolarisRanger Diesel--
    2015PolarisRanger Diesel--
    2017PolarisRanger Diesel HST--
    2017PolarisRanger Diesel HSTDeluxe
    2016PolarisRanger Diesel HST--
    2016PolarisRanger Diesel HSTDeluxe
    2015PolarisRanger Diesel HST--
    2015PolarisRanger Diesel HSTDeluxe
    2014PolarisRanger Diesel HST--
    2014PolarisRanger Diesel HSTDeluxe
    2016PolarisRanger XP 570--
    2016PolarisRanger XP 570EPS
    2016PolarisRanger XP 570Pursuit Camo
    2019PolarisRanger XP 900--
    2019PolarisRanger XP 900EPS
    2018PolarisRanger XP 900--
    2018PolarisRanger XP 900EPS
    2017PolarisRanger XP 900--
    2017PolarisRanger XP 900EPS
    2016PolarisRanger XP 900--
    2016PolarisRanger XP 9004x4 High Lifter Edition EPS
    2016PolarisRanger XP 9004x4 Hunter Deluxe Edition EPS
    2016PolarisRanger XP 9004x4 Hunter Edition EPS
    2016PolarisRanger XP 9004x4 Northstar Edition EPS
    2016PolarisRanger XP 9004x4 Trail Edition EPS
    2016PolarisRanger XP 900EPS
    2016PolarisRanger XP 900Pursuit Camo
    2015PolarisRanger XP 900--
    2015PolarisRanger XP 9004x4 EPS Deluxe
    2015PolarisRanger XP 9004x4 Hunter Deluxe Edition EPS
    2015PolarisRanger XP 9004x4 Hunter Edition EPS
    2015PolarisRanger XP 900EPS
    2015PolarisRanger XP 900LE EPS
    2015PolarisRanger XP 900Northstar Edition EPS
    2014PolarisRanger XP 900--
    2014PolarisRanger XP 9004x4 Deluxe
    2014PolarisRanger XP 900Browning
    2014PolarisRanger XP 900EPS
    2014PolarisRanger XP 900LE Browning EPS
    2014PolarisRanger XP 900LE EPS
    2014PolarisRanger XP 900Pursuit
    2013PolarisRanger XP 900--
    2013PolarisRanger XP 900EPS
    2013PolarisRanger XP 900LE
    2013PolarisRanger XP 900LE Browning EPS
    2013PolarisRanger XP 900LE EPS
    2020PolarisRanger XP 1000EPS
    2020PolarisRanger XP 1000EPS High Lifter Edition
    2020PolarisRanger XP 1000EPS Northstar HVAC Edition
    2020PolarisRanger XP 1000EPS Premium
    2020PolarisRanger XP 1000EPS Texas Edition
    2020PolarisRanger XP 1000NorthStar Premium
    2020PolarisRanger XP 1000NorthStar Ultimate
    2019PolarisRanger XP 1000EPS
    2019PolarisRanger XP 1000EPS 20th Anniversary Limited Edition
    2019PolarisRanger XP 1000EPS Back Country Limited Edition
    2019PolarisRanger XP 1000EPS High Lifter Edition
    2019PolarisRanger XP 1000EPS Northstar HVAC Edition
    2019PolarisRanger XP 1000EPS Premium
    2018PolarisRanger XP 1000EPS
    2018PolarisRanger XP 1000EPS High Lifter Edition
    2018PolarisRanger XP 1000EPS Northstar HVAC Edition
    2017PolarisRanger XP 1000--
    2017PolarisRanger XP 1000EPS
    2017PolarisRanger XP 1000EPS High Lifter Edition
    2017PolarisRanger XP 1000EPS Hunter Edition
    2017PolarisRanger XP 1000EPS Northstar HVAC Edition
    2017PolarisRanger XP 1000EPS Ranch Edition

    Details

    • PO-307XP/PO-307XP/WB-1628/WB-1628
    • PO-307XP/PO-307XP/WB-1628/WB-1628
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 28.8 lbs.
    • W5.0000” x H11.0000” x L33.0000”
