Front Right Axle & Bearing Can-Am Maverick X3 XRS & MAX X3 XRS, 705402100

Location on vehicle: Front,Right

(0) Reviews: Write first review
CA-223/WB-1751

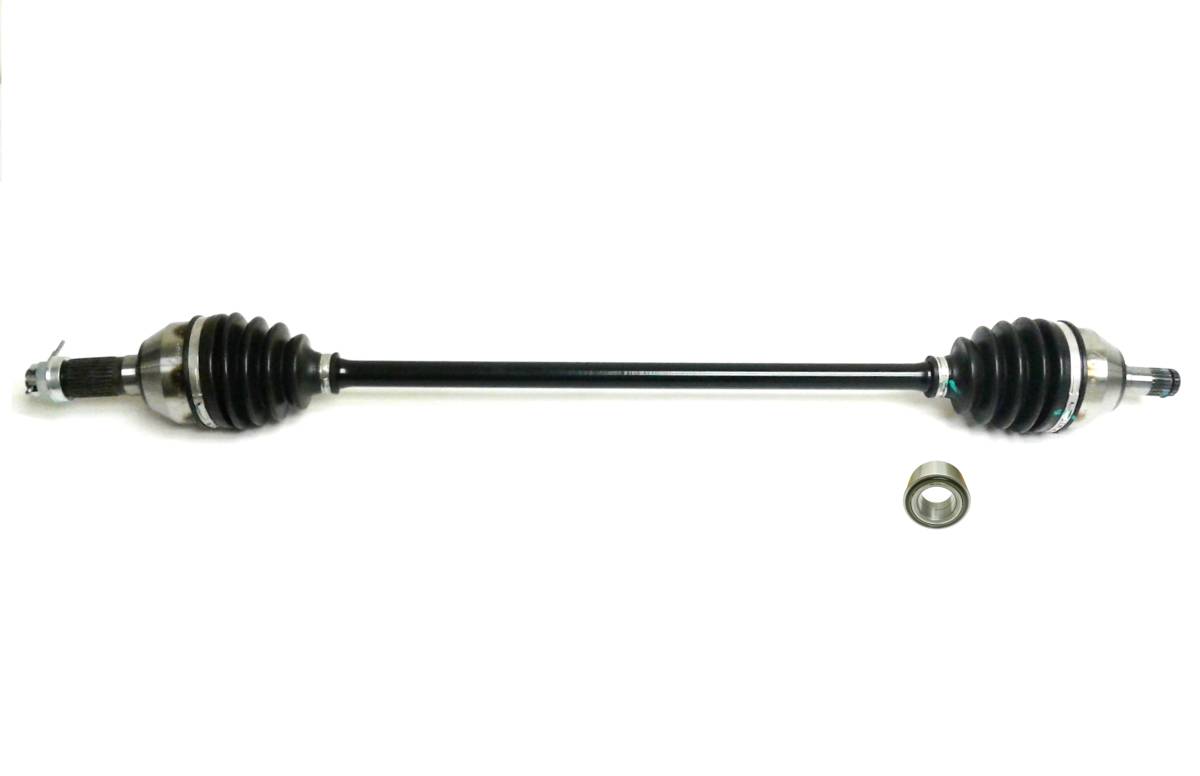

This is a new cv axle with wheel bearing for a Can-Am 72" Maverick XRS.

They fit FRONT, RIGHT (driver side) on the following models:

2017-2018 ... X3 XRS & Turbo R XRS

2017-2018 ... MAX X3 XRS & Turbo R XRS (models without Smart Lok)

2021 ... X3 Turbo R DS- RS

2021 ... MAX Turbo R- RS

*Axle made as OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

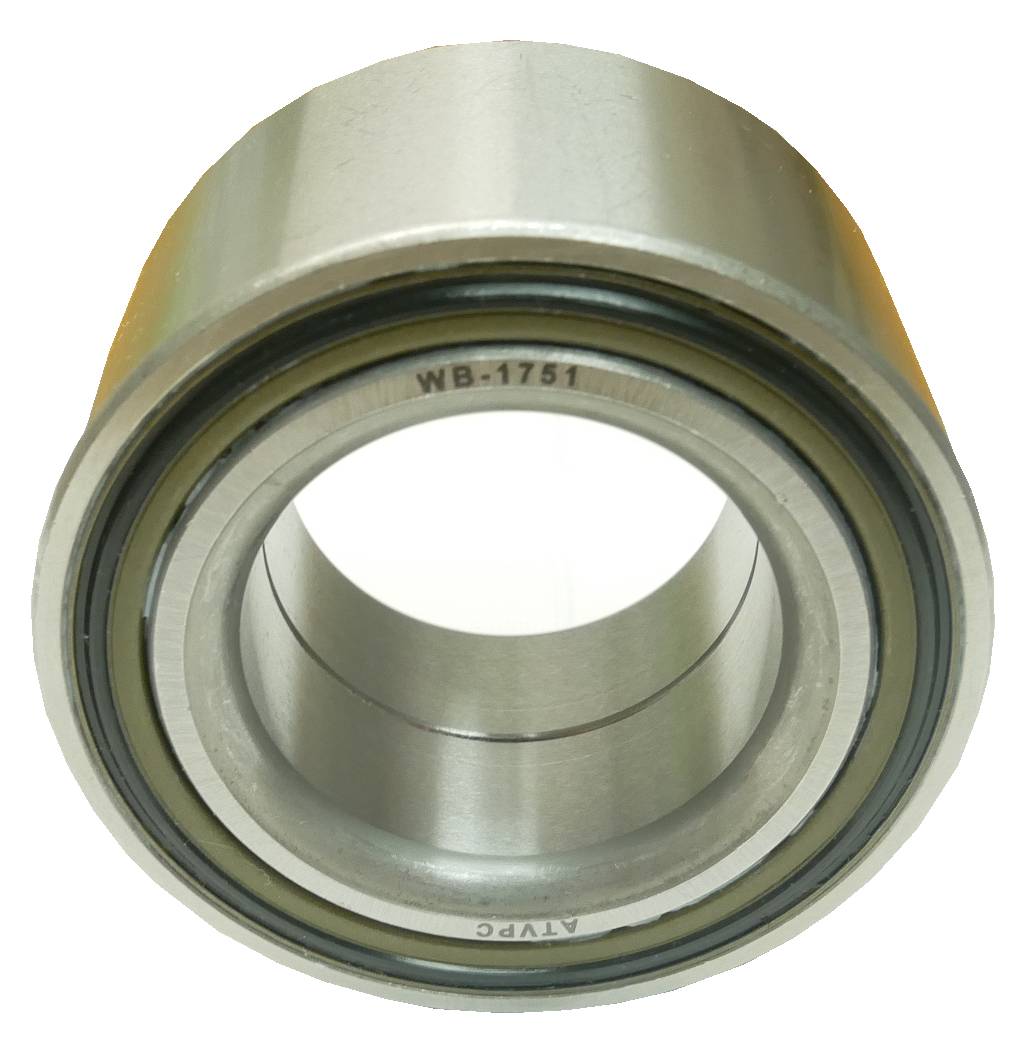

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 29
  • Compressed overall axle length: 831.5 mm
  • Replaces OEM # (axle) 705401829, 705402100, (bearing) 293350129, 293350151
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $99.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021Can-AmMaverick X3 Max R4x4 RS Turbo DPS
2018Can-AmMaverick X3 Max R4x4 XRS Turbo DPSmodels without Smart Lok
2017Can-AmMaverick X3 Max R4x4 XRS Turbo DPS
2021Can-AmMaverick X3 R4x4 RS Turbo DPS
2018Can-AmMaverick X3 R4x4 XRS Turbo DPS
2017Can-AmMaverick X3 R4x4 XRS Turbo DPS

Product Notes

  • Fits FRONT, RIGHT (passenger side) on the following Can-Am Maverick 'XRS' models: 2017-2018 X3 XRS & Turbo R XRS, 2017-2018 MAX X3 XRS & Turbo R XRS (models without Smart Lok), 2021 X3 Turbo R DS- RS, 2021 MAX Turbo R- RS. Please note this is for 72" models.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out. Set includes 1 axle & 1 wheel bearing.
  • Replaces OEM # (axle) 705401829, 705402100, (bearing) 293350129, 293350151. Compressed Length - 831.5 mm, Inboard Spline Count - 21, Outboard Spline Count - 29.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle, 1 wheel bearing

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-223/WB-1751
    • CA-223/WB-1751
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 16.0 lbs.
    • W5.0000” x H5.0000” x L39.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
