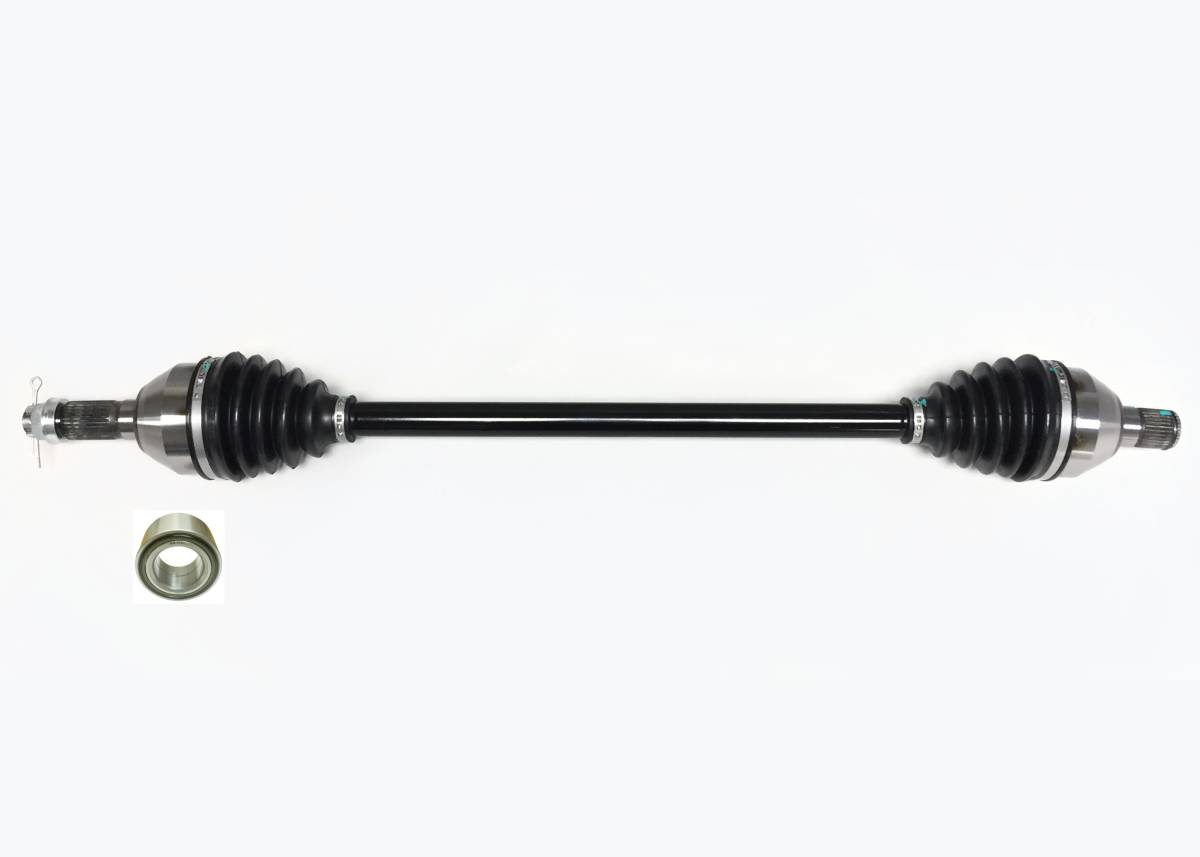

Rear Axle & Wheel Bearing for Can-Am Maverick X3 XRS, XMR, Turbo, 72" 705502362

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
CA-328/WB-1751
This is a new CV axle with wheel bearing for a Can-Am SXS.

They fit REAR, LEFT or RIGHT on the following Maverick X3 72" models:

2017-2019 ... X3 XRS/MAX X3 XRS/Turbo XRS

2018-2019 ... X3 Turbo R XMR

2020-2023 ... X3/MAX X3 Turbo RR: XMR/XRS/XRC

2022-2023 ... X3 Turbo RR - RS

*made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bar
  • Uses high-performance moly grease to keep vital components lubricated
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures

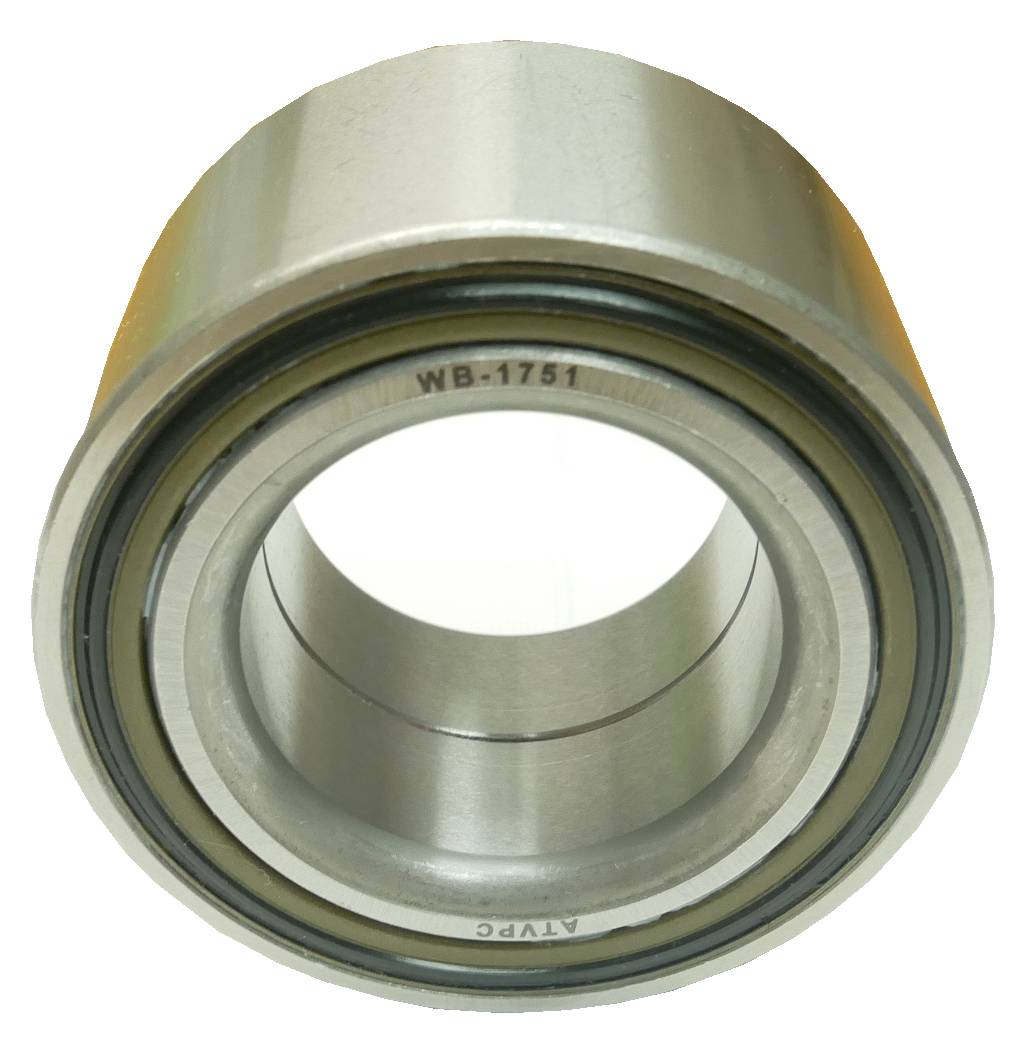

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 30
  • Outboard CV joint spline count: 29
  • Compressed overall axle length: 845 mm
  • Replaces OEM # 705502362, 293350129, 293350151, 293350109
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $119.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2019Can-AmMaverick X3 Max R4x4 Turbo DPS
2019Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2019Can-AmMaverick X3 Max R4x4 XRS Turbo DPS
2018Can-AmMaverick X3 Max R4x4 XRS Turbo DPS
2017Can-AmMaverick X3 Max R4x4 XRS Turbo DPS
2023Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
2023Can-AmMaverick X3 Max RR4x4 XRS SMART-SHOX Turbo
2023Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
2022Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
2022Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
2021Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
2021Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
2020Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
2020Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
2019Can-AmMaverick X3 R4x4 XMR Turbo DPS
2019Can-AmMaverick X3 R4x4 XRC Turbo DPS
2019Can-AmMaverick X3 R4x4 XRS Turbo DPS
2018Can-AmMaverick X3 R4x4 XMR Turbo DPS
2018Can-AmMaverick X3 R4x4 XRS Turbo DPS
2017Can-AmMaverick X3 R4x4 XRS Turbo DPS
2023Can-AmMaverick X3 RR4x4 RS Turbo DPS
2023Can-AmMaverick X3 RR4x4 XMR Turbo DPS 72
2023Can-AmMaverick X3 RR4x4 XRC Turbo DPS 72
2023Can-AmMaverick X3 RR4x4 XRS SMART-SHOX Turbo
2023Can-AmMaverick X3 RR4x4 XRS Turbo DPS
2022Can-AmMaverick X3 RR4x4 RS Turbo DPS
2022Can-AmMaverick X3 RR4x4 XMR Turbo DPS 72
2022Can-AmMaverick X3 RR4x4 XRC Turbo DPS 72
2022Can-AmMaverick X3 RR4x4 XRS Turbo DPS
2021Can-AmMaverick X3 RR4x4 XMR Turbo DPS
2021Can-AmMaverick X3 RR4x4 XRC Turbo DPS
2021Can-AmMaverick X3 RR4x4 XRS Turbo DPS
2020Can-AmMaverick X3 RR4x4 XMR Turbo DPS
2020Can-AmMaverick X3 RR4x4 XRC Turbo DPS
2020Can-AmMaverick X3 RR4x4 XRS Turbo DPS

Product Notes

  • Fits REAR, LEFT or RIGHT on the following Can-Am Maverick X3 72" models: 2017-2019 X3 XRS/MAX X3 XRS/Turbo XRS, 2018-2019 X3 Turbo R XMR, 2020-2023 X3/MAX X3 Turbo RR: XMR/XRS/XRC, 2022-2023 X3 Turbo RR - RS. Please note this is for 72" models only.
  • Features a stronger than OEM, 4340 chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures. Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out. Set includes 1 axle & 1 wheel bearing.
  • Replaces OEM # 705502362, 293350129, 293350151, 293350109. Compressed axle length: 845 mm, Inboard CV joint spline count: 30, Outboard CV joint spline count: 29.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle, 1 wheel bearing

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-328/WB-1751
    • CA-328/WB-1751
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 18.6 lbs.
    • W5.0000” x H5.0000” x L40.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
