Front Axle & Bearing for Can-Am Maverick X3 64" Turbo XMR XRC & XDS, 705401634

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-227/WB-1751

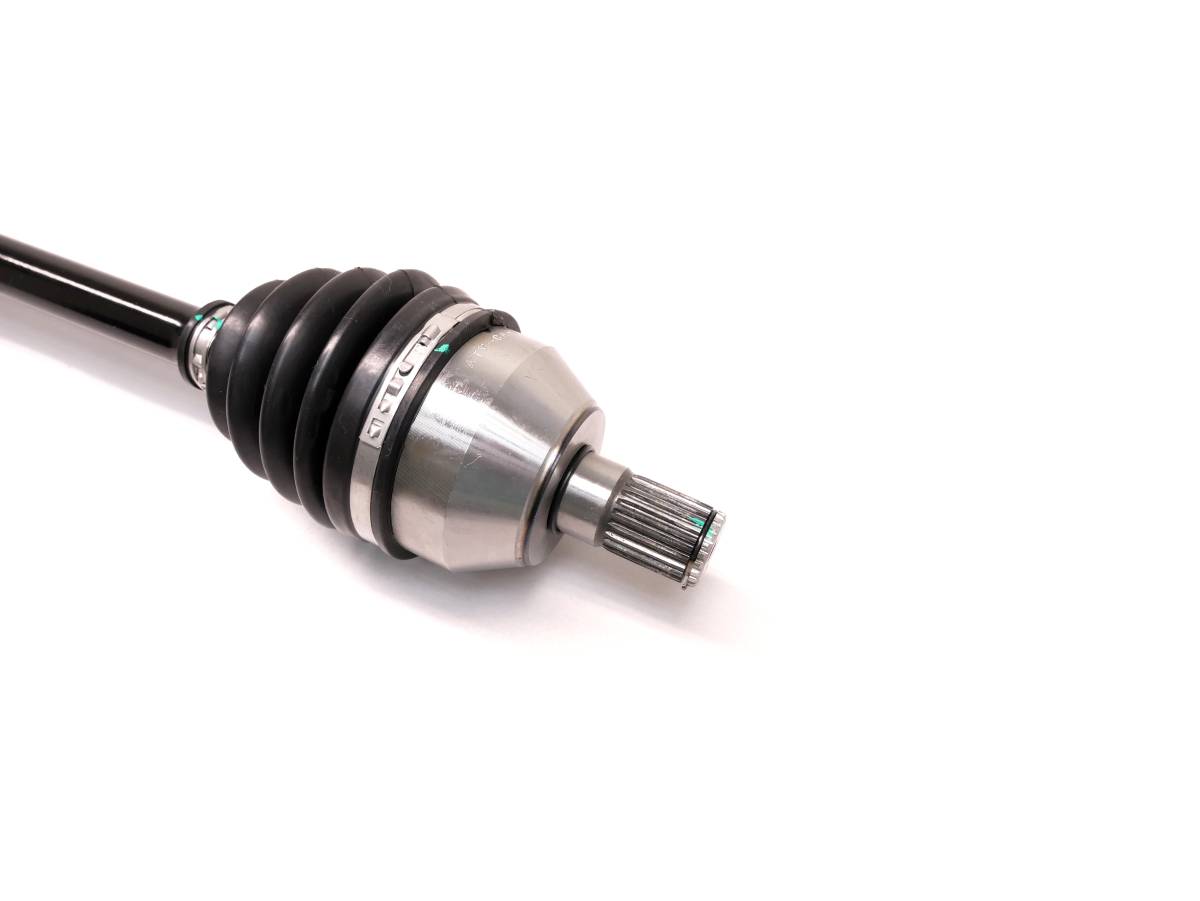

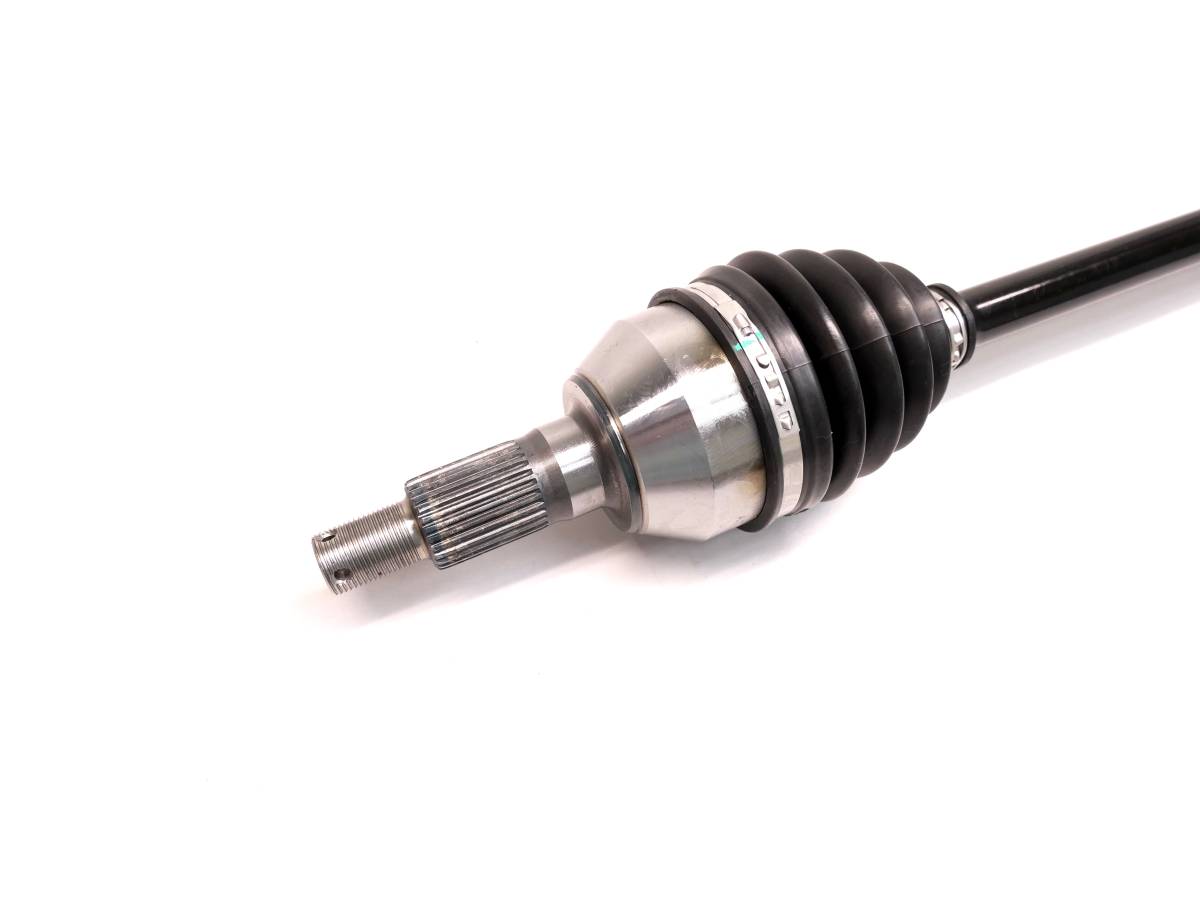

This is a new CV axle with wheel bearing for a Can-Am SXS.

They fit FRONT, LEFT or RIGHT on the following Maverick X3 64" models:

2018-2021 ... Turbo XMR/XRC

2022 ... Turbo/Turbo RR - DS

2019-2020 ... Turbo R/MAX Turbo R XDS

2020-2022 ... Turbo RR/MAX Turbo RR XDS

2019 ... MAX Turbo

*made as an OE replacement, and is not intended for lifted/ modified vehicles

*please note this will not fit any 72 inch models

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bar
  • Uses high-performance moly grease to keep vital components lubricated
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures

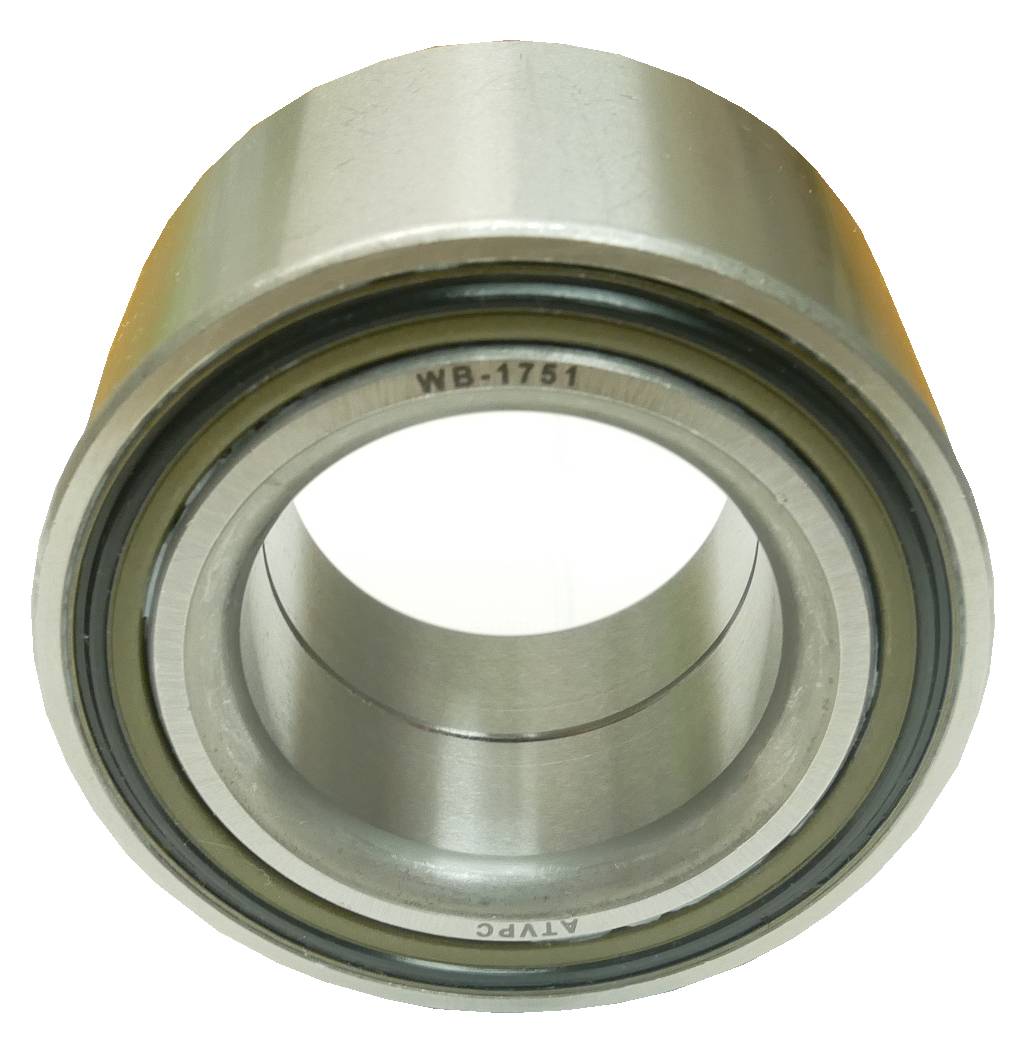

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 24
  • Outboard CV joint spline count: 29
  • Compressed overall axle length: 745 mm
  • Replaces OEM # 705401634, 293350129, 293350151, 293350109
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $114.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT or RIGHT on the following Can-Am Maverick X3 64" models: 2018-2021 Turbo XMR/XRC, 2022 Turbo/Turbo RR - DS, 2019-2020 Turbo R/MAX Turbo R XDS, 2020-2022 Turbo RR/MAX Turbo RR XDS, 2019 MAX Turbo.
  • Features a stronger than OEM, 4340 chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures. Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out. Set includes 1 axle & 1 wheel bearing.
  • Replaces OEM # 705401634, 293350129, 293350151, 293350109. Please note this is for 64" models only. Compressed axle length: 745.5 mm, Inboard CV joint spline count: 24, Outboard CV joint spline count: 29.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

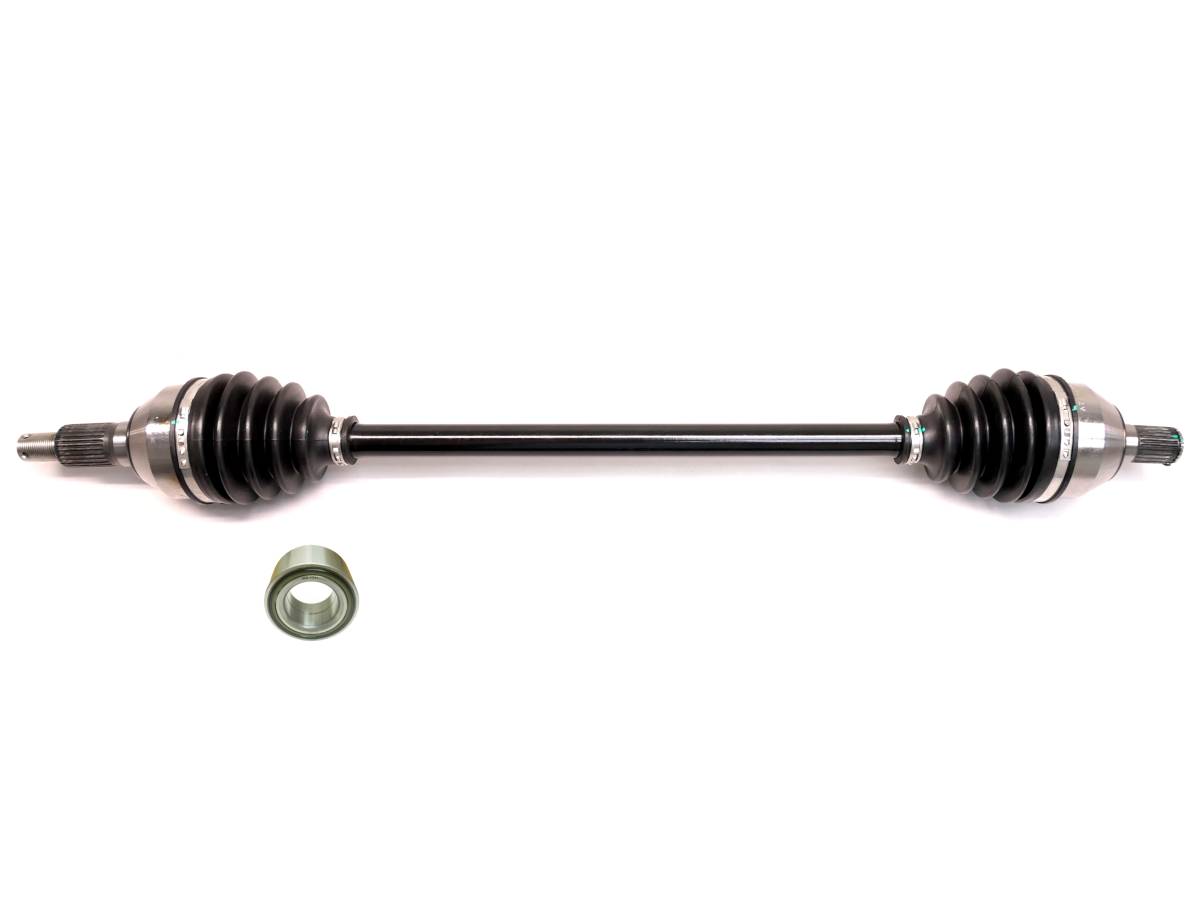

  • 1 axle, 1 wheel bearing

    • Application List

    YearMakeModelSubmodelNotes
    2022Can-AmMaverick X34x4 DS Turbo DPS
    2021Can-AmMaverick X34x4 XMR Turbo DPS
    2021Can-AmMaverick X34x4 XRC Turbo DPS
    2020Can-AmMaverick X34x4 XMR Turbo DPS
    2020Can-AmMaverick X34x4 XRC Turbo DPS
    2019Can-AmMaverick X34x4 XMR Turbo DPS
    2019Can-AmMaverick X34x4 XRC Turbo DPS
    2018Can-AmMaverick X34x4 XMR Turbo DPS
    2018Can-AmMaverick X34x4 XRC Turbo DPS
    2019Can-AmMaverick X3 Max4x4 Turbo DPS
    2020Can-AmMaverick X3 Max R4x4 DS Turbo DPS
    2019Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
    2022Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
    2021Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
    2020Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
    2020Can-AmMaverick X3 R4x4 DS Turbo DPS
    2019Can-AmMaverick X3 R4x4 XDS Turbo DPS
    2022Can-AmMaverick X3 RR4x4 DS Turbo DPS
    2022Can-AmMaverick X3 RR4x4 XDS Turbo DPS
    2021Can-AmMaverick X3 RR4x4 XDS Turbo DPS
    2020Can-AmMaverick X3 RR4x4 XDS Turbo DPS

    Details

    • CA-227/WB-1751
    • CA-227/WB-1751
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 14.8 lbs.
    • W5.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
