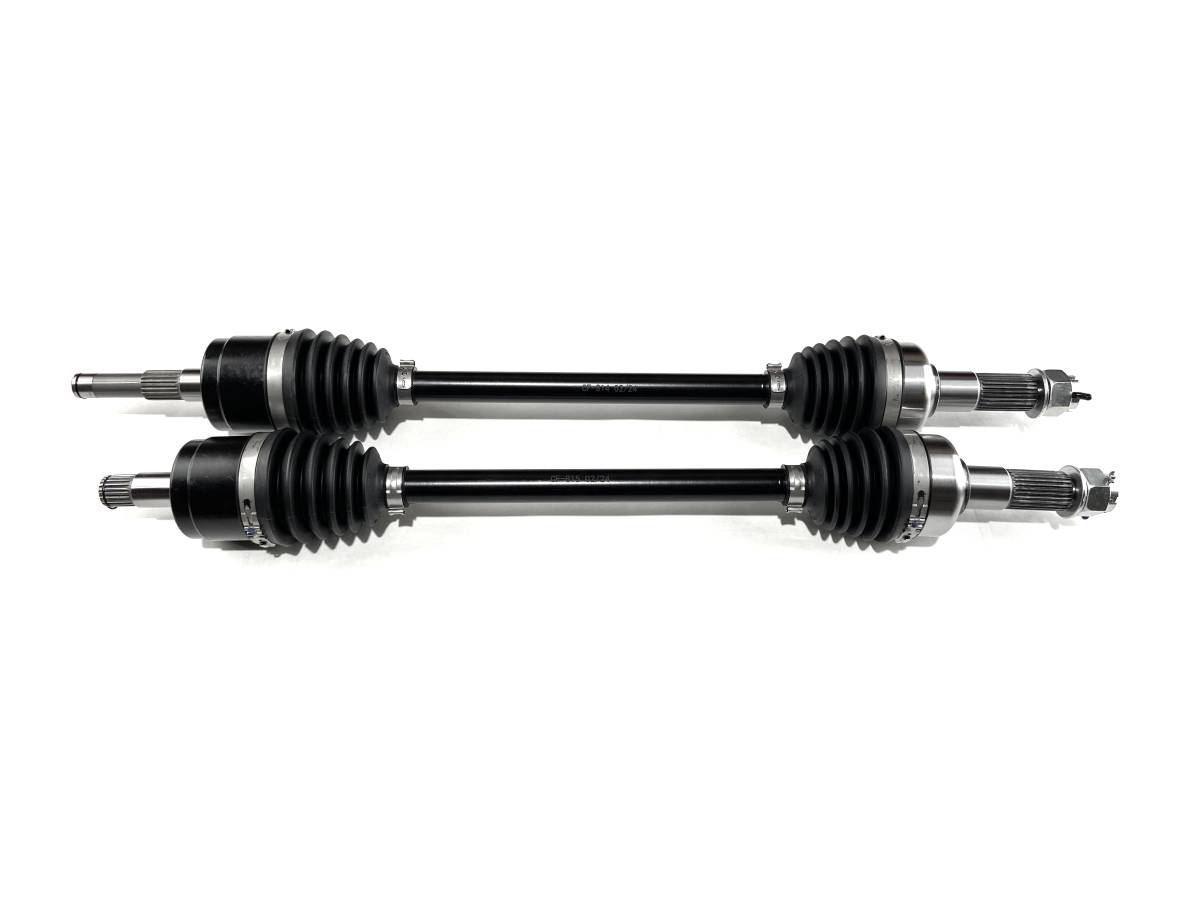

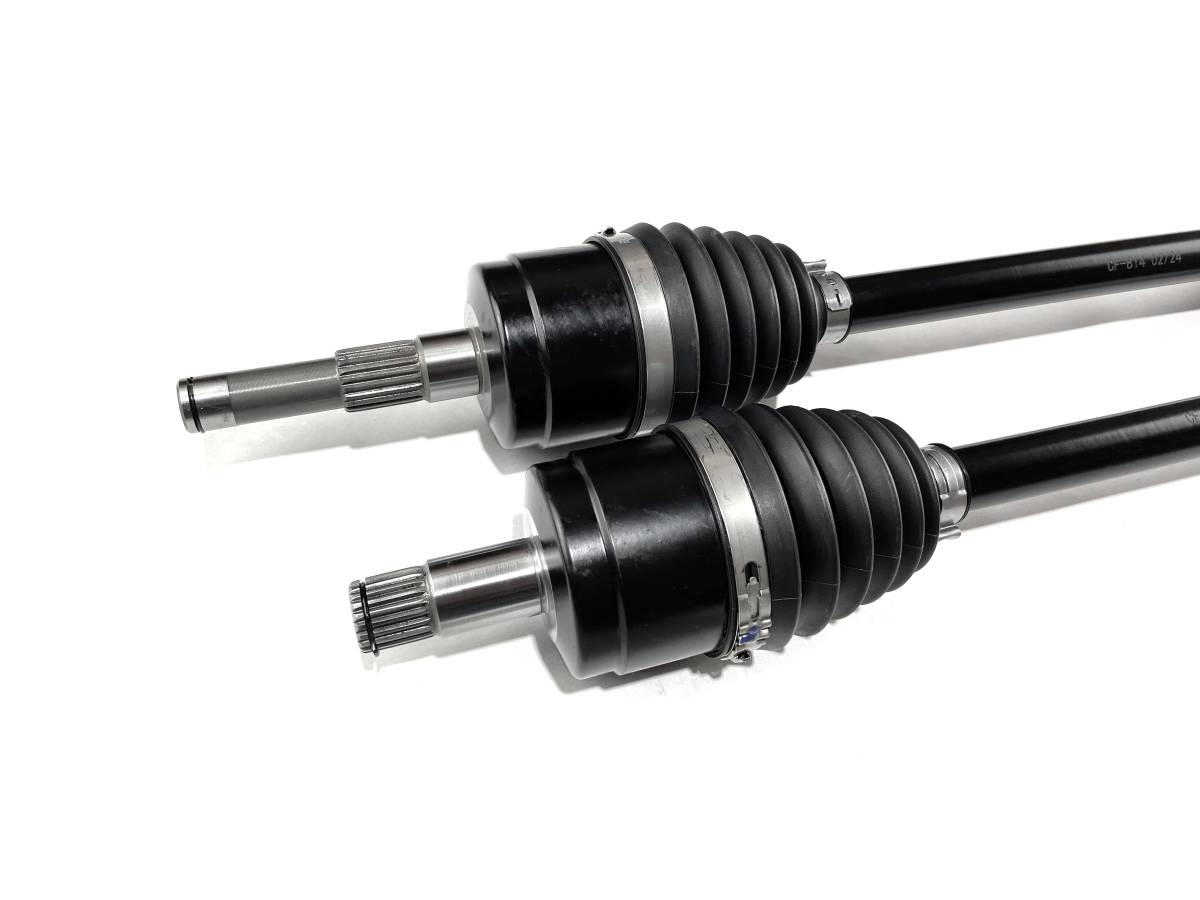

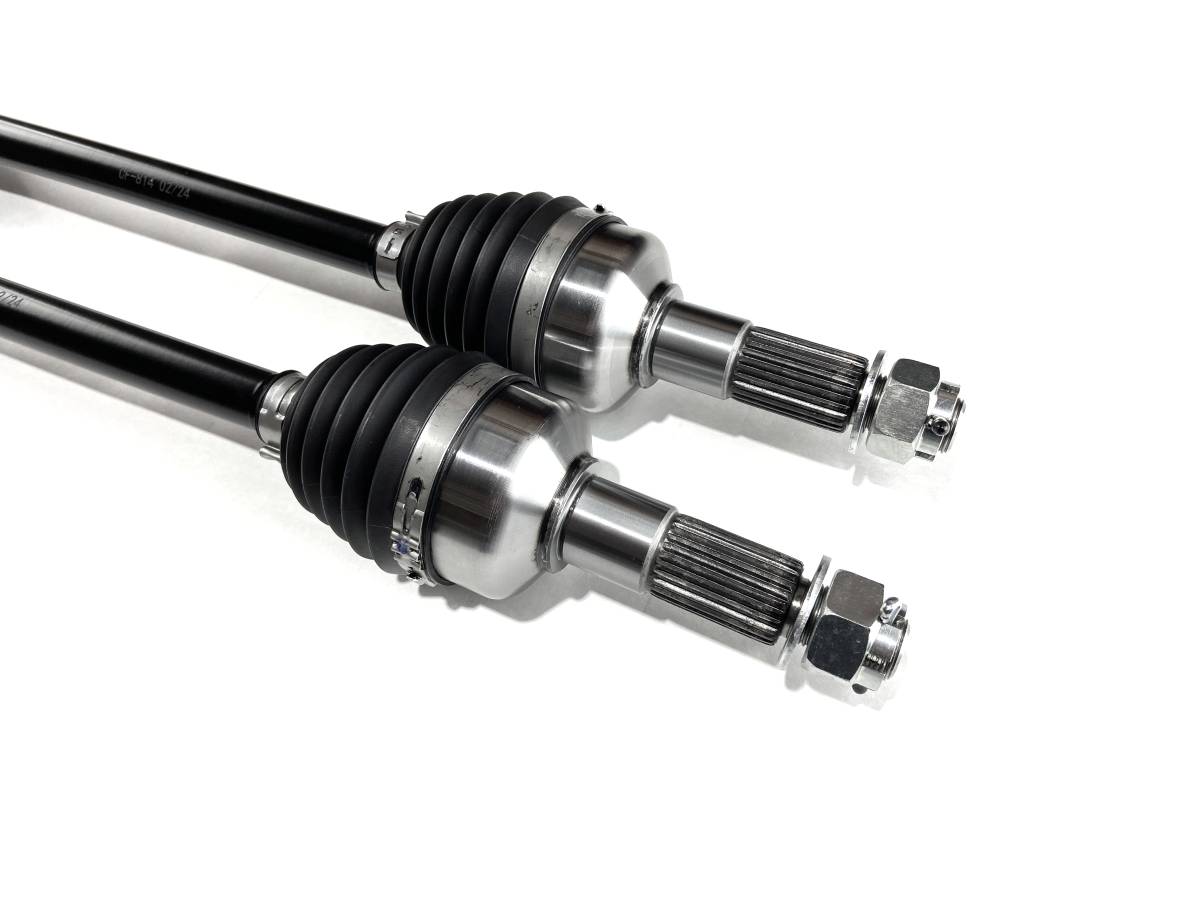

Front CV Axle Pair for CF-Moto ZForce 800 EX 2018-2022

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CF-814/CF-815
This is a pair of new CV axles for a CF-Moto ZForce.

They fit FRONT, LEFT & RIGHT on the following models

2018-2022 ... ZForce 800 EX

*please note these will not fit any 'Trail 800' models

*made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 Chromoly steel bar
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures
  • Uses high-performance moly grease to keep vital components lubricated
  • Compressed length: Left - 706 mm, Right - 655 mm
  • Inboard spline count: 21 (both)
  • Outboard spline count: 27 (both)
  • Replaces OEM # 5BWB-270100, 5BWB-270200
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $174.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022CF-MotoZFORCE 800EX EPS
2021CF-MotoZFORCE 800EX EPS
2020CF-MotoZFORCE 800EX EPS
2019CF-MotoZFORCE 800EX EPS
2018CF-MotoZFORCE 800EX EPS

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following CF-Moto models: 2018-2022 ZForce 800 EX. Please note these will not fit 'Trail 800' models. Set includes 2 axles.
  • Features stronger than OEM, 4340 Chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # 5BWB-270100, 5BWB-270200. Compressed length: Left - 706 mm, Right - 655 mm, Inboard spline count: 21 (both), Outboard spline count: 27 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty
