Full CV Axle Set for Kawasaki Teryx KRX 1000 2020-2022

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
KW-138/KW-139/KW-734/KW-742

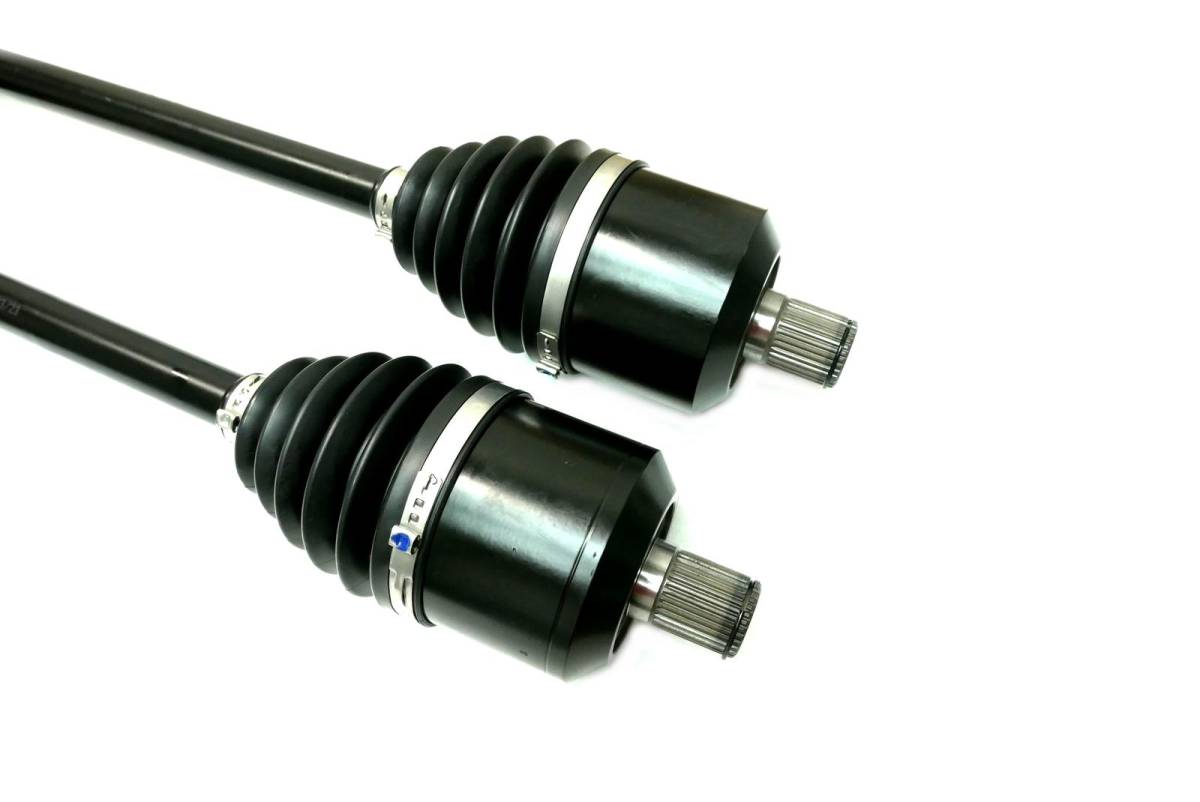

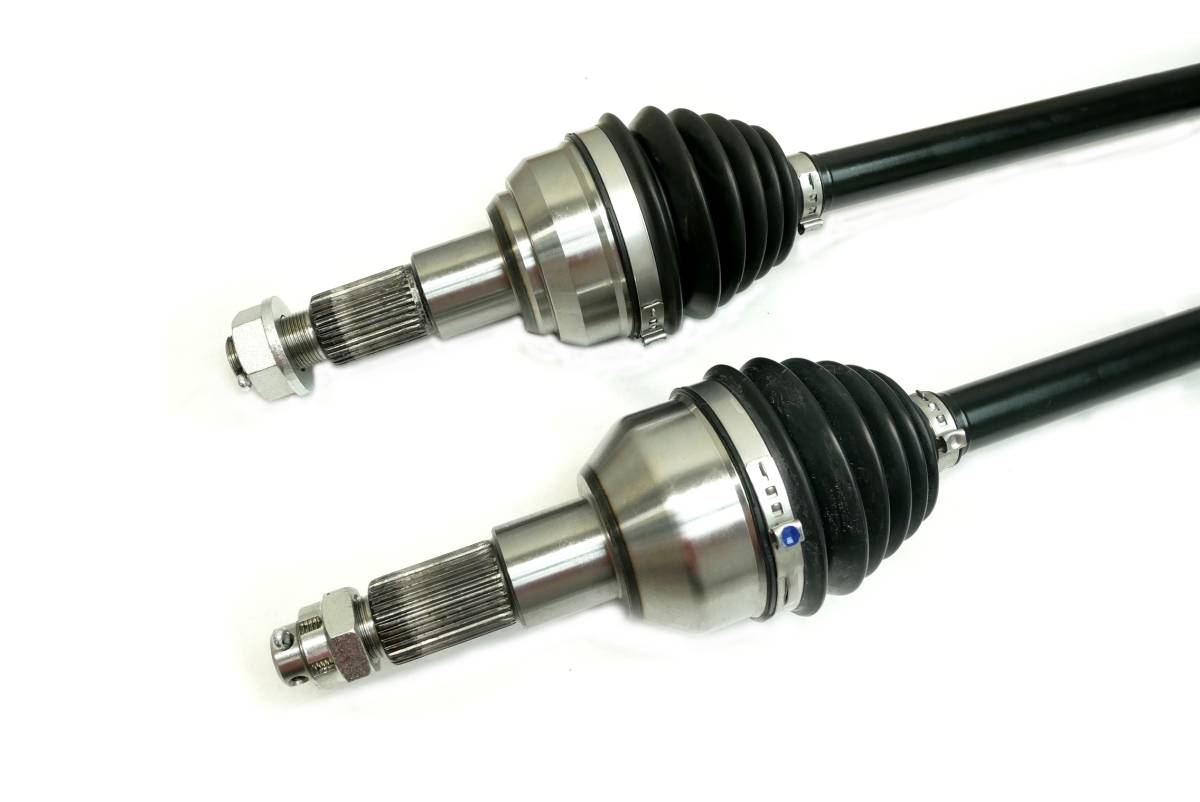

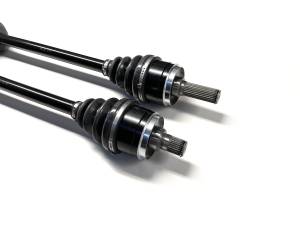

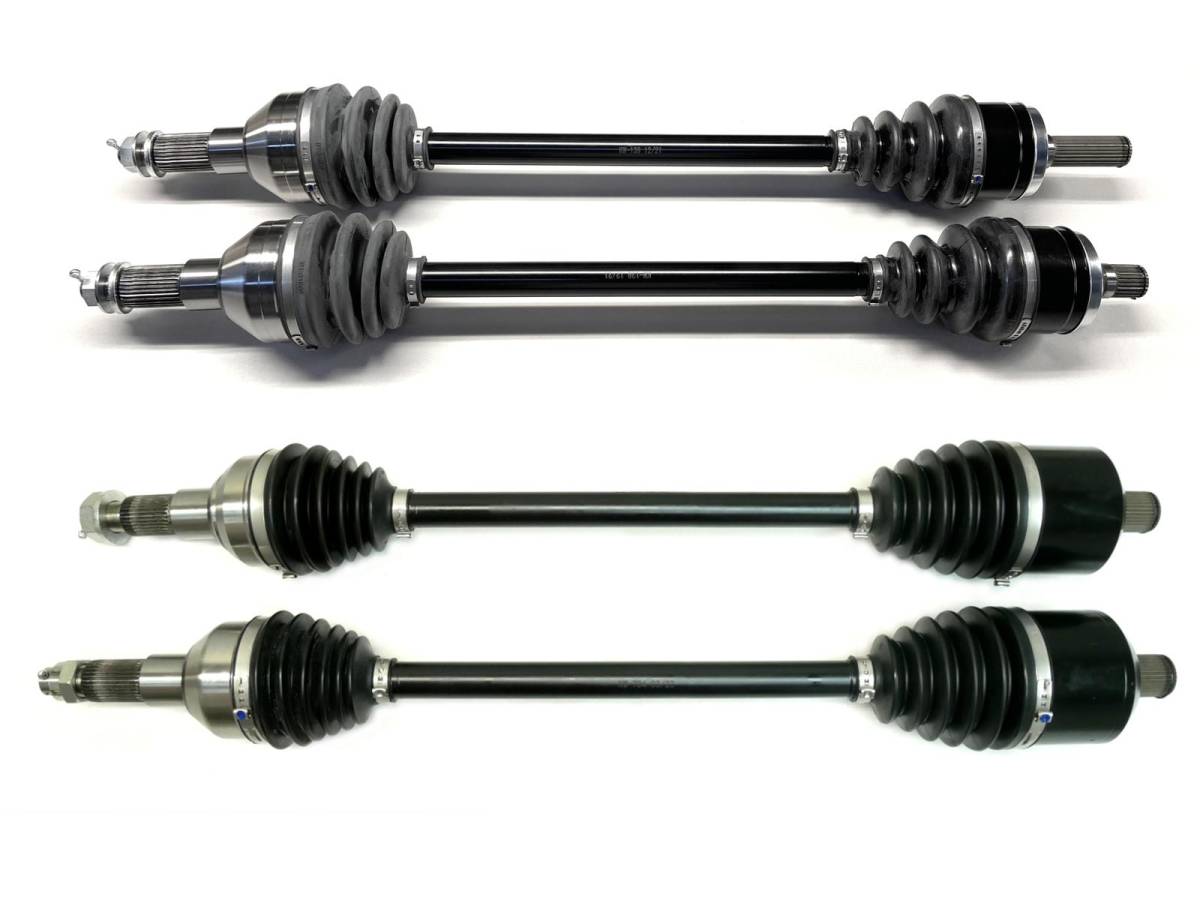

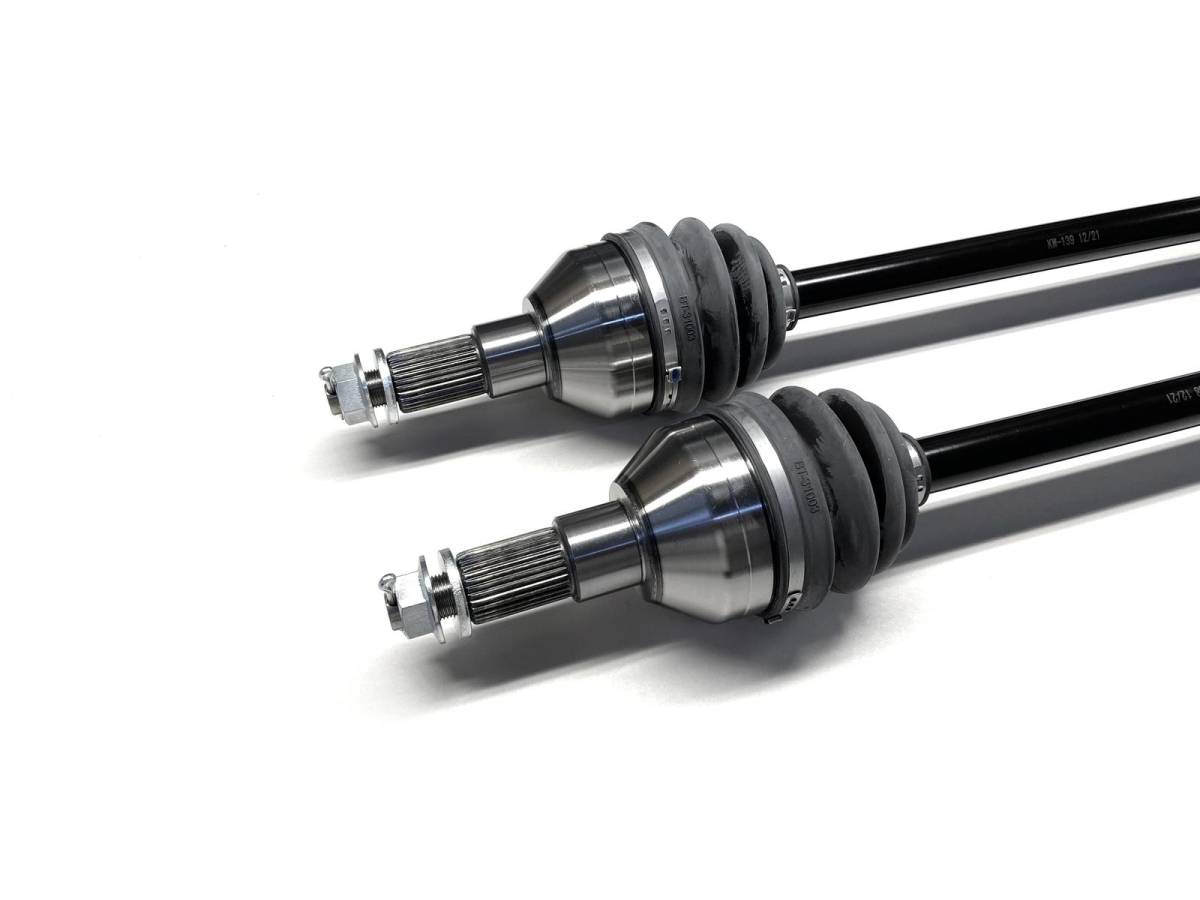

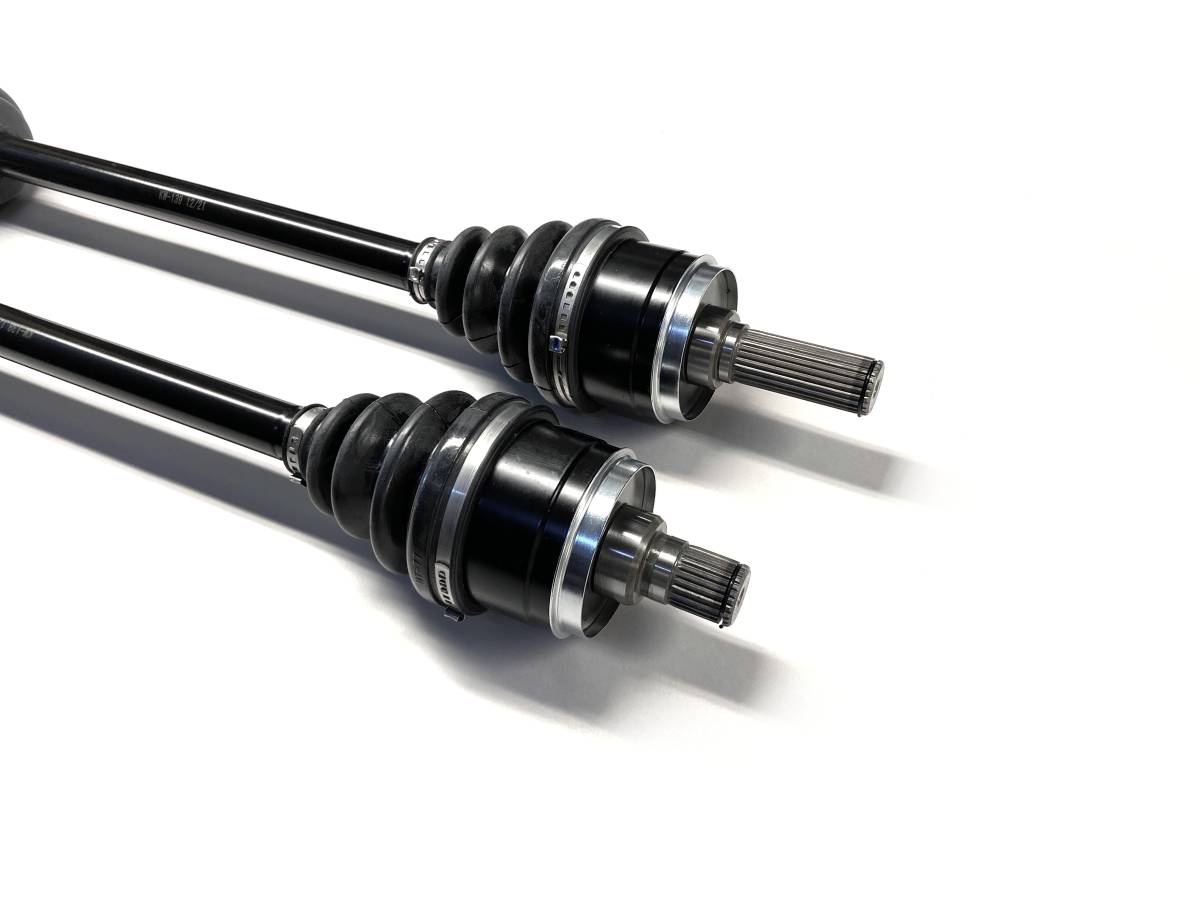

This is a full set of CV axles for a Kawasaki Side X Side.

They fit the following 4x4 models:

2020-2022 ... Teryx KRX 1000 (including ES, Trail Edition, & Special Edition)

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: Fronts - 26, Rears - 32
  • Outboard CV joint spline count: Fronts - 32, Rears - 32
  • Compressed overall axle length (mm): FL - 806, FR - 835, RL - 815, RR - 820
  • Replaces OEM # (fronts) 59266-0732, 59266-0733, (rears) 59266-0742, 59266-0734
Limited Supply: only 7 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $419.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022KawasakiTeryx KRX 1000KRF1000
2022KawasakiTeryx KRX 1000KRF1000 Special Edition
2022KawasakiTeryx KRX 1000KRF1000 Trail Edition
2021KawasakiTeryx KRX 1000KRF1000
2021KawasakiTeryx KRX 1000KRF1000 Special Edition
2021KawasakiTeryx KRX 1000KRF1000 Trail Edition
2021KawasakiTeryx KRX 1000KRF1000 eS
2020KawasakiTeryx KRX 1000KRF1000

Product Notes

  • Fits the following Kawasaki models: 2020-2022 Teryx KRX 1000 (including ES, Trail Edition, & Special Edition). Set includes 4 axles.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # (fronts) 59266-0732, 59266-0733, (rears) 59266-0742, 59266-0734. Inboard spline count: Fronts - 26, Rears - 32, Outboard spline count: Fronts - 32, Rears - 32, Compressed axle length (mm): FL - 806, FR - 835, RL - 815, RR - 820.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • KW-138/KW-139/KW-734/KW-742
    • KW-138/KW-139/KW-734/KW-742
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New
