Monster Axles Full Set w/ 2" Spacers for Polaris RZR S 900 & S 1000, XP Series

Location on vehicle: Front,Rear,Left,Right

MSET-501AS
This is a bundled set of Monster Axles™ XP Series axles with 2" High Lifter Wheel Spacers.

This set will fit these Polaris RZR models:

2017-2020 RZR S 900

2017-2018 RZR 4 900

2017-2020 RZR S 1000

2019-2020 RZR S4 1000

Bundle features:

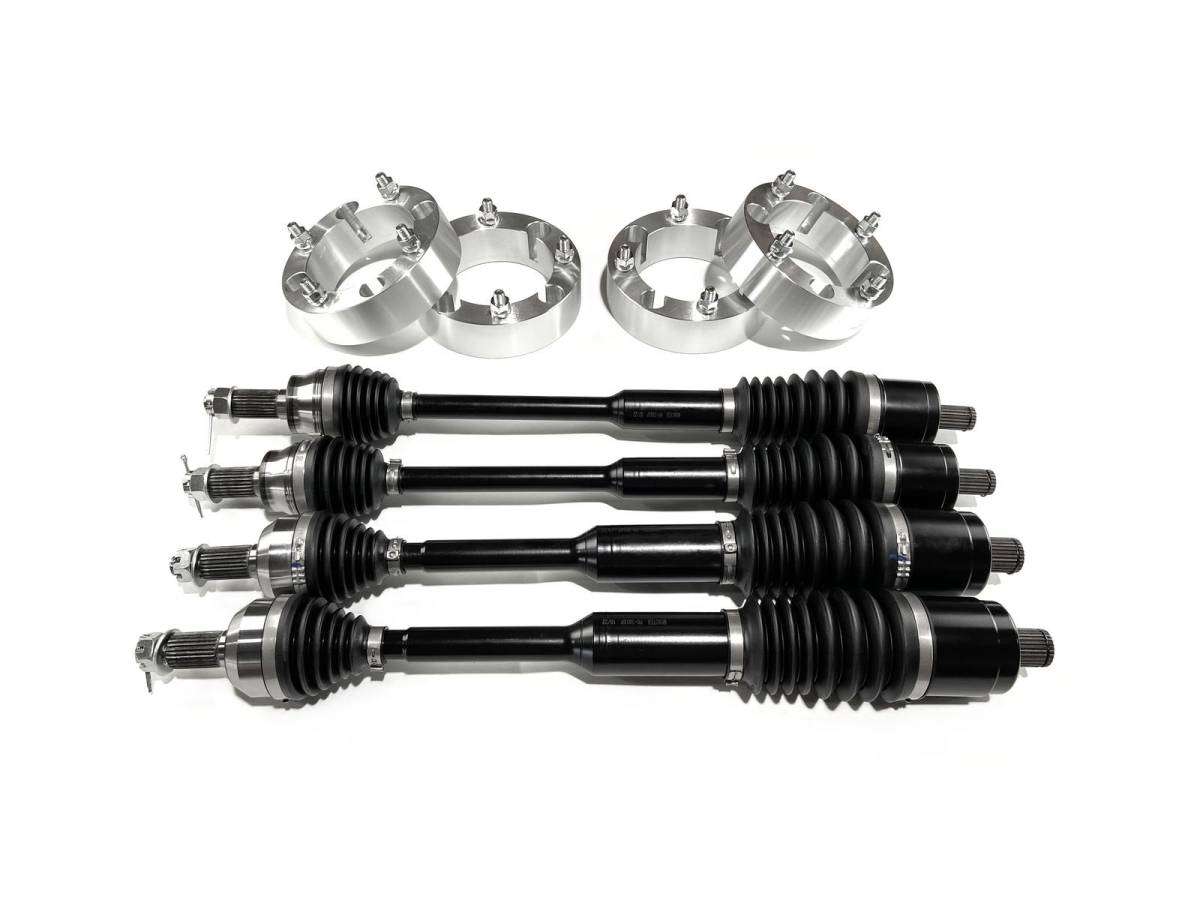

  • Includes: Monster Axles™ XP Series axles (4), 2" High Lifter 4/156 bolt pattern wheel spacers (4)

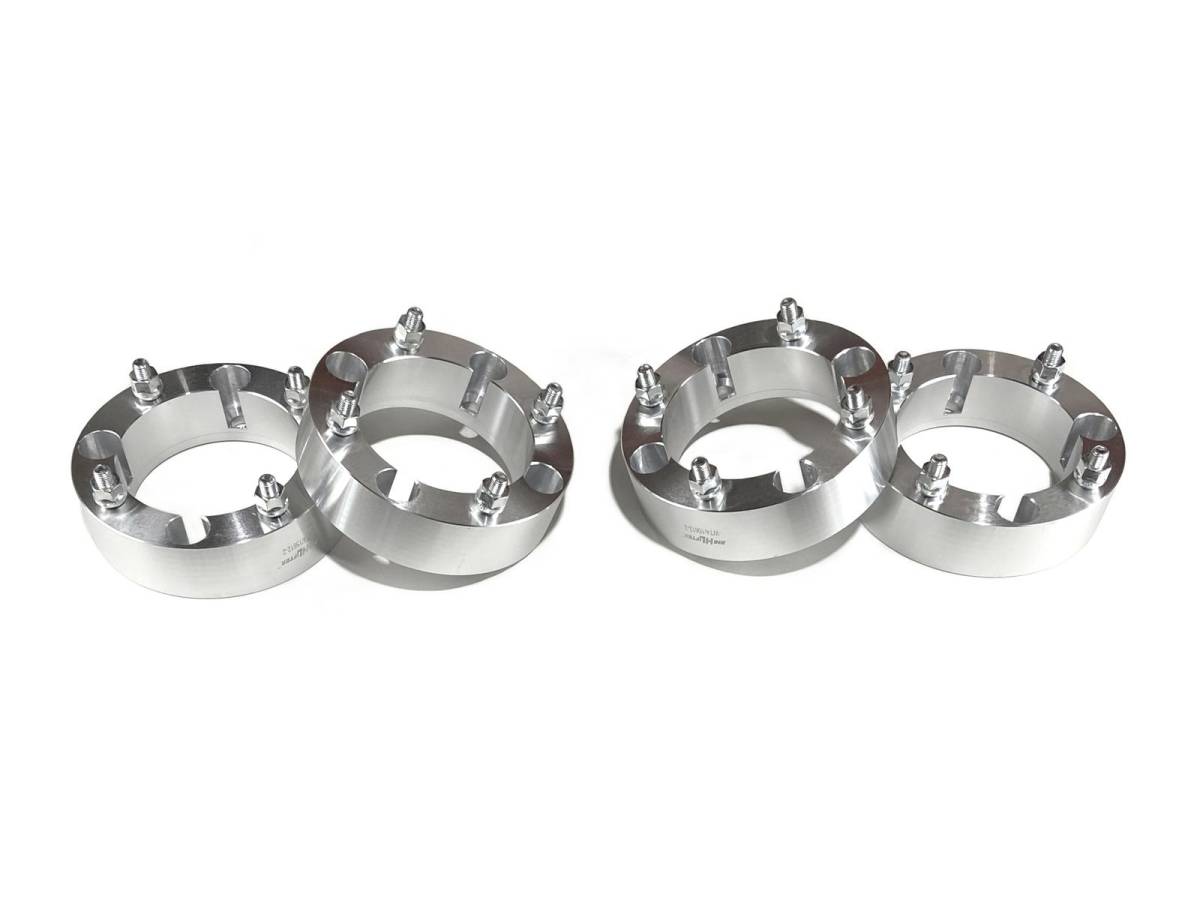

  • Wheel spacers are machined from aircraft grade 6061 billet aluminum and use grade 8 studs
  • No OEM studs are required to be removed from the ATV and stud extenders are not used
  • Wheel spacers bolt to existing studs and the wheel is then bolted to the grade 8 wheel spacer stud furnished
  • Compressed axle length: Fronts - 692 mm, Rears - 686 mm
  • Inboard axle splines: Fronts - 22, Rears - 28, Outboard axle splines: Fronts - 26, Rears - 26
  • Replaces OEM # (fronts) 1333263, 1333946, (rears) 1333081, 1333947
MONSTER AXLES and High Lifter have teamed up to provide the best axle and wheel spacer set available for your RZR. More angle, more plunge, space for bigger tires, and backed by a combined 40+ years of industry experience.

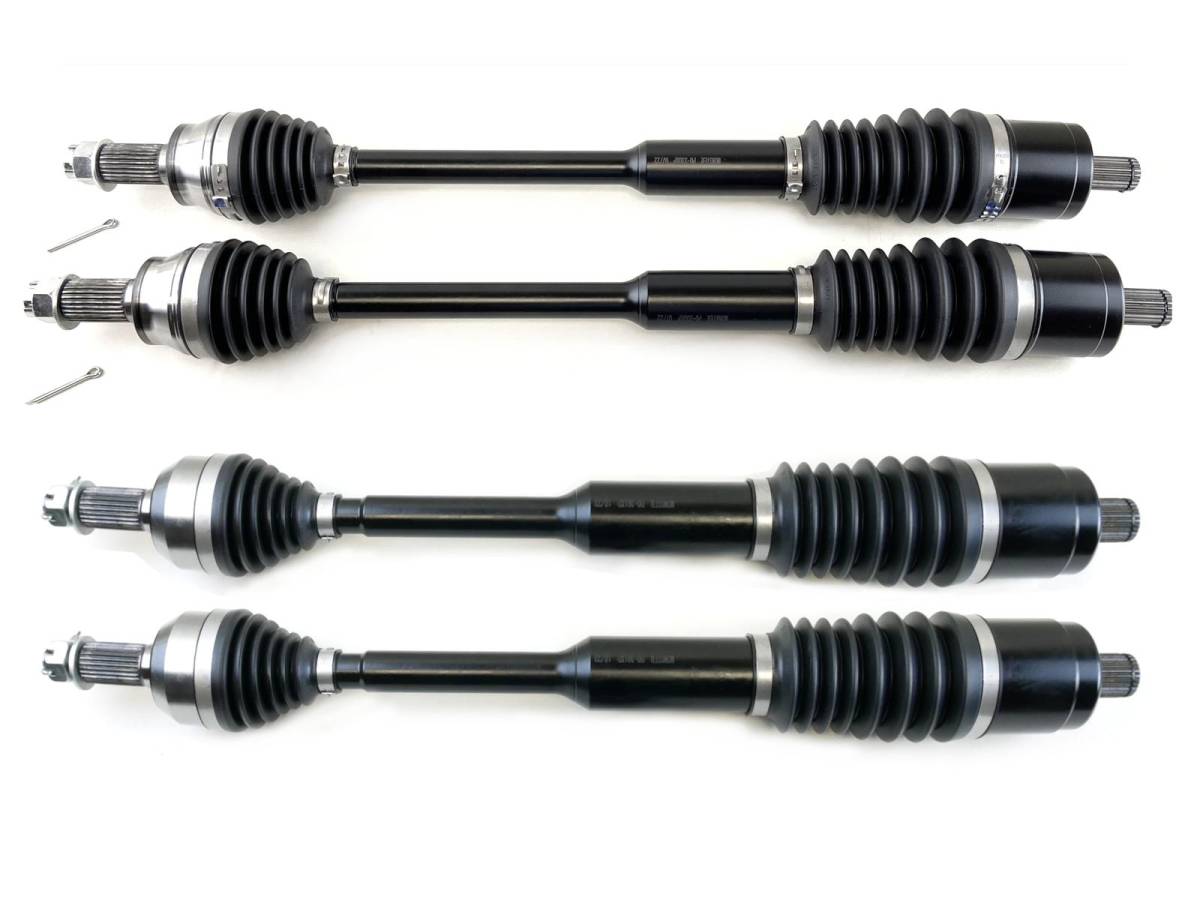

The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit. Bundled with these 2" wheel spacers, they provide even more support for handling bumpy trails, crawling over rocks, and a wider stance to help with stability through ruts.

Game changing design — Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge — With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). Both joints are fitted with heavy duty boots are assembled on a revolutionary, telescoping 4340 chromoly steel shaft that provides an additional 60 mm of travel.

Serviceable in the field — Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need ship the whole axle back to us. And you can always contact us to inquire about replacement parts.

Wider stance, safer ride — You can increase your stability, improve handling, and get an aggressive look without having to worry about your CV joints buckling under the pressure. Plus the extra clearance will keep larger tires from rubbing on shocks, fenders, etc.

Not Available
Shipping: Game Changing Axles with High Lifter 2" Wheel Spacers
Pricing: $889.99

Warranty

Monster warranty for axles, High Lifter warranty for spacers

Product Notes

  • Fits the following Polaris models: 2017-2020 RZR S 900, 2017-2018 RZR 4 900, 2017-2020 RZR S 1000, 2019-2020 RZR 4 1000. Included with this set: XP Series Monster Axles (4), 2" High Lifter wheel spacers (4).
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length up to a 4" lift. Plus, the CV joint can be easily removed for service in the field without special tools.
  • Key to its performance - the plunge mechanism is moved from the inner joint to the shaft (a telescoping shaft providing 60 mm of travel). This eliminates issues that cause most joints to bind and break. And with its inner joint designed like an outer joint, you get a 45 degree angle of operation.
  • High Lifter's wheel spacers are machined from aircraft grade 6061 billet aluminum and use grade 8 studs. No OEM studs are required to be removed from the ATV. Wheel spacers bolt to existing studs and the wheel is then bolted on. This design is the strongest available to ATVs.
  • Wheel Spacers are a 4/156 bolt pattern, 12mmx1.5. Compressed axle length: Fronts - 692 mm, Rears - 686 mm. Inner axle splines: Fronts - 22, Rears - 28. Outer axle splines: Fronts - 26, Rears - 26. Wheel Spacers backed by High Lifter Warranty. Axles backed by Monster Axle warranty.

  • What's In The Box

  • 4 axles, 4 wheel spacers
  • Product Videos

    Application List

    YearMakeModelSubmodelNotes
    2018PolarisRZR 4 900EPS
    2017PolarisRZR 4 900EPS
    2020PolarisRZR S4 1000EPS
    2019PolarisRZR S4 1000EPS
    2020PolarisRZR S 900--60 inch models
    2020PolarisRZR S 900EPS60 inch models
    2020PolarisRZR S 900Premium60 inch models
    2019PolarisRZR S 900--60 inch models
    2019PolarisRZR S 900EPS60 inch models
    2018PolarisRZR S 900--60 inch models
    2018PolarisRZR S 900EPS60 inch models
    2017PolarisRZR S 900--60 inch models
    2017PolarisRZR S 900EPS60 inch models
    2020PolarisRZR S 1000EPS
    2019PolarisRZR S 1000EPS
    2018PolarisRZR S 1000EPS
    2017PolarisRZR S 1000EPS

    Details

    • MSET-501AS
    • MSET-501AS
    • MONSTER AXLES
    • Temporarily Not Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 83.0 lbs.
    • W11.0000” x H16.0000” x L32.0000”
    • Free Ground Shipping
    • Game Changing Axles with High Lifter 2" Wheel Spacers
