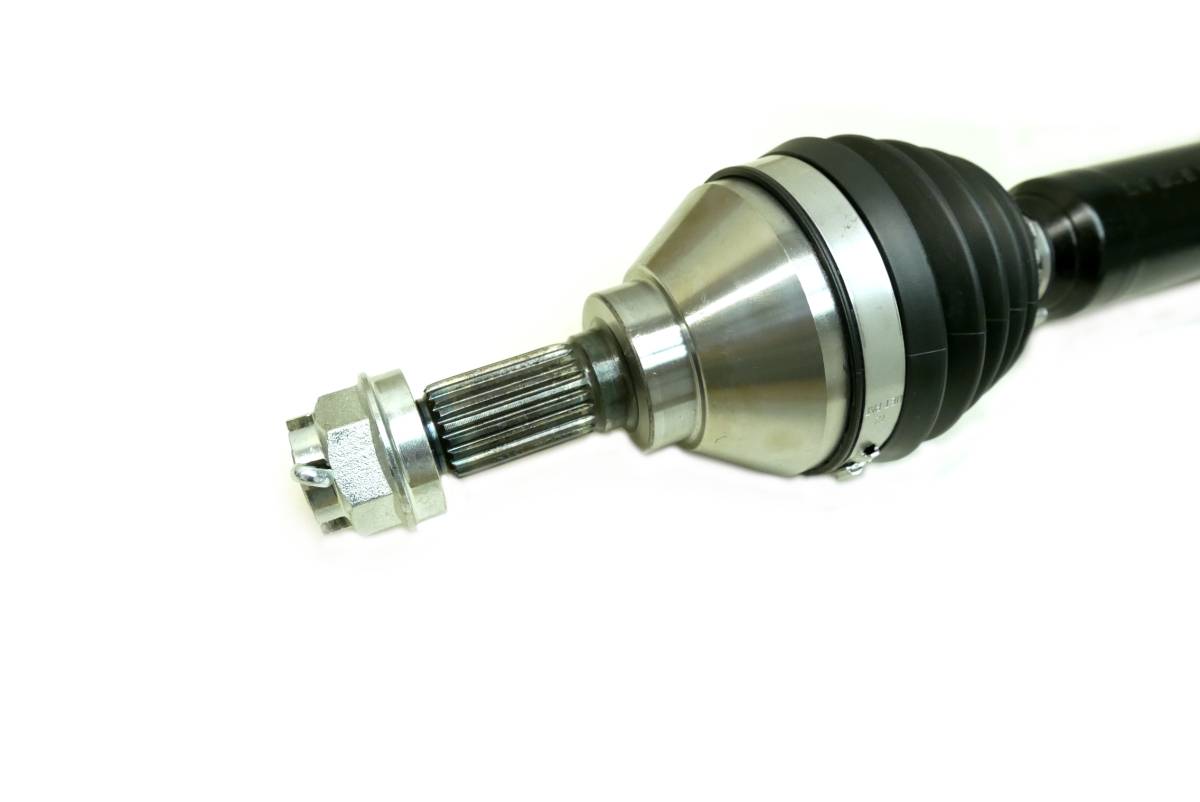

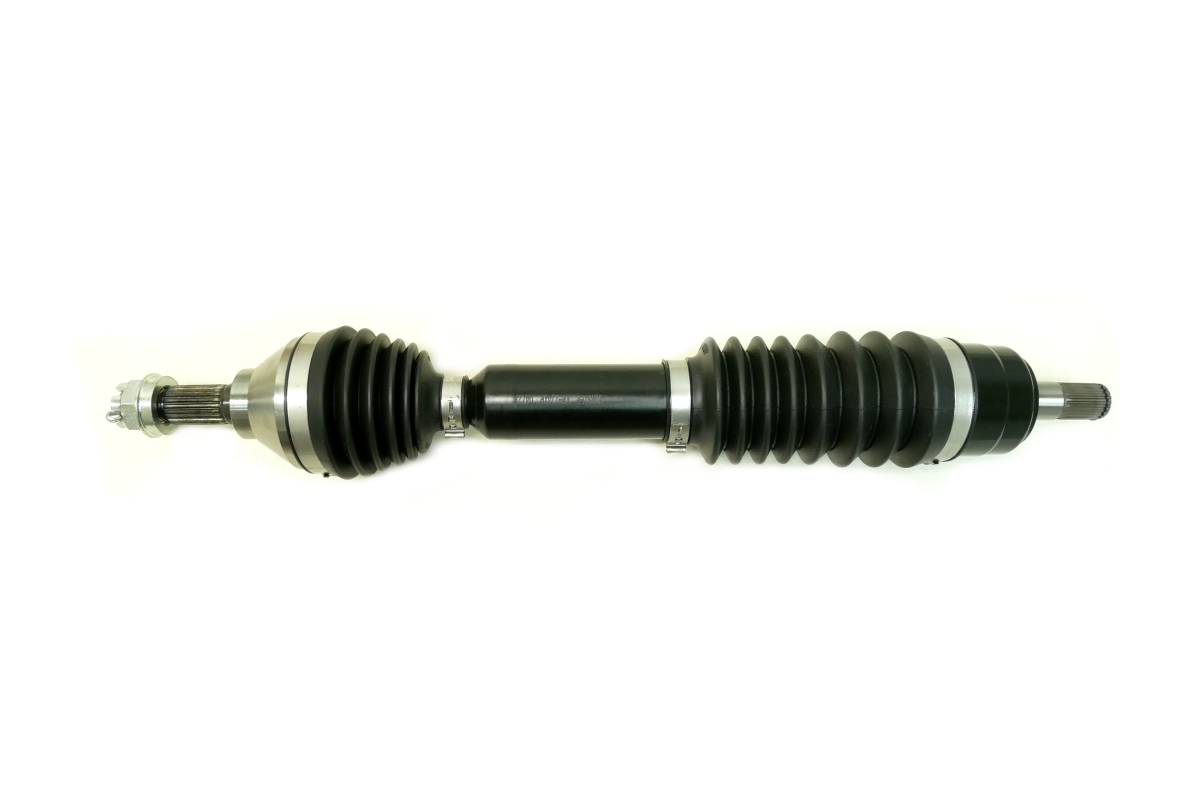

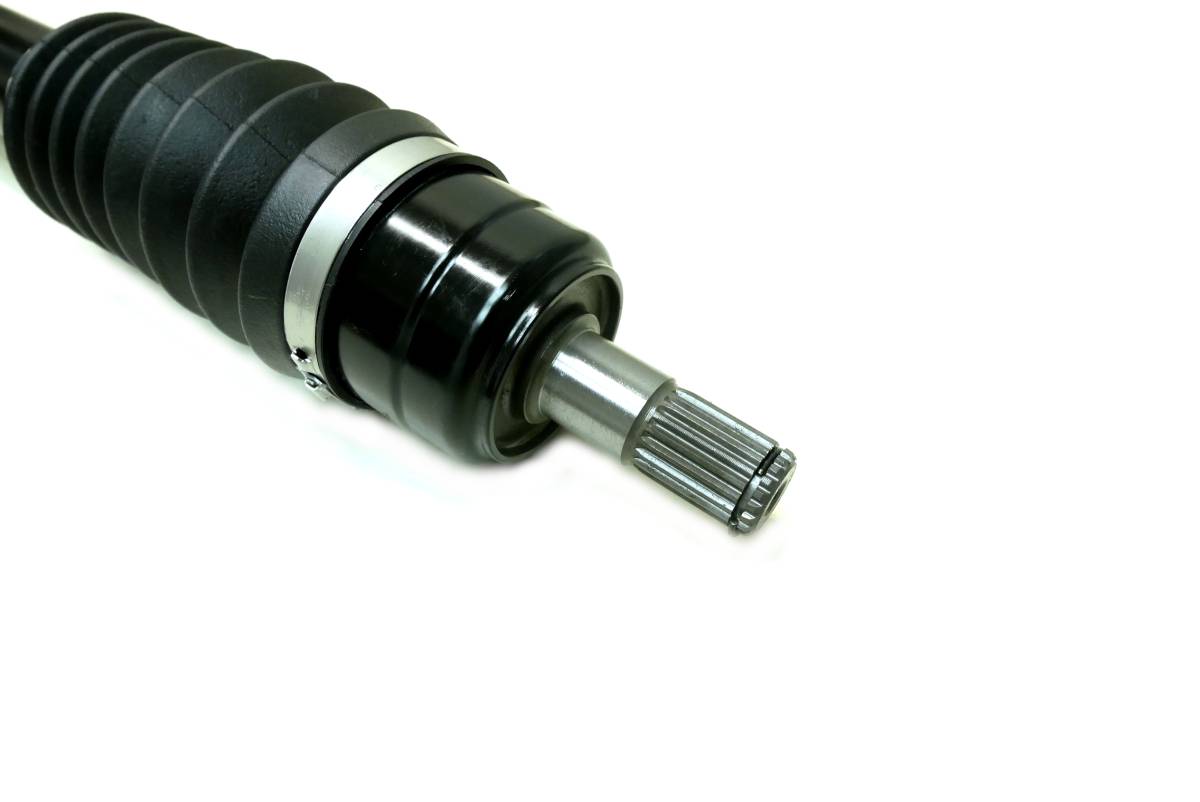

Monster Axles Front Right Axle for Kawasaki Brute Force 650i & 750i, XP Series

Location on vehicle: Front,Right

KW-224XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $179.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2013KawasakiBrute Force 650KVF650F 4x4i
2012KawasakiBrute Force 650KVF650F 4x4i
2011KawasakiBrute Force 650KVF650F 4x4i
2009KawasakiBrute Force 650KVF650F 4x4i
2009KawasakiBrute Force 650KVF650G 4x4i
2008KawasakiBrute Force 650KVF650F 4x4i
2008KawasakiBrute Force 650KVF650G 4x4i
2008KawasakiBrute Force 650KVF650H 4x4i
2007KawasakiBrute Force 650KVF650F 4x4i
2007KawasakiBrute Force 650KVF650G 4x4i
2007KawasakiBrute Force 650KVF650H 4x4i
2006KawasakiBrute Force 650KVF650F 4x4i
2006KawasakiBrute Force 650KVF650G 4x4i
2023KawasakiBrute Force 750KVF750 4x4i EPS
2023KawasakiBrute Force 750KVF750 4x4i EPS Camo
2022KawasakiBrute Force 750KVF750 4x4i EPS
2022KawasakiBrute Force 750KVF750 4x4i EPS Camo
2021KawasakiBrute Force 750KVF750 4x4i
2021KawasakiBrute Force 750KVF750 4x4i EPS
2021KawasakiBrute Force 750KVF750 4x4i EPS Camo
2020KawasakiBrute Force 750KVF750 4x4i
2020KawasakiBrute Force 750KVF750 4x4i EPS
2020KawasakiBrute Force 750KVF750 4x4i EPS Camo
2019KawasakiBrute Force 750KVF750 4x4i
2019KawasakiBrute Force 750KVF750 4x4i EPS
2019KawasakiBrute Force 750KVF750 4x4i EPS Camo
2018KawasakiBrute Force 750KVF750 4x4i
2018KawasakiBrute Force 750KVF750 4x4i EPS
2018KawasakiBrute Force 750KVF750 4x4i EPS Camo
2017KawasakiBrute Force 750KVF750GHF 4x4i EPS
2017KawasakiBrute Force 750KVF750HHF 4x4i EPS Camo
2017KawasakiBrute Force 750KVF750JHF 4x4i EPS Graystone
2017KawasakiBrute Force 750KVF750LHF 4x4i
2016KawasakiBrute Force 750KVF750 4x4i
2016KawasakiBrute Force 750KVF750 4x4i EPS
2016KawasakiBrute Force 750KVF750 4x4i EPS Camo
2015KawasakiBrute Force 750KVF750 4x4i
2015KawasakiBrute Force 750KVF750 4x4i EPS
2015KawasakiBrute Force 750KVF750 4x4i EPS Camo
2014KawasakiBrute Force 750KVF750G 4x4i EPS
2014KawasakiBrute Force 750KVF750H 4x4i EPS
2014KawasakiBrute Force 750KVF750L 4x4i
2013KawasakiBrute Force 750KVF750G 4x4i EPS
2013KawasakiBrute Force 750KVF750H 4x4i EPS
2013KawasakiBrute Force 750KVF750J 4x4i
2013KawasakiBrute Force 750KVF750L 4x4i
2012KawasakiBrute Force 750KVF750G 4x4i EPS
2012KawasakiBrute Force 750KVF750H 4x4i EPS
2012KawasakiBrute Force 750KVF750L 4x4i
2007KawasakiBrute Force 750KVF750A 4x4i
2007KawasakiBrute Force 750KVF750B 4x4i
2007KawasakiBrute Force 750KVF750C 4x4i
2007KawasakiBrute Force 750KVF750D 4x4i NRA
2006KawasakiBrute Force 750KVF750A 4x4i
2006KawasakiBrute Force 750KVF750B 4x4i
2006KawasakiBrute Force 750KVF750C 4x4i
2005KawasakiBrute Force 750KVF750A 4x4i
2005KawasakiBrute Force 750KVF750B 4x4i

Product Notes

  • Fits FRONT, RIGHT (passenger side) on the following Kawasaki ATVs: 2006-2013 Brute Force 650i, 2005-2007 Brute Force 750i & 2012-2023 Brute Force 750i.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # 59266-0008, 59266-0025. Inboard CV joint splines: 20, Outboard CV joint splines: 21, Compressed overall axle length: 492 mm.

  • What's In The Box

  • 1 axle
  • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • KW-224XP
    • KW-224XP
    • CUSTOM
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 11.0 lbs.
    • W5.0000” x H5.0000” x L24.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
