Additional Images

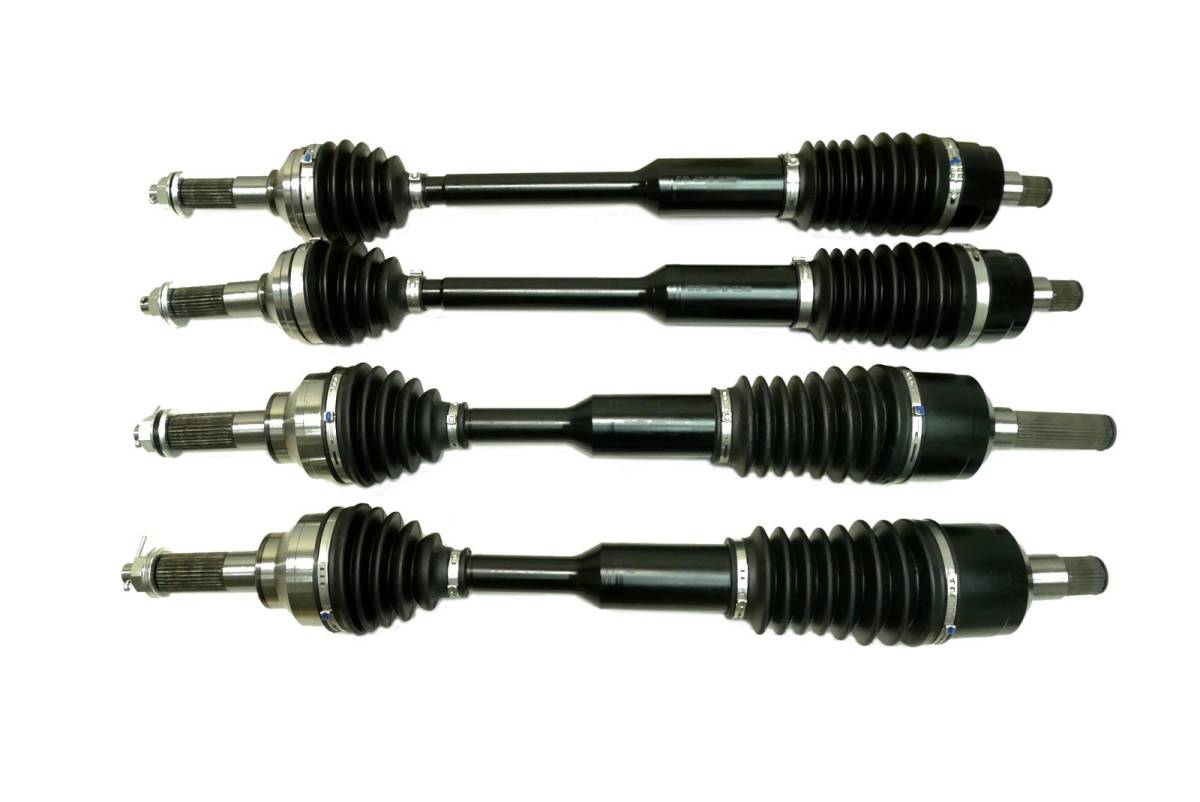

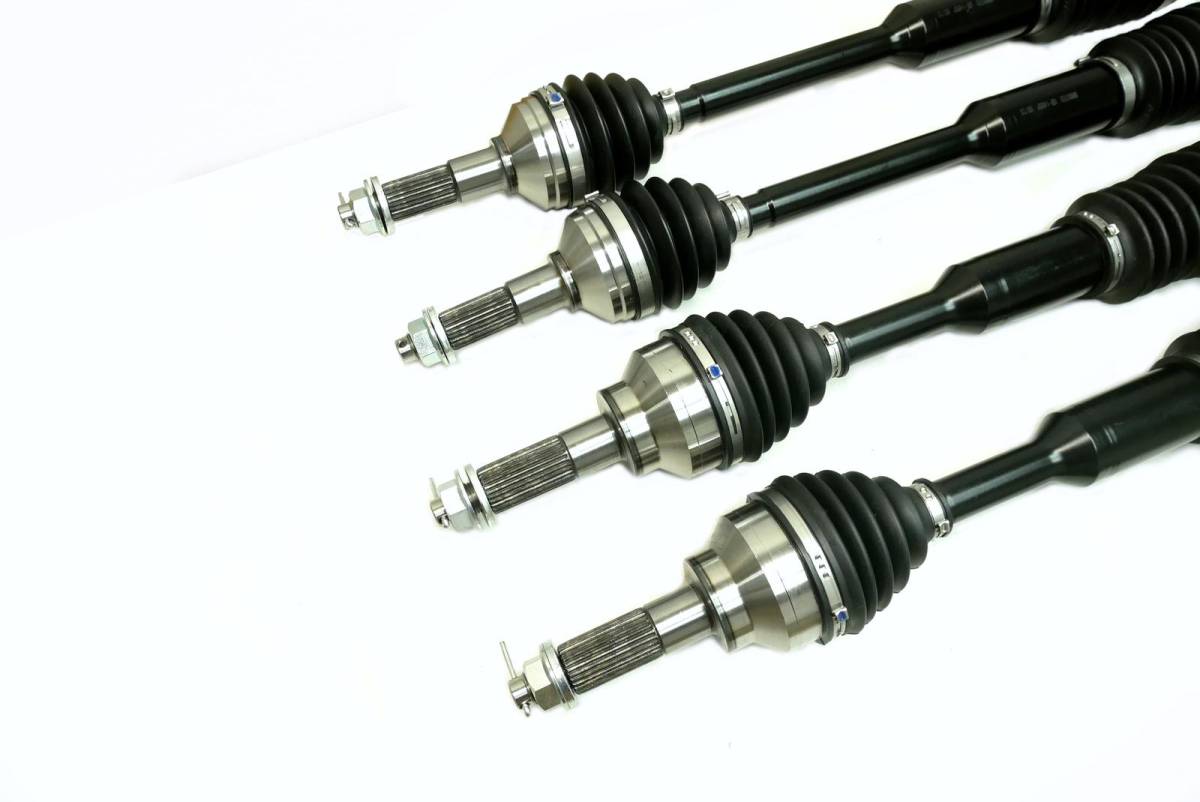

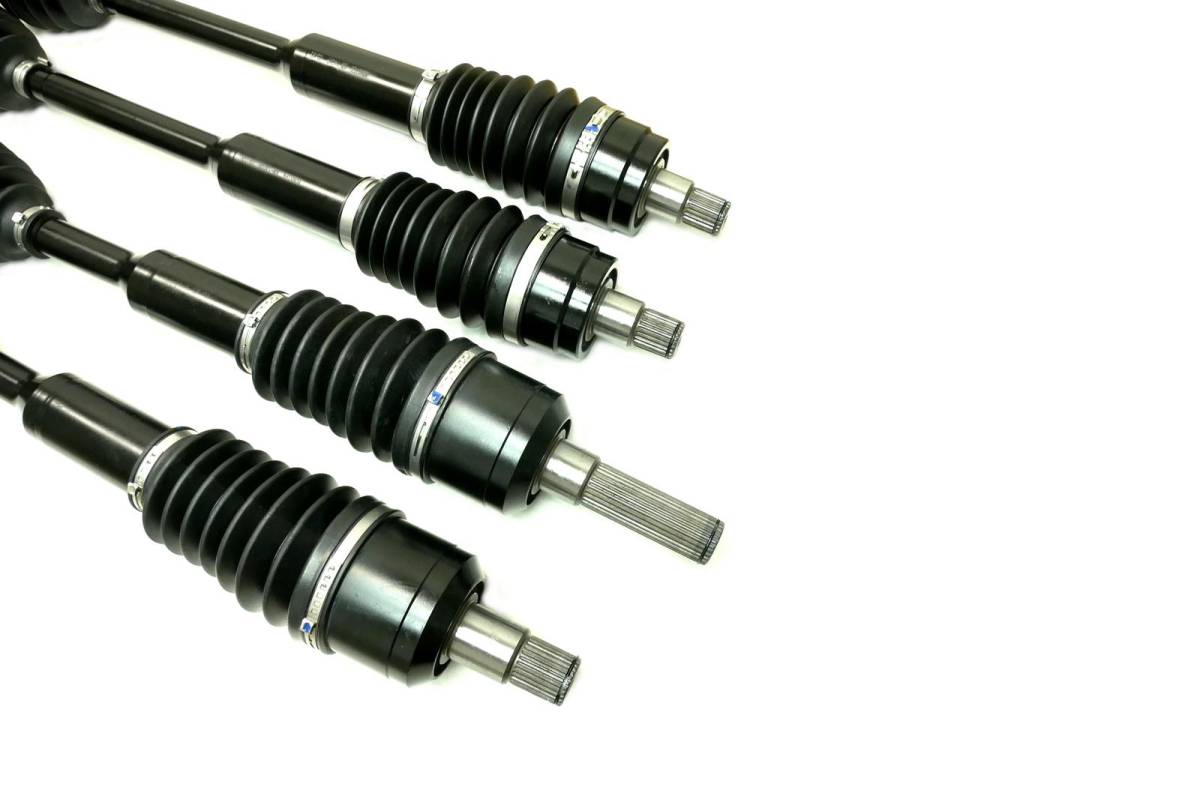

Monster Axles Full Set for Kawasaki Mule PRO FX, FTX, FXR, DX, DXT, XP Series

Location on vehicle: Front,Rear,Left,Right

KW-140XP/KW-140XP/KW-320XP/KW-321XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Limited Supply: only 2 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $639.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022KawasakiMule PRODXKAF1000 Diesel EPS
2022KawasakiMule PRODXKAF1000 Diesel EPS FE
2021KawasakiMule PRODXKAF1000 Diesel EPS
2020KawasakiMule PRODXKAF1000 Diesel EPS
2019KawasakiMule PRODXKAF1000 Diesel EPS
2018KawasakiMule PRODXKAF1000 Diesel EPS
2017KawasakiMule PRODXKAF1000 Diesel
2017KawasakiMule PRODXKAF1000 Diesel EPS
2017KawasakiMule PRODXKAF1000 Diesel LE EPS
2016KawasakiMule PRODXKAF1000 Diesel
2016KawasakiMule PRODXKAF1000 Diesel EPS
2016KawasakiMule PRODXKAF1000 Diesel LE EPS
2022KawasakiMule PRODXTKAF1000 Diesel
2022KawasakiMule PRODXTKAF1000 Diesel EPS
2022KawasakiMule PRODXTKAF1000 Diesel EPS FE
2021KawasakiMule PRODXTKAF1000 Diesel
2021KawasakiMule PRODXTKAF1000 Diesel EPS
2021KawasakiMule PRODXTKAF1000 Diesel EPS FE
2020KawasakiMule PRODXTKAF1000 Diesel
2020KawasakiMule PRODXTKAF1000 Diesel EPS
2019KawasakiMule PRODXTKAF1000 Diesel
2019KawasakiMule PRODXTKAF1000 Diesel EPS
2018KawasakiMule PRODXTKAF1000 Diesel
2018KawasakiMule PRODXTKAF1000 Diesel EPS
2017KawasakiMule PRODXTKAF1000 Diesel
2017KawasakiMule PRODXTKAF1000 Diesel EPS
2017KawasakiMule PRODXTKAF1000 Diesel LE EPS
2016KawasakiMule PRODXTKAF1000 Diesel
2016KawasakiMule PRODXTKAF1000 Diesel EPS
2016KawasakiMule PRODXTKAF1000 Diesel LE EPS
2022KawasakiMule PROFXKAF820
2022KawasakiMule PROFXKAF820 EPS
2022KawasakiMule PROFXKAF820 EPS LE
2021KawasakiMule PROFXKAF820
2021KawasakiMule PROFXKAF820 EPS
2021KawasakiMule PROFXKAF820 EPS LE
2020KawasakiMule PROFXKAF820
2020KawasakiMule PROFXKAF820 EPS
2020KawasakiMule PROFXKAF820 EPS LE
2019KawasakiMule PROFXKAF820
2019KawasakiMule PROFXKAF820 EPS
2019KawasakiMule PROFXKAF820 EPS LE
2018KawasakiMule PROFXKAF820
2018KawasakiMule PROFXKAF820 EPS
2018KawasakiMule PROFXKAF820 EPS Camo
2018KawasakiMule PROFXKAF820 EPS LE
2017KawasakiMule PROFXKAF820EHF
2017KawasakiMule PROFXKAF820FHF EPS
2017KawasakiMule PROFXKAF820GHF LE EPS
2017KawasakiMule PROFXKAF820HHF Camo EPS
2017KawasakiMule PROFXKAF820LHF Ranch Edition
2016KawasakiMule PROFXKAF820
2016KawasakiMule PROFXKAF820 EPS
2016KawasakiMule PROFXKAF820 EPS Camo
2016KawasakiMule PROFXKAF820 LE EPS
2022KawasakiMule PROFXRKAF820
2021KawasakiMule PROFXRKAF820
2020KawasakiMule PROFXRKAF820
2019KawasakiMule PROFXRKAF820
2019KawasakiMule PROFXRKAF820 EPS
2018KawasakiMule PROFXRKAF820
2020KawasakiMule PROFXTKAF820
2020KawasakiMule PROFXTKAF820 EPS
2020KawasakiMule PROFXTKAF820 EPS Camo
2020KawasakiMule PROFXTKAF820 EPS LE
2020KawasakiMule PROFXTKAF820 Ranch Edition
2019KawasakiMule PROFXTKAF820
2019KawasakiMule PROFXTKAF820 EPS
2019KawasakiMule PROFXTKAF820 EPS Camo
2019KawasakiMule PROFXTKAF820 EPS LE
2019KawasakiMule PROFXTKAF820 Ranch Edition
2018KawasakiMule PROFXTKAF820
2018KawasakiMule PROFXTKAF820 EPS
2018KawasakiMule PROFXTKAF820 EPS Camo
2018KawasakiMule PROFXTKAF820 EPS LE
2018KawasakiMule PROFXTKAF820 Ranch Edition
2017KawasakiMule PROFXTKAF820AHF
2017KawasakiMule PROFXTKAF820BHF EPS
2017KawasakiMule PROFXTKAF820CHF LE EPS
2017KawasakiMule PROFXTKAF820DHF Camo EPS
2017KawasakiMule PROFXTKAF820JHF RANCH EDITION
2016KawasakiMule PROFXTKAF820
2016KawasakiMule PROFXTKAF820 EPS
2016KawasakiMule PROFXTKAF820 EPS Camo
2016KawasakiMule PROFXTKAF820 LE EPS
2016KawasakiMule PROFXTKAF820 Ranch Edition
2015KawasakiMule PROFXTKAF820
2015KawasakiMule PROFXTKAF820 EPS
2015KawasakiMule PROFXTKAF820 EPS Camo
2015KawasakiMule PROFXTKAF820 LE EPS

Product Notes

  • Fits the following Kawasaki UTV models: 2015-2020 Mule PRO FXT, 2016-2022 Mule PRO FX/FXR, 2016-2022 Mule PRO DX/DXT. Set includes 4 axles.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # (fronts) 59266-0710, (rears) 59266-0049, 59266-0050. Inboard splines: Fronts - 26, Rears - 29, Outboard splines: Fronts - 26, Rears - 29, Compressed length: FL - 754, FR 754 mm, RL - 711 mm, RR - 749 mm. Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

  • 4 axles
  • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • KW-140XP/KW-140XP/KW-320XP/KW-321XP
    • KW-140XP/KW-140XP/KW-320XP/KW-321XP
    • CUSTOM
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 79.0 lbs.
    • W12.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
