Full CV Axle Set for KYMCO UXV 500i & UXV 700i 2013-2018

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
KY-503/KY-504/KY-603/KY-604

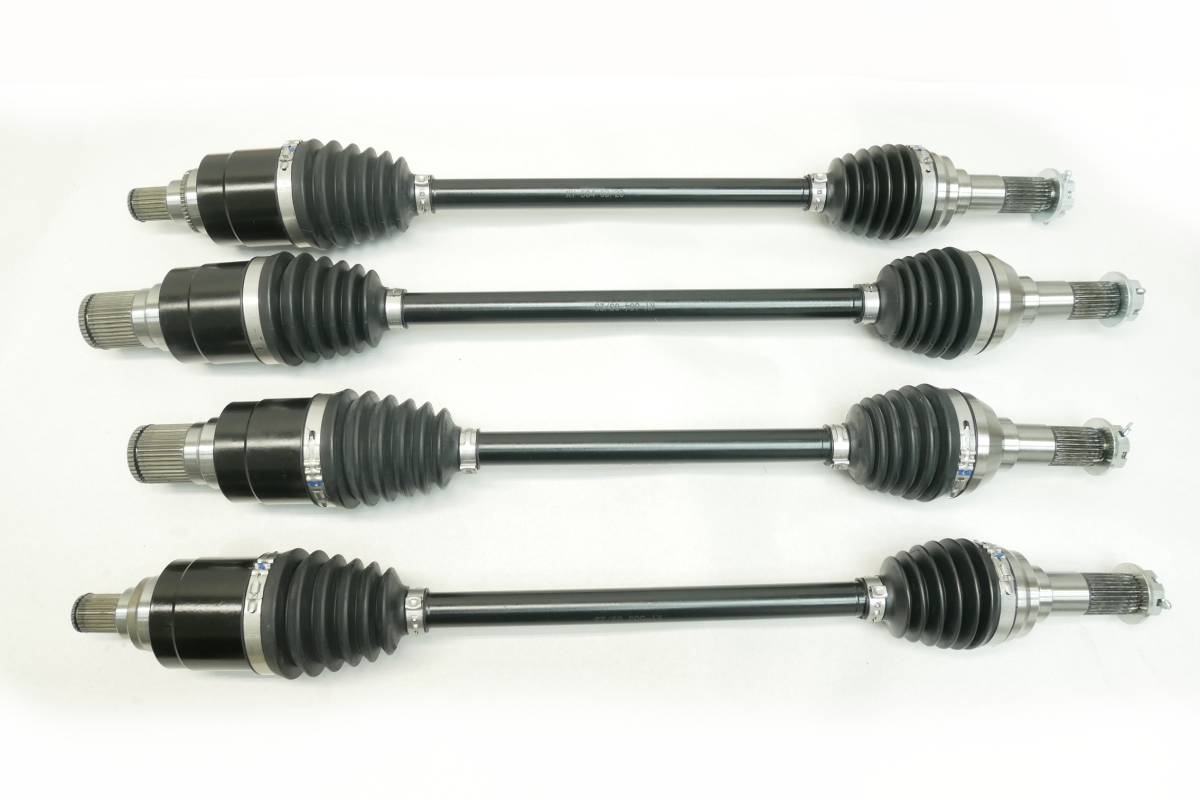

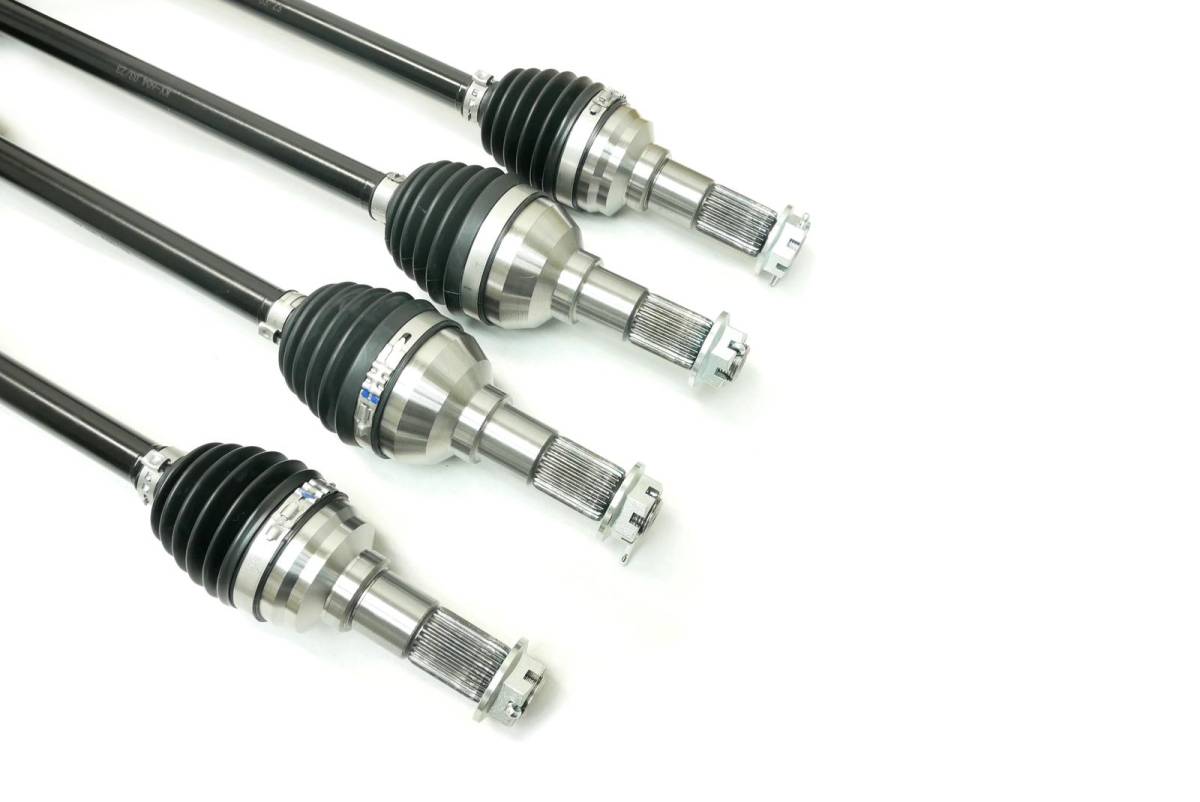

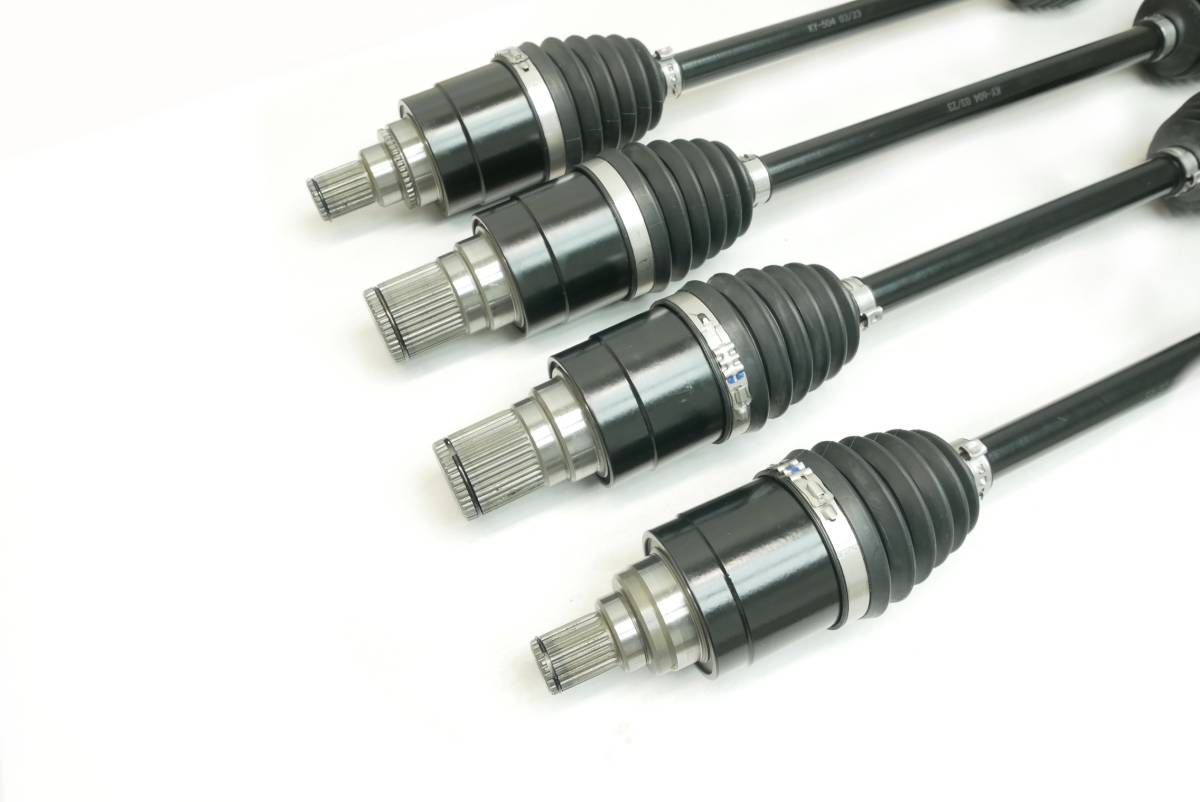

This is a set of 4 new CV axles for a KYMCO UTV.

They fit the following models:

2013-2018 UXV 500i

2013-2018 UXV 700i

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

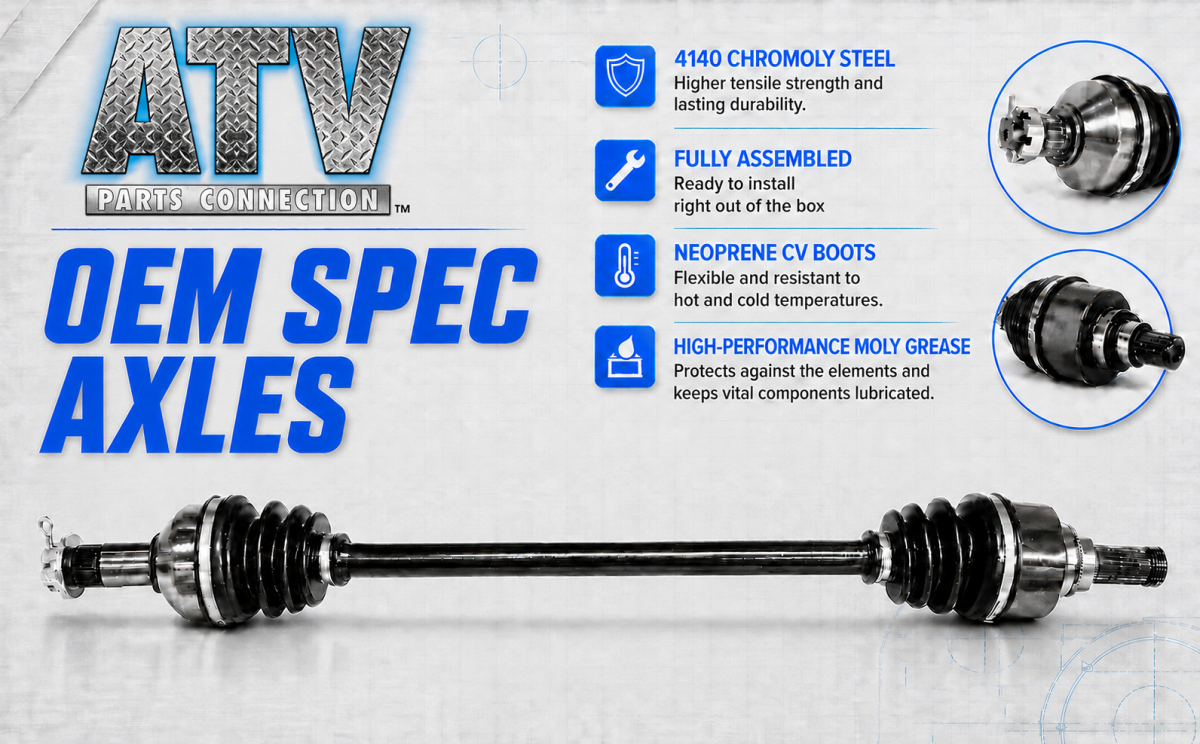

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Compressed axle length (mm): FL - 678, FR - 678, RL - 648, RR - 730
  • Inboard spline count: Fronts - 24, Rears - 39
  • Outboard spline count: Fronts - 27, Rears - 27
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $269.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2018KYMCOUXV 500i4X4
2017KYMCOUXV 500i4X4
2016KYMCOUXV 500i4X4
2016KYMCOUXV 500i4x4 Camo
2016KYMCOUXV 500i4x4 G Turf
2015KYMCOUXV 500i4X4
2015KYMCOUXV 500i4x4 Camo
2015KYMCOUXV 500i4x4 G Turf
2015KYMCOUXV 500i4x4 LE 50th Anniversary
2014KYMCOUXV 500i4x4 EFI
2014KYMCOUXV 500i4x4 HE EFI
2014KYMCOUXV 500i4x4 LE EFI
2014KYMCOUXV 500i4x4 SP EFI
2014KYMCOUXV 500i4x4 Turf EFI
2013KYMCOUXV 500i4x4 EFI IRS
2013KYMCOUXV 500i4x4 LE EFI IRS
2013KYMCOUXV 500i4x4 SE EFI IRS
2013KYMCOUXV 500i4x4 SP EFI IRS
2018KYMCOUXV 700i4X4
2018KYMCOUXV 700i4X4 LE Hunter
2018KYMCOUXV 700i4x4 LE
2018KYMCOUXV 700i4x4 LE Camo
2018KYMCOUXV 700i4x4 LE Camo EPS
2018KYMCOUXV 700i4x4 LE EPS
2018KYMCOUXV 700i4x4 LE Prime
2017KYMCOUXV 700i4X4
2017KYMCOUXV 700i4x4 Camo
2017KYMCOUXV 700i4x4 LE
2017KYMCOUXV 700i4x4 LE Camo EPS
2017KYMCOUXV 700i4x4 LE EPS
2017KYMCOUXV 700i4x4 Turf
2016KYMCOUXV 700i4X4
2016KYMCOUXV 700i4x4 Camo
2016KYMCOUXV 700i4x4 LE
2016KYMCOUXV 700i4x4 Turf
2015KYMCOUXV 700i4X4
2015KYMCOUXV 700i4x4 Camo
2015KYMCOUXV 700i4x4 LE 50th Anniversary
2015KYMCOUXV 700i4x4 Turf
2014KYMCOUXV 700i4x4 EFI
2014KYMCOUXV 700i4x4 HE EFI
2014KYMCOUXV 700i4x4 LE EFI
2014KYMCOUXV 700i4x4 SP EFI
2014KYMCOUXV 700i4x4 Turf EFI

Product Notes

  • Fits the following KYMCO 4x4 models: 2013-2018 UXV 500i & 2013-2018 UXV 700i. Set includes: Front axles (2), Rear axles (2).
  • Features stronger than OEM, 4340 chromoly steel axle bars. Greased with a moly based grease to provide superior joint lubrication.
  • Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed axle length (mm): FL - 678, FR - 678, RL - 648, RR - 730, Inboard spline count: Fronts - 24, Rears - 39, Outboard spline count: Fronts - 27, Rears - 27.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • KY-503/KY-504/KY-603/KY-604
    • KY-503/KY-504/KY-603/KY-604
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 52.0 lbs.
    • W12.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
