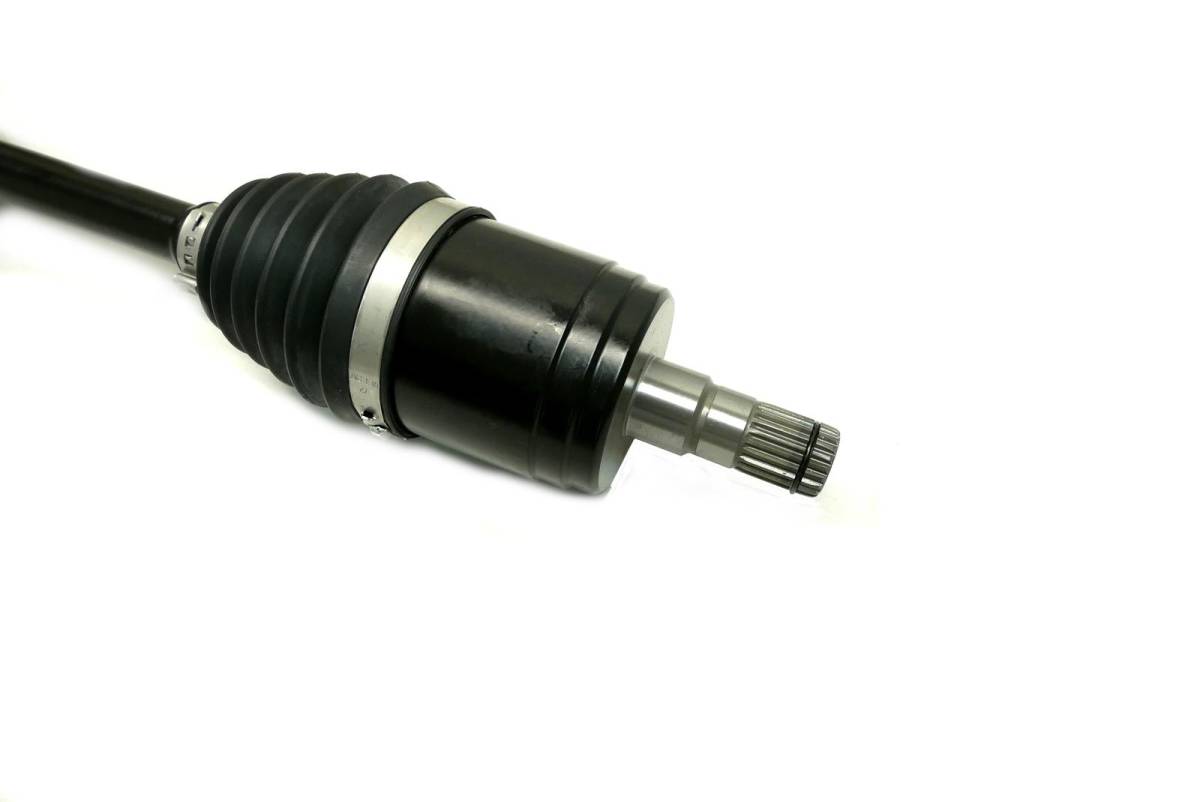

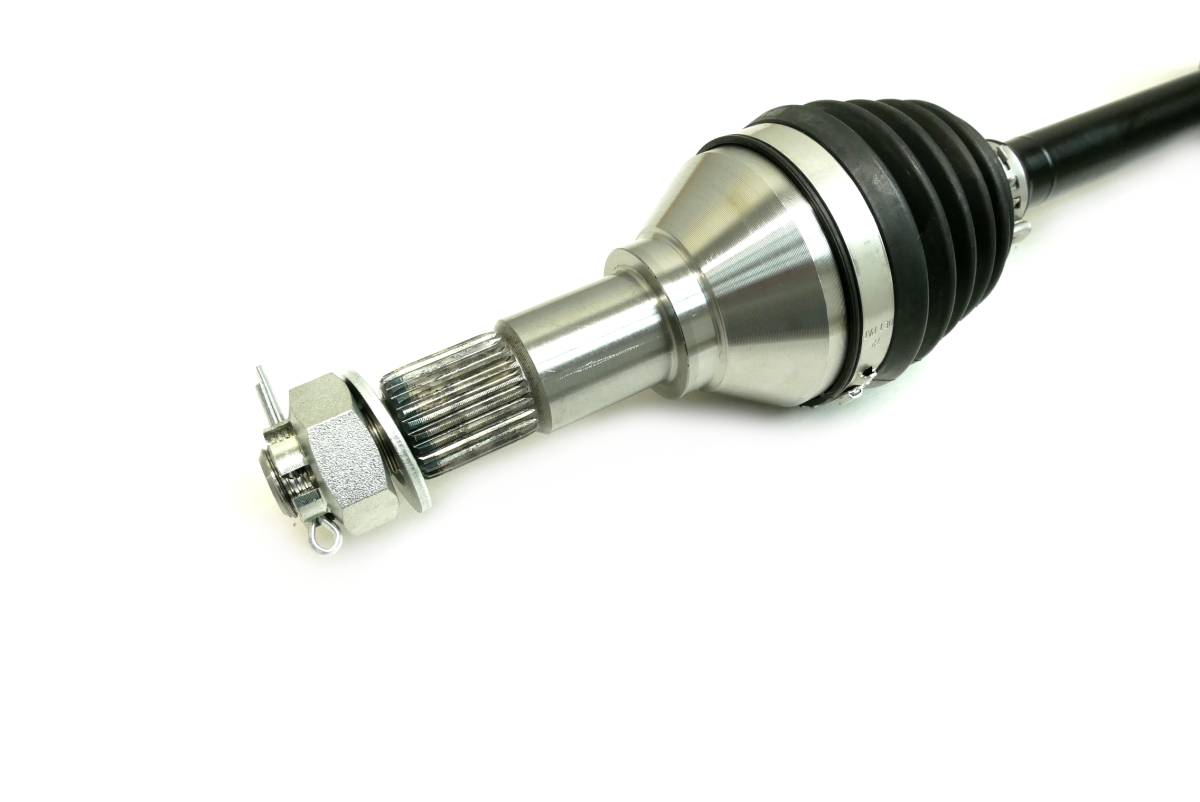

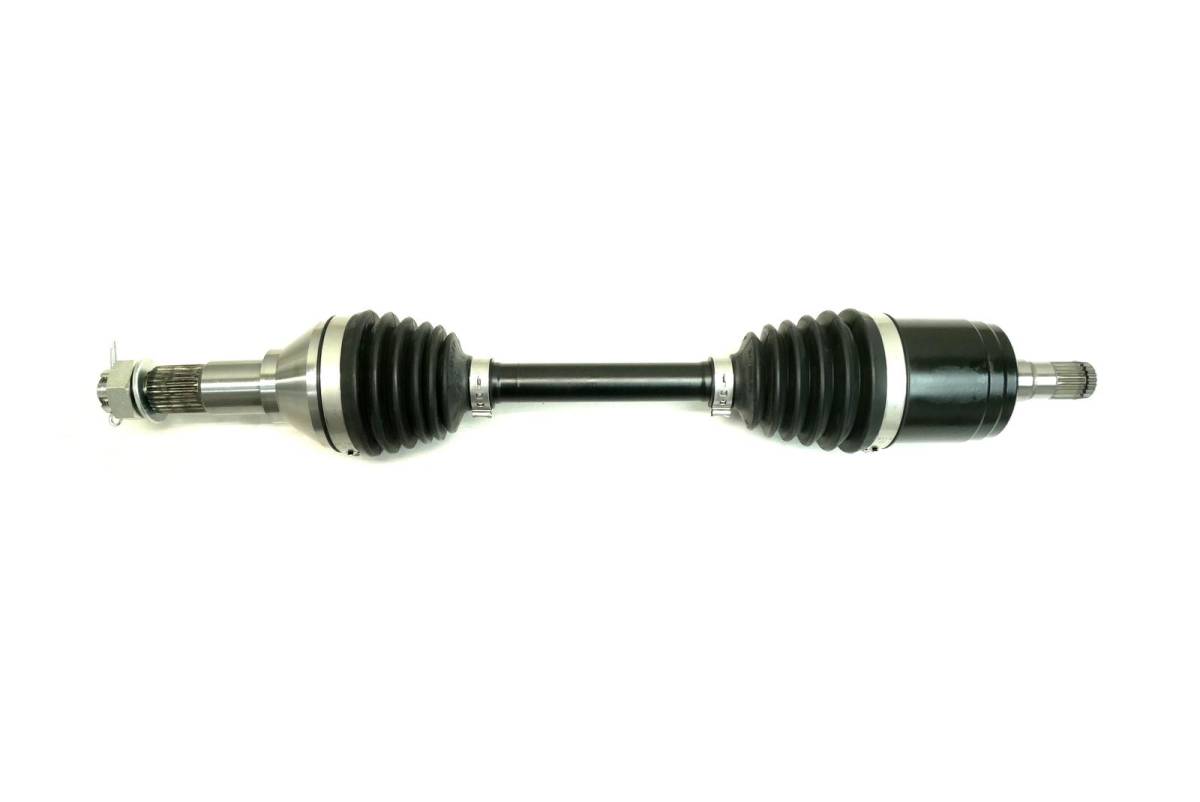

Front Left CV Axle for Can-Am XMR Outlander & Renegade, 705402237

Location on vehicle: Front,Left

(0) Reviews: Write first review
CA-655
This is a new CV axle for a Can-Am X-MR (Mud Racer) ATV.

It fits FRONT, LEFT (driver side) on the following models:

2019-2023 ... Outlander XMR 650

2019-2023 ... Outlander XMR 850

2019-2023 ... Outlander XMR 1000

2019 ... Renegade XMR 570

2022-2023 ... Renegade XMR 650

2019-2022 ... Renegade XMR 1000

*Axle made as an OE replacement, and not intended for lifted/ modified vehicles

*Please note this is only for XMR models and will not fit STD, XT, or Pro editions

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 529 mm
  • Replaces OEM # 705402237
Limited Supply: only 8 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $87.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT (driver side) on the following Can-Am XMR models: 2019-2023 Outlander XMR 650, 2019-2023 Outlander XMR 850, 2019-2023 Outlander XMR 1000, 2019 Renegade XMR 570, 2022-2023 Renegade XMR 650, 2019-2023 Renegade XMR 1000.
  • Features a stronger than OEM, 4340 Chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # 705402237. Compressed overall axle length: 529 mm, Inboard CV joint spline count: 21, Outboard CV joint spline count: 26.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Application List

    YearMakeModelSubmodelNotes
    2022Can-AmOutlander 6504x4 XMR DPS
    2021Can-AmOutlander 6504x4 XMR DPS
    2020Can-AmOutlander 6504x4 XMR DPS
    2019Can-AmOutlander 6504x4 XMR DPS
    2023Can-AmOutlander 8504x4 XMR DPS
    2022Can-AmOutlander 8504x4 XMR DPS
    2021Can-AmOutlander 8504x4 XMR DPS
    2020Can-AmOutlander 8504x4 XMR DPS
    2019Can-AmOutlander 8504x4 XMR DPS
    2023Can-AmOutlander 1000R4x4 XMR DPS
    2022Can-AmOutlander 1000R4x4 XMR DPS
    2021Can-AmOutlander 1000R4x4 XMR DPS
    2020Can-AmOutlander 1000R4x4 XMR DPS
    2019Can-AmOutlander 1000R4x4 XMR DPS
    2019Can-AmRenegade 5704x4 XMR DPS
    2023Can-AmRenegade 6504x4 XMR
    2022Can-AmRenegade 6504x4 XMR
    2023Can-AmRenegade 1000R4x4 XMR DPS
    2022Can-AmRenegade 1000R4x4 XMR DPS
    2021Can-AmRenegade 1000R4x4 XMR DPS
    2020Can-AmRenegade 1000R4x4 XMR DPS

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 10.0 lbs.
    • W4.0000” x H4.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
