Monster Axles Set w/ 2" Spacers for Polaris RZR XP/XP4 1000 2017-2019, XP Series
Location on vehicle: Front,Rear,Left,Right
This set will fit these Polaris RZR models:
2017-2019 RZR XP 1000
2017-2019 RZR XP4 1000
will also fit 2016 RZR XP/XP4 1000 models if built after 10/19/2015
*please note this will not fit any RZR 1000 S/S4 models
Bundle features:

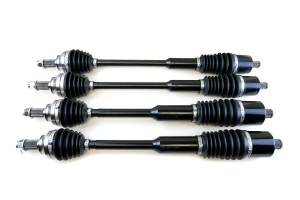

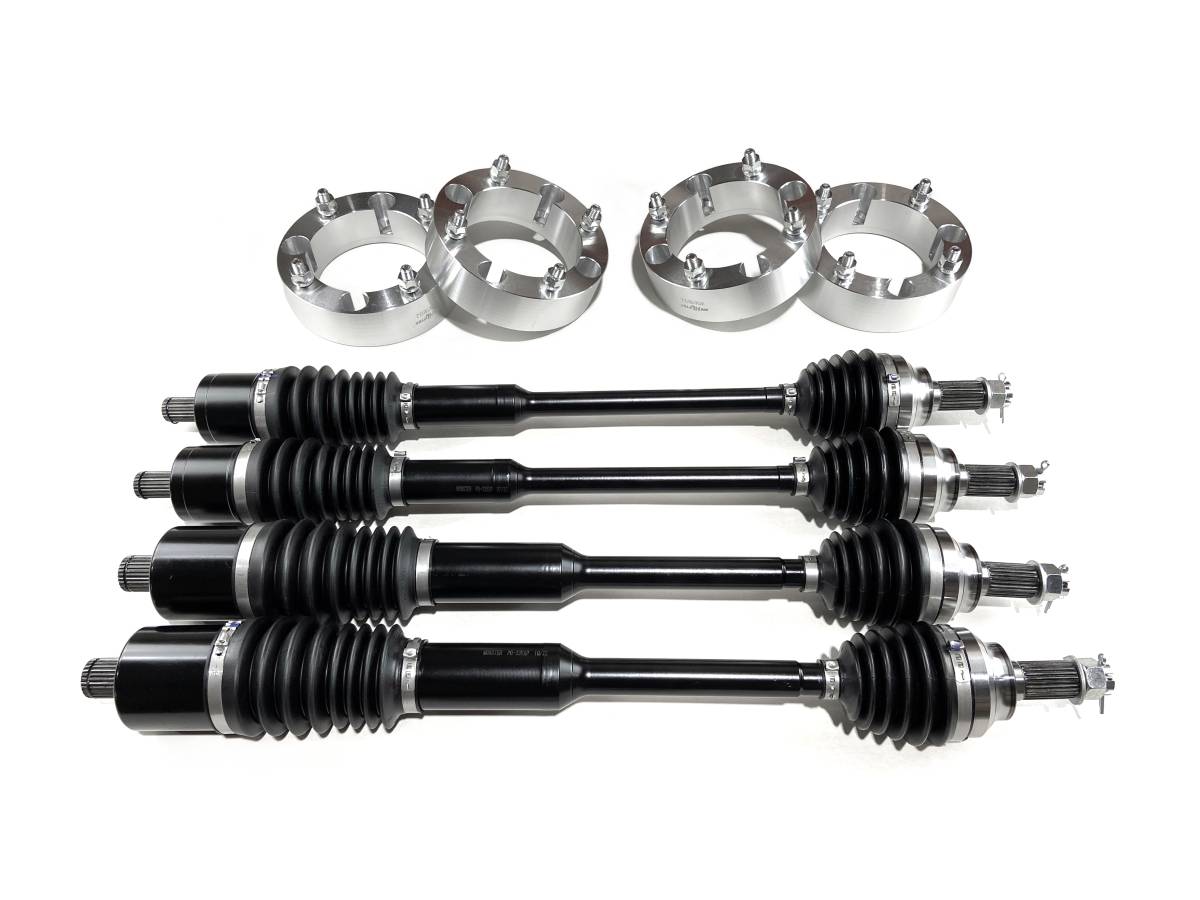

- Includes: Monster Axles™ XP Series axles (4), 2" High Lifter 4/156 bolt pattern 12mmx1.5 wheel spacers (4)

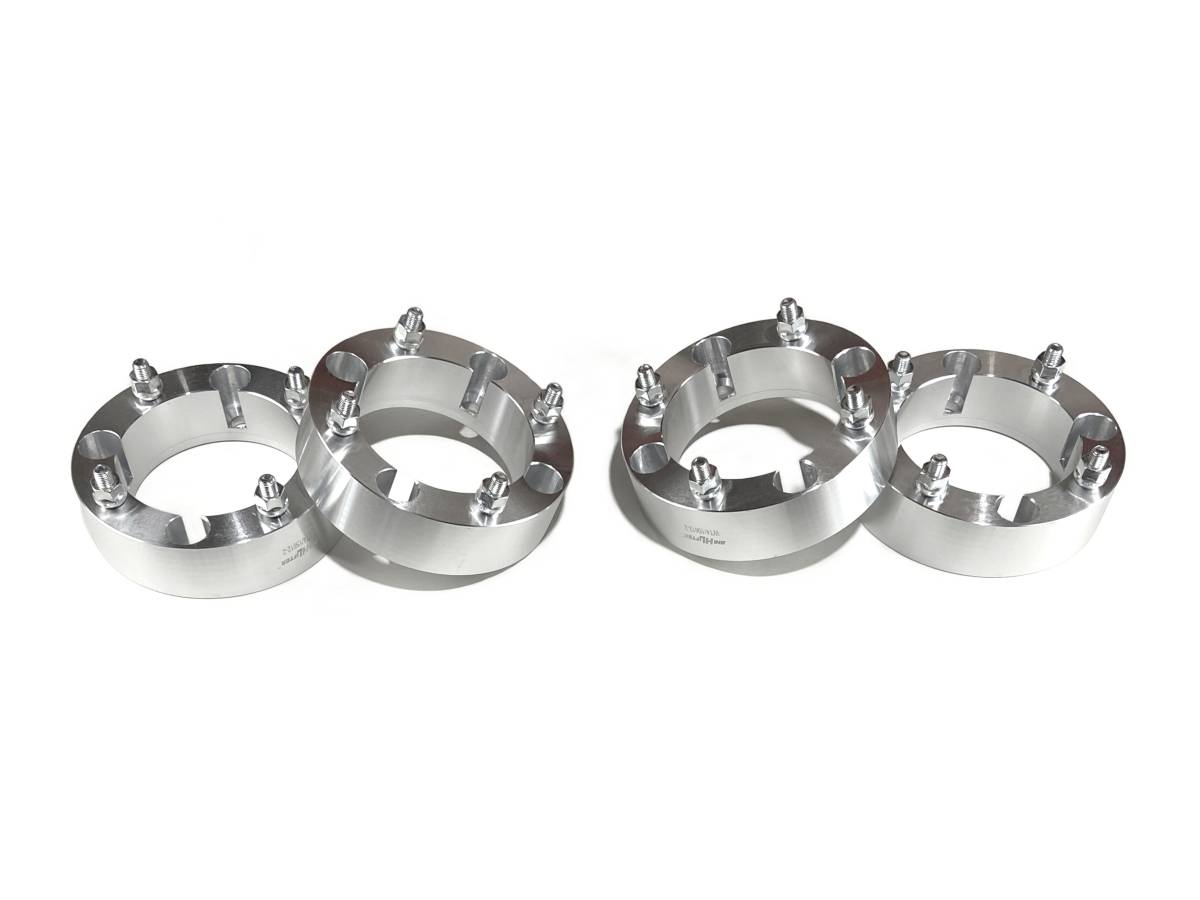

- Wheel spacers are machined from aircraft grade 6061 billet aluminum and use grade 8 studs
- No OEM studs are required to be removed from the ATV and stud extenders are not used
- Wheel spacers bolt to existing studs and the wheel is then bolted to the grade 8 wheel spacer stud furnished
- Compressed axle length: Fronts - 761 mm, Rears - 737 mm
- Inboard axle splines: Fronts - 22, Rears - 28, Outboard axle splines: Fronts - 26, Rears - 26
- Replaces OEM # (fronts) 1333943, 1333123, 1333283, 1333420, (rears) 1333439, 1333944, 1333858

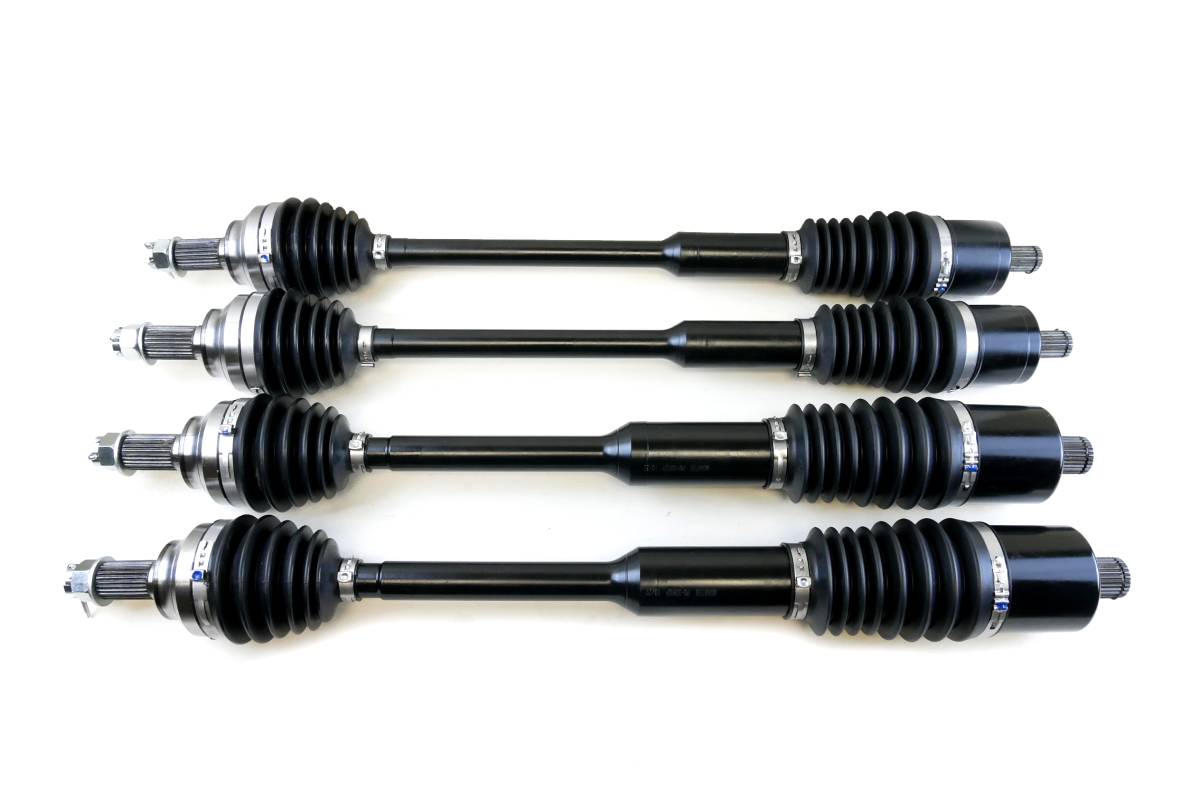

The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit. Bundled with these 2" wheel spacers, they provide even more support for handling bumpy trails, crawling over rocks, and a wider stance to help with stability through ruts.
Game changing design — Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.
More angle, more plunge — With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). Both joints are fitted with heavy duty boots are assembled on a revolutionary, telescoping 4340 chromoly steel shaft that provides an additional 60 mm of travel.
Serviceable in the field — Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need ship the whole axle back to us. And you can always contact us to inquire about replacement parts.
Wider stance, safer ride — You can increase your stability, improve handling, and get an aggressive look without having to worry about your CV joints buckling under the pressure. Plus the extra clearance will keep larger tires from rubbing on shocks, fenders, etc.
Warranty
Product Notes
What's In The Box
Product Videos
Application List
Year | Make | Model | Submodel | Notes |
---|---|---|---|---|
2019 | Polaris | RZR XP 4 1000 | DYNAMIX Edition EPS | |
2019 | Polaris | RZR XP 4 1000 | EPS | |
2019 | Polaris | RZR XP 4 1000 | High Lifter Edition EPS | |
2019 | Polaris | RZR XP 4 1000 | Ride Command Edition EPS | |
2018 | Polaris | RZR XP 4 1000 | EPS | |
2018 | Polaris | RZR XP 4 1000 | High Lifter Edition EPS | |
2018 | Polaris | RZR XP 4 1000 | Ride Command Edition EPS | |
2017 | Polaris | RZR XP 4 1000 | EPS | |
2017 | Polaris | RZR XP 4 1000 | High Lifter Edition EPS | |
2019 | Polaris | RZR XP 1000 | DYNAMIX Edition EPS | |
2019 | Polaris | RZR XP 1000 | EPS | |
2019 | Polaris | RZR XP 1000 | High Lifter Edition EPS | |
2019 | Polaris | RZR XP 1000 | Ride Command Edition EPS | |
2019 | Polaris | RZR XP 1000 | Trails and Rock Edition EPS | |
2018 | Polaris | RZR XP 1000 | EPS | |
2018 | Polaris | RZR XP 1000 | High Lifter Edition EPS | |
2018 | Polaris | RZR XP 1000 | Ride Command Edition EPS | |
2018 | Polaris | RZR XP 1000 | Trails and Rock Edition EPS | |
2017 | Polaris | RZR XP 1000 | EPS | |
2017 | Polaris | RZR XP 1000 | Gold Matte Metallic LE EPS | |
2017 | Polaris | RZR XP 1000 | High Lifter Edition EPS | |
2017 | Polaris | RZR XP 1000 | Veliocity Blue LE EPS |
Details
- MSET-503AS
- MSET-503AS
- MONSTER AXLES
- Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 88.0 lbs.
- W11.0000” x H32.0000” x L16.0000”
- Free Ground Shipping
- Game Changing Axles with High Lifter 2" Wheel Spacers
