Monster Axles Full Set w/ Spacers for Yamaha Grizzly 700 2016-2022, XP Series
Location on vehicle: Front,Rear,Left,Right
This set will fit these Yamaha ATVs:
2016-2022 Grizzly 700 (including EPS, FI, SE, Hunter)

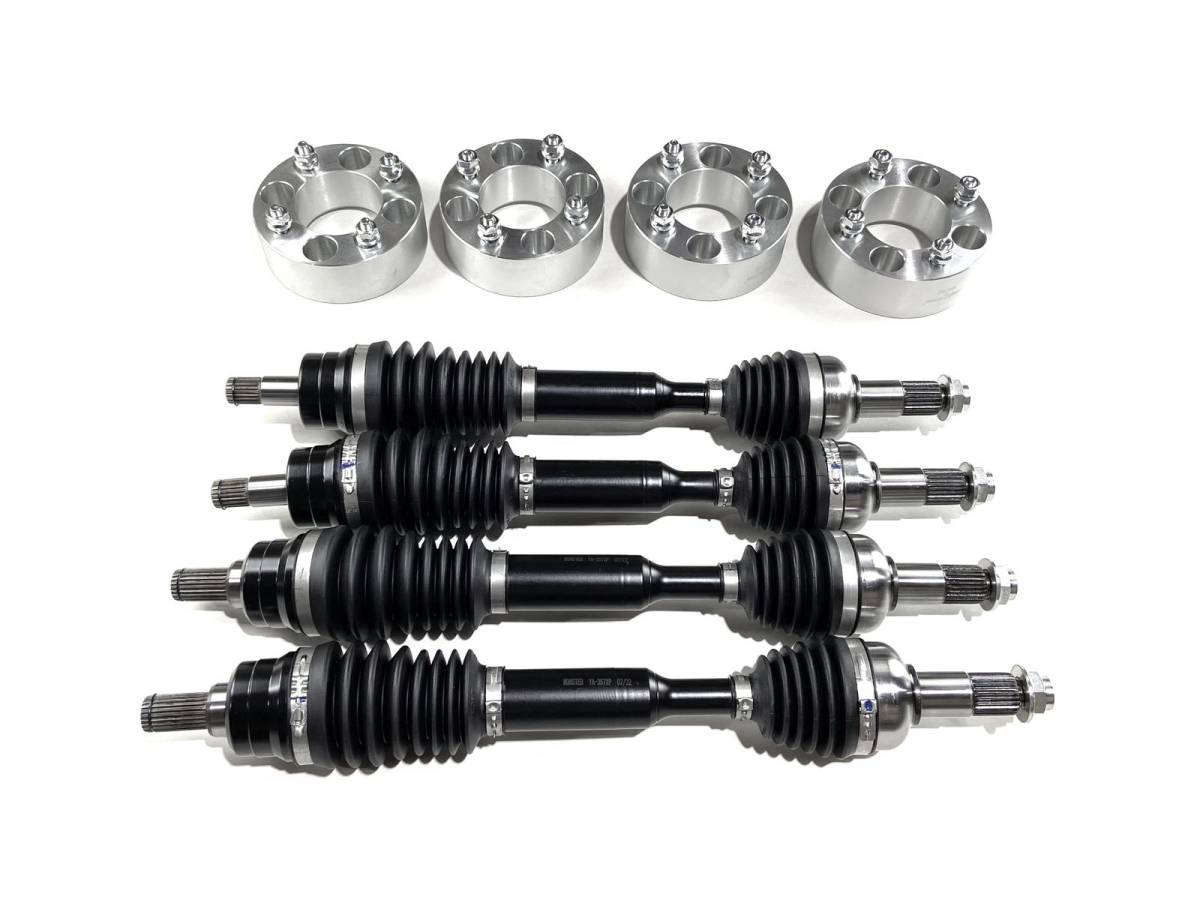

- Includes: Monster Axles™ XP Series axles (4), 2" High Lifter Wheel Spacers (4)

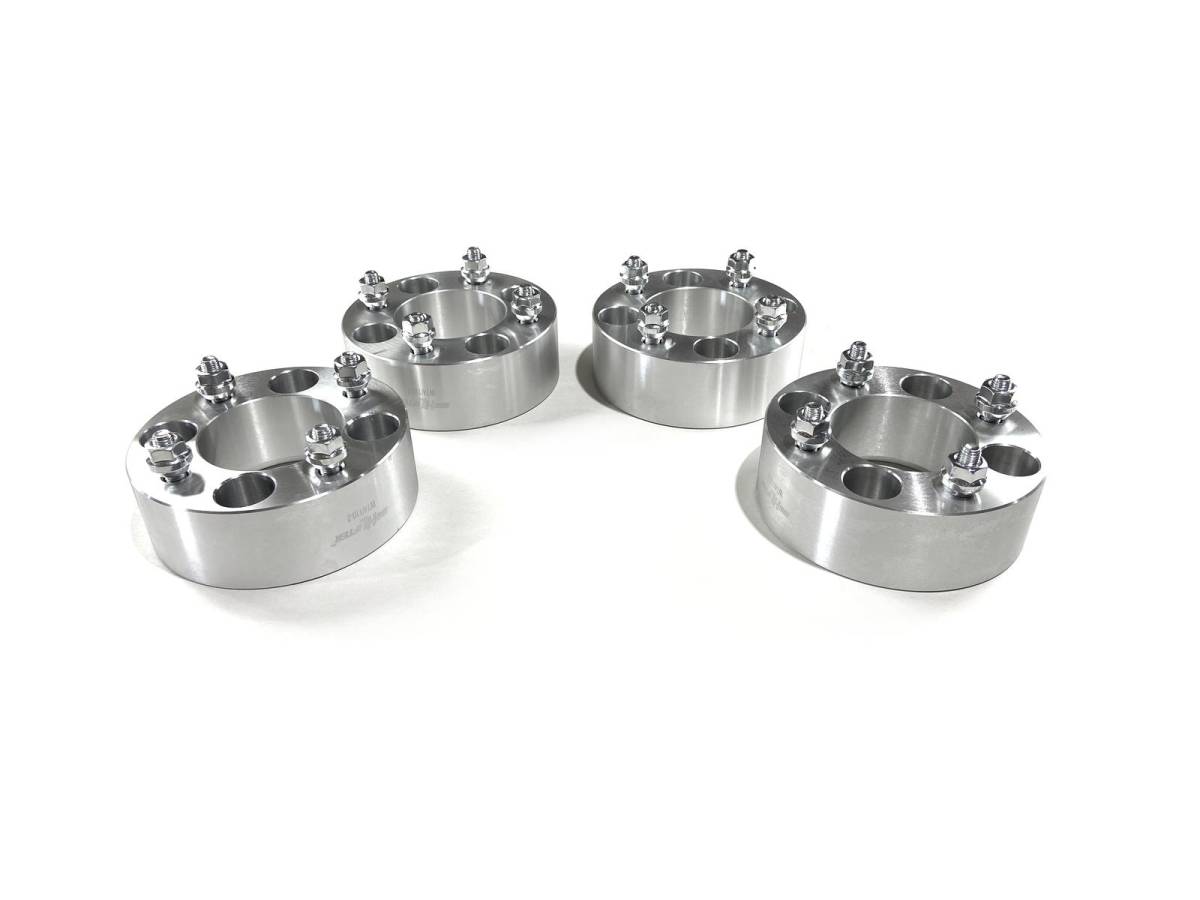

- Wheel spacers are machined from aircraft grade 6061 billet aluminum and use grade 8 studs
- No OEM studs are required to be removed from the ATV and stud extenders are not used
- Wheel spacers bolt to existing studs and the wheel is then bolted to the grade 8 wheel spacer stud furnished
- Compressed axle length: Fronts - 536 mm, Rears - 553 mm
- Inboard axle splines: Fronts - 21, Rears - 23, Outboard axle splines: Fronts - 27, Rears - 27

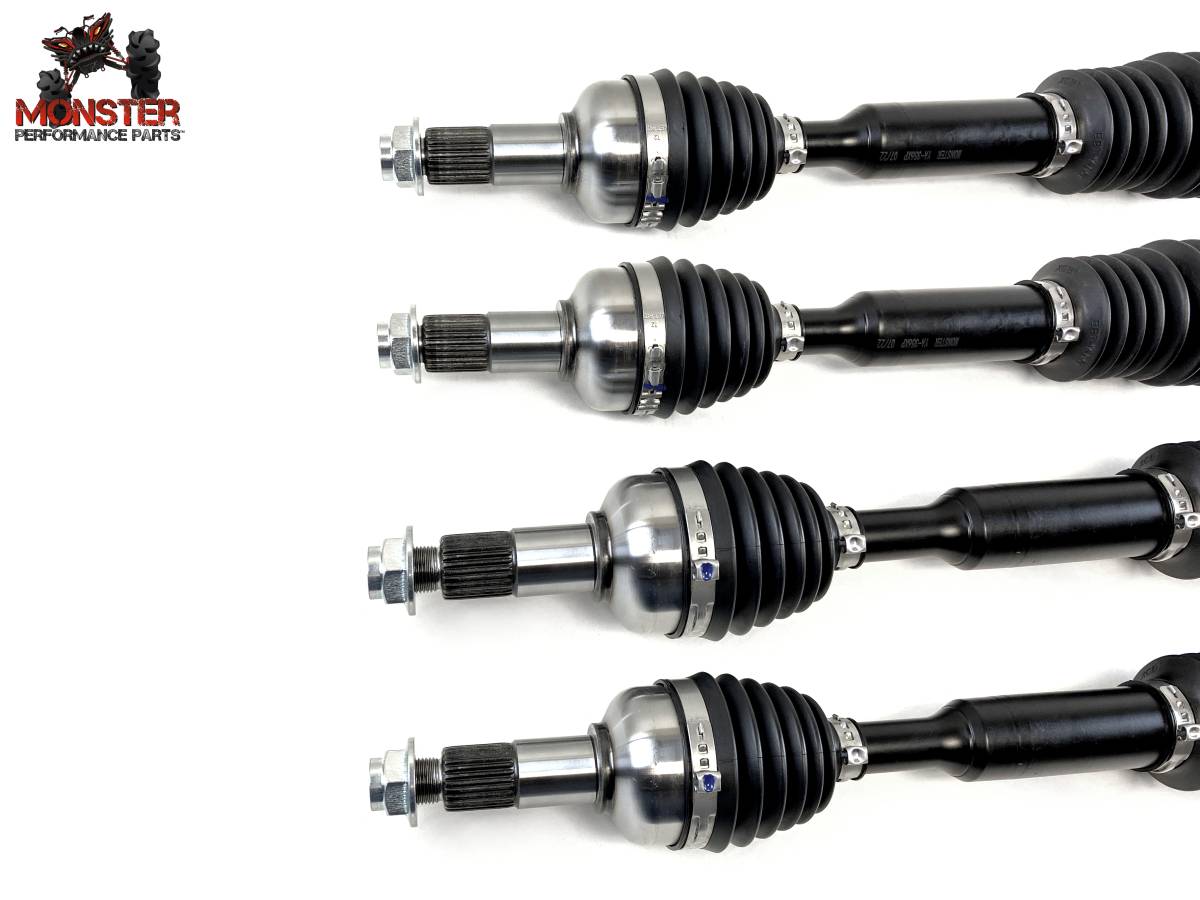

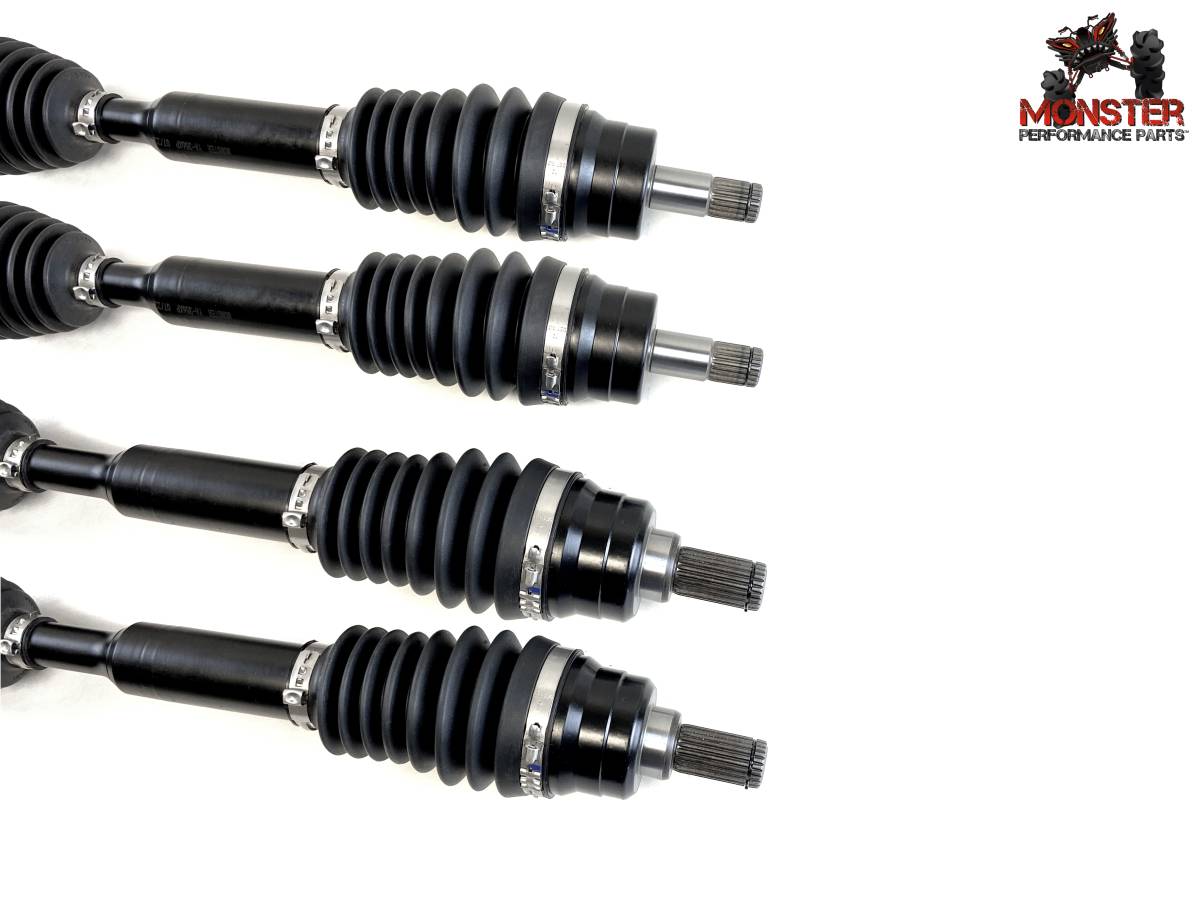

The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit. Bundled with these 2" wheel spacers, they provide even more support for handling bumpy trails, crawling over rocks, and a wider stance to help with stability through ruts.
Game changing design — Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.
More angle, more plunge — With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). Both joints are fitted with heavy duty boots are assembled on a revolutionary, telescoping 4340 chromoly steel shaft that provides an additional 60 mm of travel.
Serviceable in the field — Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need ship the whole axle back to us. And you can always contact us to inquire about replacement parts.
Wider stance, safer ride — You can increase your stability, improve handling, and get an aggressive look without having to worry about your CV joints buckling under the pressure. Plus the extra clearance will keep larger tires from rubbing on shocks, fenders, etc.
What's In The Box
|2022||Yamaha||Grizzly 700||YFM700 EPS XT-R|
|2022||Yamaha||Grizzly 700||YFM700P 4x4 FI EPS|
|2022||Yamaha||Grizzly 700||YFM700PSE 4x4 Special Edition FI EPS|
|2021||Yamaha||Grizzly 700||YFM700 EPS XT-R|
|2021||Yamaha||Grizzly 700||YFM700P 4x4 FI EPS|
|2021||Yamaha||Grizzly 700||YFM700PSE 4x4 Special Edition FI EPS|
|2020||Yamaha||Grizzly 700||YFM700 EPS XT-R|
|2020||Yamaha||Grizzly 700||YFM700P 4x4 FI EPS|
|2020||Yamaha||Grizzly 700||YFM700PSE 4x4 Special Edition FI EPS|
|2019||Yamaha||Grizzly 700||YFM700P 4x4 FI EPS|
|2019||Yamaha||Grizzly 700||YFM700PSE 4x4 Special Edition FI EPS|
|2018||Yamaha||Grizzly 700||YFM700P 4x4 FI EPS|
|2018||Yamaha||Grizzly 700||YFM700PLE 4x4 Limited Edition FI EPS|
|2018||Yamaha||Grizzly 700||YFM700PSE 4x4 Special Edition FI EPS|
|2017||Yamaha||Grizzly 700||YFM700P 4x4 FI EPS|
|2017||Yamaha||Grizzly 700||YFM700PLE 4x4 Limited Edition FI EPS|
|2017||Yamaha||Grizzly 700||YFM700PSE 4x4 Special Edition FI EPS|
|2016||Yamaha||Grizzly 700||YFM700D 4x4 FI|
|2016||Yamaha||Grizzly 700||YFM700P 4x4 FI EPS|
|2016||Yamaha||Grizzly 700||YFM700PLE 4x4 Limited Edition FI EPS|
|2016||Yamaha||Grizzly 700||YFM700PSE 4x4 Special Edition FI EPS|
- Item Requires Shipping
- 60.0 lbs.
- W16.0000” x H17.0000” x L25.0000”
- Free Ground Shipping
- Game Changing Axles with High Lifter 2" Wheel Spacers
