Monster Axles Full Set w/ Spacers for Yamaha Grizzly 550 700 & Kodiak 450 700

Location on vehicle: Front,Rear,Left,Right

MSET-201AS
This is a bundled set of Monster Axles™ XP Series axles with 2" High Lifter Wheel Spacers.

This set will fit these Yamaha ATVs:

2009-2014 Grizzly 550

2007-2013 Grizzly 700

2018-2019 Kodiak 450

2016-2021 Kodiak 700

Bundle features:

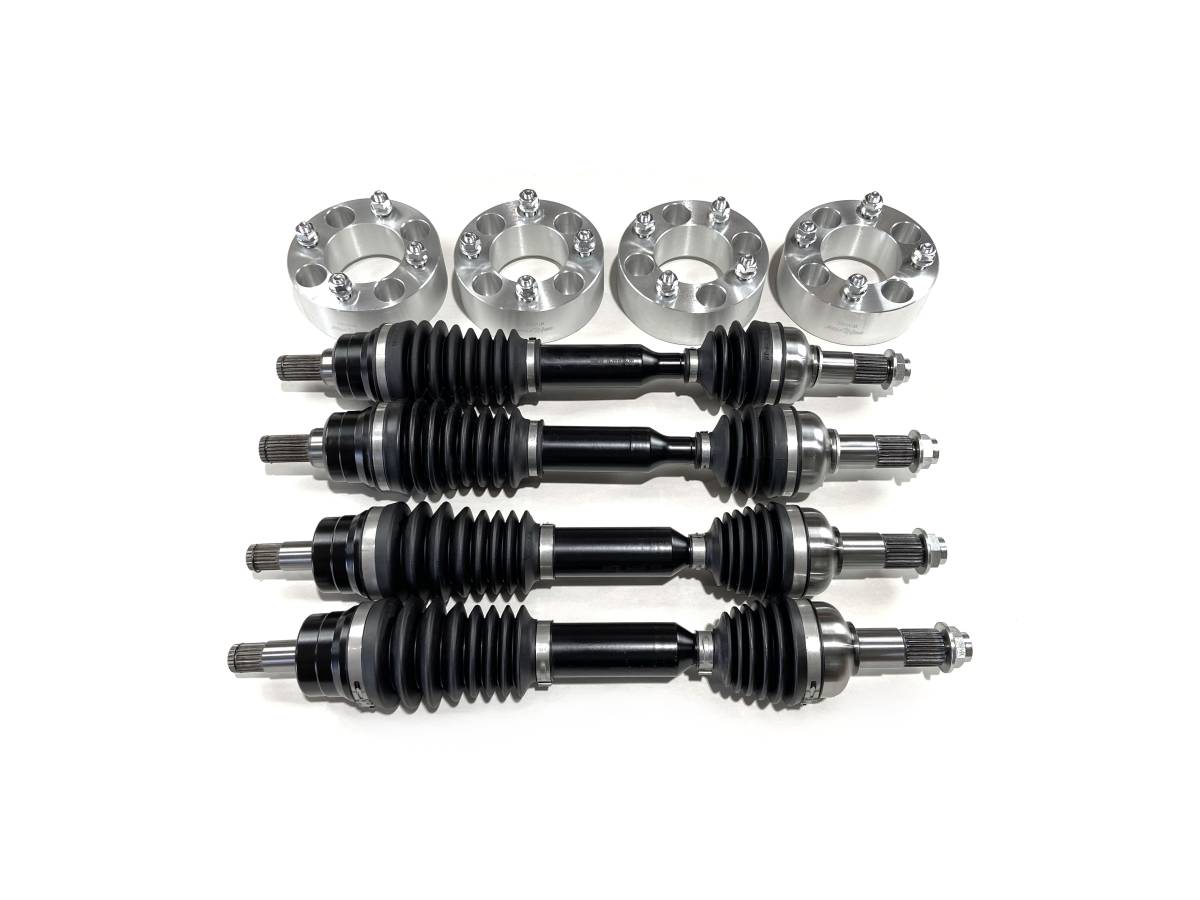

  • Includes: Monster Axles™ XP Series axles (4), 2" High Lifter Wheel Spacers (4)

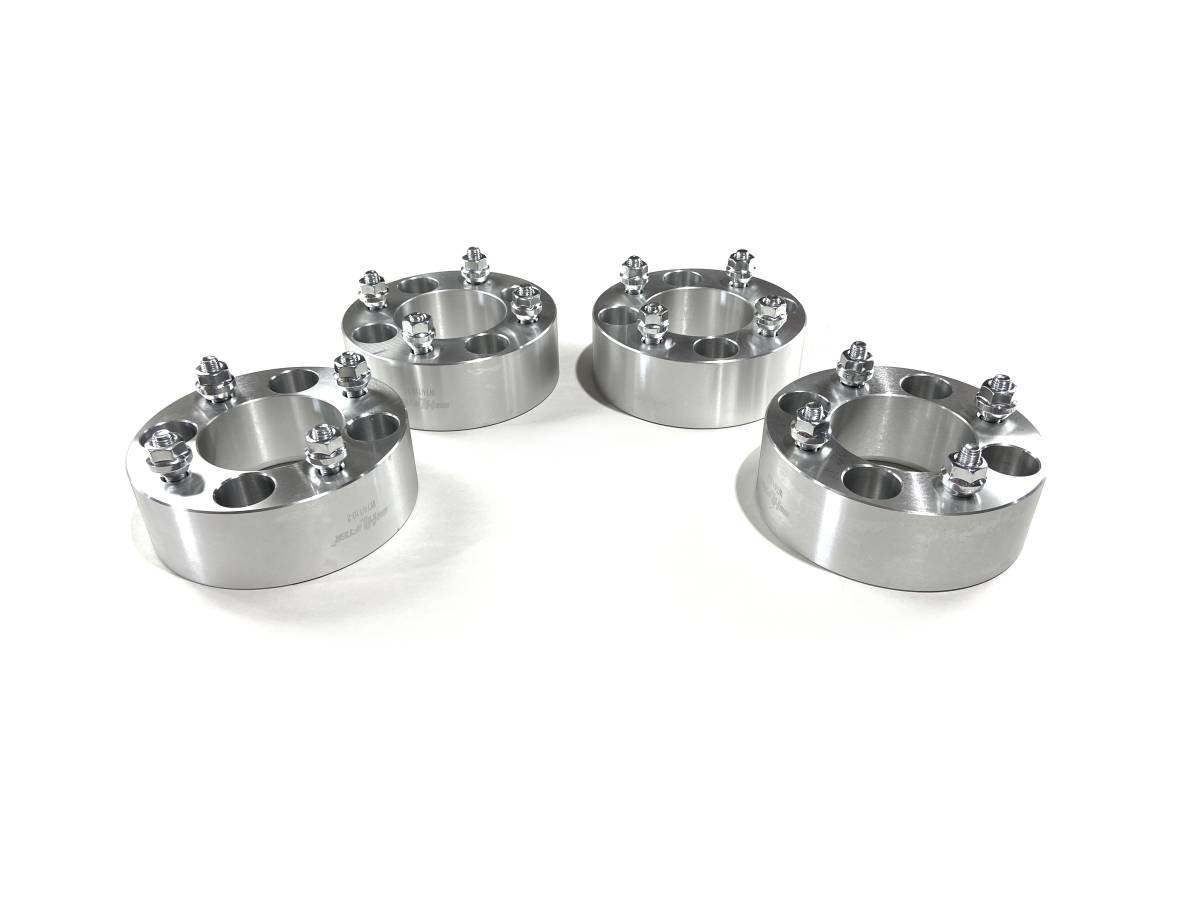

  • Wheel spacers are machined from aircraft grade 6061 billet aluminum and use grade 8 studs
  • No OEM studs are required to be removed from the ATV and stud extenders are not used
  • Wheel spacers bolt to existing studs and the wheel is then bolted to the grade 8 wheel spacer stud furnished
  • Compressed axle length: Fronts - 507 mm, Rears - 530 mm
  • Inboard axle splines: Fronts - 21, Rears - 23, Outboard axle splines: Fronts - 27, Rears - 27
MONSTER AXLES and High Lifter have teamed up to provide the best axle and wheel spacer set available for your Grizzly or Kodiak. More angle, more plunge, space for bigger tires, and backed by a combined 40+ years of industry experience.

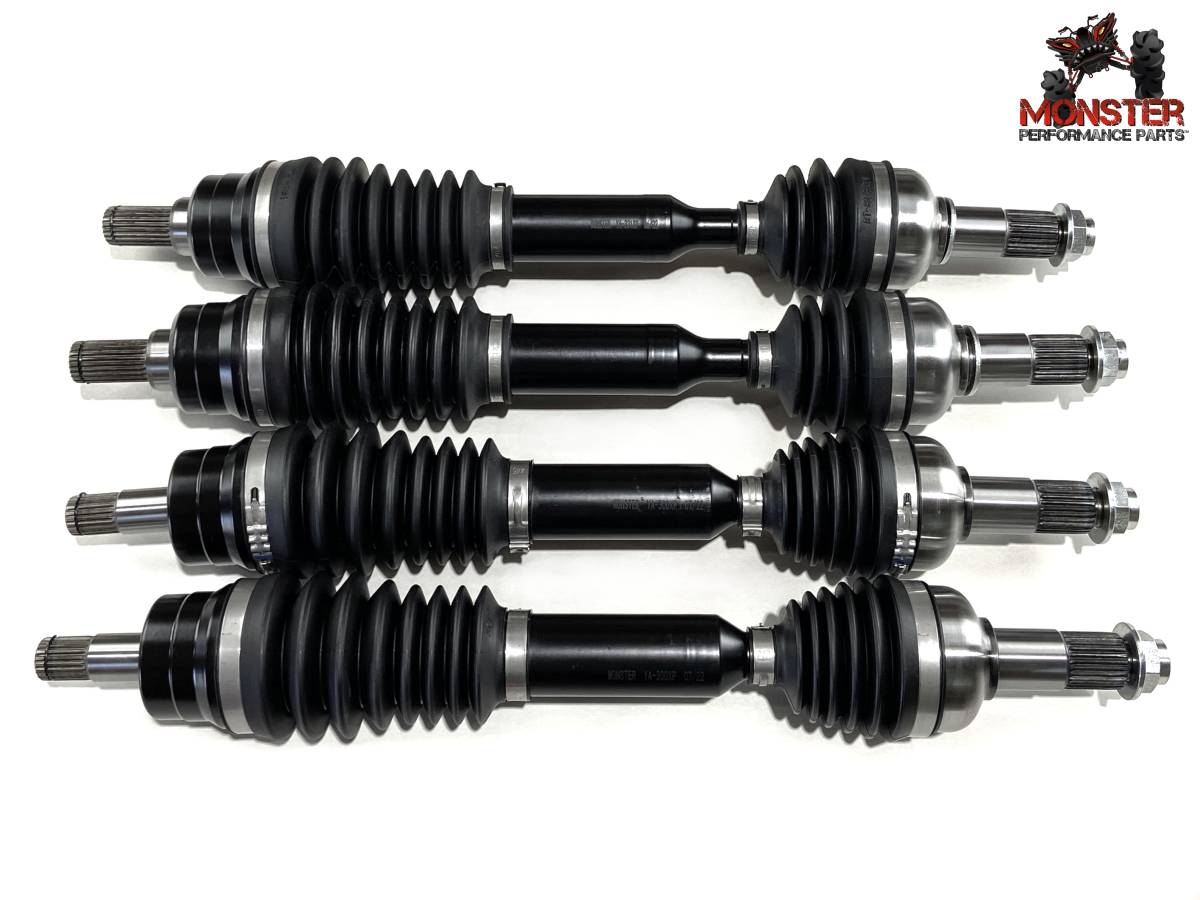

The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit. Bundled with these 2" wheel spacers, they provide even more support for handling bumpy trails, crawling over rocks, and a wider stance to help with stability through ruts.

Game changing design — Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge — With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). Both joints are fitted with heavy duty boots are assembled on a revolutionary, telescoping 4340 chromoly steel shaft that provides an additional 60 mm of travel.

Serviceable in the field — Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need ship the whole axle back to us. And you can always contact us to inquire about replacement parts.

Wider stance, safer ride — You can increase your stability, improve handling, and get an aggressive look without having to worry about your CV joints buckling under the pressure. Plus the extra clearance will keep larger tires from rubbing on shocks, fenders, etc.

Limited Supply: only 5 remaining
Shipping: Game Changing Axles with High Lifter 2" Wheel Spacers
Pricing: $849.99
Qty:
Free Ground Shipping

Warranty

Monster Warranty / High Lifter Warranty

Product Notes

  • Fits the following Yamaha ATVs: 2009-2014 Grizzly 550, 2007-2013 Grizzly 700, 2018-2019 Kodiak 450, & 2016-2021 Kodiak 700. Included with this set: XP Series Monster Axles (4), 2" High Lifter wheel spacers (4).
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length up to a 4" lift. Plus, the CV joint can be easily removed for service in the field without special tools.
  • Key to its performance - the plunge mechanism is moved from the inner joint to the shaft (a telescoping shaft providing 60 mm of travel). This eliminates issues that cause most joints to bind and break. And with its inner joint designed like an outer joint, you get a 45 degree angle of operation.
  • High Lifter's wheel spacers are machined from aircraft grade 6061 billet aluminum and use grade 8 studs. No OEM studs are required to be removed from the ATV. Wheel spacers bolt to existing studs and the wheel is then bolted on. This design is the strongest available to ATVs.
  • Wheel Spacers are a 4/110 bolt pattern. Compressed axle length: Fronts - 507, Rears - 530. Inner axle splines: Fronts - 21, Rears - 23. Outer axle splines: Fronts - 27, Rears - 27. Wheel Spacers backed by High Lifter Warranty. Axles backed by Monster Axle warranty.

  • What's In The Box

  • 4 axles, 4 wheel spacers
  • Product Videos

    Application List

    YearMakeModelSubmodelNotes
    2014YamahaGrizzly 550YFM550D 4x4 FI
    2014YamahaGrizzly 550YFM550DHH 4x4 Hunter Edition FI
    2014YamahaGrizzly 550YFM550P 4x4 FI EPS
    2014YamahaGrizzly 550YFM550PHH 4x4 Hunter Edition FI EPS
    2013YamahaGrizzly 550YFM550FG 4x4 FI
    2013YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2013YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2013YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2012YamahaGrizzly 550YFM550FG 4x4 FI
    2012YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2012YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2012YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2011YamahaGrizzly 550YFM550FG 4x4 FI
    2011YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2011YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2011YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2010YamahaGrizzly 550YFM550FG 4x4 FI
    2010YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2010YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2010YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2009YamahaGrizzly 550YFM550FG 4x4 FI
    2009YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2009YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2009YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2009YamahaGrizzly 550YFM550FGPSE 4x4 Special Edition FI EPS
    2013YamahaGrizzly 700YFM700FG 4x4 FI
    2013YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2013YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2013YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2013YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2012YamahaGrizzly 700YFM700FG 4x4 FI
    2012YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2012YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2012YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2012YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2011YamahaGrizzly 700YFM700FG 4x4 FI
    2011YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2011YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2011YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2011YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2010YamahaGrizzly 700YFM700FG 4x4 FI
    2010YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2010YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2010YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2010YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2009YamahaGrizzly 700YFM700FG 4x4 FI
    2009YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2009YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2009YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI EPS
    2009YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2009YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2008YamahaGrizzly 700YFM700FG 4x4 FI
    2008YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2008YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI
    2008YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI
    2007YamahaGrizzly 700YFM700FG 4x4 Exploring Edition FI
    2007YamahaGrizzly 700YFM700FGP 4x4 FI
    2007YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2007YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI
    2007YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI
    2007YamahaGrizzly 700YFM700FGPOH 4x4 Outdoorsman Edition FI
    2007YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI
    2019YamahaKodiak 450YFM450 4x4 Auto
    2019YamahaKodiak 450YFM450 4x4 Auto EPS
    2019YamahaKodiak 450YFM450 4x4 Auto EPS SE
    2018YamahaKodiak 450YFM450 4x4 Auto
    2018YamahaKodiak 450YFM450 4x4 Auto EPS
    2021YamahaKodiak 700YFM700K 4x4 FI
    2021YamahaKodiak 700YFM700KP 4x4 FI EPS
    2021YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
    2020YamahaKodiak 700YFM700K 4x4 FI
    2020YamahaKodiak 700YFM700KP 4x4 FI EPS
    2020YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
    2019YamahaKodiak 700YFM700K 4x4 FI
    2019YamahaKodiak 700YFM700KP 4x4 FI EPS
    2019YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
    2018YamahaKodiak 700YFM700K 4x4 FI
    2018YamahaKodiak 700YFM700KP 4x4 FI EPS
    2018YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
    2017YamahaKodiak 700YFM700K 4x4 FI
    2017YamahaKodiak 700YFM700KP 4x4 FI EPS
    2017YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
    2016YamahaKodiak 700KYFM700K 4x4 FI
    2016YamahaKodiak 700KYFM700KP 4x4 FI EPS
    2016YamahaKodiak 700KYFM700KPSE 4x4 Special Edition FI EPS

    Details

    • MSET-201AS
    • MSET-201AS
    • MONSTER AXLES
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 60.0 lbs.
    • W10.0000” x H15.0000” x L24.0000”
    • Free Ground Shipping
    • Game Changing Axles with High Lifter 2" Wheel Spacers
