Rear Axles & Bearings for Can-Am XMR Outlander & Renegade, 705503024, 705503025

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
CA-309/CA-310/WB-1516/WB-1516

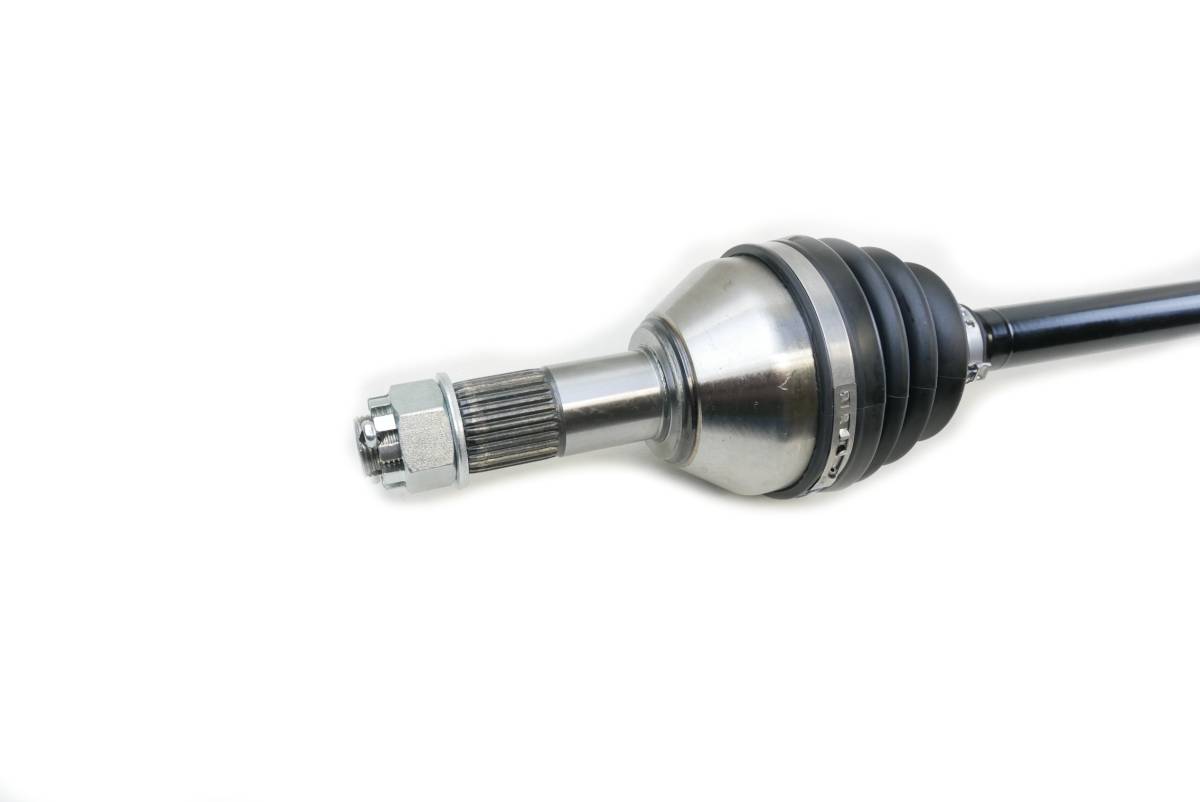

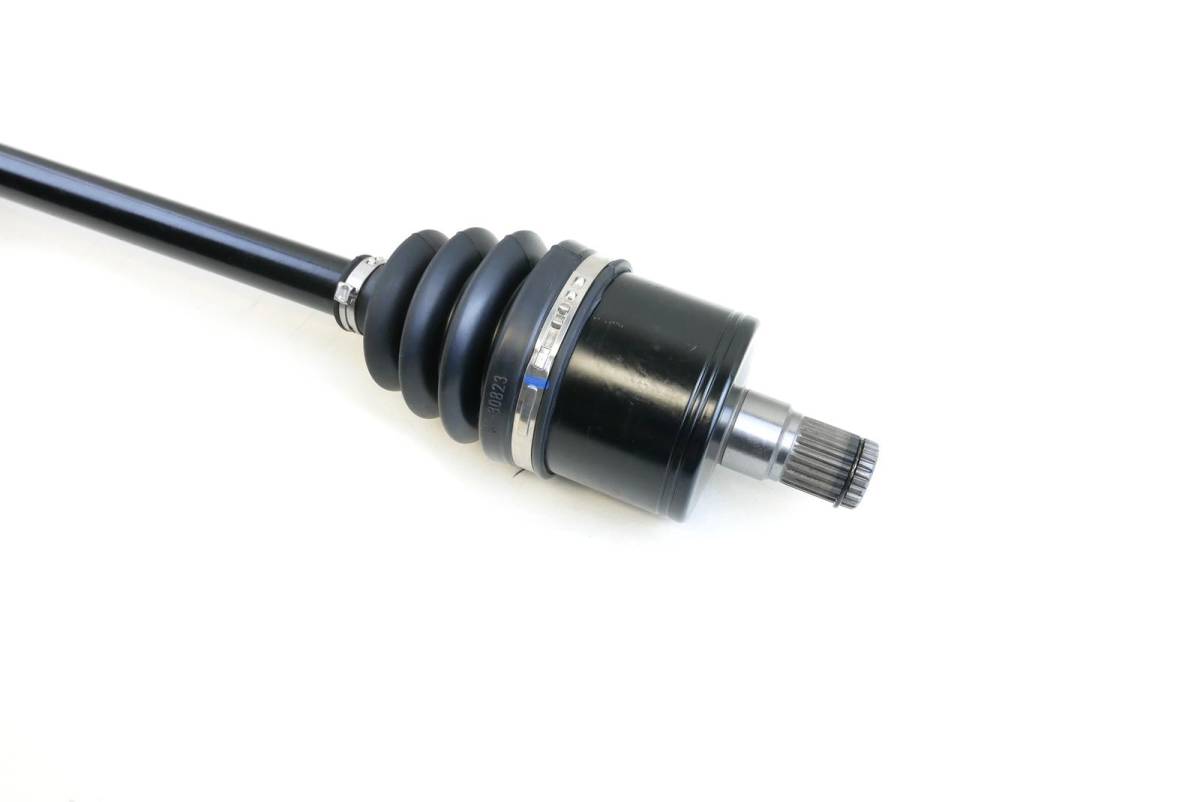

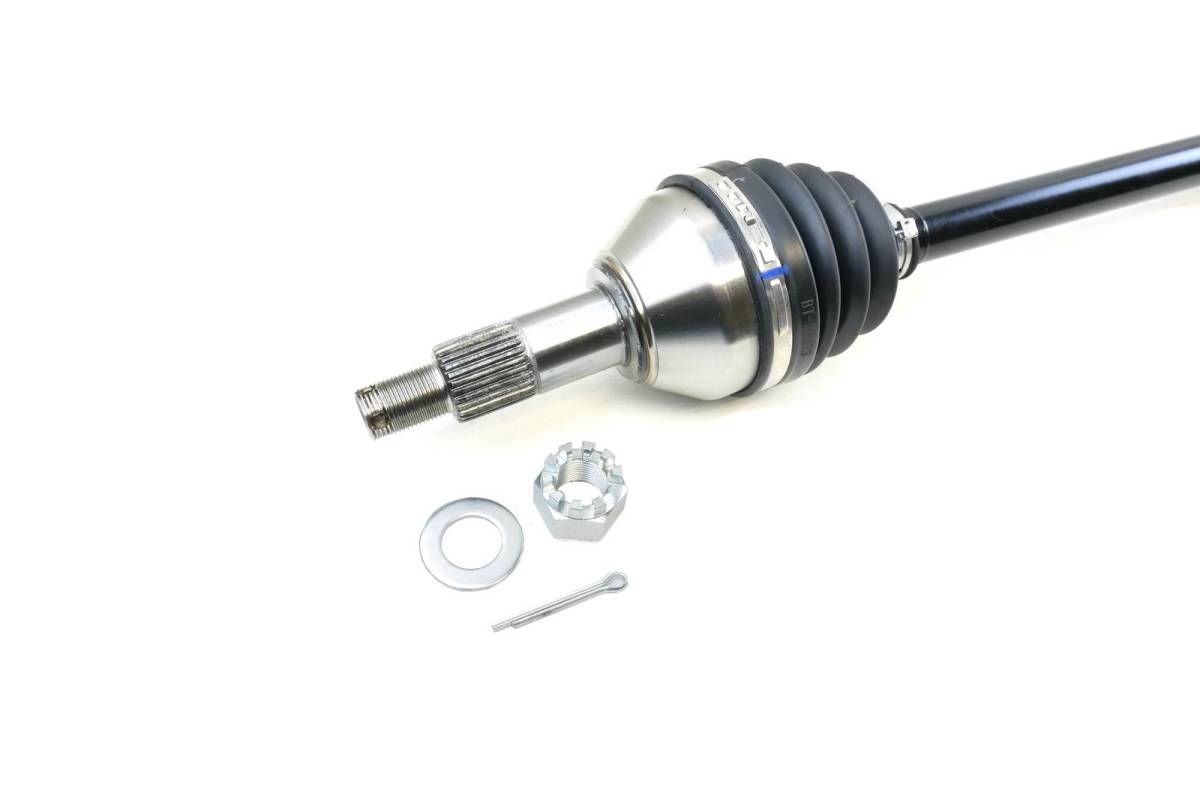

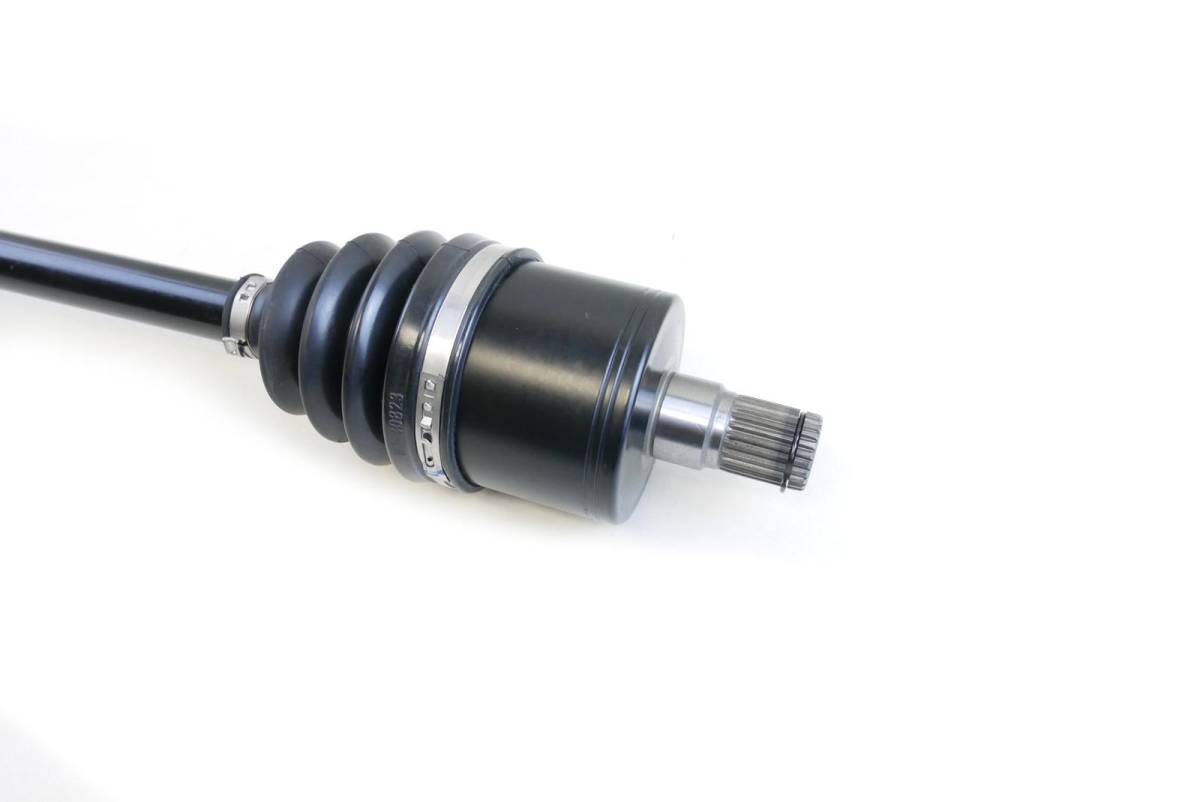

This is a set of new CV axles with bearings for a Can-Am XMR (mud racer) ATV.

They fit rear, left & right on the following models:

2019-2023 ... Outlander XMR 650

2019-2023 ... Outlander XMR 850

2019-2023 ... Outlander XMR 1000

2020-2021 ... Renegade XMR 570

2020-2023 ... Renegade XMR 1000

*Made as OE an replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • inobard CV joint spline count: 24 (both)
  • outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: left - 574, right - 535 mm
  • Replaces OEM # (left) 705503025, 705502712, (right) 705503024, 705502713
  • Replaces OEM # (bearings) 293350040, 705400088, 293350118
Limited Supply: only 7 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $179.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022Can-AmOutlander 6504x4 XMR DPS
2021Can-AmOutlander 6504x4 XMR DPS
2020Can-AmOutlander 6504x4 XMR DPS
2019Can-AmOutlander 6504x4 XMR DPS
2023Can-AmOutlander 8504x4 XMR DPS
2022Can-AmOutlander 8504x4 XMR DPS
2021Can-AmOutlander 8504x4 XMR DPS
2020Can-AmOutlander 8504x4 XMR DPS
2019Can-AmOutlander 8504x4 XMR DPS
2023Can-AmOutlander 1000R4x4 XMR DPS
2022Can-AmOutlander 1000R4x4 XMR DPS
2021Can-AmOutlander 1000R4x4 XMR DPS
2020Can-AmOutlander 1000R4x4 XMR DPS
2019Can-AmOutlander 1000R4x4 XMR DPS
2021Can-AmRenegade 5704x4 XMR DPS
2020Can-AmRenegade 5704x4 XMR DPS
2023Can-AmRenegade 1000R4x4 XMR DPS
2022Can-AmRenegade 1000R4x4 XMR DPS
2021Can-AmRenegade 1000R4x4 XMR DPS
2020Can-AmRenegade 1000R4x4 XMR DPS

Product Notes

  • Fits rear, left & right on the following Can-Am XMR models: 2019-2023 Outlander XMR 650, 2019-2023 Outlander XMR 850, 2019-2023 Outlander XMR 1000, 2020-2021 Renegade XMR 570, 2020-2023 Renegade XMR 1000.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed length: left - 574 mm, right 535 mm, Inner splines: 24 (both), Outer splines: 26 (both). Replaces OEM # (left) 705503025, 705502712, (right) 705503024, 705502713.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

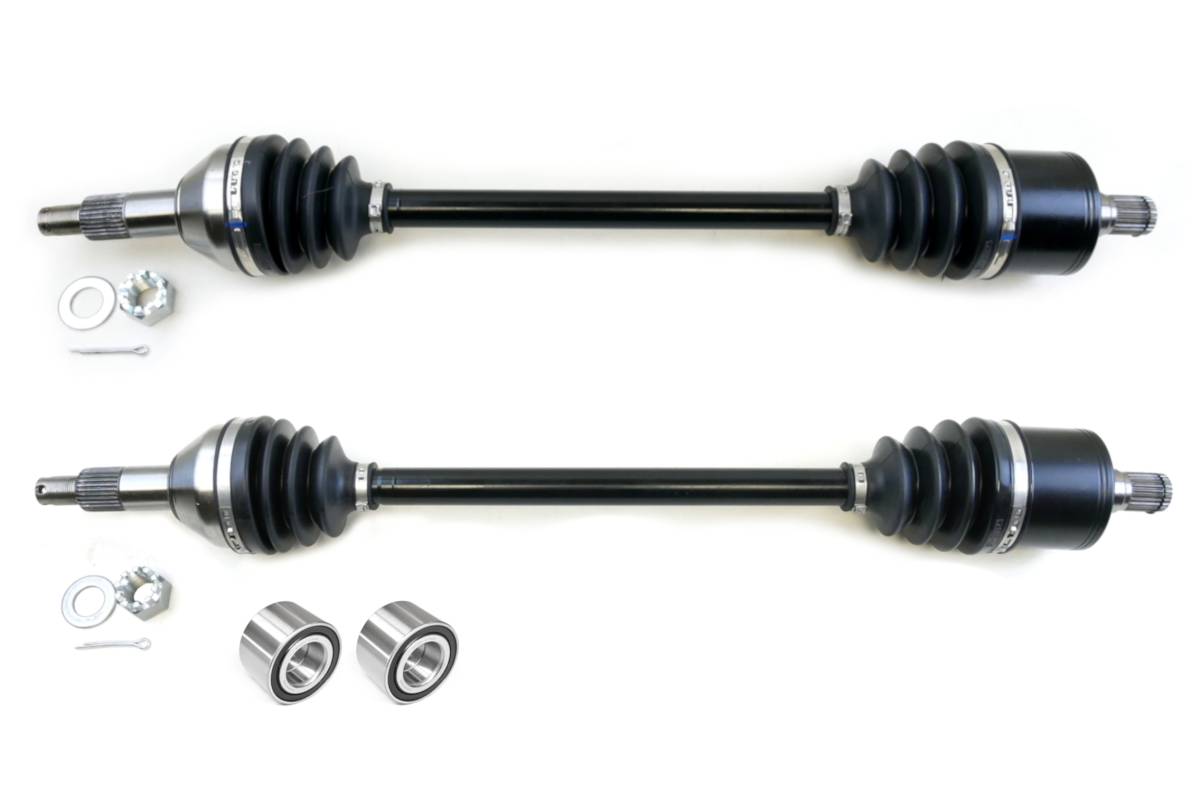

    • What's In The Box

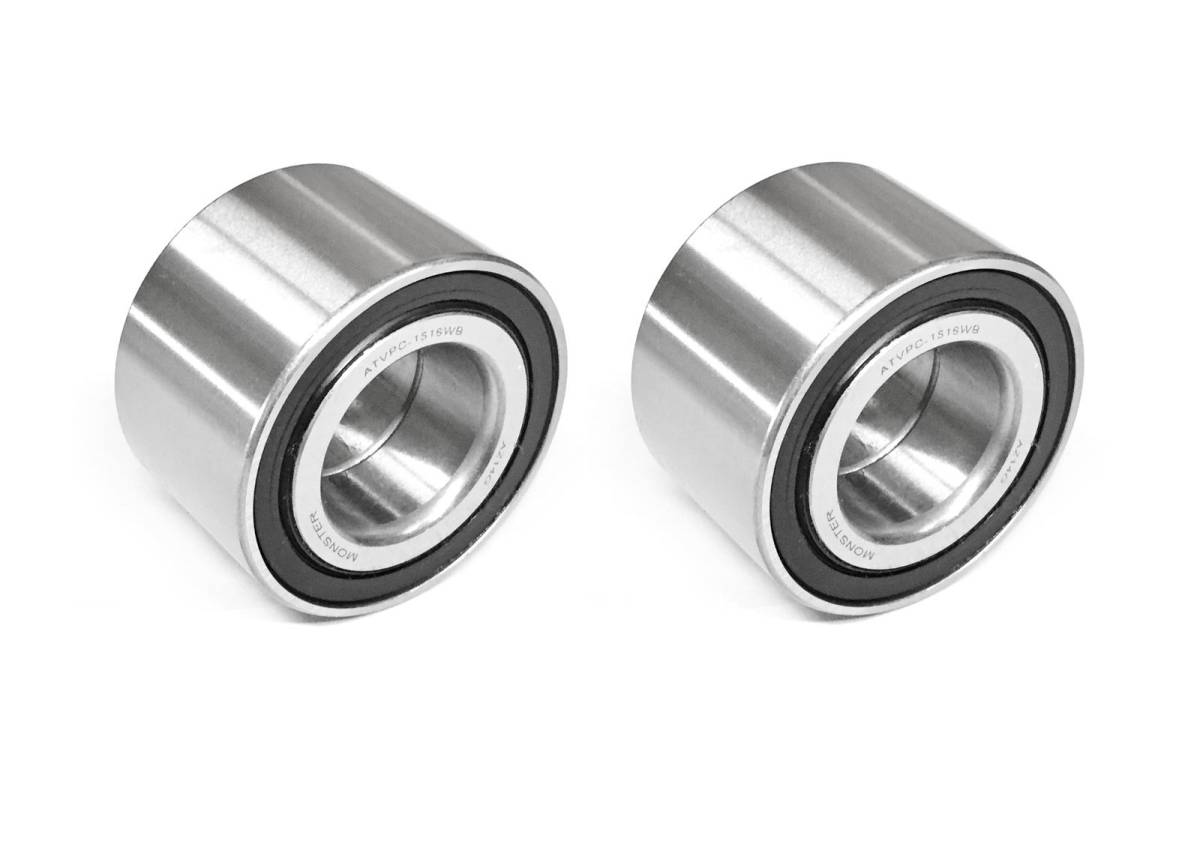

  • 2 axles, 2 wheel bearings

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-309/CA-310/WB-1516/WB-1516
    • CA-309/CA-310/WB-1516/WB-1516
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 30.9 lbs.
    • W12.0000” x H6.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
