Rear CV Axle Pair for Can-Am XMR Outlander & Renegade ATV, 705503024, 705503025

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
CA-309/CA-310

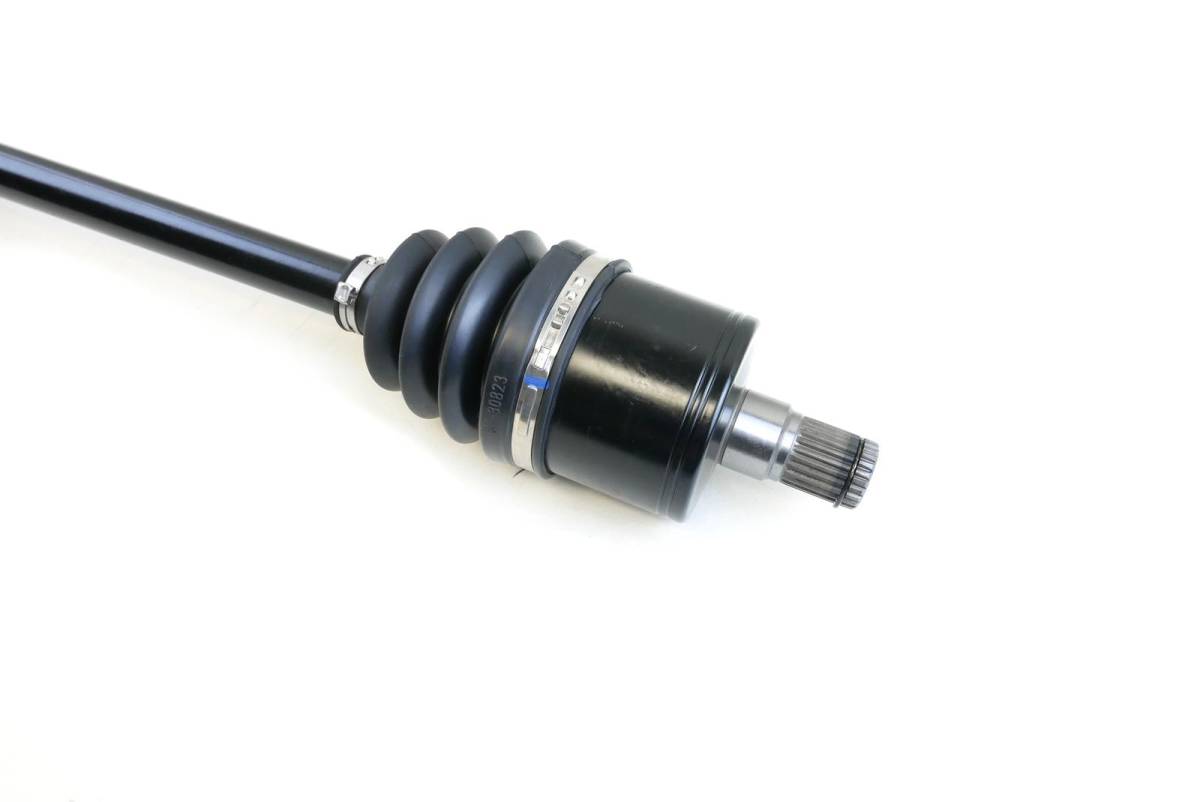

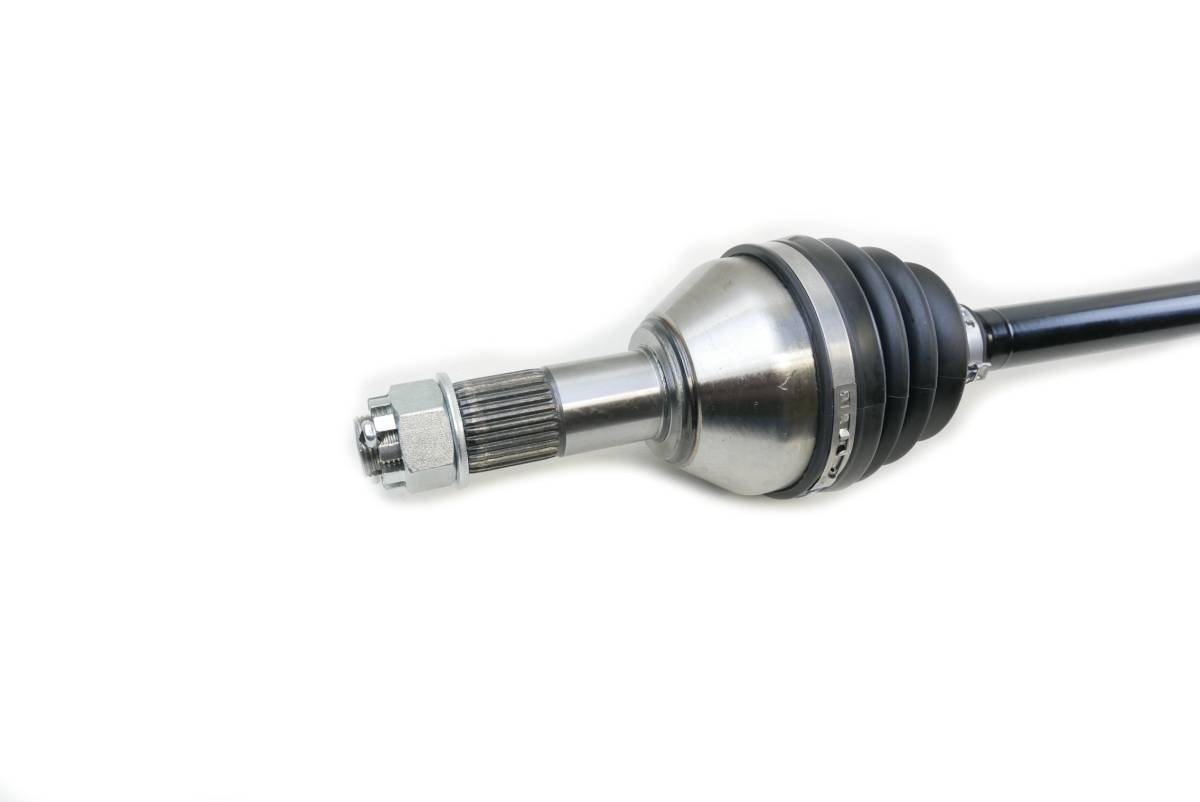

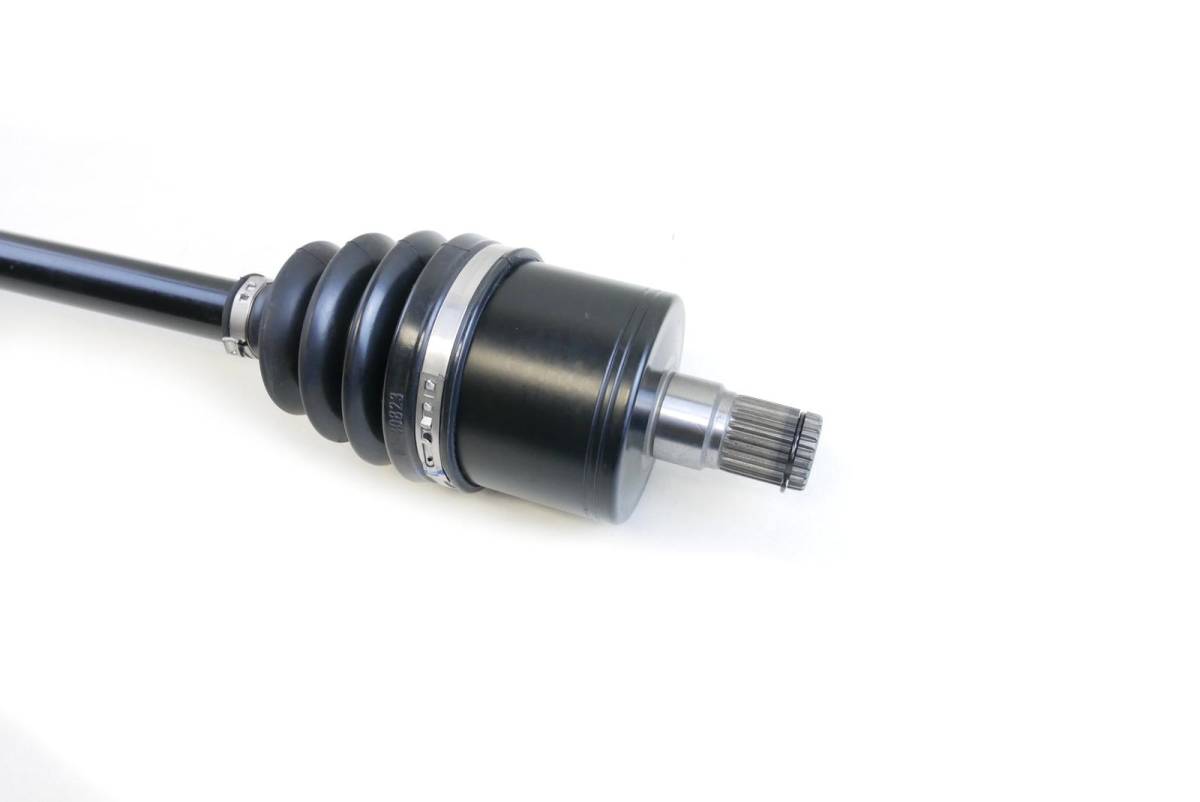

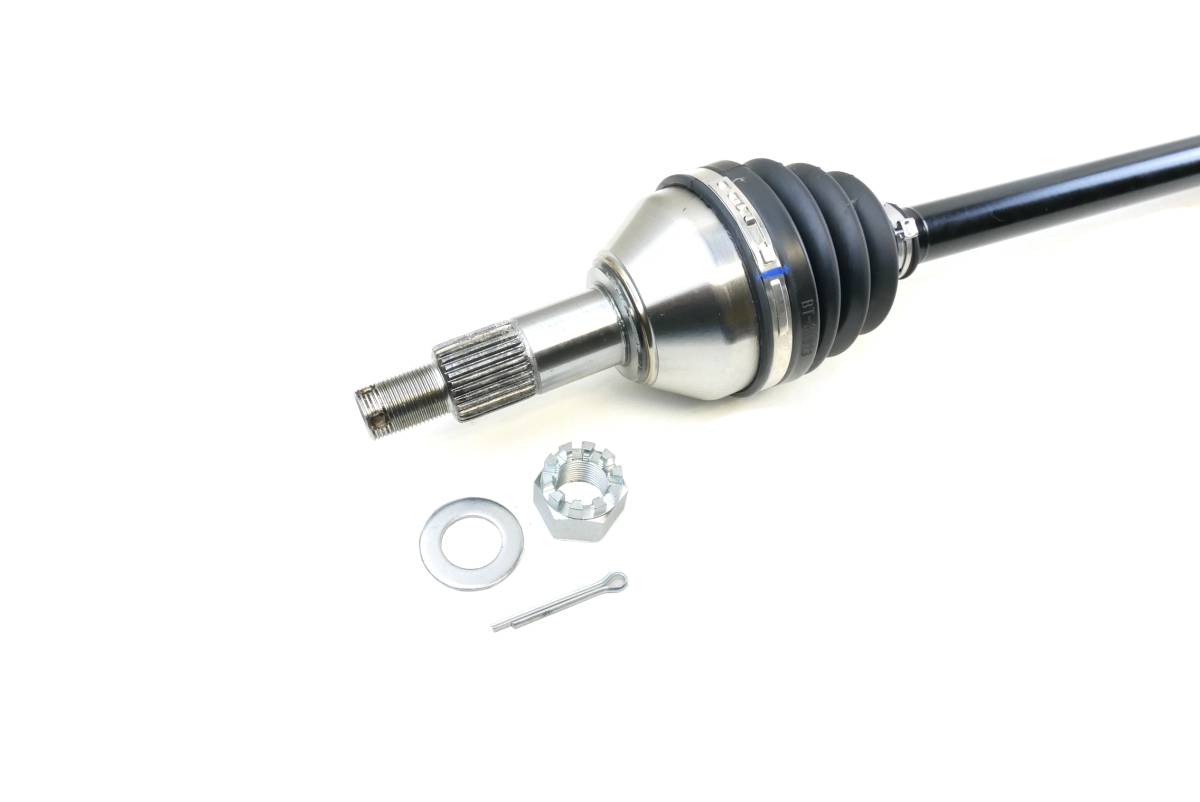

This is a pair of new CV axles for a Can-Am XMR ATV.

They fit REAR, LEFT & RIGHT on the following models:

2019-2023 ... Outlander XMR 650

2019-2023 ... Outlander XMR 850

2019-2023 ... Outlander XMR 1000

2020-2021 ... Renegade XMR 570

2020-2023 ... Renegade XMR 1000

*Made as OE an replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: Left - 574, Right - 535 mm
  • Replaces OEM # (left) 705503025, 705502712, (right) 705503024, 705502713
Limited Supply: only 9 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022Can-AmOutlander 6504x4 XMR DPS
2021Can-AmOutlander 6504x4 XMR DPS
2020Can-AmOutlander 6504x4 XMR DPS
2019Can-AmOutlander 6504x4 XMR DPS
2023Can-AmOutlander 8504x4 XMR DPS
2022Can-AmOutlander 8504x4 XMR DPS
2021Can-AmOutlander 8504x4 XMR DPS
2020Can-AmOutlander 8504x4 XMR DPS
2019Can-AmOutlander 8504x4 XMR DPS
2023Can-AmOutlander 1000R4x4 XMR DPS
2022Can-AmOutlander 1000R4x4 XMR DPS
2021Can-AmOutlander 1000R4x4 XMR DPS
2020Can-AmOutlander 1000R4x4 XMR DPS
2019Can-AmOutlander 1000R4x4 XMR DPS
2021Can-AmRenegade 5704x4 XMR DPS
2020Can-AmRenegade 5704x4 XMR DPS
2023Can-AmRenegade 1000R4x4 XMR DPS
2022Can-AmRenegade 1000R4x4 XMR DPS
2021Can-AmRenegade 1000R4x4 XMR DPS
2020Can-AmRenegade 1000R4x4 XMR DPS

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Can-Am XMR models: 2019-2023 Outlander XMR 650, 2019-2023 Outlander XMR 850, 2019-2023 Outlander XMR 1000, 2020-2021 Renegade XMR 570, 2020-2023 Renegade XMR 1000.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

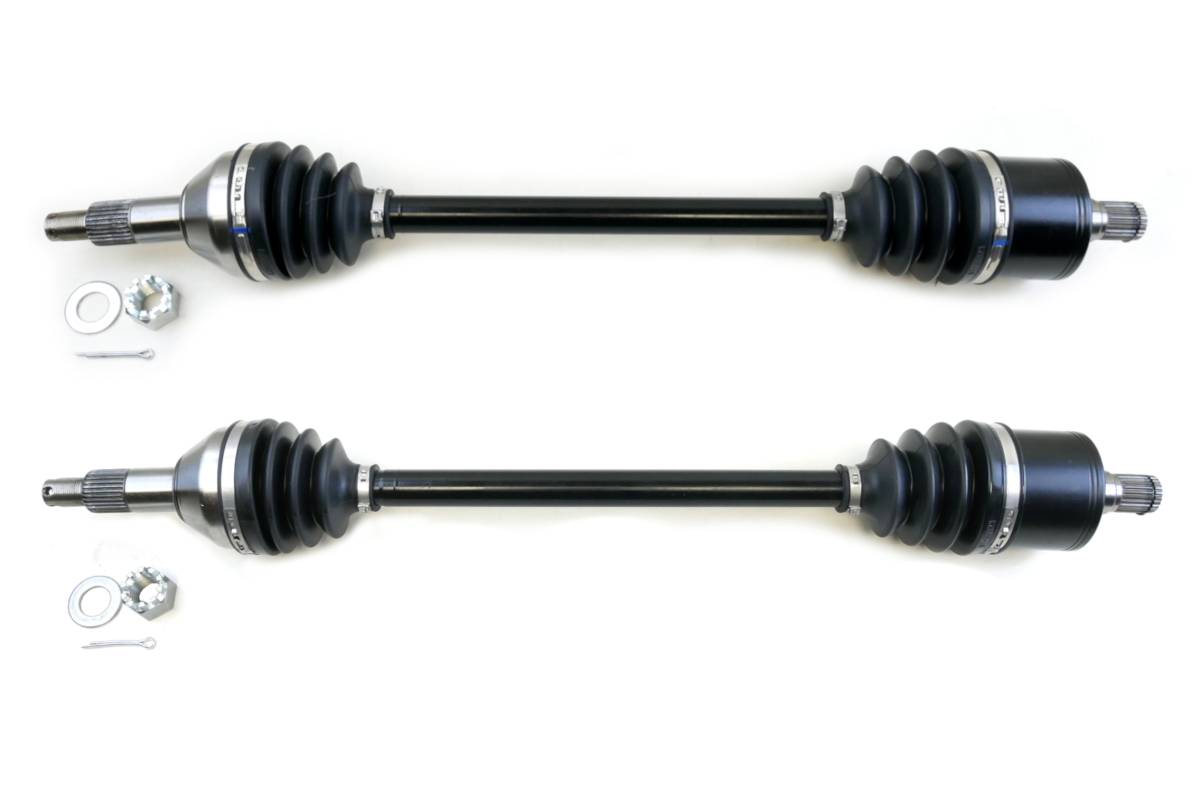

  • Set includes 2 CV axles. Compressed Length: Left - 574 mm, Right 535 mm, Inner Splines: 24 (both), Outer Splines: 26 (both).
  • Replaces OEM # (left) 705503025, 705502712, (right) 705503024, 705502713.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-309/CA-310
    • CA-309/CA-310
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 28.9 lbs.
    • W12.0000” x H6.0000” x L32.0000”
