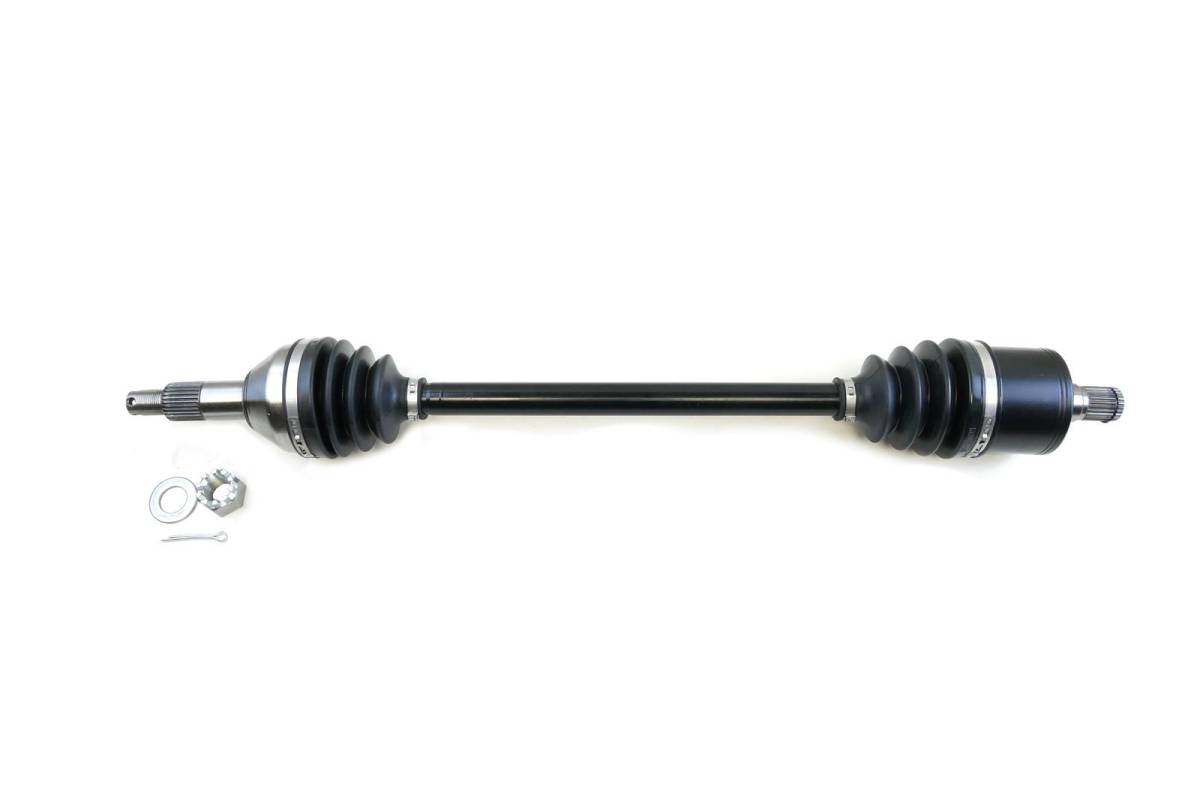

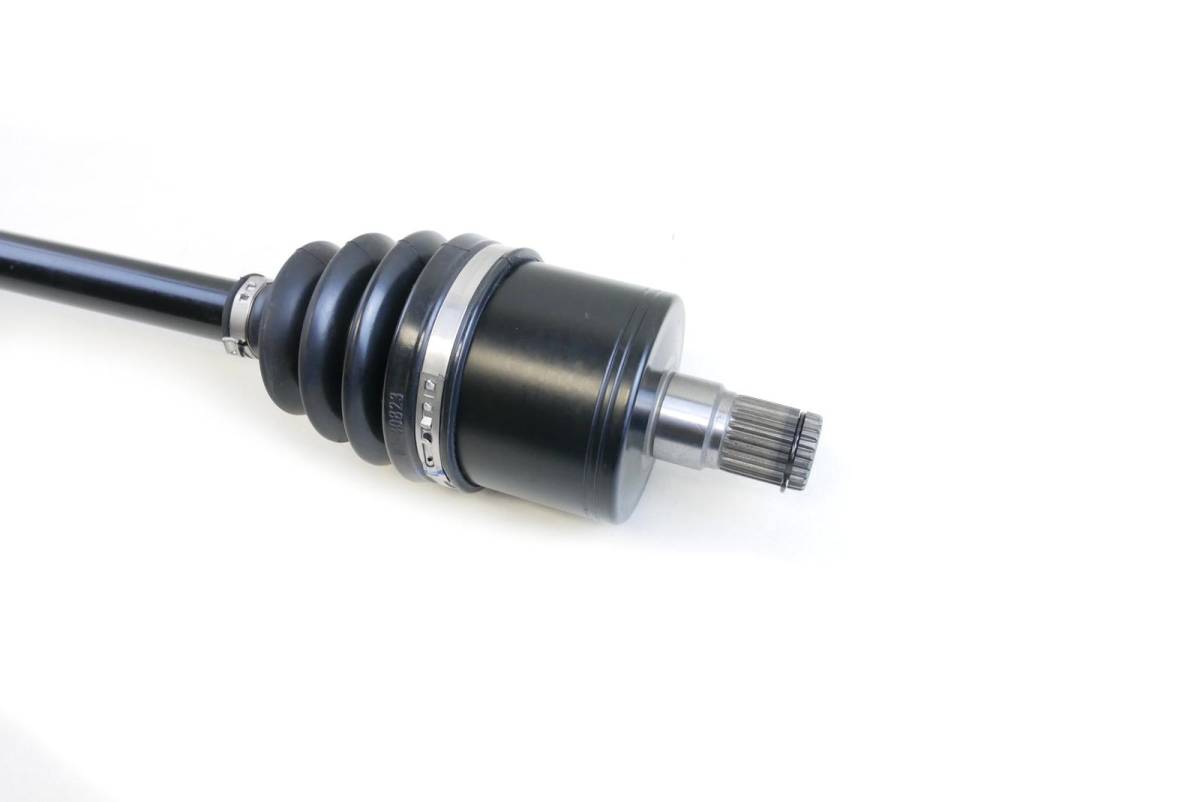

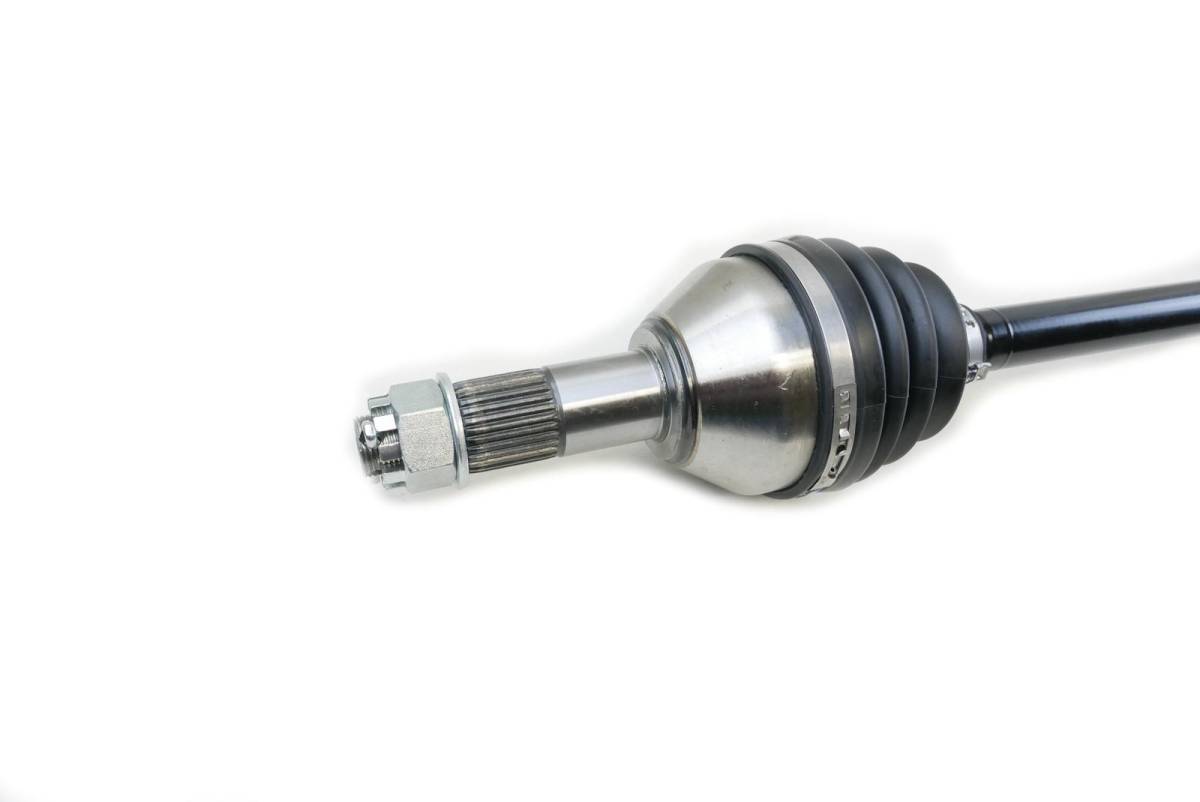

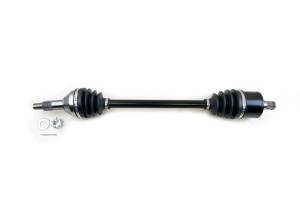

Rear Right CV Axle for Can-Am XMR Outlander & Renegade ATV, 705503024

Location on vehicle: Rear,Right

CA-309
This is a new CV axle for a Can-Am XMR ATV.

It fits REAR, RIGHT (passenger side) on the following models

2019-2023 ... Outlander XMR 650

2019-2023 ... Outlander XMR 850

2019-2023 ... Outlander XMR 1000

2020-2021 ... Renegade XMR 570

2020-2023 ... Renegade XMR 1000

*Made as OE an replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 24
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 535 mm
  • Replaces OEM # 705503024, 705502713
Not Available
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $92.99

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, RIGHT (passenger side) on the following Can-Am XMR (purpose built mud racer) models: 2019-2023 Outlander XMR 650, 2019-2023 Outlander XMR 850, 2019-2023 Outlander XMR 1000, 2020-2021 Renegade XMR 570, 2020-2023 Renegade XMR 1000.
  • Features a stronger than OEM, 4340 Chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # 705503024, 705502713. Compressed Length: 535 mm, Inner Splines: 24, Outer Splines: 26.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2022Can-AmOutlander 6504x4 XMR DPS
    2021Can-AmOutlander 6504x4 XMR DPS
    2020Can-AmOutlander 6504x4 XMR DPS
    2019Can-AmOutlander 6504x4 XMR DPS
    2023Can-AmOutlander 8504x4 XMR DPS
    2022Can-AmOutlander 8504x4 XMR DPS
    2021Can-AmOutlander 8504x4 XMR DPS
    2020Can-AmOutlander 8504x4 XMR DPS
    2019Can-AmOutlander 8504x4 XMR DPS
    2023Can-AmOutlander 1000R4x4 XMR DPS
    2022Can-AmOutlander 1000R4x4 XMR DPS
    2021Can-AmOutlander 1000R4x4 XMR DPS
    2020Can-AmOutlander 1000R4x4 XMR DPS
    2019Can-AmOutlander 1000R4x4 XMR DPS
    2021Can-AmRenegade 5704x4 XMR DPS
    2020Can-AmRenegade 5704x4 XMR DPS
    2023Can-AmRenegade 1000R4x4 XMR DPS
    2022Can-AmRenegade 1000R4x4 XMR DPS
    2021Can-AmRenegade 1000R4x4 XMR DPS
    2020Can-AmRenegade 1000R4x4 XMR DPS

    Details

    • CA-309
    • CA-309
    • ATV Parts Connection
    • Temporarily Not Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 14.3 lbs.
    • W6.0000” x H6.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
