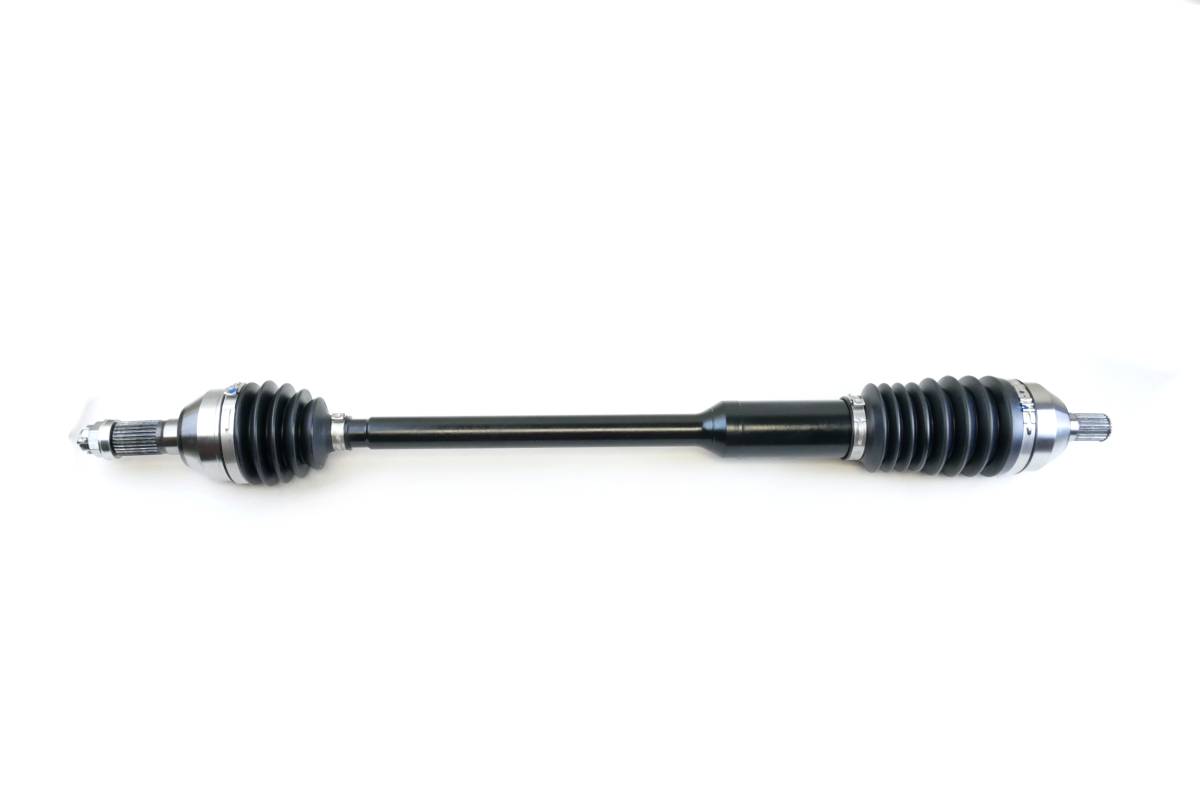

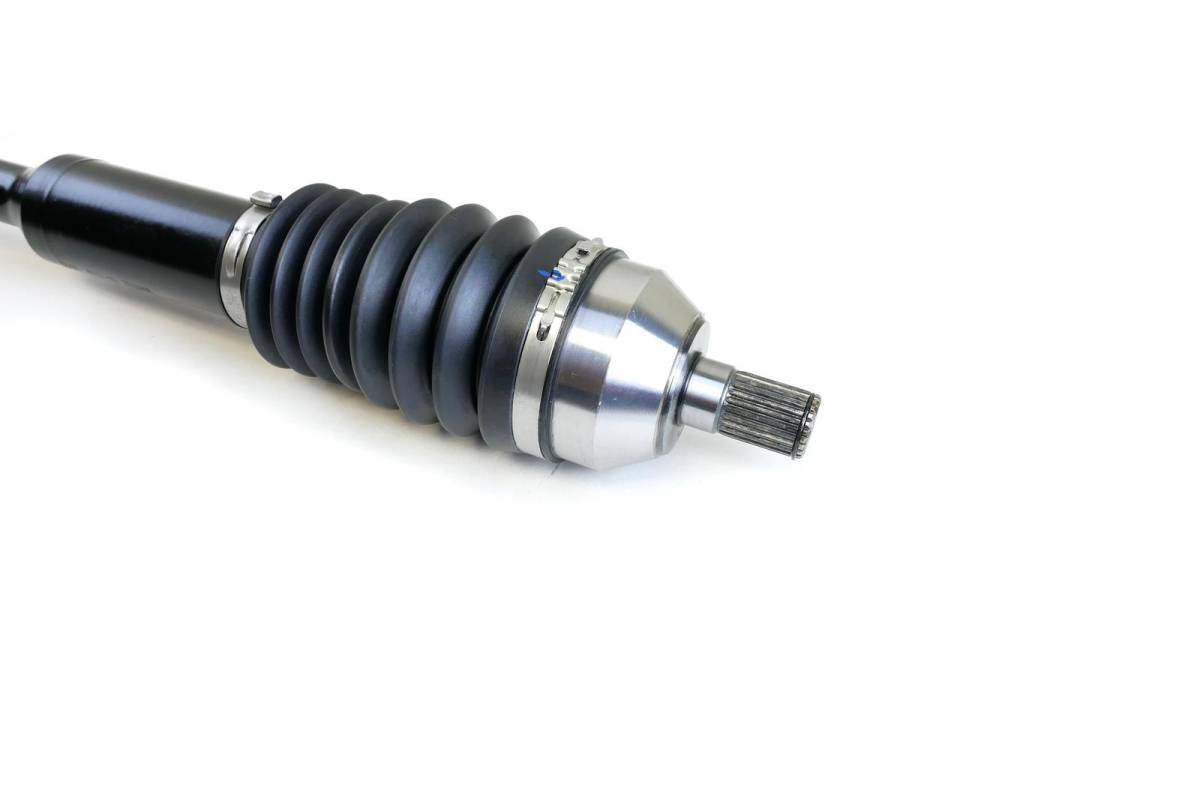

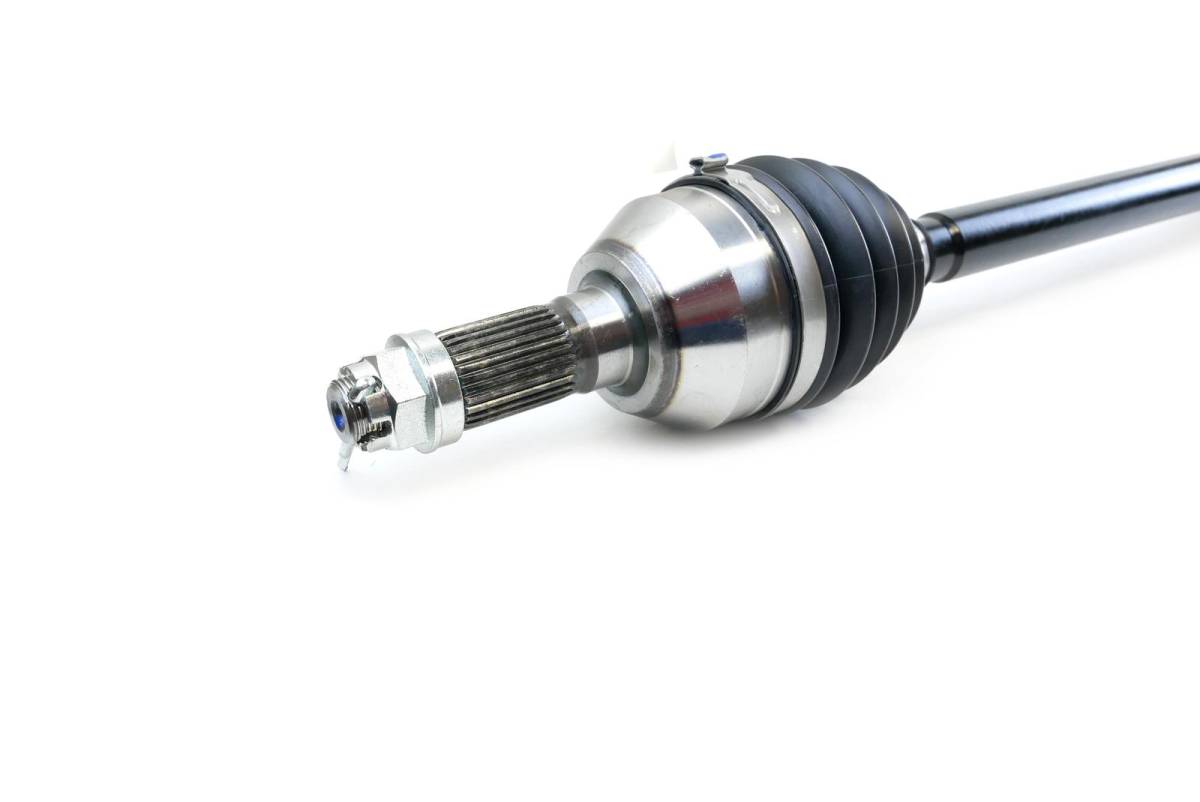

Monster Axles Front CV Axle for Can-Am Maverick X3 72" 705402048, XP Series

Location on vehicle: Front,Left,Right

CA-127XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Limited Supply: only 7 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $179.95
Qty:
Free Ground Shipping

Warranty

1 year, one-time repair/ replace. Buyer pays shipping.

Product Notes

  • Fits FRONT, LEFT or RIGHT on the following Can-Am Maverick X3 72" models: 2018-2019 Turbo R: XRC, XMR, XRS (with Smart Lok), 2022 Turbo RR RS, 2019 MAX Turbo R XRS, 2020-2022 Turbo RR/MAX Turbo RR: XRC, XMR, XRS. Please note this will only fit 72" models.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # 705402048. Compressed axle length: 845.5 mm, Inboard spline count: 24, Outboard spline count: 29. Comes with a 1 year warranty (excluding torn boots).

  • What's In The Box

  • 1 axle
  • Product Videos

    Application List

    YearMakeModelSubmodelNotes
    2019Can-AmMaverick X3 Max R4x4 XRS Turbo DPS
    2022Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
    2022Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
    2021Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
    2021Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
    2020Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
    2020Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
    2019Can-AmMaverick X3 R4x4 XMR Turbo DPS
    2019Can-AmMaverick X3 R4x4 XRC Turbo DPS
    2019Can-AmMaverick X3 R4x4 XRS Turbo DPS
    2018Can-AmMaverick X3 R4x4 XMR Turbo DPS
    2018Can-AmMaverick X3 R4x4 XRC Turbo DPS
    2018Can-AmMaverick X3 R4x4 XRS Turbo DPSmodels with Smart Lok
    2022Can-AmMaverick X3 RR4x4 RS Turbo DPS
    2022Can-AmMaverick X3 RR4x4 XMR Turbo DPS 72
    2022Can-AmMaverick X3 RR4x4 XRC Turbo DPS 72
    2021Can-AmMaverick X3 RR4x4 XMR Turbo DPS
    2021Can-AmMaverick X3 RR4x4 XRC Turbo DPS
    2021Can-AmMaverick X3 RR4x4 XRS Turbo DPS
    2020Can-AmMaverick X3 RR4x4 XMR Turbo DPS
    2020Can-AmMaverick X3 RR4x4 XRC Turbo DPS
    2020Can-AmMaverick X3 RR4x4 XRS Turbo DPS

    Details

    • CA-127XP
    • CA-127XP
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 19.0 lbs.
    • W5.0000” x H5.0000” x L42.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
