Front Left CV Axle with Bearing for Can-Am Commander 800 1000 Max 2017-2020

Location on vehicle: Front,Left

(0) Reviews: Write first review
CA-131/WB-1516

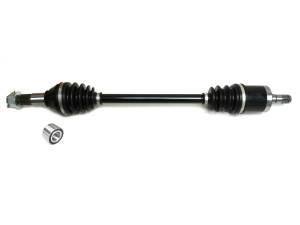

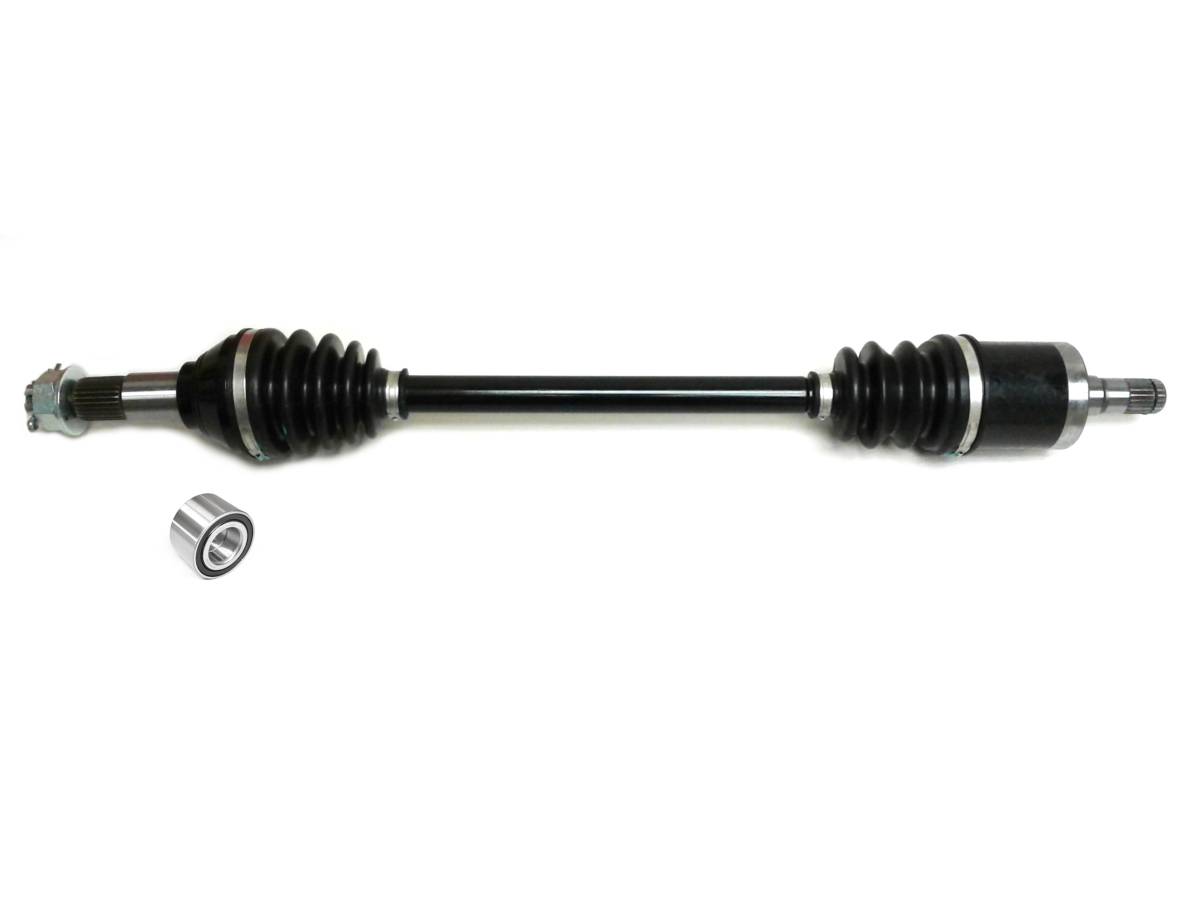

This is a new front, left CV axle & wheel bearing for a Can-Am UTV.

They fit the following 4x4 applications:

2017-2020 ... Commander 800 / Max 800

2017-2020 ... Commander 1000 / Max 1000

front, left / Driver's Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • inobard CV joint spline count: 21
  • outboard CV joint spline count: 26
  • Compressed overall axle length: 649.5 mm
  • Replaces Can-Am OEM # (axle) 705401871, 705400953, 705401105, (bearing) 293350118, 293350040
Limited Supply: only 9 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $88.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2017Can-AmCommander 10004x4 DPS
2017Can-AmCommander 10004x4 Limited DPS
2017Can-AmCommander 10004x4 Mossy Oak Hunting Edition DPS
2017Can-AmCommander 10004x4 XT DPS
2017Can-AmCommander 10004x4 XT-P DPS
2019Can-AmCommander 1000R4x4 DPS
2019Can-AmCommander 1000R4x4 Limited DPS
2019Can-AmCommander 1000R4x4 XT DPS
2018Can-AmCommander 1000R4x4 DPS
2018Can-AmCommander 1000R4x4 Limited DPS
2018Can-AmCommander 1000R4x4 Mossy Oak Hunting Edition DPS
2018Can-AmCommander 1000R4x4 XT DPS
2019Can-AmCommander 800R4X4
2019Can-AmCommander 800R4x4 DPS
2019Can-AmCommander 800R4x4 XT DPS
2018Can-AmCommander 800R4X4
2018Can-AmCommander 800R4x4 DPS
2018Can-AmCommander 800R4x4 XT DPS
2017Can-AmCommander 800R4X4
2017Can-AmCommander 800R4x4 DPS
2017Can-AmCommander 800R4x4 XT DPS
2017Can-AmCommander Max 10004x4 DPS
2017Can-AmCommander Max 10004x4 Limited DPS
2017Can-AmCommander Max 10004x4 XT DPS
2019Can-AmCommander Max 1000R4x4 Limited DPS
2019Can-AmCommander Max 1000R4x4 XT DPS
2018Can-AmCommander Max 1000R4x4 DPS
2018Can-AmCommander Max 1000R4x4 Limited DPS
2018Can-AmCommander Max 1000R4x4 XT DPS
2019Can-AmCommander Max 800R4x4 DPS
2018Can-AmCommander Max 800R4x4 DPS
2017Can-AmCommander Max 800R4x4 DPS

Product Notes

  • Fits front left (driver side) on the following Can-Am UTV models: 2017-2020 Commander 800/MAX 800, 2017-2020 Commander 1000/MAX 1000.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearing is usually shipped inside the axle box.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axle) 705401871, 705400953, 705401105, (bearing) 293350118, 293350040. Inboard spline count: 21, Outboard spline count: 26, Compressed axle length: 649.5 mm.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle & 1 wheel bearing

    • Warranty

    1 year factory defect limited warranty
