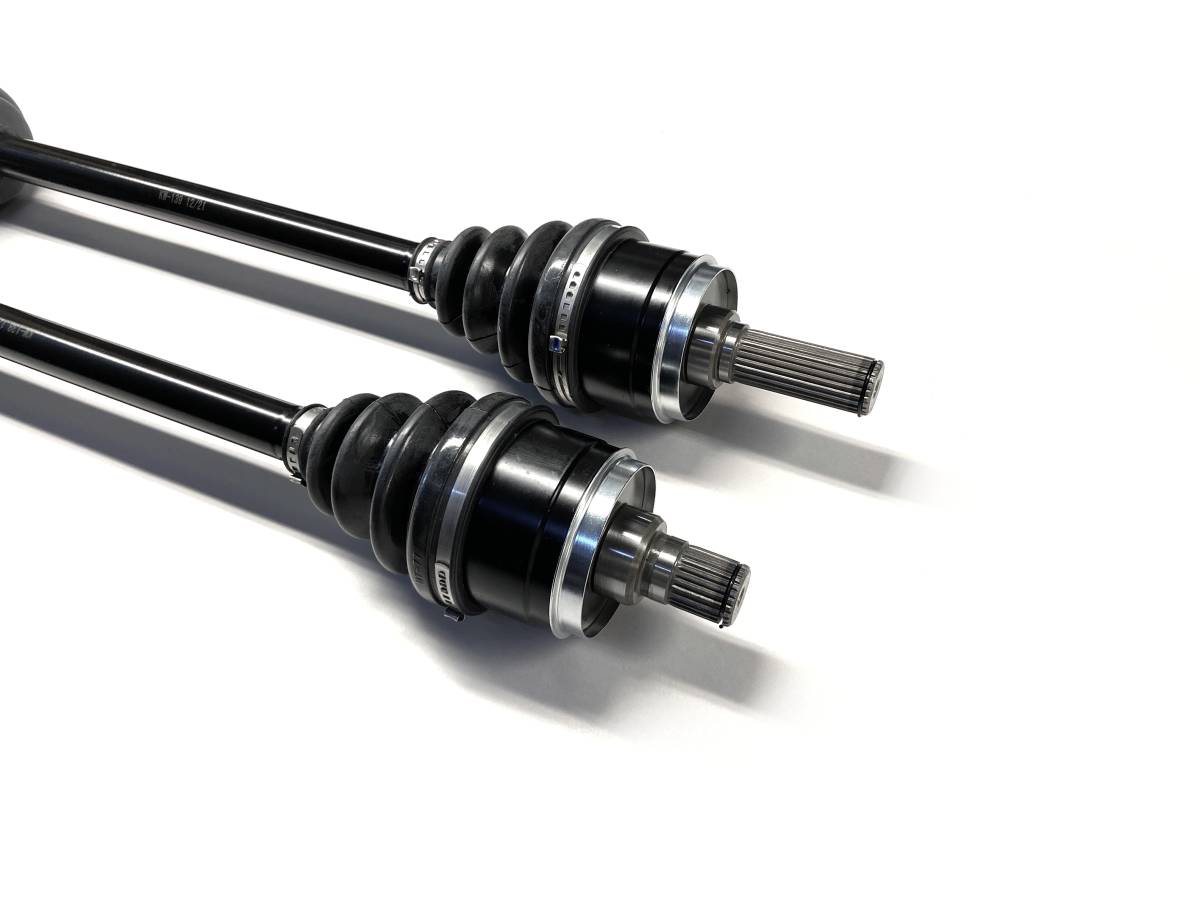

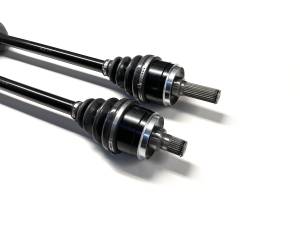

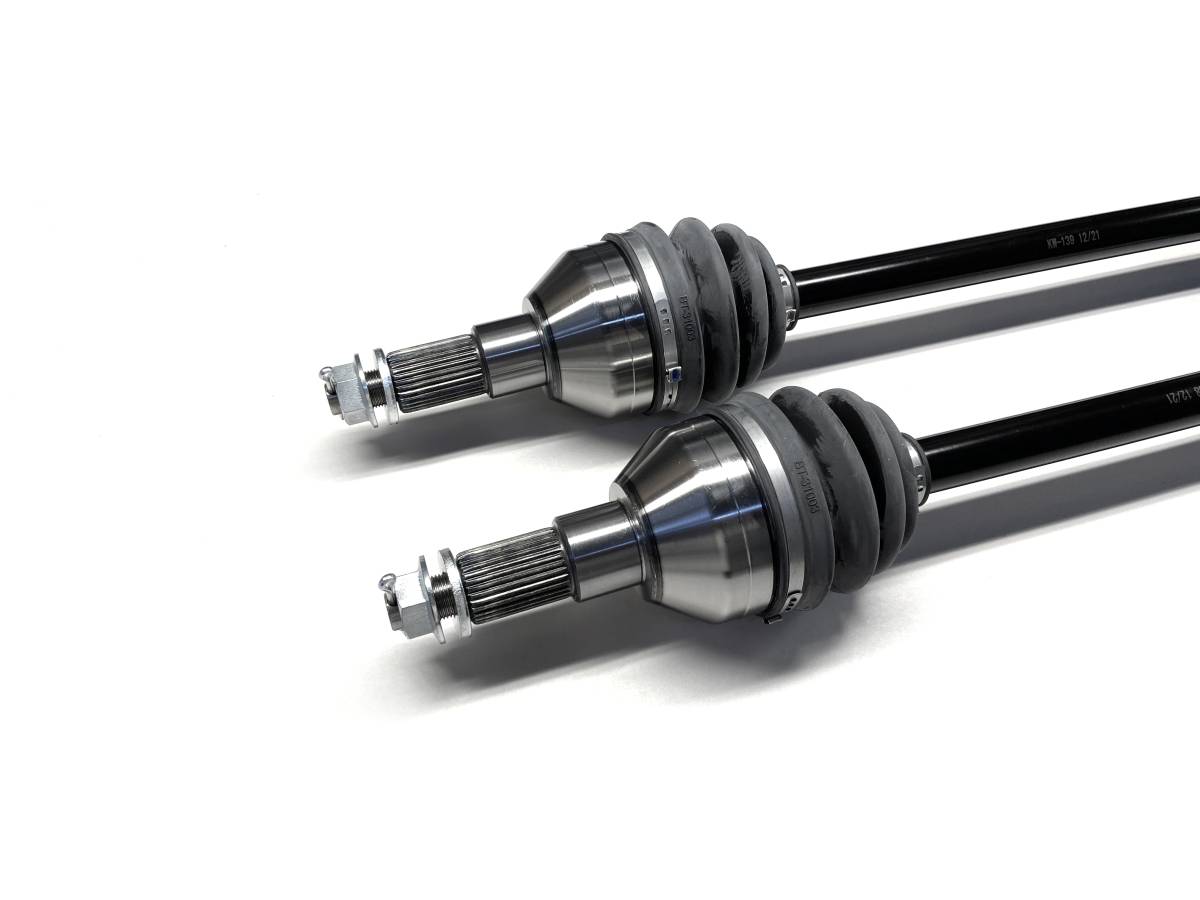

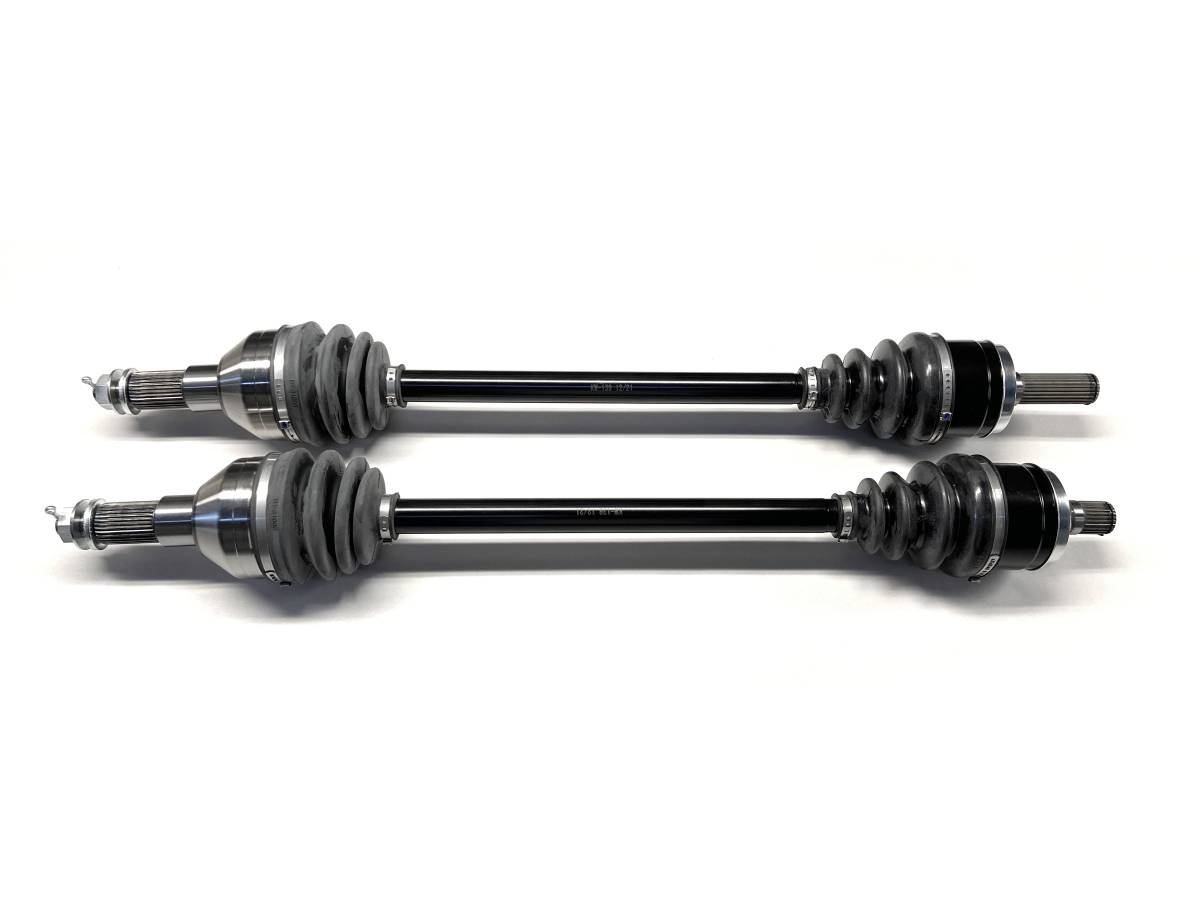

Front CV Axle Pair for Kawasaki Teryx KRX 1000 2020-2022

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
KW-138/KW-139
This is a pair of new, complete CV axles for a Kawasaki UTV.

They will fit the following models:

2020-2022 ... Teryx KRX 1000

front, left & right side

*Axles made as OE replacements, and are not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • inobard CV joint spline count: 26 (both)
  • outboard CV joint spline count: 32 (both)
  • Compressed overall axle length: FL: 806mm, FR: 835mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $199.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022KawasakiTeryx KRX 1000KRF1000
2022KawasakiTeryx KRX 1000KRF1000 Special Edition
2022KawasakiTeryx KRX 1000KRF1000 Trail Edition
2021KawasakiTeryx KRX 1000KRF1000
2021KawasakiTeryx KRX 1000KRF1000 Special Edition
2021KawasakiTeryx KRX 1000KRF1000 Trail Edition
2021KawasakiTeryx KRX 1000KRF1000 eS
2020KawasakiTeryx KRX 1000KRF1000

Product Notes

  • Fits front, left & right on the following Kawasaki SXS models: 2020-2022 Teryx KRX 1000.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 59266-0732, 59266-0733. Inboard CV joint spline count: 26 (both), Outboard CV joint spline count: 32 (both), Compressed overall axle length: FL: 806 mm, FR: 835 mm
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • KW-138/KW-139
    • KW-138/KW-139
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 41.0 lbs.
    • W5.0000” x H10.0000” x L40.0000”
