Rear CV Axle Pair for Can-Am Outlander 500 570 650 800 850 1000 4x4

Location on vehicle: Rear,Left,Right

CA-301/CA-302

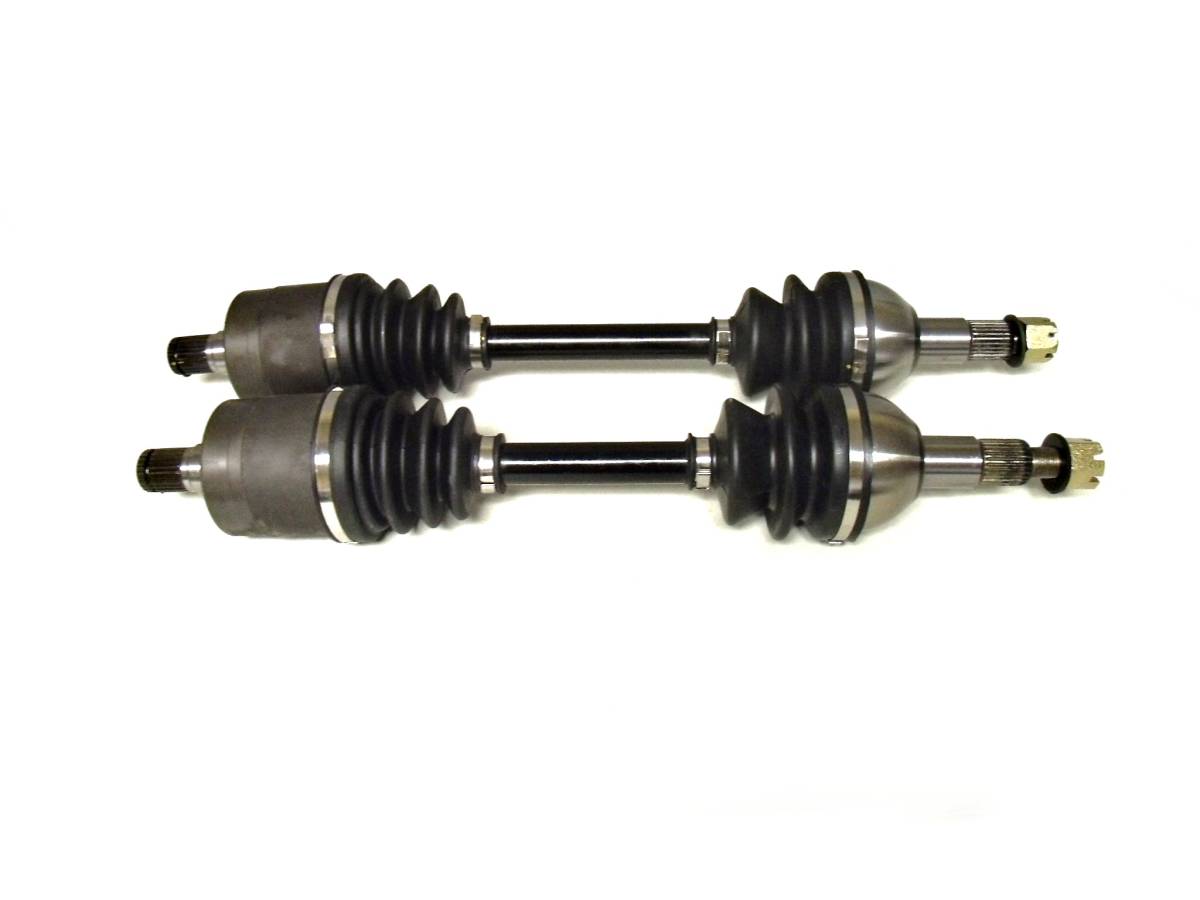

This is a pair of new Rear CV axles for a Can-Am ATV.

They fit the following 4x4 applications:

2013-2015 ... Outlander Max 400

2007-2015 ... Outlander 500 / Max 500

(excluding 2015 L 500 models)

2016-2017 ... Outlander 570 / Max 570

2006-2017 ... Outlander 650 / Max 650

2006-2015 ... Outlander 800 / Max 800

(excluding XMR models)

2016-2017 ... Outlander 850 / Max 850

(excluding XMR models)

2012-2017 ... Outlander 1000

(only XMR models from 2012-2014 and not after)

2013-2017 ... Outlander Max 1000

2008-2015 ... Renegade 500

2007-2015 ... Renegade 800

2016-2018 ... Renegade 850 / XXC 850

2012-2018 ... Renegade 1000

(excluding XMR models)

*Not intended for use on lifted vehicles

Product features:

  • Designed and manufactured to meet or exceed OEM specifications
  • Replaces OE # 705500867, 705500979, 705501485, 705500868, 705500983, 705501486, 705502473
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed axle length: Left - 554 mm, Right - 513 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $169.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits (excluding XMR, XXC, or L models): 2007-2014 Outlander 500 / Max 500, 2016-2017 Outlander 570 / Max 570, 2006-2019 Outlander 650 / Max 650, 2006-2015 Outlander 800 / Max 800, 2016-2017 Outlander 850 / Max 850, 2012-2018 Outlander 1000 / Max 1000.
  • Also fits (including XXC versions) 2008-2015 Renegade 500, 2007-2015 Renegade 800, 2016-2018 Renegade 850, 2012-2018 Renegade 1000.
  • Features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Replaces Can-Am OE # 705500867, 705500979, 705501485, 705500868, 705500983, 705501486, 705502473. Compressed Length - Left - 554 mm, Right - 513 mm, Inboard Spline Count - 24 (both), Outboard Spline Count - 26 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2014Can-AmOutlander 5004x4 DPS EFI
    2014Can-AmOutlander 5004x4 EFI
    2014Can-AmOutlander 5004x4 XT EFI
    2013Can-AmOutlander 5004x4 DPS EFI
    2013Can-AmOutlander 5004x4 EFI
    2013Can-AmOutlander 5004x4 XT EFI
    2012Can-AmOutlander 5004x4 EFI
    2012Can-AmOutlander 5004x4 XT EFI
    2011Can-AmOutlander 5004x4 EFI
    2011Can-AmOutlander 5004x4 XT EFI
    2010Can-AmOutlander 5004x4 HO EFI
    2010Can-AmOutlander 5004x4 XT HO EFI
    2010Can-AmOutlander 5004x4 XTP HO EFI
    2009Can-AmOutlander 5004x4 HO EFI
    2009Can-AmOutlander 5004x4 XT HO EFI
    2008Can-AmOutlander 5004x4 HO EFI
    2008Can-AmOutlander 5004x4 XT HO EFI
    2007Can-AmOutlander 5004x4 HO EFI
    2007Can-AmOutlander 5004x4 XT HO EFI
    2015Can-AmOutlander 6504X4
    2015Can-AmOutlander 6504x4 DPS
    2015Can-AmOutlander 6504x4 XMR
    2015Can-AmOutlander 6504x4 XT
    2014Can-AmOutlander 6504x4 DPS EFI
    2014Can-AmOutlander 6504x4 EFI
    2014Can-AmOutlander 6504x4 XMR
    2014Can-AmOutlander 6504x4 XT EFI
    2013Can-AmOutlander 6504x4 DPS EFI
    2013Can-AmOutlander 6504x4 EFI
    2013Can-AmOutlander 6504x4 XMR EFI
    2013Can-AmOutlander 6504x4 XT EFI
    2012Can-AmOutlander 6504x4 EFI
    2012Can-AmOutlander 6504x4 XT EFI
    2011Can-AmOutlander 6504x4 EFI
    2011Can-AmOutlander 6504x4 XT EFI
    2011Can-AmOutlander 6504x4 XTP EFI
    2010Can-AmOutlander 6504x4 HO EFI
    2010Can-AmOutlander 6504x4 XT HO EFI
    2010Can-AmOutlander 6504x4 XTP EFI
    2010Can-AmOutlander 6504x4 XTP HO EFI
    2009Can-AmOutlander 6504x4 HO EFI
    2009Can-AmOutlander 6504x4 XT HO EFI
    2008Can-AmOutlander 6504x4 HO EFI
    2008Can-AmOutlander 6504x4 XT HO EFI
    2007Can-AmOutlander 6504x4 HO EFI
    2007Can-AmOutlander 6504x4 XT HO EFI
    2008Can-AmOutlander 8004x4 HO EFI
    2008Can-AmOutlander 8004x4 XT HO EFI
    2007Can-AmOutlander 8004x4 HO EFI
    2007Can-AmOutlander 8004x4 XT HO EFI
    2015Can-AmOutlander 800R4X4
    2015Can-AmOutlander 800R4x4 DPS
    2015Can-AmOutlander 800R4x4 XT
    2015Can-AmOutlander 800R4x4 XTP
    2014Can-AmOutlander 800R4x4 DPS EFI
    2014Can-AmOutlander 800R4x4 EFI
    2014Can-AmOutlander 800R4x4 XMR EFI
    2014Can-AmOutlander 800R4x4 XT EFI
    2014Can-AmOutlander 800R4x4 XTP EFI
    2013Can-AmOutlander 800R4x4 DPS EFI
    2013Can-AmOutlander 800R4x4 EFI
    2013Can-AmOutlander 800R4x4 XT EFI
    2013Can-AmOutlander 800R4x4 XTP EFI
    2012Can-AmOutlander 800R4x4 EFI
    2012Can-AmOutlander 800R4x4 XT EFI
    2011Can-AmOutlander 800R4x4 EFI
    2011Can-AmOutlander 800R4x4 XT EFI
    2011Can-AmOutlander 800R4x4 XTP EFI
    2010Can-AmOutlander 800R4x4 HO EFI
    2010Can-AmOutlander 800R4x4 XT HO EFI
    2010Can-AmOutlander 800R4x4 XTP EFI
    2010Can-AmOutlander 800R4x4 XTP HO EFI
    2009Can-AmOutlander 800R4x4 HO EFI
    2009Can-AmOutlander 800R4x4 XT HO EFI
    2017Can-AmOutlander 8504x4 DPS
    2017Can-AmOutlander 8504x4 XT-P DPS
    2017Can-AmOutlander 8504x4 XT DPS
    2016Can-AmOutlander 8504x4 DPS
    2016Can-AmOutlander 8504x4 XT-P DPS
    2016Can-AmOutlander 8504x4 XT DPS
    2016Can-AmOutlander 10006x6 XT
    2016Can-AmOutlander 10006x6 XT Camo DPS
    2015Can-AmOutlander 10004x4 DPS
    2015Can-AmOutlander 10004x4 XT
    2015Can-AmOutlander 10004x4 XTP
    2015Can-AmOutlander 10006x6 XT
    2014Can-AmOutlander 10004x4 DPS EFI
    2014Can-AmOutlander 10004x4 XT EFI
    2014Can-AmOutlander 10004x4 XTP EFI
    2013Can-AmOutlander 10004x4 DPS EFI
    2013Can-AmOutlander 10004x4 XT EFI
    2013Can-AmOutlander 10004x4 XTP EFI
    2012Can-AmOutlander 10004x4 EFI
    2012Can-AmOutlander 10004x4 XT EFI
    2017Can-AmOutlander 1000R4x4 DPS
    2017Can-AmOutlander 1000R4x4 Mossy Oak Hunting Edition DPS
    2017Can-AmOutlander 1000R4x4 XT-P DPS
    2017Can-AmOutlander 1000R4x4 XT DPS
    2016Can-AmOutlander 1000R4x4 DPS
    2016Can-AmOutlander 1000R4x4 XT-P DPS
    2016Can-AmOutlander 1000R4x4 XT DPS
    2014Can-AmOutlander Max 5004x4 DPS EFI
    2014Can-AmOutlander Max 5004x4 EFI
    2014Can-AmOutlander Max 5004x4 XT EFI
    2013Can-AmOutlander Max 5004x4 DPS EFI
    2013Can-AmOutlander Max 5004x4 EFI
    2013Can-AmOutlander Max 5004x4 XT EFI
    2012Can-AmOutlander Max 5004X4
    2012Can-AmOutlander Max 5004x4 EFI
    2012Can-AmOutlander Max 5004x4 XT EFI
    2011Can-AmOutlander Max 5004x4 EFI
    2011Can-AmOutlander Max 5004x4 XT EFI
    2010Can-AmOutlander Max 5004x4 HO EFI
    2010Can-AmOutlander Max 5004x4 LTD HO EFI
    2010Can-AmOutlander Max 5004x4 XT HO EFI
    2010Can-AmOutlander Max 5004x4 XTP HO EFI
    2009Can-AmOutlander Max 5004x4 HO EFI
    2009Can-AmOutlander Max 5004x4 XT HO EFI
    2008Can-AmOutlander Max 5004x4 HO EFI
    2008Can-AmOutlander Max 5004x4 XT HO EFI
    2007Can-AmOutlander Max 5004x4 HO EFI
    2007Can-AmOutlander Max 5004x4 XT HO EFI
    2015Can-AmOutlander Max 6504X4
    2015Can-AmOutlander Max 6504x4 DPS
    2015Can-AmOutlander Max 6504x4 XT
    2014Can-AmOutlander Max 6504x4 DPS EFI
    2014Can-AmOutlander Max 6504x4 EFI
    2014Can-AmOutlander Max 6504x4 XT EFI
    2013Can-AmOutlander Max 6504x4 DPS EFI
    2013Can-AmOutlander Max 6504x4 EFI
    2013Can-AmOutlander Max 6504x4 XT EFI
    2012Can-AmOutlander Max 6504x4 EFI
    2012Can-AmOutlander Max 6504x4 XT EFI
    2012Can-AmOutlander Max 6504x4 XTP EFI
    2011Can-AmOutlander Max 6504x4 EFI
    2011Can-AmOutlander Max 6504x4 XT EFI
    2011Can-AmOutlander Max 6504x4 XTP EFI
    2010Can-AmOutlander Max 6504x4 HO EFI
    2010Can-AmOutlander Max 6504x4 XT HO EFI
    2010Can-AmOutlander Max 6504x4 XTP EFI
    2010Can-AmOutlander Max 6504x4 XTP HO EFI
    2009Can-AmOutlander Max 6504x4 HO EFI
    2009Can-AmOutlander Max 6504x4 XT HO EFI
    2008Can-AmOutlander Max 6504x4 HO EFI
    2008Can-AmOutlander Max 6504x4 XT HO EFI
    2007Can-AmOutlander Max 6504x4 HO EFI
    2007Can-AmOutlander Max 6504x4 XT HO EFI
    2008Can-AmOutlander Max 8004x4 HO EFI
    2008Can-AmOutlander Max 8004x4 LTD HO EFI
    2008Can-AmOutlander Max 8004x4 XT HO EFI
    2007Can-AmOutlander Max 8004x4 HO EFI
    2007Can-AmOutlander Max 8004x4 LTD HO EFI
    2007Can-AmOutlander Max 8004x4 XT HO EFI
    2015Can-AmOutlander Max 800R4x4 DPS
    2015Can-AmOutlander Max 800R4x4 XT
    2015Can-AmOutlander Max 800R4x4 XTP
    2014Can-AmOutlander Max 800R4x4 DPS EFI
    2014Can-AmOutlander Max 800R4x4 XT EFI
    2014Can-AmOutlander Max 800R4x4 XTP EFI
    2013Can-AmOutlander Max 800R4x4 DPS EFI
    2013Can-AmOutlander Max 800R4x4 XT EFI
    2013Can-AmOutlander Max 800R4x4 XTP EFI
    2012Can-AmOutlander Max 800R4x4 EFI
    2012Can-AmOutlander Max 800R4x4 LTD EFI
    2012Can-AmOutlander Max 800R4x4 XT EFI
    2012Can-AmOutlander Max 800R4x4 XTP EFI
    2011Can-AmOutlander Max 800R4x4 EFI
    2011Can-AmOutlander Max 800R4x4 LTD EFI
    2011Can-AmOutlander Max 800R4x4 XT EFI
    2011Can-AmOutlander Max 800R4x4 XTP EFI
    2010Can-AmOutlander Max 800R4x4 HO EFI
    2010Can-AmOutlander Max 800R4x4 LTD HO EFI
    2010Can-AmOutlander Max 800R4x4 XT HO EFI
    2010Can-AmOutlander Max 800R4x4 XTP EFI
    2010Can-AmOutlander Max 800R4x4 XTP HO EFI
    2009Can-AmOutlander Max 800R4x4 HO EFI
    2009Can-AmOutlander Max 800R4x4 LTD HO EFI
    2009Can-AmOutlander Max 800R4x4 XT HO EFI
    2017Can-AmOutlander Max 8504x4 XT DPS
    2017Can-AmOutlander Max 8504x4 XTP DPS
    2016Can-AmOutlander Max 8504x4 XT DPS
    2016Can-AmOutlander Max 8504x4 XTP DPS
    2015Can-AmOutlander Max 10004x4 DPS
    2015Can-AmOutlander Max 10004x4 LTD
    2015Can-AmOutlander Max 10004x4 XT
    2015Can-AmOutlander Max 10004x4 XTP
    2014Can-AmOutlander Max 10004x4 DPS EFI
    2014Can-AmOutlander Max 10004x4 LTD EFI
    2014Can-AmOutlander Max 10004x4 XT EFI
    2014Can-AmOutlander Max 10004x4 XTP EFI
    2013Can-AmOutlander Max 10004x4 DPS EFI
    2013Can-AmOutlander Max 10004x4 LTD EFI
    2013Can-AmOutlander Max 10004x4 XT EFI
    2013Can-AmOutlander Max 10004x4 XTP EFI
    2016Can-AmOutlander Max 1000R4x4 LTD DPS
    2016Can-AmOutlander Max 1000R4x4 XT Camo DPS
    2016Can-AmOutlander Max 1000R4x4 XT DPS
    2016Can-AmOutlander Max 1000R4x4 XTP DPS
    2015Can-AmRenegade 5004X4
    2014Can-AmRenegade 5004x4 EFI
    2013Can-AmRenegade 5004x4 EFI
    2012Can-AmRenegade 5004x4 EFI
    2011Can-AmRenegade 5004x4 EFI
    2010Can-AmRenegade 5004x4 EFI
    2009Can-AmRenegade 5004X4
    2008Can-AmRenegade 5004x4 HO EFI
    2008Can-AmRenegade 8004x4 HO EFI
    2008Can-AmRenegade 8004x4 X HO EFI
    2007Can-AmRenegade 8004x4 HO EFI
    2015Can-AmRenegade 800R4X4
    2015Can-AmRenegade 800R4x4 XXC
    2014Can-AmRenegade 800R4x4 EFI
    2014Can-AmRenegade 800R4x4 XXC EFI
    2013Can-AmRenegade 800R4x4 EFI
    2013Can-AmRenegade 800R4x4 XXC EFI
    2012Can-AmRenegade 800R4x4 EFI
    2012Can-AmRenegade 800R4x4 XXC EFI
    2011Can-AmRenegade 800R4x4 EFI
    2011Can-AmRenegade 800R4x4 XXC EFI
    2010Can-AmRenegade 800R4x4 EFI
    2010Can-AmRenegade 800R4x4 XXC EFI
    2009Can-AmRenegade 800R4x4 EFI
    2009Can-AmRenegade 800RX 4x4 EFI
    2017Can-AmRenegade 8504X4
    2016Can-AmRenegade 8504X4
    2015Can-AmRenegade 10004X4
    2015Can-AmRenegade 10004x4 XXC
    2014Can-AmRenegade 10004x4 EFI
    2014Can-AmRenegade 10004x4 XXC EFI
    2013Can-AmRenegade 10004x4 EFI
    2013Can-AmRenegade 10004x4 XXC EFI
    2012Can-AmRenegade 10004x4 EFI
    2012Can-AmRenegade 10004x4 XXC EFI
    2017Can-AmRenegade 1000R4X4
    2016Can-AmRenegade 1000R4X4
    2016Can-AmRenegade 1000R4x4 XMR DPS
    2016Can-AmRenegade 1000R4x4 XXC DPS

    Details

    • CA-301/CA-302
    • CA-301/CA-302
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 24.6 lbs.
    • W10.0000” x H5.0000” x L26.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
